04C5 - Side impact sensor driver side open circuit/short to battery (control unit defective) airbag control unit fault

What does error code 04C5 mean?

Error code 04C5 indicates a specific electrical fault in the driver-side side‑impact sensor. Specifically, the code points to an open circuit or a short to positive, disrupting signal transmission between the sensor and the airbag control unit. This results in deactivation of the affected airbag circuit and poses a significant safety risk.

Technically, the airbag control unit detects an implausible or missing resistance value from the driver‑side crash sensor. The system interprets this as a critical defect that would prevent proper deployment of the side airbag in the event of a collision.

Due to the safety‑critical nature of this fault, the airbag warning light remains illuminated permanently, and the error is stored in the memory until the root cause is professionally resolved and the fault memory is cleared.

How can you recognize error 04C5?

The primary and unmistakable symptom of error code 04C5 is the continuously illuminated airbag warning light on the instrument cluster. It does not turn off after starting the vehicle, indicating that the airbag system has detected a critical fault and is no longer fully operational.

Typically, there are no other noticeable symptoms or functional issues with the vehicle. The only indication is the warning message in the cockpit, informing the driver that part of the restraint system has been deactivated.

When reading the fault memory with an appropriate diagnostic tool, error code 04C5 appears alongside the description “Driver Side Side Impact Sensor Open Circuit/Short to Positive,” enabling targeted troubleshooting.

Why does error 04C5 occur?

The most common cause of error 04C5 is a physical cable break or a defective connector within the wiring harness leading to the driver’s door. Other reasons include a faulty side‑impact sensor itself or, in rarer cases, an internal defect in the airbag control unit.

Cable breaks frequently occur in the area of the rubber bellows joint between the A‑pillar and the driver’s door. Constant mechanical stress from opening and closing the door leads over time to material fatigue and the breaking of individual wires. Corrosion at the connectors in the door junction block can also result in an open circuit.

An additional possibility is a defect in the crash sensor itself. Often installed beneath the driver’s seat, the sensor may be damaged by moisture or mechanical impact, causing an internal short circuit or open circuit.

If the fault cannot be traced back to either the wiring or the sensor, the cause may lie in the airbag control unit. Damaged circuit traces or other electronic components inside the control unit can trigger error code 04C5.

In which models does error 04C5 occur?

Error code 04C5 commonly affects vehicles from the VAG Group. Particularly affected are Seat models such as the Leon, Volkswagen models like the Passat and Golf, as well as various Skoda models that use identical airbag systems and sensors.

At Airbag24, we repair error code 04C5 for the following models and series:

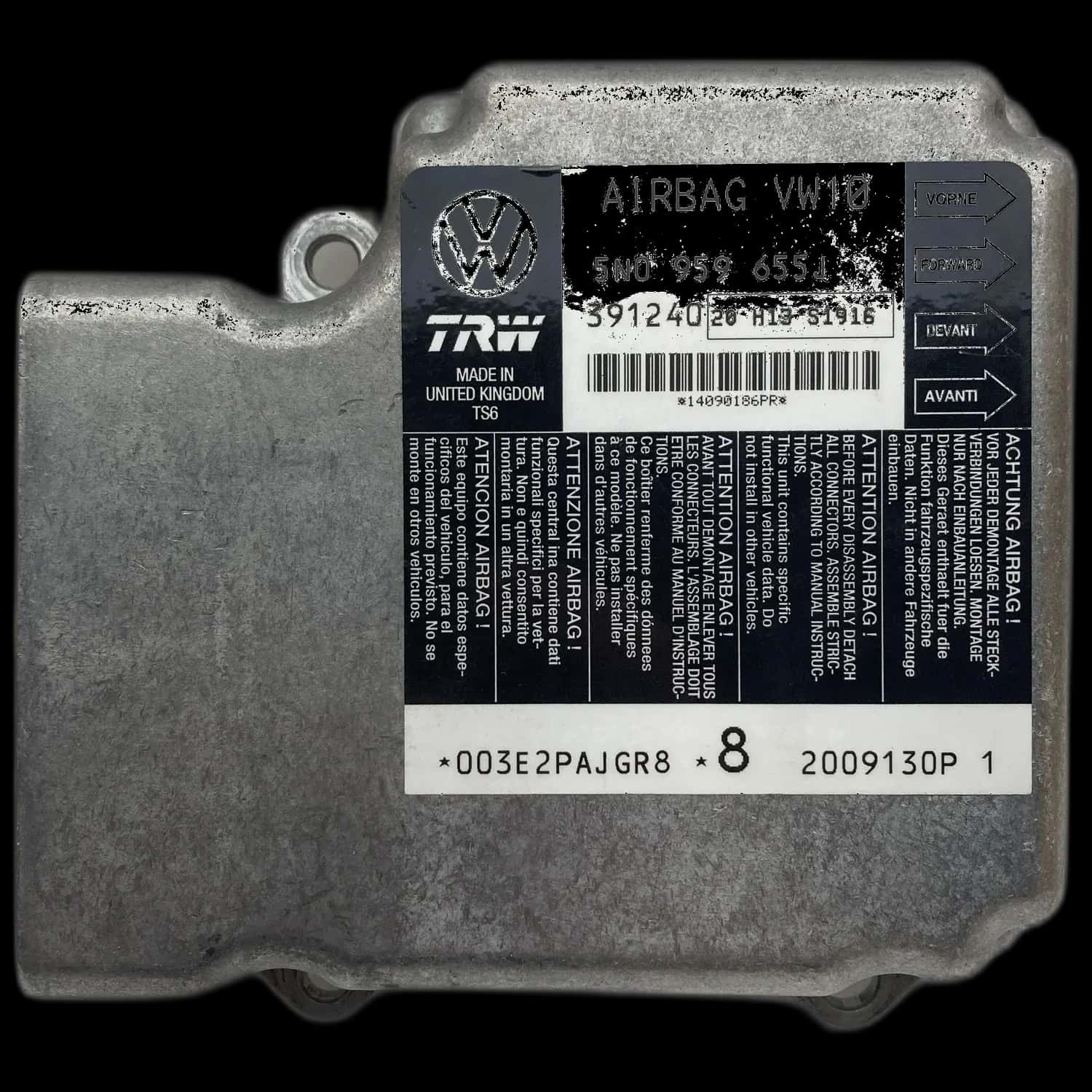

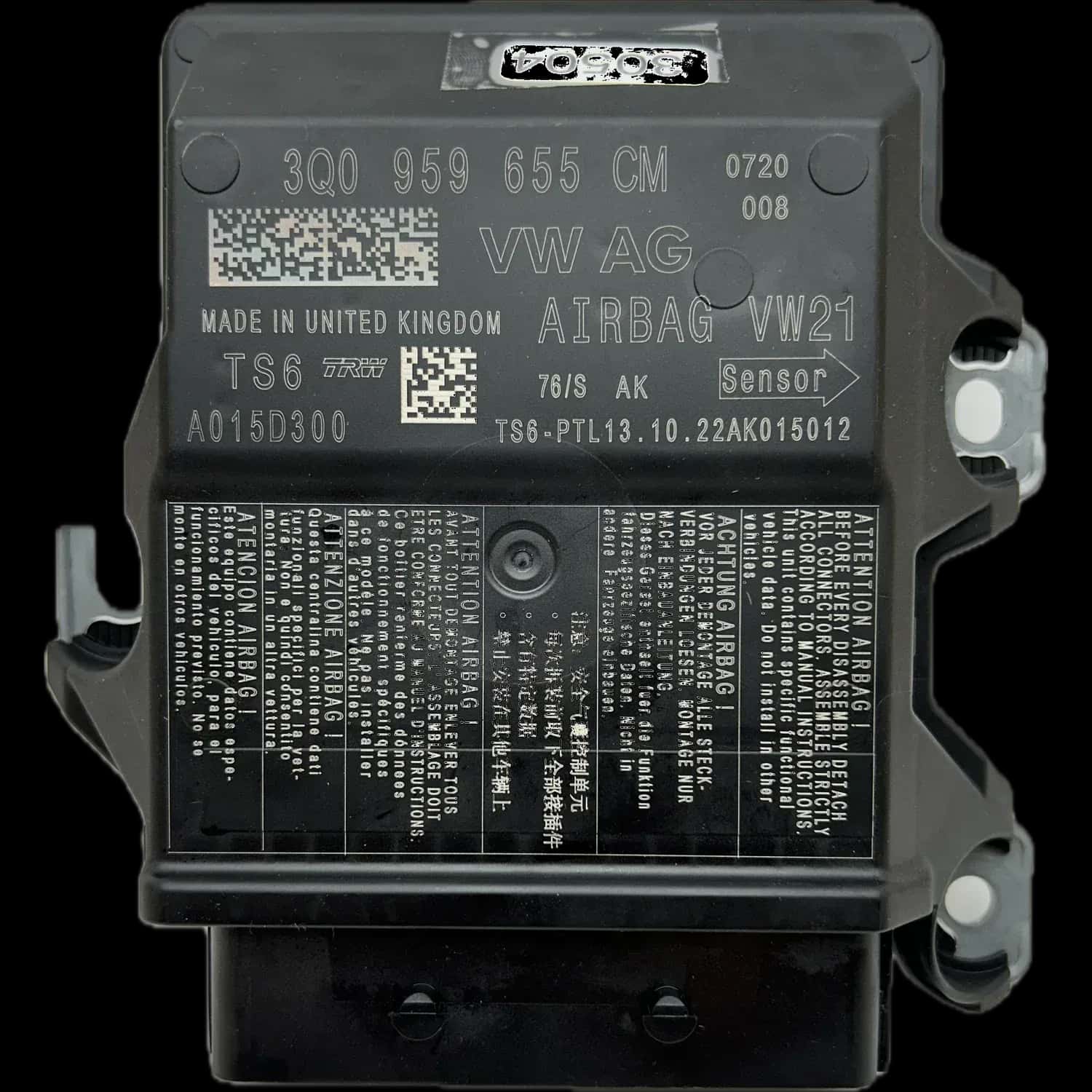

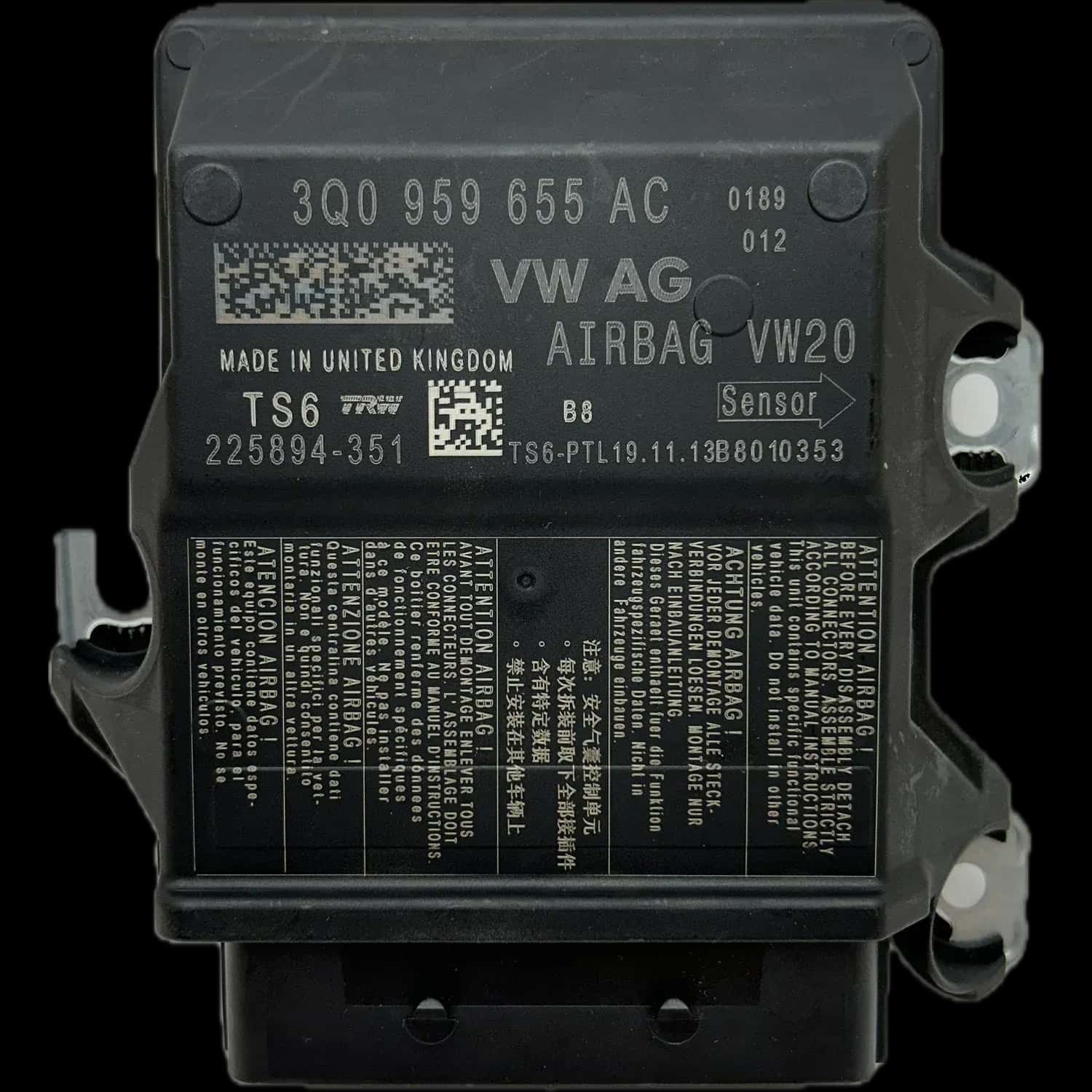

Seat: Leon 2 [1P] (2005–2009), Leon 2 [1P] Facelift (2009–2012), Leon 3 [5F] (2012–2020), Leon 4 [KL] (from 2020)

Volkswagen: Passat B6 3C (2005–2010), Golf 6 5K1

Skoda: Various models equipped with identical airbag systems

How is error 04C5 professionally repaired?

Repair begins with precise diagnosis of cables and connectors, often through visual inspection and resistance testing. Any identified cable breaks are crimped rather than soldered. If the control unit is the source of the problem, it is sent to Airbag24 for component-level refurbishment, thorough testing, and final reprogramming.

For safety reasons, the vehicle battery must be disconnected before any work is performed on the airbag system. Subsequently, the wiring—especially in the door area—is carefully inspected. Damaged cables are repaired by crimping and insulated with heat‑shrink tubing, since solder joints can crack under vibration.

If the wiring is intact, the sensor is checked and replaced if necessary. Should the fault persist, the airbag control unit is likely the culprit. It is removed and sent for analysis.

At Airbag24, repairs follow a standardized process: the control unit is opened, its electronics are examined, and defective components are replaced. Following successful restoration, the device undergoes testing and the fault memory is cleared. After reinstalling the unit in the vehicle, the error code must be definitively erased. We provide 2 years' statutory liability for defects on all repairs.
