B0026 airbag control unit fault

What does error code B0026 mean?

Error code B0026 primarily indicates excessively high resistance in the driver airbag ignition circuit. The airbag control unit (SRS) directly detects this excessive resistance and stores the fault, typically causing the airbag warning light to remain illuminated permanently. This is a specific hardware fault within the ignition circuit.

Technically speaking, the control unit continuously monitors the integrity of the ignition circuits. Resistance exceeding the predefined threshold is interpreted as an open circuit or a high‑impedance connection. In response, the system enters a safety mode, deactivates the affected airbag circuit, and alerts the driver via the warning light.

The root cause often lies directly within the control unit itself—such as faulty internal components—rather than necessarily in the external wiring or the coil. Therefore, precise diagnosis is crucial to accurately pinpoint the source of the fault.

What symptoms are associated with B0026?

The main symptom of error code B0026 is the permanently illuminated airbag warning light on the instrument cluster. Often, this error code cannot be cleared using standard diagnostic tools. In some cases, communication with the airbag control unit is completely blocked, further complicating diagnosis.

The airbag indicator remains lit continuously and does not turn off after starting the vehicle. This is a clear sign of a persistent, safety‑critical fault in the system.

Another common feature is that the fault is stored in the fault memory as “non‑erasable.” Even after attempting repairs to the wiring, the code persists, suggesting a defect within the control unit itself.

In certain situations, diagnostic equipment may lose connectivity with the airbag control unit altogether. This loss of communication strongly indicates a severe internal malfunction of the control unit.

Error code B0026 frequently occurs alongside other codes such as B1000 (control unit functional failure) or B0096/B0097, which also point to malfunctions within the airbag system.

What causes B0026?

The most common cause of B0026 is excessively high resistance in the driver airbag ignition circuit, often stemming from an internal defect within the control unit itself. Additional factors may include broken wires, corroded connectors, or crash data stored in the control unit that can block system functionality.

The primary and most frequently reported cause is elevated resistance in the driver airbag ignition circuit. Since measurements are taken directly within the control unit, it often serves as the source of the fault, while the coil itself usually remains intact.

An internal defect in the control unit is also a very common culprit. This can involve issues with the internal memory (EEPROM) or other electronic components responsible for resistance measurement.

Damages to the wiring—such as cable breaks or corroded connectors between the control unit and the airbag module—can likewise lead to unacceptable increases in circuit resistance.

Crash data stored following an accident may lock the control unit and generate persistent error codes. Such data must be professionally erased to restore full functionality.

Additionally, error code B0026 may appear in conjunction with related codes like B0022 (resistance too low) or B0098 (other ignition circuit faults), indicating complex problems within the SRS system.

Which vehicles are affected by B0026?

Error code B0026 predominantly affects vehicles manufactured by the General Motors group. Affected models include various Opel, Saab, Chevrolet, and Pontiac vehicles. However, this error code can also occur in vehicles from Maserati, Dacia, or Suzuki.

At Airbag24, we repair error code B0026 across a wide range of models, including:

Chevrolet: Blazer (5th Gen), Corvette Z06 (C5), Matiz (4th Gen), SSR (1st Gen), Suburban (4th Gen), Venture (1st Gen & Facelift)

Dacia: Duster Prestige I

General Motors: EV1 I, Sequel Concept

Lexus: ES MCV20 (1996–2001)

Maserati: A9 GCS

Opel: Meriva A (2003–2010), Meriva B (2010–2017), Adam A (2012–2019)

Pontiac: Firebird (F-Body, Formula, Trans Am, Ram Air, Firehawk, 1993–2002), Pursuit G5

Rolls-Royce: Silver Spirit Series III (1994–1995)

Rover: Streetwise S

Saab: 900 (II NG, S, SE, Turbo, Convertible, Anniversary), 9000 (CC, CC Facelift, Turbo, Griffin), 9-3 (Vector, Arc, Turbo, SportSedan, SportWagon, Anniversary), 9-5 (S, Linear, Vector, Arc, SportCombi, Estate, Hirsch, Griffin), 9-2X Aero (2004–2006), 9-7X Arc (2005–2008)

SsangYong: Musso Q200 (2018–2022) & Facelift

Suzuki: Ignis Sport, Vitara S

How does the repair process work at Airbag24?

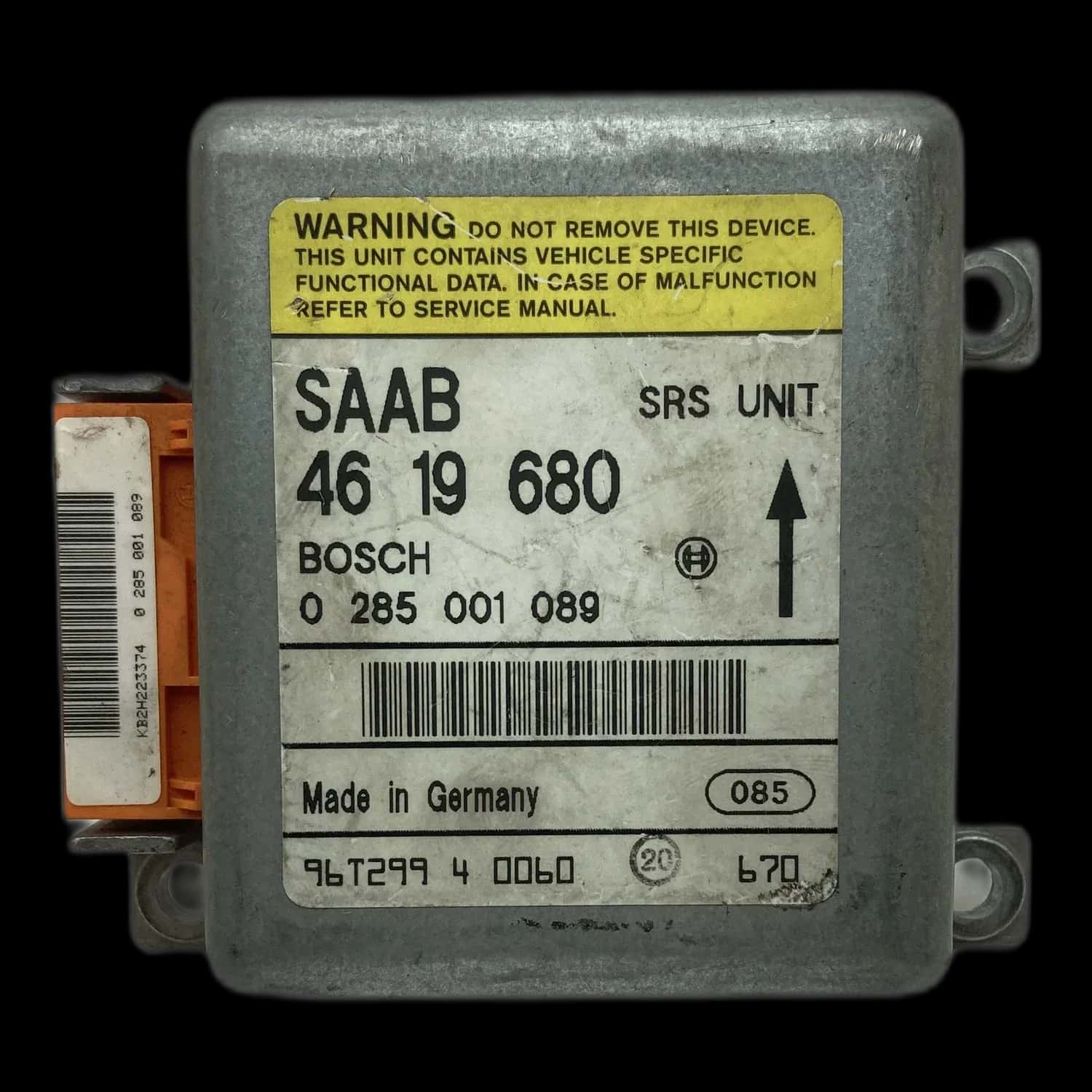

The B0026 fault is repaired by overhauling the removed airbag control unit. After sending it to Airbag24, the unit is inspected, defective components are replaced at the component level, and any stored crash data is erased. A comprehensive functional test is then performed before the unit is returned.

Before removal, a precise diagnosis should be carried out at a specialized workshop. This involves reading the fault memory and checking the external wiring to confirm that the defect truly lies within the control unit. Ideally, please include the diagnostic report with your package.

Upon receipt of the unit at Airbag24, a detailed analysis is conducted. Our technicians examine the circuit board for defects and identify the faulty components causing the high resistance. At the same time, any stored crash data is cleared from the internal memory.

The actual repair consists of replacing the defective components on the circuit board. Once the overhaul is complete, the control unit undergoes a thorough functional test to verify proper operation of all ignition circuits.

A repair is significantly more cost-effective than purchasing a new part and eliminates the need for re-coding or reprogramming in the vehicle. All repairs come with 2 years' statutory liability for defects.
