B00A0 airbag control unit fault

What does error code B00A0 mean in the airbag control unit?

Error code B00A0 indicates a sub‑error within the Occupant Classification System (OCS), meaning the system responsible for classifying occupants. This implies that the function detecting whether the front passenger seat is occupied is malfunctioning. Consequently, the airbag control unit cannot reliably determine whether and how the front passenger airbag should be deployed in the event of a crash.

The airbag control unit serves as the central control module for all passive safety systems in the vehicle. One of its critical tasks is processing data from the seat‑occupancy sensor located on the front passenger seat. These sensors not only detect whether the seat is occupied but also estimate the approximate weight of the occupant.

Based on this information, the system decides whether to activate or deactivate the front passenger airbag, thereby preventing injuries caused by the airbag in cases involving lighter occupants or child seats. Error code B00A0 signals that this evaluation process has failed, compromising the system’s ability to ensure safety.

The control unit stores this fault in its internal fault memory and immediately illuminates the airbag warning light to alert the driver to the issue.

How can you recognize error code B00A0?

The primary and unmistakable symptom of error code B00A0 is the continuously illuminated airbag warning light on the instrument cluster. Additionally, the status indicator for the front passenger airbag—often labeled “Passenger Airbag OFF”—may display an incorrect state that does not reflect the actual seat occupancy.

Once the airbag control unit detects error code B00A0 through its self‑diagnostic routine, the yellow or red SRS warning light (Supplemental Restraint System) will illuminate. It remains lit after the engine starts, indicating an active, safety‑relevant fault.

During a workshop diagnosis, error code B00A0 can be retrieved from the airbag module’s fault memory. In some vehicles, a general error message may also appear on the infotainment display, signaling a problem with the airbag system.

What are the most common causes of error code B00A0?

The causes of B00A0 are almost exclusively hardware‑related. Common issues include poor electrical connections beneath the front passenger seat, damaged cables, or a defective seat‑occupancy sensor mat. A faulty coil spring or electronic components damaged by water ingress can also trigger this error.

A major source of problems lies in the connectors under the front seats. Especially in three‑door models, frequent forward and backward movement of the seats puts significant stress on cables and plugs. Over time, contacts may loosen or corrode, leading to signal interruptions.

The sensors within the seat‑occupancy mat itself can also fail. Mechanical wear or aging can prevent the mat from transmitting accurate weight data to the control unit.

Another potential culprit is a defective coil spring on the steering wheel. Although primarily intended for the driver’s airbag, it is integral to the entire SRS system, and a failure here can cause cross‑system malfunctions.

Rarer but more serious is a defect within the airbag control unit itself, often resulting from water ingress and subsequent short circuits on the circuit board.

In which vehicles does error code B00A0 occur?

Error code B00A0 has been documented predominantly in various Nissan models. Affected vehicles include sedans, electric cars, and sports cars spanning multiple model years. For these models, targeted repair of the control unit is a proven solution.

At Airbag24, we specialize in repairing error code B00A0 for the following Nissan models:

Nissan Altima L33 (model years 2012–2018)

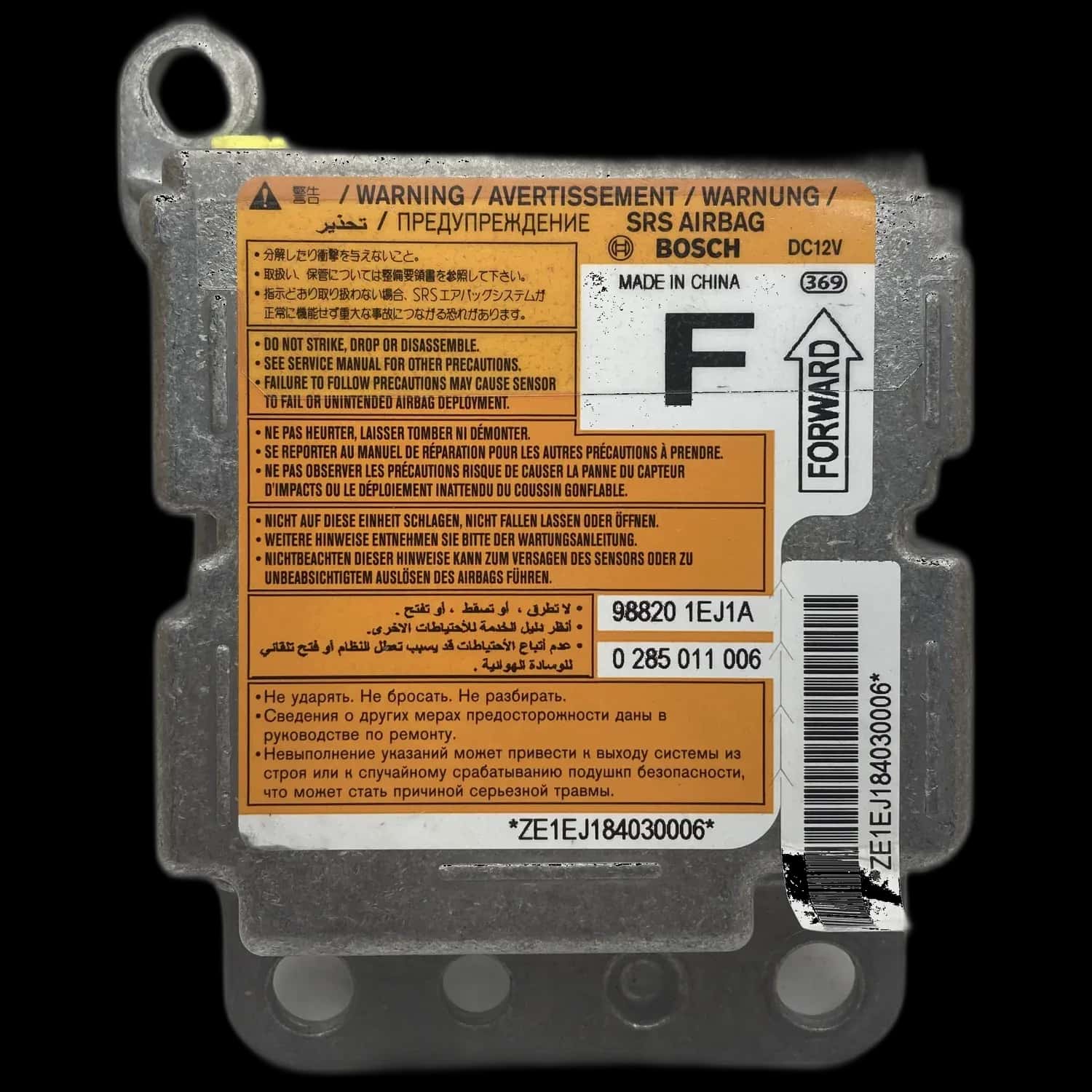

Nissan 370Z Z34 and Z34 Facelift (model years 2008–2020)

Nissan Leaf ZE0 (model years 2010–2017)

Nissan Leaf ZE1 (from model year 2017 onward)

How is error code B00A0 repaired?

Professional repair begins with a visual inspection of all external components and reading out the fault memory. The removed control unit is then analyzed at the component level by a specialist and restored to working condition. Following successful repair and deletion of any crash‑related data, a final test is conducted.

After sending the removed control unit to Airbag24, it undergoes detailed analysis on a specialized test bench. Here, all functions of the device are simulated to pinpoint the exact cause of error code B00A0—whether it stems from a problem in seat‑occupancy signal processing or another internal defect.

Repair is performed directly on the circuit board. Defective electronic components are replaced, and cold solder joints are reworked. This approach is significantly more cost-effective than purchasing a new control unit, which often requires time-consuming vehicle-specific coding as well.

If crash data remains stored in the control unit after an accident—data that cannot be erased using standard workshop diagnostic tools—this data will be professionally reset during the repair process. Only in this way can the full functionality of the airbag system be restored.

Following repair, the control unit undergoes a comprehensive functional test to ensure it operates flawlessly once again. All repairs come with a 12-month warranty.
