B1000 (control unit defective) airbag control unit fault

What does error code B1000 mean in the airbag control unit?

The error code B1000 indicates a serious internal fault in the airbag control unit. In most cases, it is a hardware failure, such as defective components on the circuit board or crash data that has been irreversibly stored. This causes the control unit to enter a locked state and no longer allow communication with diagnostic tools.

Technically speaking, error B1000 means that the control unit’s self-diagnosis has detected a critical internal fault. This can be caused by damaged traces, faulty solder joints, or the failure of memory chips (EEPROMs). For safety reasons, the control unit shuts down to prevent unintended deployment of the airbags.

Another common cause is the storage of so‑called “crash data” after an accident. This data permanently locks the module and cannot be erased using conventional workshop scanners. The system interprets this condition as a “control unit failure” and sets error code B1000.

How do you recognize error B1000?

The typical symptoms of error B1000 are unmistakable and directly point to a problem with the central airbag unit. The most obvious sign is the airbag warning light that remains constantly illuminated in the instrument cluster, accompanied by the inability to communicate with the control unit via a diagnostic tool.

The primary and most evident symptom is the continuously lit airbag indicator light. It does not turn off even after starting the engine, indicating a persistent, safety‑critical fault in the system.

Another clear indication is the lack of communication with the airbag control unit. When attempting to read the fault memory with a diagnostic tool, no connection can be established to the module. The control unit does not respond to requests through the diagnostic interface.

In some cases, while error code B1000 can be read, attempts to clear the fault or the crash data stored after an accident fail. The system refuses to erase them because the internal defect persists.

What causes error code B1000?

The main cause of error code B1000 is an internal hardware fault within the control unit itself, often due to defective electronic components. Another frequent cause is stored crash data that locks the module after an accident. Less commonly, issues with the power supply or external factors such as water damage can also trigger the error.

A defect on the control unit’s circuit board is the most common cause. This includes age‑related failures of microprocessors, memory chips, or other essential components. Faulty solder joints or damaged traces can also lead to this internal fault.

After an accident, crash data is saved in the control unit’s memory. For safety reasons, this data blocks the module’s functionality and cannot be deleted using standard diagnostic tools. The control unit then reports error B1000.

Problems with the power or signal supply can also result in internal damage. Voltage fluctuations or spikes can permanently harm sensitive electronic components inside the control unit.

External influences, such as water damage leading to corrosion on the circuit board, or severe mechanical shocks (e.g., a loud door slam mistakenly interpreted as an impact), can likewise cause the fault. Communication disruptions in the CAN bus are usually a consequence of the internal defect, rather than its cause.

Which vehicles are affected by error B1000?

Error code B1000 occurs across a wide range of vehicle manufacturers and is recognized as a typical internal control unit fault. Models from German brands such as Mercedes-Benz, BMW, Audi, VW, and Opel are particularly frequently affected. However, this error code is also widespread among many other European and Asian brands.

At Airbag24, we repair error code B1000 for a broad spectrum of vehicles. These include, among others, the following models:

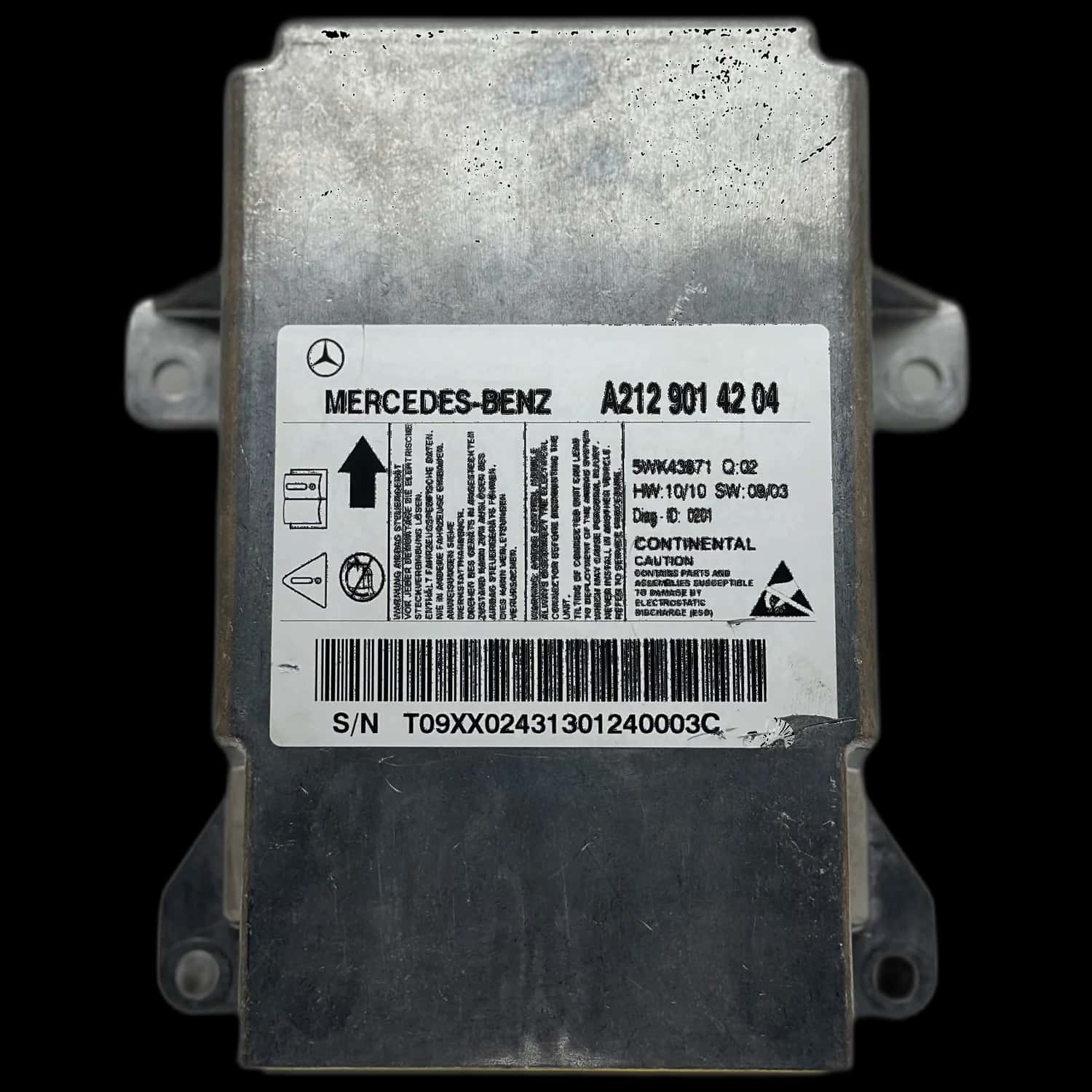

Mercedes-Benz: A-Class (W168, W169), B-Class (W245), C-Class (W202, W203, W204), E-Class (W210, W211, W212), S-Class (W220, W221), CLK (C208, C209), Sprinter (W907), and many other model series.

BMW: 1 Series (F20, F21), 3 Series (E36, E46, E90, F30), 5 Series (E39, E60, F10), 7 Series (E38, F01), X1 (E84), X3 (E83, F25), as well as X5 (E53, E70).

Audi: A3 (8P, 8V), A4 (B7, B9), A6 (C6, 4F, C8), A8 (D5), Q3 (8U), Q5 (8R, FY), Q7 (4L), and TT (8J, FV).

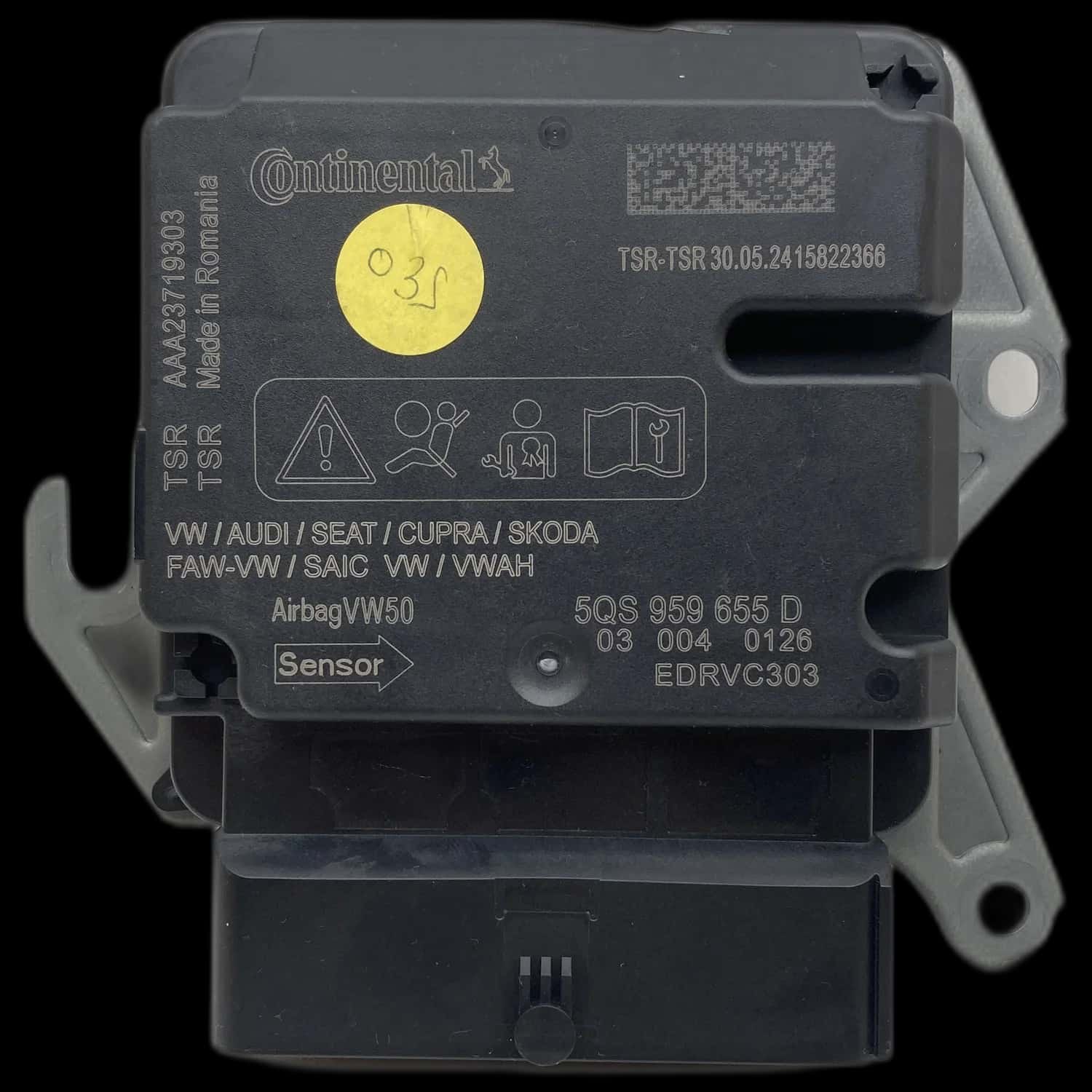

Volkswagen: Golf (Golf 5, 6, 8), Passat (B5, B7, B8), Polo (9N, 6R), Tiguan (5N), Touareg (7L, 7P), and Transporter (T5, T6).

Opel: Corsa (C, D, E), Astra (G, H, K), Vectra (B, C), Zafira (A, B), Insignia (B), and Meriva (A, B).

In addition, this fault occurs in numerous models from Ford, Renault, Peugeot, Citroën, Fiat, Skoda, Seat, and other manufacturers.

How is the B1000 fault professionally repaired?

The professional repair of the B1000 fault focuses on the electronic refurbishment of the removed airbag control unit. At Airbag24, this process includes a thorough analysis, erasing crash data using specialized software, and repairing defective hardware components on the circuit board. A final functional test ensures full safety.

After the control unit has been removed from the vehicle and sent to Airbag24, a standardized repair procedure follows. First, the unit undergoes a comprehensive initial inspection to verify the exact cause of the fault—whether it’s a hardware defect or merely a locked crash-data record.

In the next step, any stored crash data is completely and irreversibly erased using specialized software. This restores the control unit to its factory settings, something that cannot be achieved with standard workshop testers.

If a hardware defect is identified, repairs are carried out at the component level. Our technicians locate and replace faulty parts on the circuit board, such as memory chips or processors, and fix defective solder joints or broken traces.

Subsequently, each repaired control unit undergoes a rigorous final test on a simulator to ensure proper functionality of all systems. Of course, you receive a 12-month warranty on the completed repair.

Is repairing the control unit for the B1000 fault worthwhile?

Yes, repairing the airbag control unit is, in almost all cases, the most economical and sensible solution. Compared to purchasing a new part, you save significantly on costs. Moreover, expensive re-coding is often unnecessary, as the repaired original part can simply be reinstalled.

A new airbag control unit typically costs several hundred euros, plus installation and programming fees at the workshop. Repairing the unit offers a much more affordable alternative while restoring full functionality to this safety-critical component.

Since your original control unit is refurbished, all vehicle-specific data remains intact. This means that, after repair, the module can usually be reinstalled without time-consuming re-learning or re-coding (plug-and-play). This saves additional workshop expenses and time.
