B1334 airbag control unit fault

What does error code B1334 mean?

Error code B1334 indicates an active, critical fault in the front impact sensor on the passenger side. This suggests a hardware or connection issue that compromises the proper functioning of the airbag system and requires immediate inspection, as the airbags may no longer deploy reliably in the event of a crash.

Technically, the airbag control unit (SRS module) detects an implausible or missing signal transmission from the front right impact sensor. This sensor is responsible for measuring deceleration forces during a frontal collision and sending this data to the control unit. If a fault is detected, the system automatically enters a fault mode for safety reasons.

The control unit’s self-diagnostic function permanently stores this error code as soon as the anomaly is identified. This triggers the warning light in the cockpit to alert the driver to the imminent safety risk.

What symptoms are associated with B1334?

The primary symptom of error code B1334 is a continuously illuminated or flashing airbag warning light (SRS warning light) in the instrument cluster. This is a clear indication that the airbag system has detected a fault and that occupant protection functions—especially the front airbags—may be completely disabled.

The airbag warning light, often labeled as the SRS light (Supplemental Restraint System), fails to extinguish after starting the vehicle and remains lit. This alerts the driver to a safety‑related issue that must be promptly inspected by a qualified workshop.

In the event of a crash, there is a real risk that the airbags will not deploy. Due to the faulty sensor signal, the system may fail to recognize a collision accurately and activate the protective mechanisms, potentially resulting in severe or fatal injuries.

Why does error code B1334 occur?

The most common causes of error B1334 include physical issues such as poor electrical connections, damaged cables, or a defective coil spring. The front impact sensor itself can also fail due to aging or damage. Moisture ingress into the control unit is another potential source of failure, leading to short circuits.

A very frequent cause is poor connector contacts or corroded airbag plugs. Especially in three-door vehicles where the front seats are frequently moved, the underlying cables and connectors experience increased mechanical wear.

The coil spring in the steering wheel, which provides the electrical connection to the driver’s airbag, is subjected to constant stress with every steering movement. Over time, it may break or show signs of wear, interrupting signal transmission and triggering an error message from the control unit.

The front impact sensor itself may be defective, caused by mechanical damage, aging of internal electronics, or corrosion. Similarly, damaged wiring between the sensor and the control unit can also trigger this error.

Another possible cause is moisture entering the airbag control unit. Water can create short circuits on the circuit board, generating various error codes—including B1334.

Which vehicles are affected by B1334?

Error code B1334 occurs frequently in certain models from Hyundai and SsangYong. These primarily include SUV and compact car series from various production years. Repairing the control unit is a proven and cost-effective solution for these vehicles.

At Airbag24, we successfully repair error code B1334 for the following specific models and series:

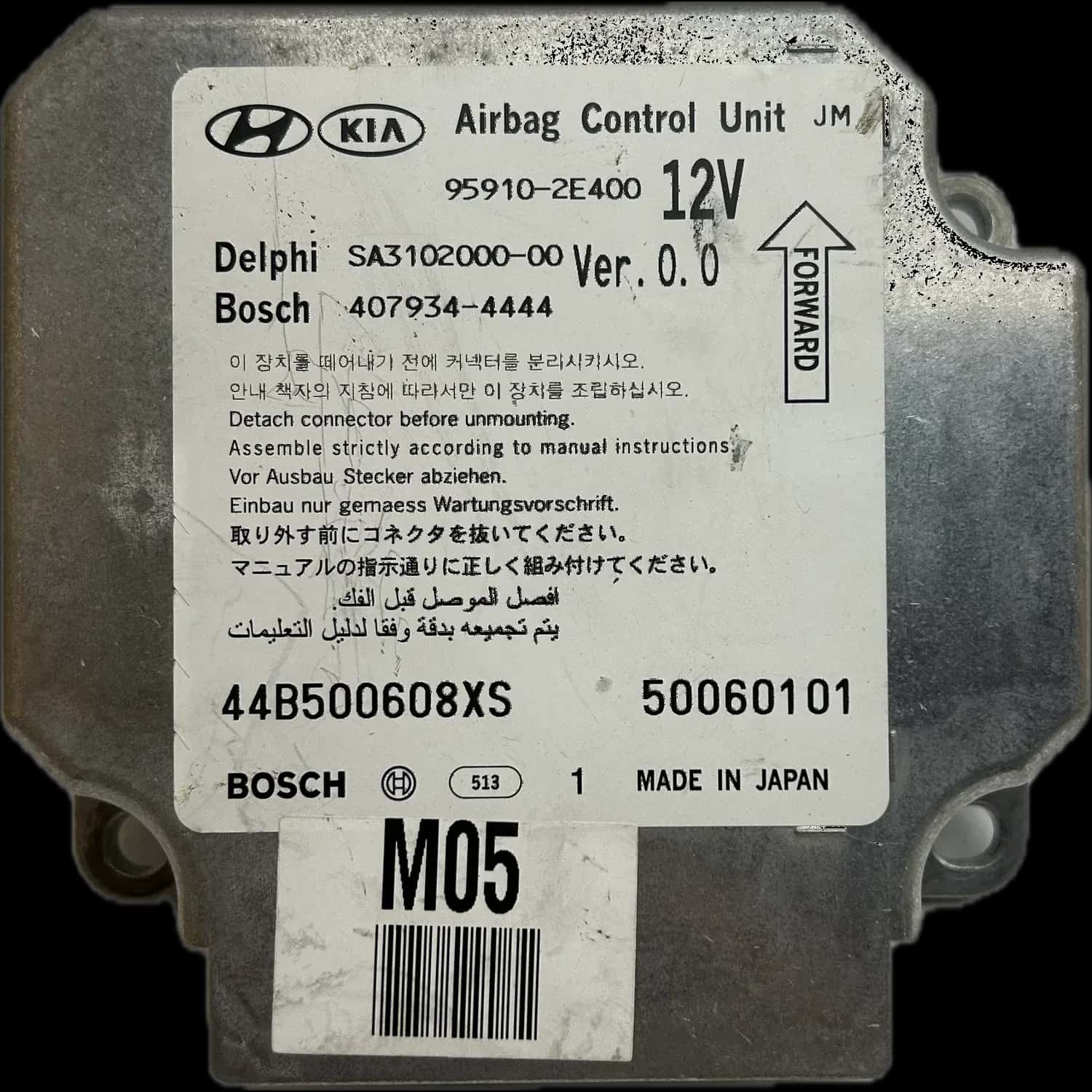

Hyundai: Tucson (JM, 2004–2010), Starex (TQ, 2008–2018 and TQ facelift, 2018–2020), Santro (AH2, 2018–2022), Casper (AX1, 2021–2024), and Excel (X2).

SsangYong: Rexton (Y200, 2001–2006), Rexton (Y250, 2006–2012), and Rexton W (Y290, 2012–2017).

How does repair work at Airbag24?

Repair begins with reading the fault memory to confirm error code B1334. After sending the removed control unit to Airbag24, a detailed analysis is performed, and the root cause is addressed at the component level. Following successful repair and reset of all data, the unit is thoroughly tested before being returned to the customer.

First, the vehicle’s fault memory must be read using an appropriate diagnostic system to verify error code B1334 and any additional codes. It is essential that the diagnostic software used is up-to-date to ensure accurate fault detection.

After submitting the removed control unit to Airbag24, technicians perform a thorough visual inspection and electronic analysis. During this process, all relevant components, connectors, and circuit traces on the PCB are examined. Faulty parts such as defective connectors, sensors, or the coil spring are identified.

The actual repair involves replacing defective components, reworking solder joints, or drying the unit if moisture damage is present. A critical step is resetting any stored crash data. This is essential to ensure the control unit functions fully after installation.

Upon completion of the repair work, an intensive final inspection is carried out. The control unit is tested for proper operation to confirm that fault B1334 has been permanently resolved. All repairs come with 2 years' statutory liability for defects.
