B200000 (control unit defective) airbag control unit fault

What does error code B200000 mean in the airbag control unit?

Error code B200000 indicates a critical internal fault in the airbag control unit (ACU). In most cases, the cause is a hardware defect on the circuit board, such as faulty components, damaged memory chips (EEPROM), or a checksum error. The control unit then places the airbag system into a safety mode that cannot be reset, keeping the airbag warning light permanently illuminated.

Technically speaking, this error means that the control unit’s self-diagnosis has detected an internal anomaly that no longer ensures the proper functioning of the airbags and seatbelt pretensioners. The error is stored in the fault memory as “non‑erasable,” meaning that simply clearing it with a diagnostic tool will not work without physically repairing the hardware or reprogramming the internal data.

This condition results in the complete deactivation of the passive safety system to prevent unintended airbag deployment. Therefore, error code B200000 is classified as extremely safety‑critical.

What symptoms indicate error B200000?

The primary and unmistakable symptom of error B200000 is the airbag warning light that remains constantly lit or flashes intermittently in the instrument cluster. Additionally, the diagnostic tool may fail to communicate with the airbag control unit or display the error message “control unit defective.”

A typical sign is the airbag warning light staying on immediately after starting the engine. The fault memory cannot be cleared, and the B200000 entry reappears right away.

In some cases—such as certain VW models—the light may also illuminate sporadically, for example when the parking brake is engaged. This too points to an emerging internal defect.

Another clear indication is the inability to access the control unit with a diagnostic tool. It behaves as if “dead,” failing to respond to requests even though the power supply remains intact.

Cause analysis: Why does error code B200000 occur?

The main cause of error B200000 is an electronic fault on the control unit’s main circuit board. This includes defective components, issues with the internal memory (EEPROM), or corrupted data due to a checksum error. Undervoltage, moisture, or even an accident can also trigger the error.

Often, specific semiconductor components or the microprocessor itself fail due to aging or thermal stress. A classic example involves problems with the EEPROM, where configuration or crash data are stored. If this data becomes inconsistent, the unit reports an internal error.

Other causes may include external factors, such as undervoltage from a weak vehicle battery, moisture damage caused by water ingress (e.g., in the center tunnel), or reversed battery polarity. Tampering with the odometer can also lead to data conflicts in the airbag control unit in some cases.

Error code B200000 can appear in various forms. Similar codes like B2000 00 or B2000 09 likewise indicate non‑erasable hardware or software defects. Sometimes the code is internally listed as 16712616, or it triggers diagnostic outputs such as 00003 or 65535 (hexadecimal FFFF), which all signify “control unit defective.”

In which vehicles does error B200000 frequently occur?

Error code B200000 primarily affects vehicles from the VAG Group, including models from Audi, Volkswagen, Seat, and Skoda. Particularly affected are series such as the VW Golf 6 and 7, Caddy, Arteon, as well as the Audi RS4 B9 and A3 8V. At Airbag24, we repair this specific error across a wide range of models.

At Airbag24, we professionally restore error code B200000 for the following models and series:

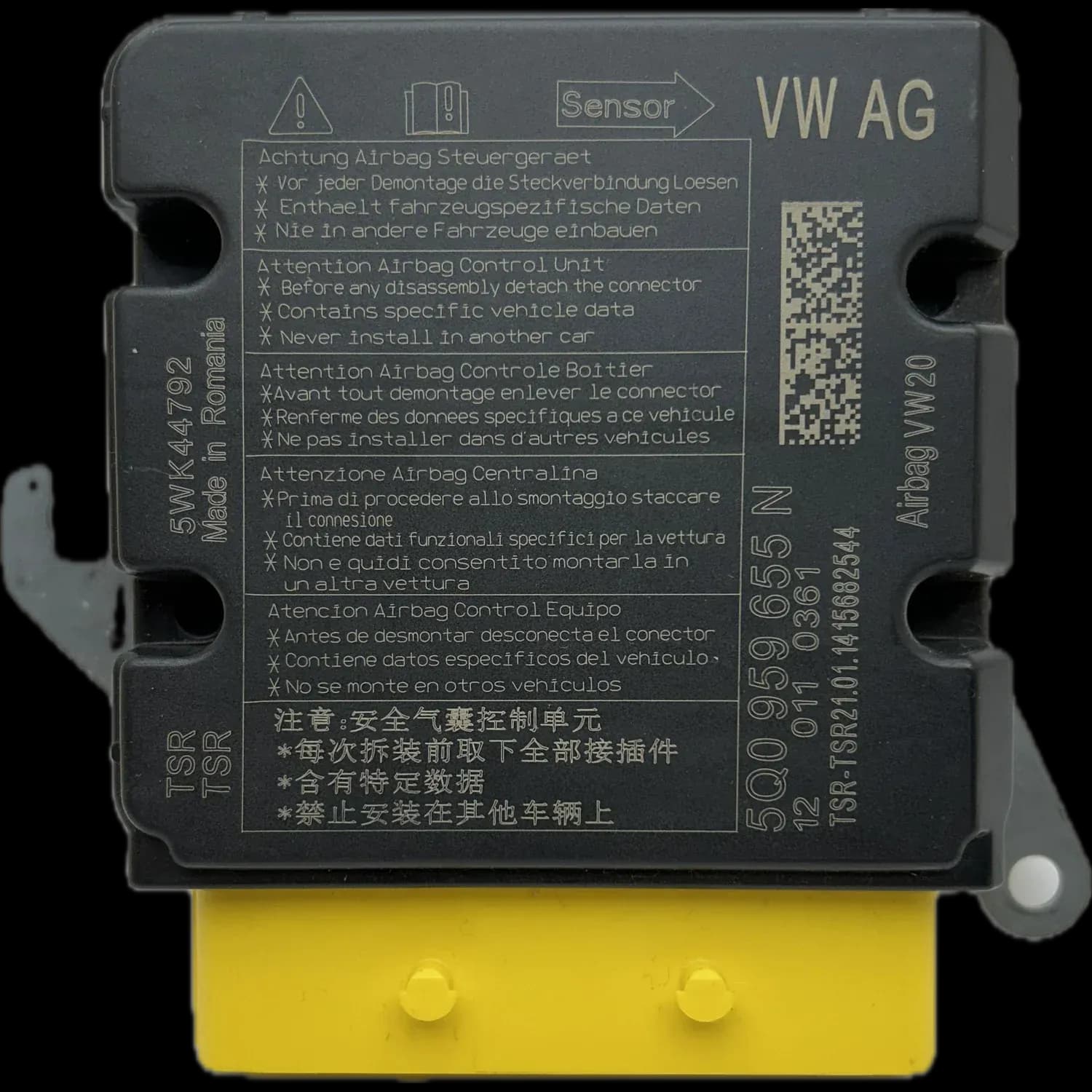

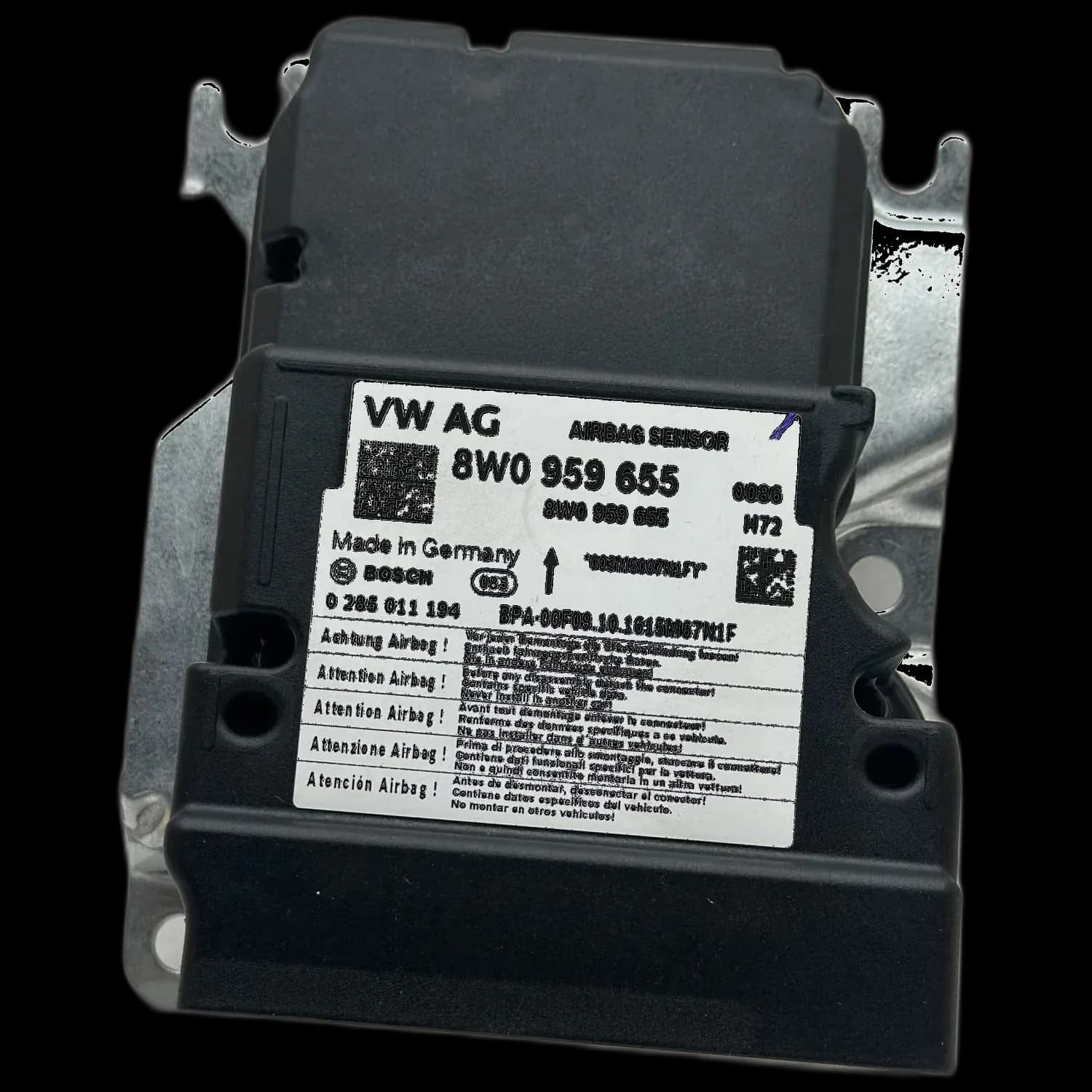

Audi: A3 (8V, 8V facelift), RS4 (B9 8W)

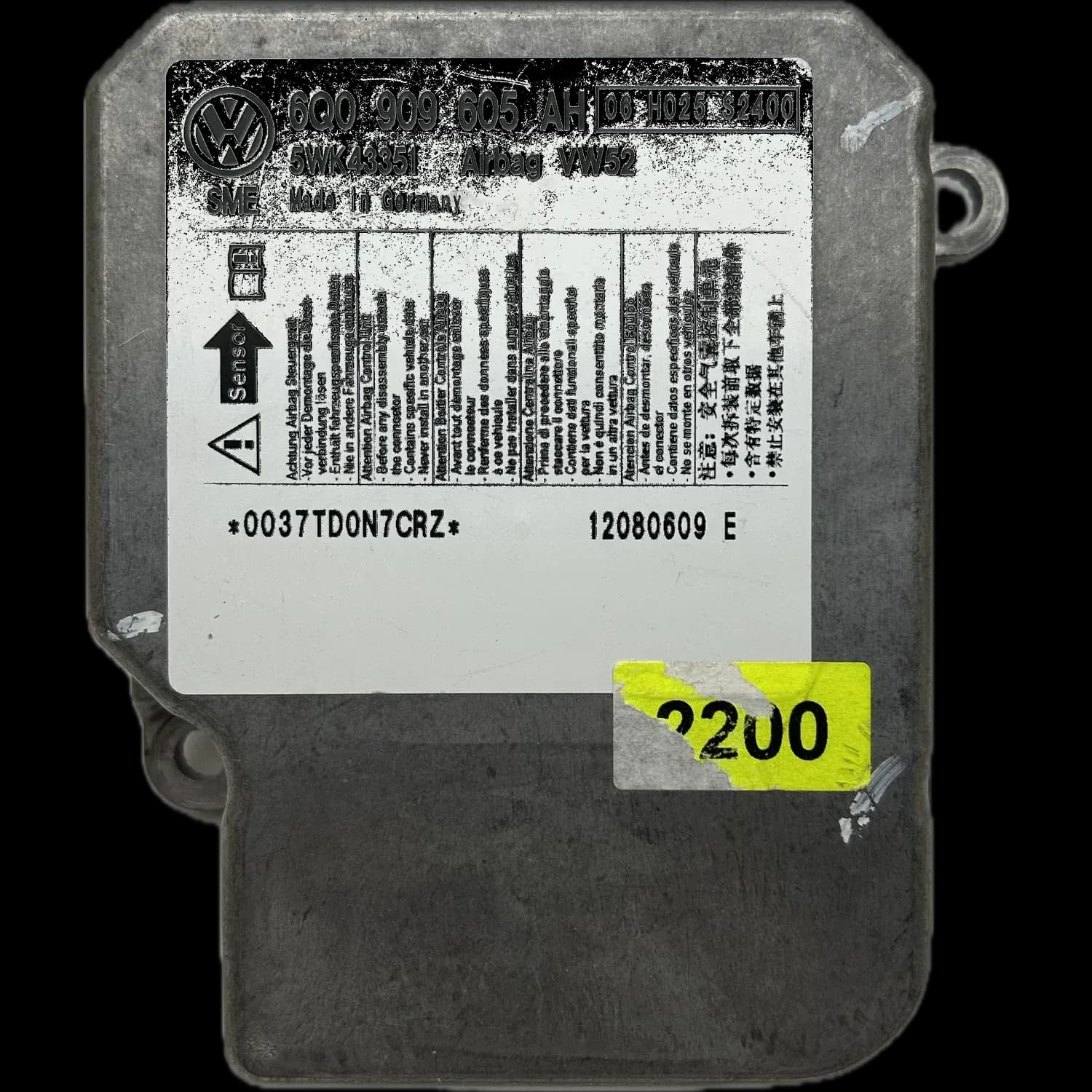

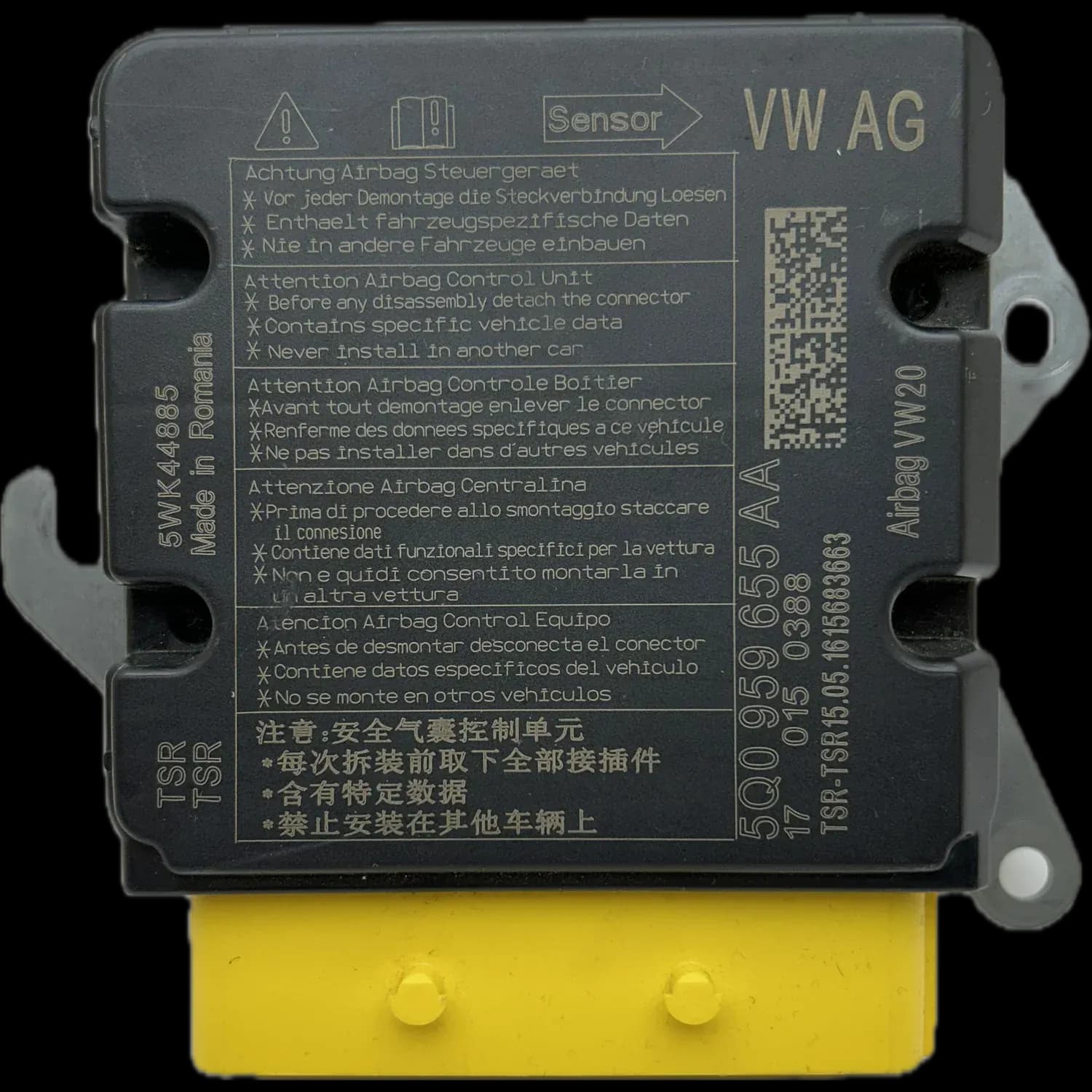

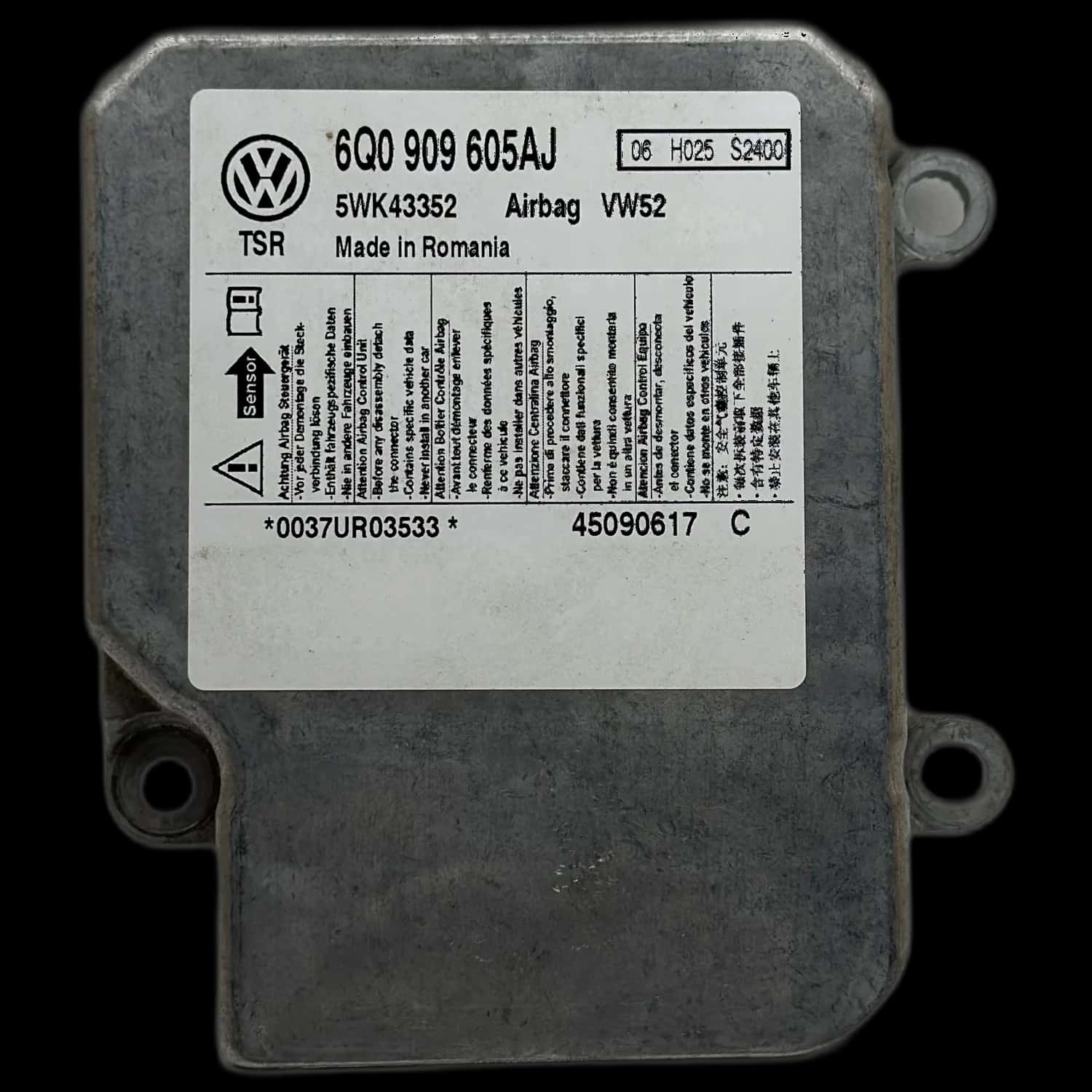

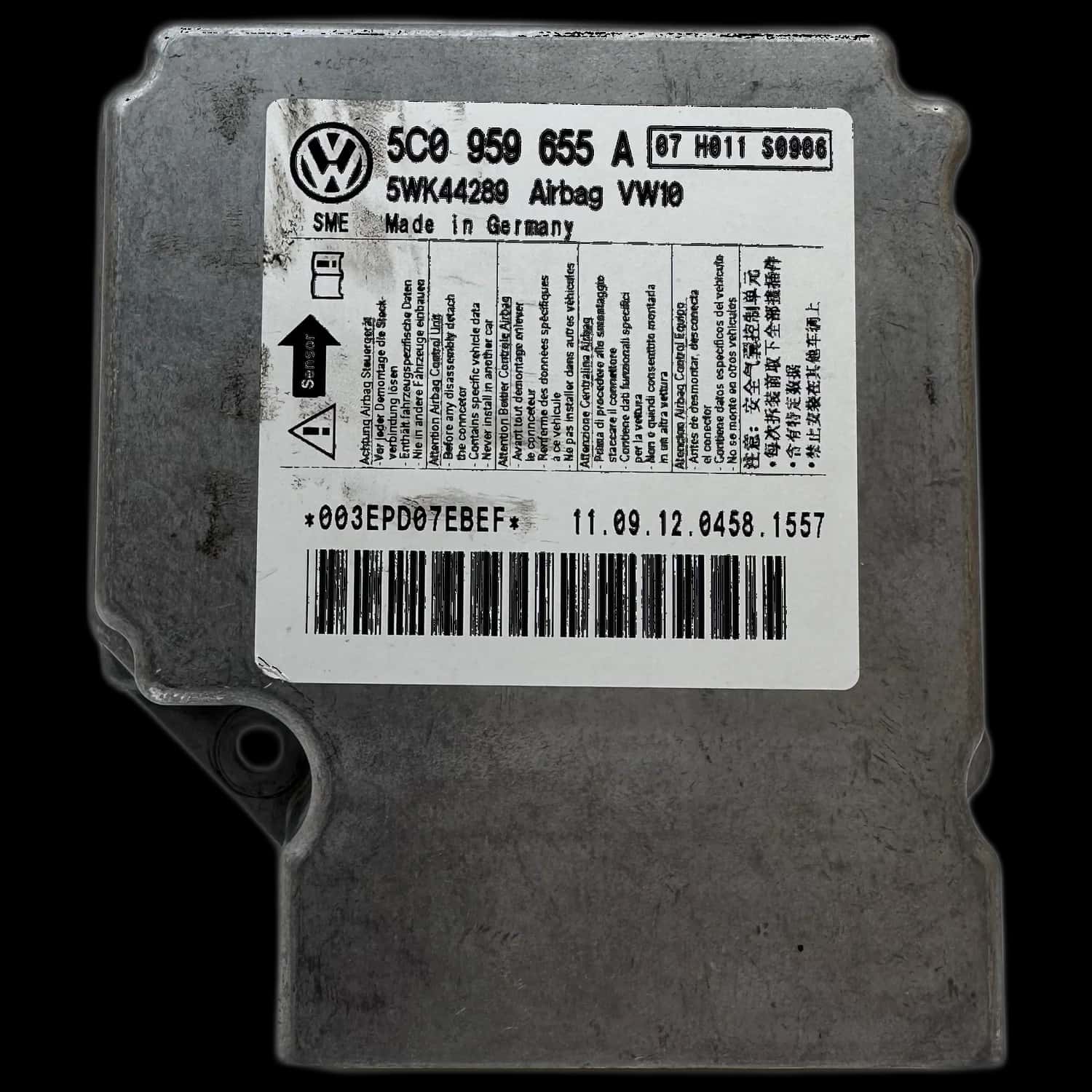

Volkswagen: Golf 6 (5K1), Golf 7 (5G/AU), e‑Golf (UE), Golf GTI (Mk7), Caddy (2K, 2K facelift), Arteon (3H)

Seat: Leon (1P, 1P facelift, 5F, KL), Leon Cupra R (Mk2), Alhambra (2, 2 facelift), Alhambra Reference (Mk2)

Skoda: Felicia Combi (Mk1)

Repair vs. replacement: Which is the better solution?

In most cases, an electronic repair is the more economical and faster alternative to the costly replacement of the control unit. While a new part often costs over €500 and must also be recoded, repair restores the original functionality of the component and makes it fully compliant with TÜV standards again.

Although VW’s Technical Product Information (TPI) No. 2061529/1 recommends replacement, this is mainly the standard procedure at authorized service centers. Specialized workshops can precisely address the internal hardware defect. Repair costs are significantly lower since only the faulty electronic components on the circuit board need to be replaced.

Another advantage of repair is that the original control unit remains in the vehicle. This eliminates the need for time-consuming re-coding or adaptation to the vehicle’s configuration. After repair and deletion of any existing crash data, the unit is “plug-and-play,” and the airbag system is immediately fully functional again.

How does the repair of fault B200000 work?

The repair of fault B200000 at Airbag24 follows a proven process. After removing the control unit at a specialized workshop, it is sent to us for analysis and restoration. Our technicians fix the internal hardware defect, clear all error codes, and restore full functionality.

First, a specialist workshop should read out the fault memory to confirm that the defect lies exclusively within the control unit and not in external components such as sensors or wiring. The diagnostic report helps ensure swift processing.

The removed control unit is securely packaged for transport and shipped to Airbag24. Upon receipt, we conduct a detailed component-level analysis of the fault. Our technicians replace defective components on the circuit board, correct checksums, and erase any stored crash data.

Subsequently, the control unit undergoes a comprehensive functional test. Following successful repair, the unit is returned and can be reinstalled by the workshop. Finally, the fault memory in the vehicle must be cleared to reactivate the system. We provide 2 years' statutory liability for defects on all repairs.
