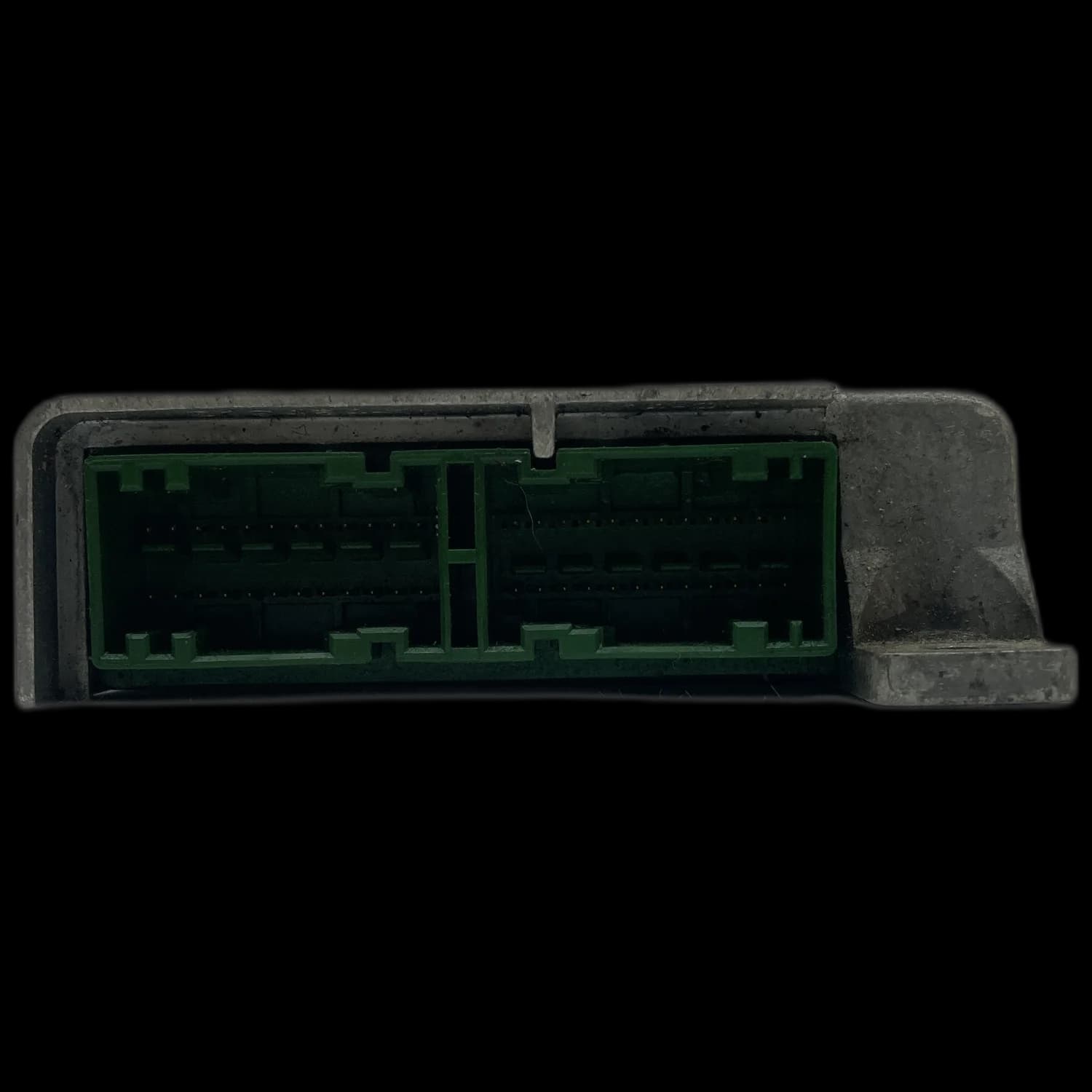

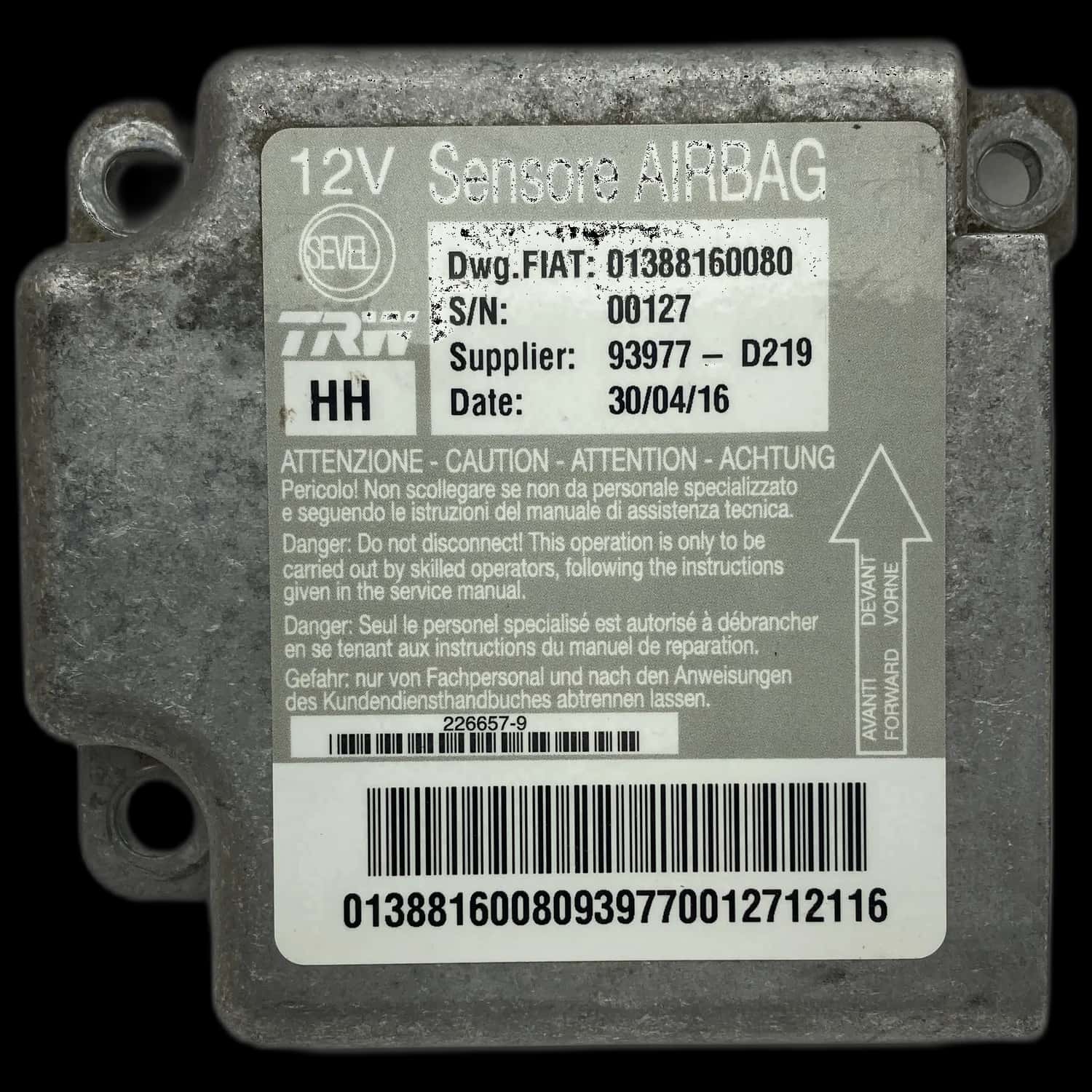

Airbag control unit with part number 01388160080

What is the function of the airbag control unit 01388160080?

The airbag control unit with part number 01388160080 is the central control unit of the passive safety system in vehicles such as the Fiat Ducato, Opel Movano, Citroën Jumper, and Peugeot Boxer. It processes data from acceleration and crash sensors in real time to detect a collision and deploy the life-saving airbags and seatbelt pretensioners.

As the “brain” of the restraint system, it continuously monitors all connected components, including the airbags, seat‑occupancy detection, and sensors. If the control unit fails, the entire airbag system ceases to function, posing a significant safety risk.

Its primary task is to interpret signals from the sensors and, upon exceeding predefined thresholds, activate the necessary restraint devices. This occurs within milliseconds to provide optimal protection for occupants.

Why does the airbag control unit 01388160080 fail?

The most common cause of failure for control unit 01388160080 is the storage of crash data after an accident, which intentionally locks the system’s functionality. In addition, internal electronic faults—such as issues with processors or memory chips—are typical causes, often indicated by error code B0100.

Even if the airbags did not deploy during a collision, the unit permanently stores the crash data. This so‑called “crash lock” prevents further use and must be professionally reset.

Other potential failure causes include external factors like moisture or water damage leading to corrosion on the circuit board, as well as overvoltage in the vehicle’s electrical system. Aging of electronic components can also result in intermittent or permanent malfunctions.

These defects are inherent to the design and may also occur in similar control units with part numbers 01388161080 and 01393755080, which share a comparable technical foundation.

Symptoms: How do you recognize a faulty 01388160080?

A malfunctioning airbag control unit 01388160080 is primarily signaled by the airbag warning light that remains constantly illuminated, glows faintly, or flashes intermittently on the instrument cluster. Another clear indication is the lack of communication with the control unit when a workshop attempts to read the fault memory via the OBD interface.

The most noticeable symptom is the active airbag warning light, alerting the driver that the restraint system is inoperable and would either fail to deploy or deploy incorrectly in the event of a crash.

Often, it becomes impossible to access the control unit using diagnostic equipment. It does not respond to requests, making precise fault analysis at the workshop nearly impossible and strongly suggesting an internal defect.

If diagnostics are possible, specific error codes are frequently stored in the memory. These include B0100 (internal electronic fault), B0101 (supply voltage too low), B0102 (malfunction/ground connection), B1001, B101C, U1726, U0422, or the generic error code 65535, which directly points to a defective control unit.

In rarer cases, accompanying symptoms may appear, such as an error message related to the fuel shut‑off valve or a dashboard illumination that remains constantly lit after locking the vehicle.

In which vehicles is the control unit 01388160080 installed?

The airbag control unit 01388160080 is predominantly used in a range of light commercial vehicles and motorhomes. It is installed across various model series and facelifts of the Fiat Ducato, Citroën Jumper, Peugeot Boxer, as well as corresponding Opel Movano models.

At Airbag24, we repair the 01388160080 control unit for the following vehicle models and series. It is crucial to verify the part number directly on the unit before removal to ensure compatibility.

Fiat:

Ducato (Series 250): 1st facelift (2011–2014), 2nd facelift (2014–2024), 3rd facelift (from 2023)

Opel:

Movano (Series 250, 2006–2011) and Movano C (from 2021)

Citroën:

Jumper (based on the 250 platform)

Peugeot:

Boxer (based on the 250 platform)

How does the repair of the 01388160080 proceed at Airbag24?

Professional repair of the 01388160080 control unit at Airbag24 is a multi‑step process. Following an initial inspection on specialized test benches, restoration involves replacing defective components and erasing crash data. Finally, full functionality is confirmed through a comprehensive final test.

Ideally, the fault memory should be read out at a qualified workshop prior to disassembly. The resulting test report should be included with the control unit when sending it to Airbag24 to expedite diagnosis.

Upon receipt of the unit, our technicians analyze the circuit board and identify the faulty components. The repair includes replacing these parts as well as addressing any soldering defects or corrosion damage.

A key part of the repair is professionally and safely erasing the stored crash data. This unlocks the control unit, restoring it to full functionality.

After completion, the control unit undergoes a comprehensive functional test to ensure all faults have been resolved and that it meets the manufacturer’s specifications. We provide 2 years' statutory liability for defects on every repair.

Is it worth repairing the airbag control unit 01388160080?

Yes, repairing the 01388160080 is an economically and technically sensible alternative to purchasing a new unit. It offers significant cost savings compared to a new part, which costs around €260, while preserving the vehicle-specific original coding, thus eliminating additional programming fees.

The greatest advantage is the cost savings. While a new control unit costs approximately €260, a repair can be up to 70% cheaper and restores full functionality.

Since the original component is repaired, all vehicle-specific data and codings remain intact. After repair, the control unit can be easily reinstalled (plug-and-play) and functions immediately, without the need for expensive workshop programming.

Moreover, refurbishment is a sustainable solution. It avoids electronic waste and conserves valuable resources that would otherwise be required to manufacture a new part. With 2 years’ statutory liability for defects on the repair, choosing refurbishment is also risk-free.
