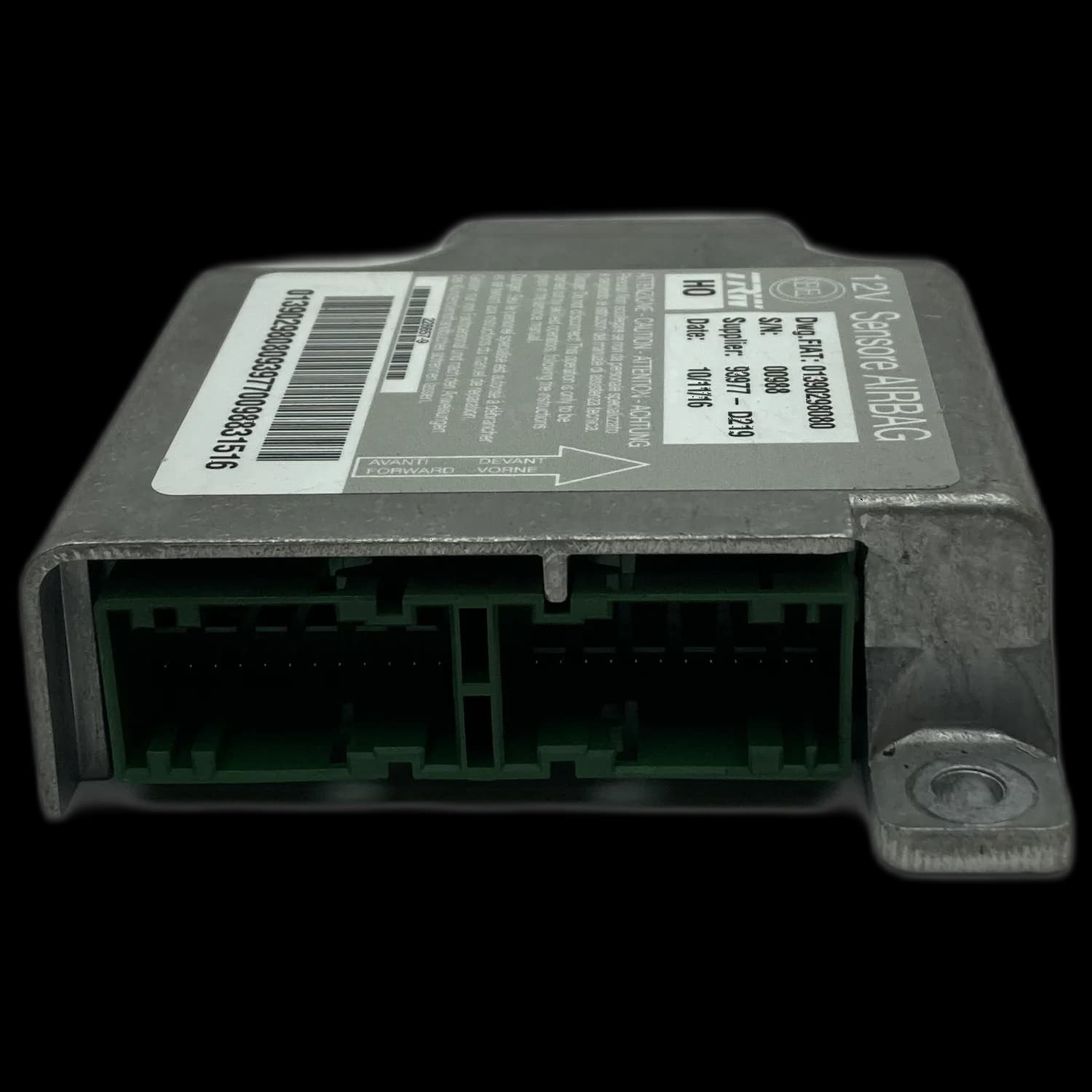

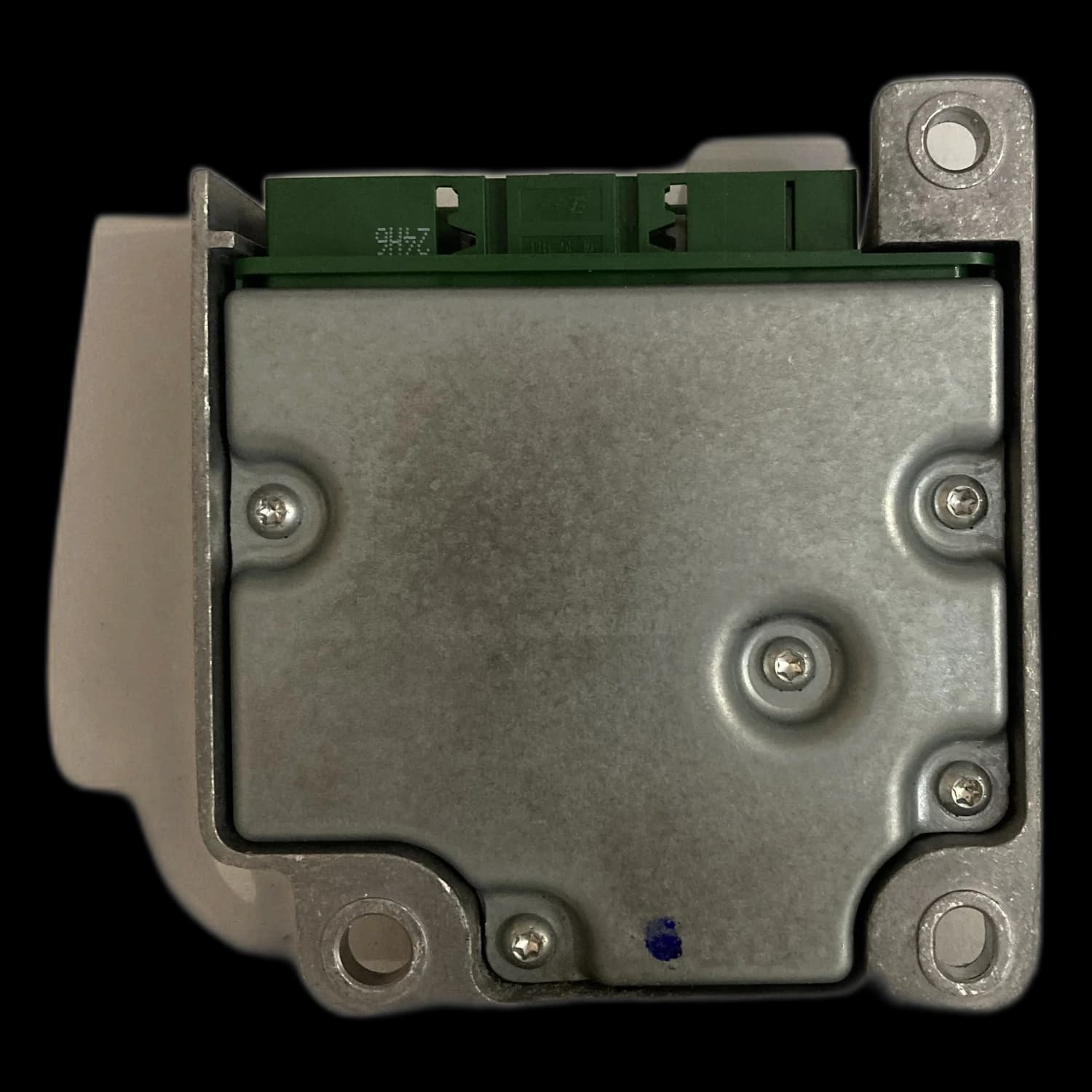

Airbag control unit with part number 01390298080

What is the function of the airbag control unit 01390298080?

The airbag control unit with part number 01390298080 is the central control unit for the passive occupant protection system in vehicles of the 250 series, such as the Fiat Ducato, Citroën Jumper, and Opel Movano. It processes signals from crash sensors and determines whether to deploy airbags and seatbelt pretensioners.

This essential component continuously monitors all connected sensors and actuators of the restraint system. In the event of a crash, the control unit analyzes incoming data within milliseconds to activate the necessary safety measures and provide optimal protection for occupants.

In addition, the device communicates via the CAN or LIN bus system with other control units in the vehicle and stores system-relevant fault codes and crash data, which are saved in its internal EEPROM memory after an activation event.

Why does the control unit 01390298080 fail?

The most common cause of malfunction in the control unit 01390298080 is the storage of crash data following an accident. Other defects include internal electronic faults on the circuit board, leading to error codes such as B0100 (internal control unit error) or B0100-49 (power supply or ground issue).

After a crash in which airbags or seatbelt pretensioners have deployed, the control unit locks itself. This lock is triggered by writing non-erasable crash data into memory and serves safety purposes, preventing reuse without professional diagnostics. A professional repair can lift this lock through a so‑called crash reset.

Electronic malfunctions are also a frequent cause of failure. Error codes like B0100, B0101, or B0102 indicate internal hardware problems. Causes may include defective SMD components such as voltage regulators, MOSFETs, capacitors, or damaged traces and connector contacts due to corrosion or vibrations. These faults prevent proper operation and communication of the device.

How do you recognize a defect in the control unit 01390298080?

A defect in the airbag control unit 01390298080 primarily manifests as a permanently illuminated airbag warning light on the instrument cluster. Another clear indication is the lack of communication with the control unit when a workshop attempts to read the fault memory using a diagnostic tool.

The constantly lit airbag warning light is the most obvious warning sign for the driver. It indicates a fault in the restraint system, meaning the protective function during a crash is no longer guaranteed. The system is inactive in this state.

If workshops cannot access the airbag control unit with their diagnostic equipment, this points to a serious internal fault. The unit no longer responds to requests via the diagnostic interface, making precise fault analysis in the vehicle impossible.

In which vehicles is the control unit 01390298080 installed?

The airbag control unit with part number 01390298080 is used in a range of light commercial vehicles based on the 250 platform. At Airbag24, we repair this control unit for the following specific models and series:

Fiat:

• Ducato (250) from 2006 to 2011

• Ducato (250) first facelift from 2011 to 2014

• Ducato (250) second facelift from 2014 to 2024

• Ducato (250) third facelift starting in 2023

Citroën:

• Jumper (250) and corresponding model years

Opel:

• Movano C from 2021 onward

How does the repair of the control unit 01390298080 proceed?

Professional repair at Airbag24 follows a standardized process. After removal and safe shipping, the control unit undergoes a comprehensive hardware and software diagnosis. Defective components are then replaced, crash data is reset, and a final functional test is performed.

Upon receiving the unit at Airbag24, technicians first conduct a visual inspection of the circuit board for corrosion, cracks, or fire damage. Critical pins and power supplies are subsequently checked with measuring instruments to pinpoint the exact source of the fault.

The actual repair involves replacing faulty SMD components on the circuit board and repairing broken traces or damaged connector contacts. If crash data has been stored after an accident, it is erased from the EEPROM database—within legal and technical limits—through a crash reset.

Finally, the software configuration is restored to ensure proper CAN/LIN communication with the vehicle. A thorough functional test on a test bench simulates vehicle operation and guarantees flawless performance before the unit is returned with 2 years’ statutory liability for defects.
