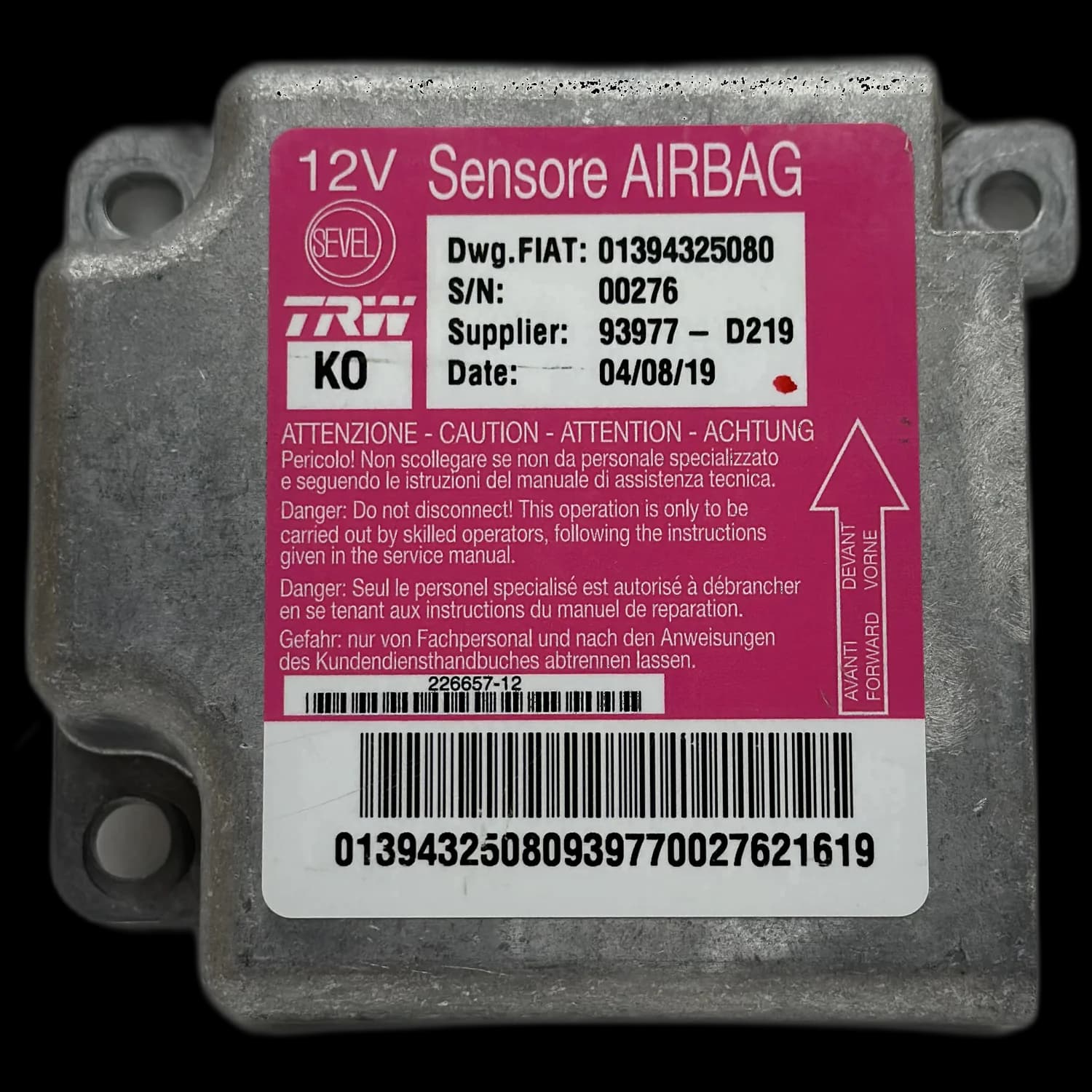

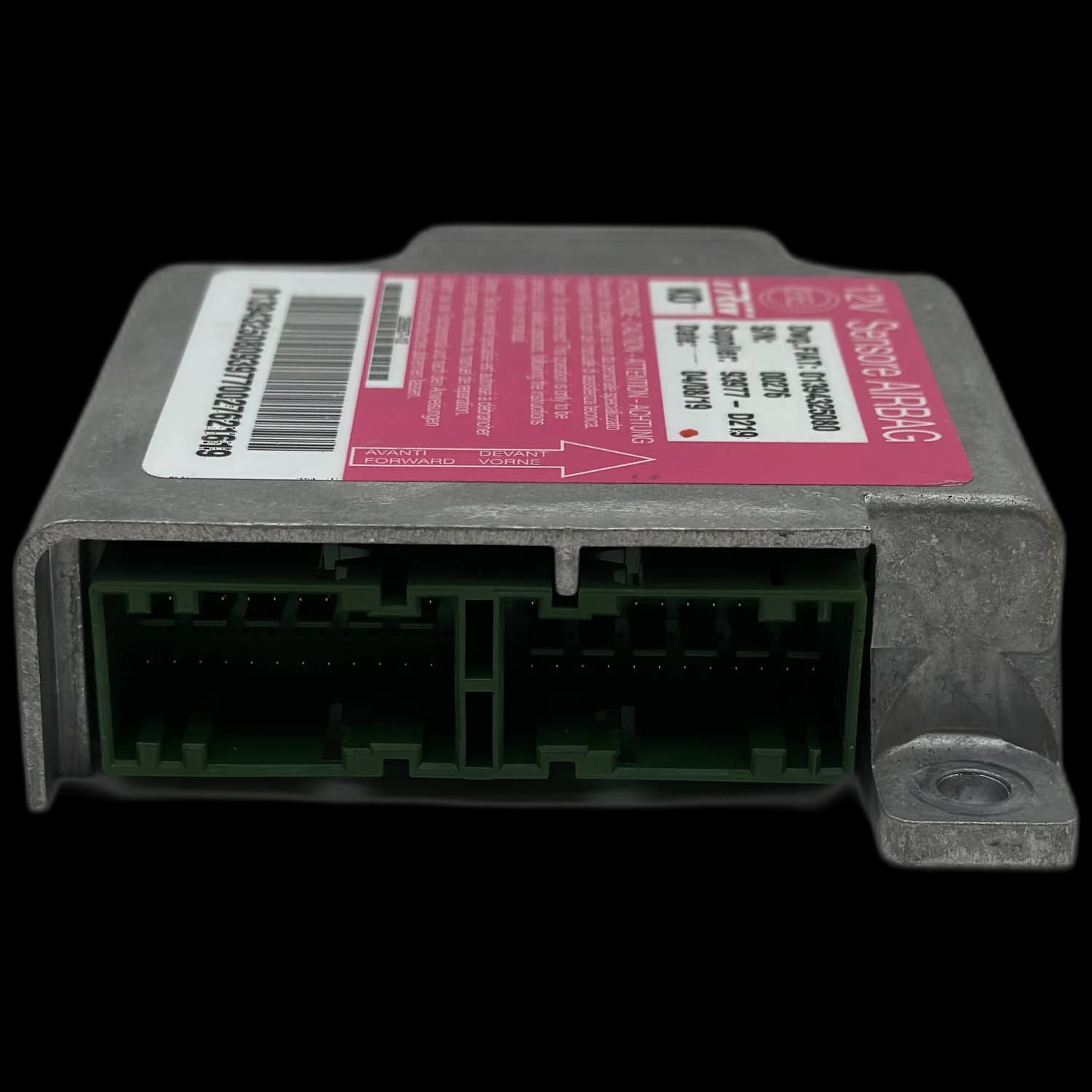

Airbag control unit with part number 01394325080

What is the function of the airbag control unit 01394325080?

The airbag control unit with part number 01394325080 is the central control module for the occupant protection system in vehicles from Fiat, PSA, and Opel, particularly in van models. It continuously processes data from crash sensors to precisely deploy airbags and seatbelt pretensioners at the right moment during a collision.

This ECU serves as the brain of the passive safety system. It constantly monitors all connected components, including various airbags, seatbelt pretensioners, and the acceleration sensors distributed throughout the vehicle.

If the sensors detect a collision exceeding a predefined deceleration threshold, the control unit processes this information within milliseconds. It then determines which restraint systems need to be activated to provide optimal protection for occupants.

Why does the control unit 01394325080 fail?

Malfunctions in the 01394325080 control unit are most commonly caused by stored crash data following an accident, often triggering error code B0100 (internal fault). Other causes include internal electronic faults due to defective SMD components, moisture damage leading to corrosion at solder joints, and issues with ground or power supply connections.

A major reason for requiring repair is the storage of crash data. After an airbag deployment, the unit locks itself for safety reasons and must be professionally reset to restore functionality.

Another frequent cause is internal hardware defects on the circuit board. Faulty SMD components such as voltage regulators, MOSFETs, or memory chips can result in complete failure. Such defects are often indicated by error code B0100.

External factors like penetrating moisture can also cause severe damage. Corrosion at solder joints or conductive traces disrupts electrical connections and leads to malfunctions. Similarly, problems with the power supply or a faulty ground connection—often signaled by error code B0102—can impair the control unit’s operation.

Communication issues, reflected in error codes such as B1000 or B1001, likewise point to an internal defect requiring component-level repair.

How do you recognize a fault in the airbag control unit 01394325080?

A fault in the airbag control unit 01394325080 almost always manifests as the persistent illumination of the airbag warning light on the instrument cluster. Additionally, the control unit may become unresponsive via the diagnostic interface, making it impossible to read the fault memory.

The most obvious and critical symptom is the permanently lit airbag warning light. It fails to extinguish after starting the vehicle, signaling a serious malfunction in the restraint system that endangers occupant safety.

Another clear indication is the lack of communication with a diagnostic tool. If a workshop attempts to read the fault memory but cannot establish a connection to the control unit, this suggests a deep-seated internal hardware or electronics failure.

In which vehicles is the control unit 01394325080 installed?

The airbag control unit 01394325080 is fitted in a range of van models from Fiat, Opel, Citroën, and Peugeot. This includes, in particular, the Fiat Ducato series 250 and its facelifted versions, as well as the identical Opel Movano C and PSA sister models.

At Airbag24, we repair the control unit with part number 01394325080 for the following specific vehicles:

Fiat: Ducato (series 250, 2006–2011), Ducato (series 250, first facelift, 2011–2014), Ducato (series 250, second facelift, 2014–2024), Ducato (series 250, third facelift, from 2023)

Opel: Movano C (from 2021)

Citroën: Jumper (identical to Fiat Ducato 250)

Peugeot: Boxer (identical to Fiat Ducato 250)

How is the repair of the control unit 01394325080 carried out?

Professional repair of the 01394325080 control unit at Airbag24 begins with a detailed electronic preliminary inspection. Depending on the nature of the fault, stored crash data is cleared, defective SMD components on the circuit board are replaced, or solder joints are reworked. Following restoration, a comprehensive functional test is performed.

After submitting your defective control unit to Airbag24, the repair follows a standardized, quality-assured process. First, our technicians conduct a thorough analysis to pinpoint the exact cause of the fault. An attached diagnostic report from your workshop helps expedite this step.

Depending on the findings, repairs are carried out at the component level. This may involve properly erasing crash data, replacing faulty microcontrollers, memory chips, or voltage regulators, as well as addressing corrosion damage. Upon completion of the repair, the control unit undergoes intensive testing on a specialized test bench to ensure full functionality.

You receive 2 years' statutory liability for defects on all repair work performed.
