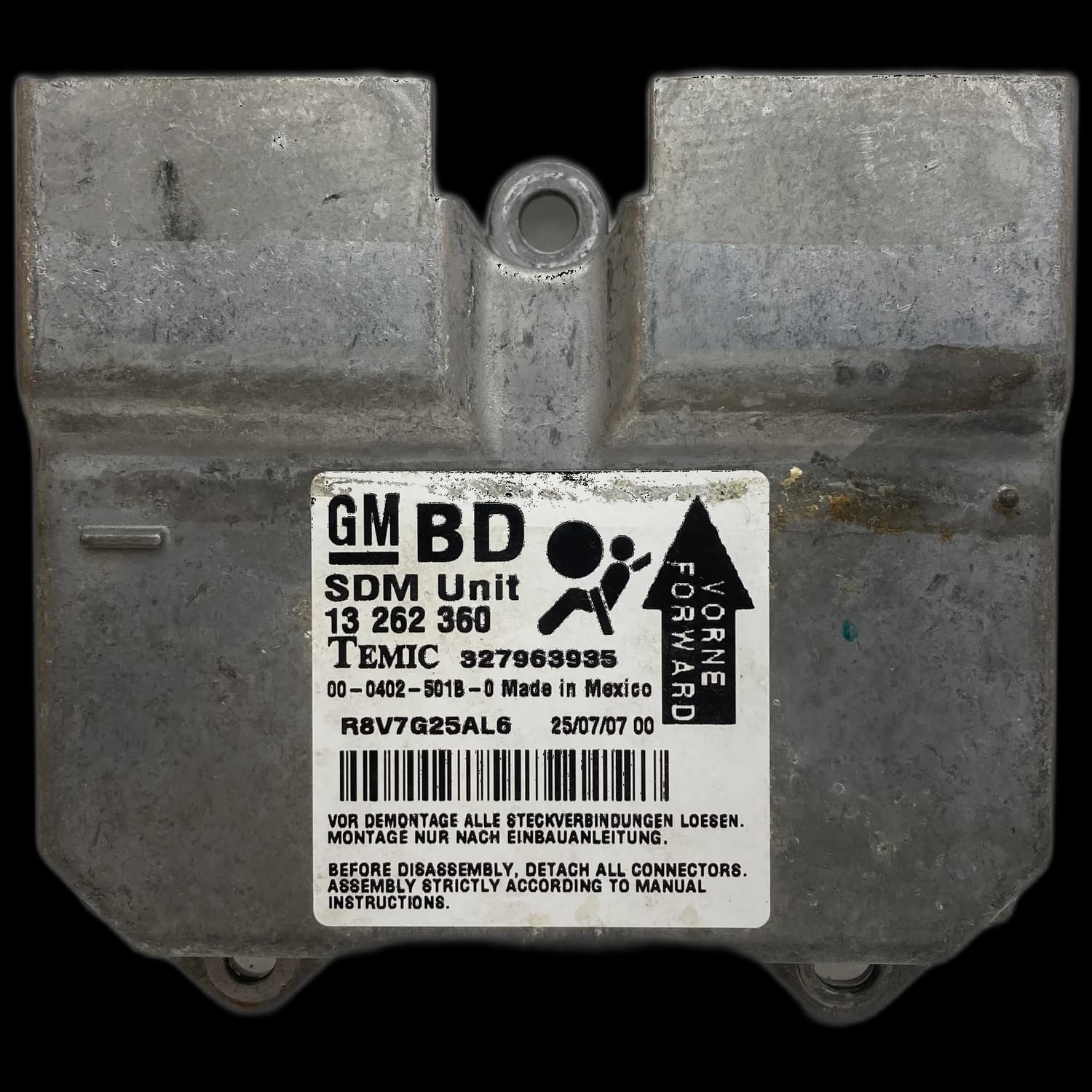

Airbag control unit with part number 13 262 360 BD

What is the function of the Airbag Control Unit 13 262 360 BD?

The Airbag Control Unit 13 262 360 BD, also known as Opel Original Part 13262360, is the central control unit for the occupant protection system (SRS) in vehicles such as the Opel Astra H and Zafira B. It processes signals from the acceleration sensors and coordinates the precise deployment of up to six airbags, as well as pyrotechnic seatbelt pretensioners, in the event of a crash.

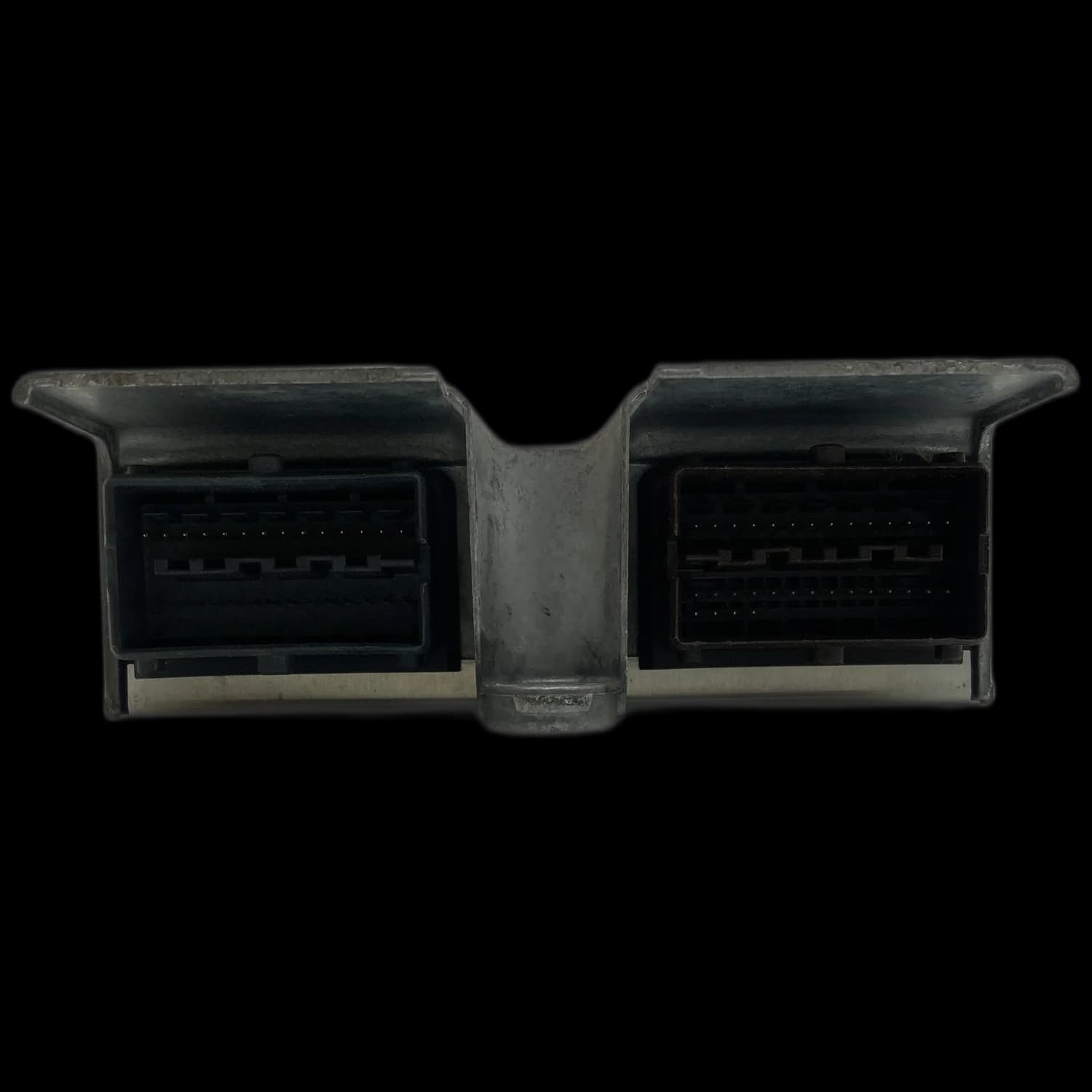

As the brain of the passive safety system, this control unit is responsible for monitoring and controlling connected components such as front, side, and window airbags. Communication with the vehicle’s electrical system and the airbag modules takes place via vehicle-specific yellow connectors with gold-plated contacts, ensuring maximum signal integrity and fault tolerance.

The unit is typically installed in the center console or beneath the driver’s seat. Its hardware often originates from original equipment manufacturers like Temic or Continental, underscoring its high quality and safety standards. Proper functioning of this module is critical for protecting vehicle occupants.

Why does the Control Unit 13 262 360 BD fail?

The most common reason for failure of the Control Unit 13 262 360 BD is stored crash data following an accident, which the system locks out for safety reasons. Other defects arise from internal hardware malfunctions—particularly in memory chips—as well as electrical surges in the vehicle’s electrical system or communication disruptions.

After a collision, the unit writes irreversible crash data into its internal memory. This lockout is a manufacturer‑imposed safety feature that prevents reuse without professional diagnostics and reset procedures. Repair is the only cost-effective solution, as the unit remains fully functional otherwise.

Internal hardware faults are another frequent cause. These include errors in the memory chip (EEPROM), often indicated by error code P0601, or general communication issues signaled by error code B1000. Electrical surges—such as those caused by a weak battery or jump-starting—can also damage sensitive electronic components on the circuit board.

Several compatible and equivalent part numbers exist, varying depending on vehicle trim and model year. These include: 1232168, 93184369, 6235438, 13188855, 13246042, 327963935, 13181977 DU, 13189125, and 80046421. An exact verification of the part number is essential before proceeding with repair.

How can you recognize a defect in the Control Unit 13 262 360 BD?

A defect in the Control Unit 13 262 360 BD is primarily indicated by the airbag warning light (SRS symbol) remaining constantly illuminated or blinking intermittently on the instrument panel. Another clear sign is the inability to communicate with the control unit using a diagnostic tool, or the persistent presence of stored fault codes that cannot be cleared.

The most obvious symptom is the active airbag warning light, signaling to the driver that the occupant protection system is either non‑functional or only partially operational—and may fail to deploy correctly in the event of a crash.

In the workshop, a defect often manifests as a lack of communication: the diagnostic tool cannot establish a connection with the airbag control unit, making further fault analysis impossible. Such behavior points to a severe internal hardware or software issue.

If fault codes can be read but not permanently erased, this too is a typical indication. Especially after an accident, crash data remains stored, blocking normal operation and preventing fault clearance. Specific error codes such as B1000 (internal problems) or P0601 (internal memory error) directly indicate a defect within the control unit.

In which vehicles is the Control Unit 13 262 360 BD installed?

The Airbag Control Unit with part number 13 262 360 BD was specifically developed for Opel vehicles. It is predominantly found in the widely used Opel Astra H models produced between 2004 and 2009, as well as in the Opel Zafira B, manufactured from 2005 to 2014.

At Airbag24, we repair the Control Unit 13 262 360 BD and equivalent variants for the following specific vehicle models:

Opel Astra H (model years 2004, 2005, 2006, 2007, 2008, 2009)

Opel Zafira B (model years 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014)

Due to vehicle‑specific coding and software variations, it is crucial that the defective unit’s part number matches the one listed here. Only then can smooth functionality be ensured after repair.

How does the repair of control unit 13 262 360 BD proceed?

Professional repair at Airbag24 is a proven, cost-effective alternative to expensive new purchases. After submission, a precise diagnosis is performed, crash data is erased, defective components are replaced, and a final functional test is conducted. You receive 2 years' statutory liability for defects on the completed repair.

Upon receipt by Airbag24, the control unit undergoes a standardized repair process. It is recommended to read out the fault memory before removal and include the diagnostic report with the unit to expedite the diagnosis. Removal must always be carried out with the vehicle battery disconnected to prevent unintended airbag deployment.

In the first step, our technicians analyze the control unit and identify the root cause of the fault. Subsequently, all stored crash data is completely erased using specialized software and hardware. Defective electronic components, such as memory chips or processors, are replaced with high-quality OEM parts.

Following hardware refurbishment, vehicle-specific coding is verified and adjusted if necessary. A final functional test ensures that the control unit communicates flawlessly and correctly controls all systems. The result is a fully functional component that is in no way inferior to a new one.
