Airbag control unit with part number 13188855

What is the function of Airbag Control Unit 13188855?

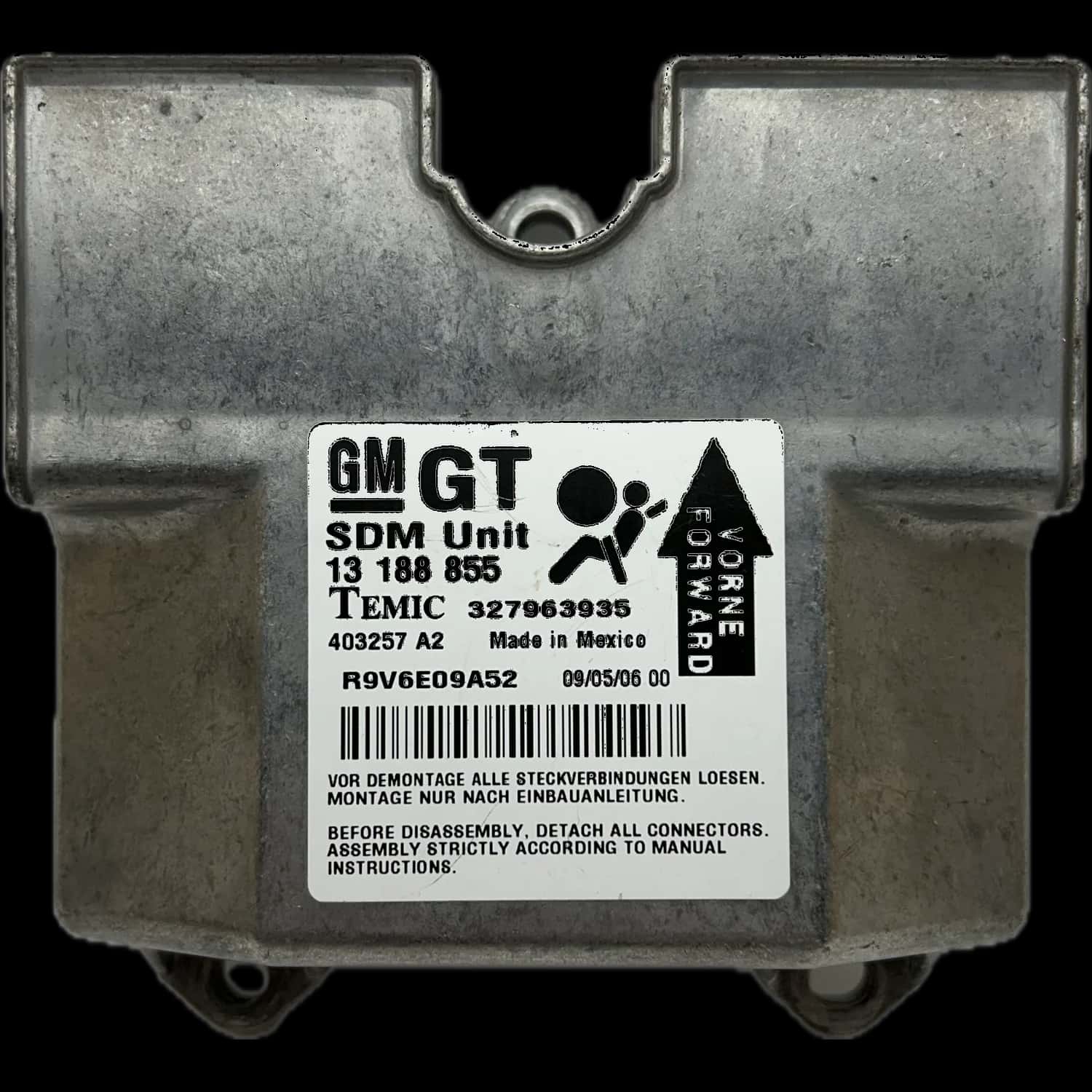

The airbag control unit with part number 13188855 is an original Opel component (OEM) that serves as the central control unit for the passive safety system in the Opel Astra H (2004–2009). It processes signals from crash sensors, determines whether to deploy restraint systems, and stores relevant event data such as crash information.

As the “brain” of the safety system, this module coordinates up to six airbags, including front, side, and window airbags. At the same time, it controls the pyrotechnic seatbelt pretensioners for the driver and front passenger, ensuring optimal protection in the event of a collision.

Connection to the vehicle’s electrical system is made via distinctive yellow, gold-plated connectors that ensure high contact reliability. The typical installation location of the control unit is in the lower center console or beneath the driver’s seat—positions chosen for safety to protect it from external influences.

Why does control unit 13188855 fail?

The most common reason for repairing control unit 13188855 is stored, non-erasable crash data following an accident. In addition, internal electronic faults—such as defective memory chips or communication issues on the circuit board—can cause the module to fail and result in the airbag warning light remaining constantly illuminated.

After a collision, the control unit locks its internal memory for safety reasons. These entries, known as “crash data,” cannot be cleared using standard workshop diagnostic tools, making specialized repair essential to restore full functionality of the airbag system.

Hardware defects are also a frequent cause of failure. They often manifest as specific fault codes such as B1000 (internal communication error) or P0601 (internal memory/EEPROM error), directly indicating problems with electronic components on the circuit board.

For the Opel Astra H, several technically related part numbers exist that perform similar functions. These include, among others, 13262360, 1232168, 93184369, 6235438, 13246042, 13181977, 13189125, and 80046421. During diagnosis, the exact part number is crucial.

How do you recognize a defect in 13188855?

A defect in airbag control unit 13188855 primarily shows up as a continuously lit or flashing airbag warning light on the instrument cluster. Often, communication between the diagnostic tool and the control unit is also lost, complicating troubleshooting. Stored fault codes like B1000 or P0601 are clear indicators as well.

The most obvious sign is the permanently illuminated airbag warning light, signaling a serious issue within the passive safety system and resulting in failure during the main inspection (TÜV).

Another clear symptom is complete loss of diagnostic capability. If the control unit can no longer be accessed via the OBD interface, this points to a severe internal electronic fault.

In some cases, secondary malfunctions may also be reported. Driver feedback indicates accompanying symptoms such as a clutch of the air conditioning compressor remaining engaged or noticeably reduced engine performance—conditions that could stem from disruptions in the data bus caused by the faulty control unit.

In which Opel models is 13188855 installed?

The airbag control unit with part number 13188855 was developed specifically for Opel models. Its primary application is the Opel Astra H from model years 2004 to 2009. Airbag24 offers professional, reliable repair services for this control unit.

At Airbag24, control unit 13188855 is repaired for the following model:

Opel: Astra H (model years 2004–2009)

How does repair at Airbag24 work?

Repair of control unit 13188855 at Airbag24 follows a standardized, quality-assured process. Upon receipt of the unit, a comprehensive diagnosis is performed. Next, crash data is professionally erased, and defective components are replaced. Final simulation tests confirm full functionality, backed by 2 years' statutory liability for defects.

Before removing the control unit, disconnect the vehicle battery. For efficient processing, it is recommended to enclose a printout of the fault memory and a completed repair form with the securely packaged unit.

After submission to Airbag24, technicians conduct a detailed analysis to identify the precise cause of the fault. Restoration focuses on addressing core issues: erasing crash data at the chip level and replacing faulty electronic components such as memory modules or processors.

After repair, the control unit is rigorously tested on a specialized test bench. All operating conditions are simulated to ensure the device functions flawlessly and the airbag warning light in your vehicle can be reset. Each repair comes with 2 years' statutory liability for defects.
