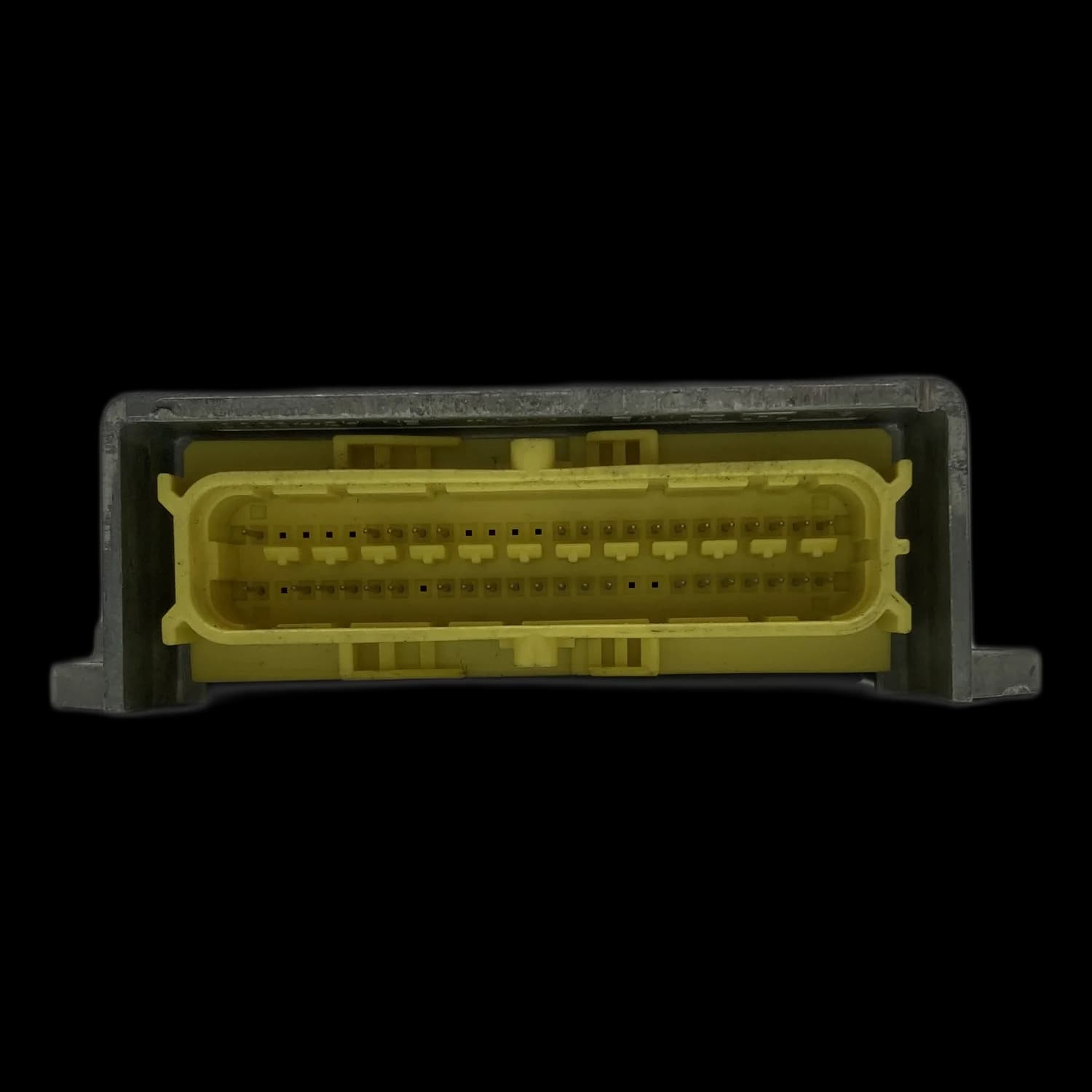

Airbag control unit with part number 1T0 909 605 E

What is the function of the airbag control unit 1T0909605E?

The airbag control unit with part number 1T0909605E is the central control module for the passive safety system, primarily installed in the Volkswagen Touran 1T. It continuously analyzes data from external crash sensors to precisely and rapidly activate vital restraint systems such as airbags and seatbelt pretensioners in the event of a collision.

As the heart of the airbag system, this ECU makes the critical decision on whether to deploy. It processes signals from acceleration and angular velocity sensors to assess the type and severity of a collision and provide optimal protection for occupants.

Based on this analysis, it controls the ignition circuits of the respective airbags and pyrotechnic seatbelt pretensioners. Therefore, flawless functionality is essential for occupant safety, making any defects require immediate repair.

Why does the control unit 1T0909605E fail?

Failure of the control unit 1T0909605E is typically caused by two main factors: stored crash data following an accident or a severe voltage fluctuation that locks the unit internally. Alternatively, purely electronic faults in components such as capacitors or the microcontroller on the circuit board can lead to complete failure.

A common cause is the storage of crash data. After a collision—or even during a significant voltage drop, such as from a weak battery—the control unit may lock itself for safety reasons. This internal error cannot be cleared using standard diagnostic tools.

Another typical issue is total communication loss. Here, the internal electronics fail, rendering the control unit unreachable by diagnostic equipment. Causes often include age-related component wear or moisture damage.

In some vehicle variants, such as the Touran 1T MOPF 2, related part numbers like 5C0959655C may also be installed, exhibiting similar hardware‑related fault patterns.

How do you recognize a defect in the 1T0909605E?

The most obvious symptom of a defect in the airbag control unit 1T0909605E is the permanently illuminated airbag warning light on the instrument cluster. In many cases, communication between the control unit and a diagnostic tool also ceases, preventing diagnosis at the workshop.

The persistently lit airbag warning light is the primary indicator signaling a system fault to the driver. The light fails to extinguish after starting the vehicle, pointing to a serious, safety‑critical malfunction.

An additional clear symptom appears in the workshop: the control unit does not respond to queries via the OBD interface. Attempts to read the fault memory fail because the control unit “does not respond,” indicating a deep‑seated internal hardware defect.

In some instances, internal error codes related to the control unit’s hardware are stored, potentially foreshadowing imminent total failure before communication completely breaks down.

In which vehicles is the 1T0909605E installed?

The airbag control unit with part number 1T0909605E is specifically designed for the Volkswagen Touran 1T vehicle platform. It has been used throughout the model’s production run, from the first generation to later facelifted versions.

At Airbag24, we repair the 1T0909605E control unit and related systems for the following Volkswagen models:

Volkswagen: Touran 1T (model years 2003–2006), Touran 1T (GP) (model years 2006–2010), Touran 1T (GP2) (model years 2010–2015).

Similar control unit architectures can also be found in other Volkswagen Group models from this era, such as the VW Lupo.

How is the 1T0909605E repaired?

Professional repair of the 1T0909605E at Airbag24 follows a standardized process. After removal and shipment, the unit undergoes thorough electronic analysis. Defective components are replaced, stored crash data is erased, and the original vehicle coding is preserved before the device undergoes final testing.

The process begins in the workshop with diagnosis and removal of the control unit, typically located beneath the center console in the VW Touran.

Upon receipt at Airbag24, technicians perform a detailed inspection of the circuit board to pinpoint the exact source of the fault. Defective electronic components, such as capacitors or processors, are then expertly replaced.

A key step involves resetting the software. Stored crash data or internal errors caused by voltage fluctuations are safely removed, while the vehicle‑specific VIN coding is verified and retained.

Finally, the repaired control unit is tested on a test bench to ensure full functionality. We provide a 12-month warranty on every repair.

What shipping options does Airbag24 offer?

To make the process as easy as possible for you, Airbag24 provides flexible shipping and pickup options. You can either send your defective control unit to us free of charge yourself or arrange a convenient UPS pickup. For the return shipment, you can choose between free standard shipping and faster express shipping, both also available with cash-on-delivery.

For the outbound shipment, you have two options: you can send the package to us yourself or book a UPS pickup at your preferred location.

For returning the repaired unit, the following options are available: UPS standard shipping (free), UPS express shipping, UPS standard shipping with cash-on-delivery, and UPS express shipping with cash-on-delivery.

Alternatively, you can pick up the control unit in person from our facility after the repair is completed.
