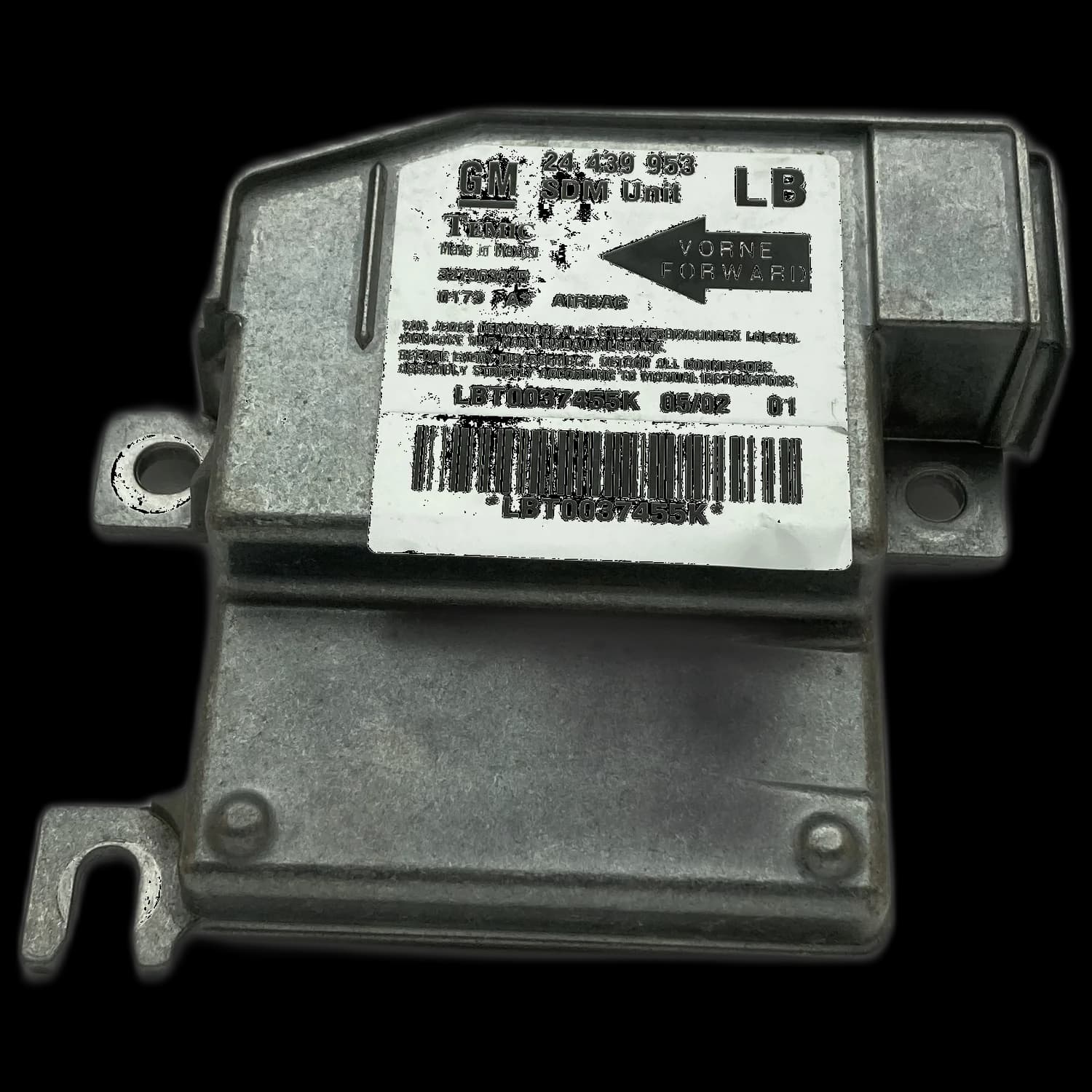

Airbag control unit with part number 24 439 953 LB

What is the function of the Airbag Control Unit 24 439 953 LB?

The Airbag Control Unit 24 439 953 LB, manufactured by Temic, is the central safety module (SDM – Supplemental Deployable Restraint Module) for the Opel Corsa C (2000–2006). It processes data from impact sensors, controls the deployment of airbags and seatbelt pretensioners, and stores crash-relevant data.

This control unit is responsible for monitoring the entire passive safety system. In the event of a collision, it determines within milliseconds which restraint systems need to be activated to provide optimal protection for occupants. After deployment, the unit locks out normal operation and must be professionally reset.

Why does the Control Unit 24 439 953 LB fail?

The most common cause of failure for the Control Unit 24 439 953 LB is stored crash data following an accident, which prevents further use. Similarly, internal electronic faults—often indicated by error code B1000—can lead to complete failure. External factors such as moisture or voltage issues can also damage the hardware.

A primary issue is the storage of crash data. After airbags or seatbelt pretensioners deploy, an irreversible entry remains in the unit’s memory. This entry can only be cleared through specialized repair; simple resetting via diagnostic tools is not possible.

Another frequent cause is an internal hardware defect. Faulty components like capacitors or problems with solder joints on the circuit board result in error code B1000 (Airbag Control Unit defective). Such defects arise due to aging, thermal stress, or voltage fluctuations in the vehicle’s electrical system.

The control unit is technically interchangeable with several variants installed in the Opel Corsa C and, in some cases, the Astra G. These include part numbers 24439953, 24439952(LA), 24439954(LC), 24423840, 13212353(CA), 9115117, and 32796335.

How do you recognize a fault in the Control Unit 24 439 953 LB?

A faulty Airbag Control Unit 24 439 953 LB typically manifests as a permanently illuminated airbag warning light on the dashboard. Additionally, communication with diagnostic equipment may no longer be possible, or specific, non-erasable error codes such as B1000 (internal fault) appear.

The clearest indication is the continuously lit airbag warning light. It does not turn off after starting the engine, signaling a serious malfunction in the safety system.

Often, no connection can be established with the control unit via the OBD port. Diagnostic tools receive no response, complicating troubleshooting and directly pointing to a failure of the control unit.

The fault memory frequently contains specific error codes that cannot be cleared. Code B1000 indicates an internal defect in the control unit. Errors such as B0077/B0078 (impact sensor faulty) or B0014 (ignition capsule resistance too low) may also stem from a malfunctioning control unit.

In which vehicles is the Control Unit 24 439 953 LB installed?

The Airbag Control Unit 24 439 953 LB is primarily installed in various Opel models. At Airbag24, we professionally repair this control unit for vehicles such as the Opel Corsa C and, in some cases, the Opel Astra G, which are built on this Temic-based platform.

At Airbag24, we have successfully matched and repaired this part number for the following model series:

Opel: Corsa C (model years 2000–2006), Astra G (in some cases)

How is the Control Unit 24 439 953 LB professionally repaired?

Repair of the Control Unit 24 439 953 LB at Airbag24 involves professional removal of crash data and rectification of internal electronic faults. Following an initial inspection, faulty components are replaced, the software is reset, and the unit is validated on test benches. We offer 2 years' statutory liability for defects on every repair.

Before removal, it is recommended to read the fault memory to clearly identify the control unit as the source of the problem. After removing the unit from the vehicle—typically beneath the center console—it is securely packaged and sent to Airbag24.

In the first step, our technicians conduct a thorough hardware analysis, inspecting the circuit board and all electronic components for visible damage such as corrosion or defective solder joints. Subsequently, the internal memory is read to determine the exact cause of the fault.

The actual repair includes resetting the stored crash data using specialized software and replacing any defective components. Once the unit has been successfully restored, it undergoes simulated testing on a test bench to ensure proper functionality of all systems. No re-coding or reprogramming is required after reinstallation.
