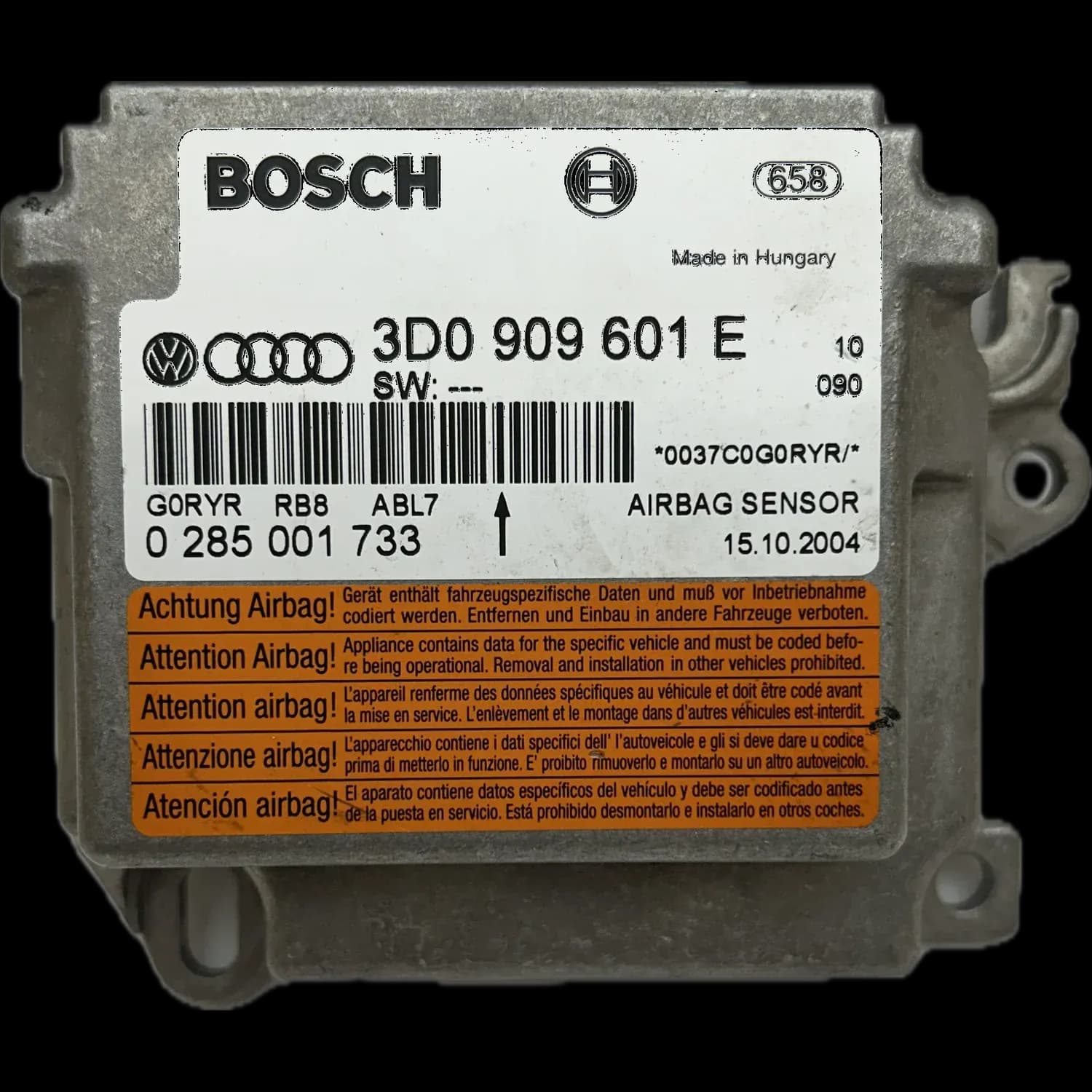

Airbag-Steuergerät mit der Teilenummer 3D0909601EU

What is the function of the airbag control unit 3D0909601EU?

The airbag control unit 3D0909601EU is the central control module for the occupant protection system in various Bentley models. It processes data from acceleration and crash sensors to precisely and rapidly activate essential restraint systems—such as airbags and seatbelt pretensioners—in the event of a collision.

As the brain of the passive safety system, it continuously monitors all connected components, including the various airbags (front, side, curtain), seatbelt pretensioners, and their associated sensors and ignition circuits. It ensures that the system operates flawlessly when needed.

This control unit was specifically designed for early-generation vehicles such as the Bentley Continental GT, GTC, and Flying Spur. It is deeply integrated into the vehicle’s electronics and communicates via multiple CAN bus systems with other critical control units, including the instrument cluster, ABS, and ESP.

Why does the 3D0909601EU control unit fail?

The most common cause of failure is the storage of crash data in its internal EEPROM/Flash memory after an accident or even a minor impact. Additionally, internal electronic faults in components such as voltage regulators, driver ICs, or communication modules can lead to device malfunction.

A key reason for malfunctions is the “Crash data stored” or “Crash detected” error message. In these cases, the control unit locks itself for safety reasons, and the airbag warning light illuminates. This condition cannot be resolved simply by clearing the fault memory; it requires a thorough electronic reset.

Hardware defects on the circuit board are also a frequent source of issues. These include failures of driver stages responsible for igniting the airbags, or malfunctions in CAN transceivers that disrupt communication with the rest of the vehicle. An internal error like “Control unit faulty” almost always points to such hardware problems.

Voltage fluctuations in the vehicle’s electrical system—caused, for example, by a dead battery or improper jump-starting—can damage sensitive components such as voltage regulators or protective diodes. Less commonly, thermal issues like cold solder joints or aged electrolytic capacitors (elkos) may be the culprit.

This control unit is also known under related part numbers 3D0909601E, 3W3959655A, and 3W8909601U, which may be interchangeable depending on the vehicle model and software version.

How do you recognize a defect in the 3D0909601EU?

The clearest sign of a defect is the airbag warning light that remains illuminated on the dashboard. Another clear symptom is the lack of communication with the control unit when a workshop attempts to read the fault memory using a diagnostic tool (e.g., ODIS or VCDS).

The airbag warning light that fails to turn off after starting the engine directly alerts the driver that the restraint system is not operational. This inevitably leads to problems during the main vehicle inspection (TÜV).

If a diagnostic tool cannot establish communication with the control unit, this indicates a serious internal fault. In such cases, the device becomes unresponsive and requires electronic repair.

The fault memory often contains specific entries such as “Crash data stored,” “Internal error,” or error codes pointing to issues with the ignition circuits of airbags and seatbelt pretensioners—even when the components themselves are intact.

In Bentley vehicles, a defective airbag control unit, due to its interconnected nature, can also occasionally cause communication errors with other systems like the instrument cluster, ABS, or ESP, resulting in additional warning messages.

In which vehicles is the 3D0909601EU control unit installed?

This airbag control unit is exclusively used in various Bentley models. At Airbag24, we professionally repair the 3D0909601EU part number for multiple generations and variants of the Continental and Flying Spur, restoring full safety and functionality.

At Airbag24, we repair the airbag control unit with part number 3D0909601EU for the following Bentley models:

Bentley Continental GTC, 1st generation (2006–2011)

Bentley Continental Flying Spur, 1st generation (2005–2013), Mk2, and Mk3

Bentley Continental R, 1st generation (1991–2002)

Bentley Continental GT Speed Mk1, GTC Speed Mk2, and GTC Speed Mk3

Bentley Flying Spur Speed Mk2 and Flying Spur Speed Mk3

How is the 3D0909601EU control unit professionally repaired?

The repair is a purely electronic process performed at the component level. After sending the unit to Airbag24, it is opened, the circuit board is thoroughly inspected, defective components such as memory chips, microcontrollers, or driver ICs are replaced, and any stored crash data is erased. The original vehicle coding remains fully intact throughout the process.

Upon receipt at Airbag24, the control unit is first subjected to an initial inspection, and its housing is carefully opened. This is followed by a detailed visual examination for corrosion, water damage, or mechanical defects.

Next, a component-level analysis is performed. Our technicians check the power supply paths, communication modules (CAN transceivers), and the driver stages for the ignition circuits. Defective components such as voltage regulators, protection diodes, capacitors, or integrated circuits (ICs) are identified and replaced with new, high-quality parts.

A key step is reading out and resetting the crash data stored in the internal memory (EEPROM/Flash). This restores the control unit to a “non‑accident” state, making it fully functional again. This process is far more complex than simply clearing fault codes.

After repair, each control unit is tested on a specialized test bench. Here, all ignition circuits are checked under simulated load conditions, and communication via the diagnostic interface is verified. We provide a 12-month warranty on every repaired unit.

The decisive advantage of repair is that the vehicle‑specific original coding is preserved. After reinstallation, the control unit does not need to be reprogrammed or re‑learned; only the vehicle’s fault memory needs to be cleared once.

What shipping options are available at Airbag24?

You can send your defective control unit to Airbag24 free of charge, or arrange a convenient UPS pickup from your preferred location. For returning the repaired unit, we offer free standard UPS shipping as well as faster express options, including cash-on-delivery.

For the outbound shipment, you have two choices: either securely package the removed control unit and send it to us yourself, or use UPS’s convenient pickup service, which you can book directly when ordering the repair.

The following return shipping options are available:

Free standard UPS shipping

UPS express shipping

Standard UPS shipping with cash-on-delivery

Express UPS shipping with cash-on-delivery

Local self‑pickup
