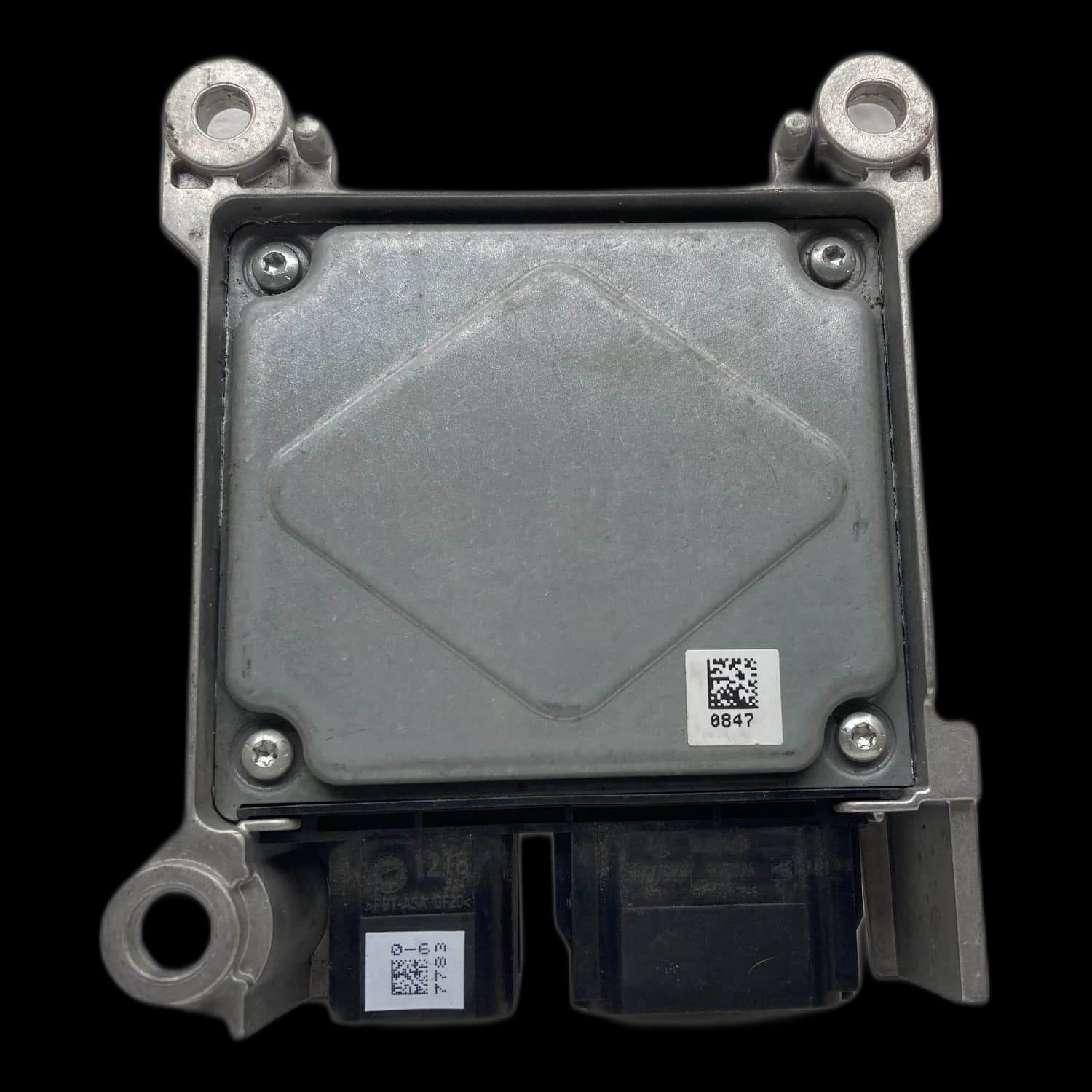

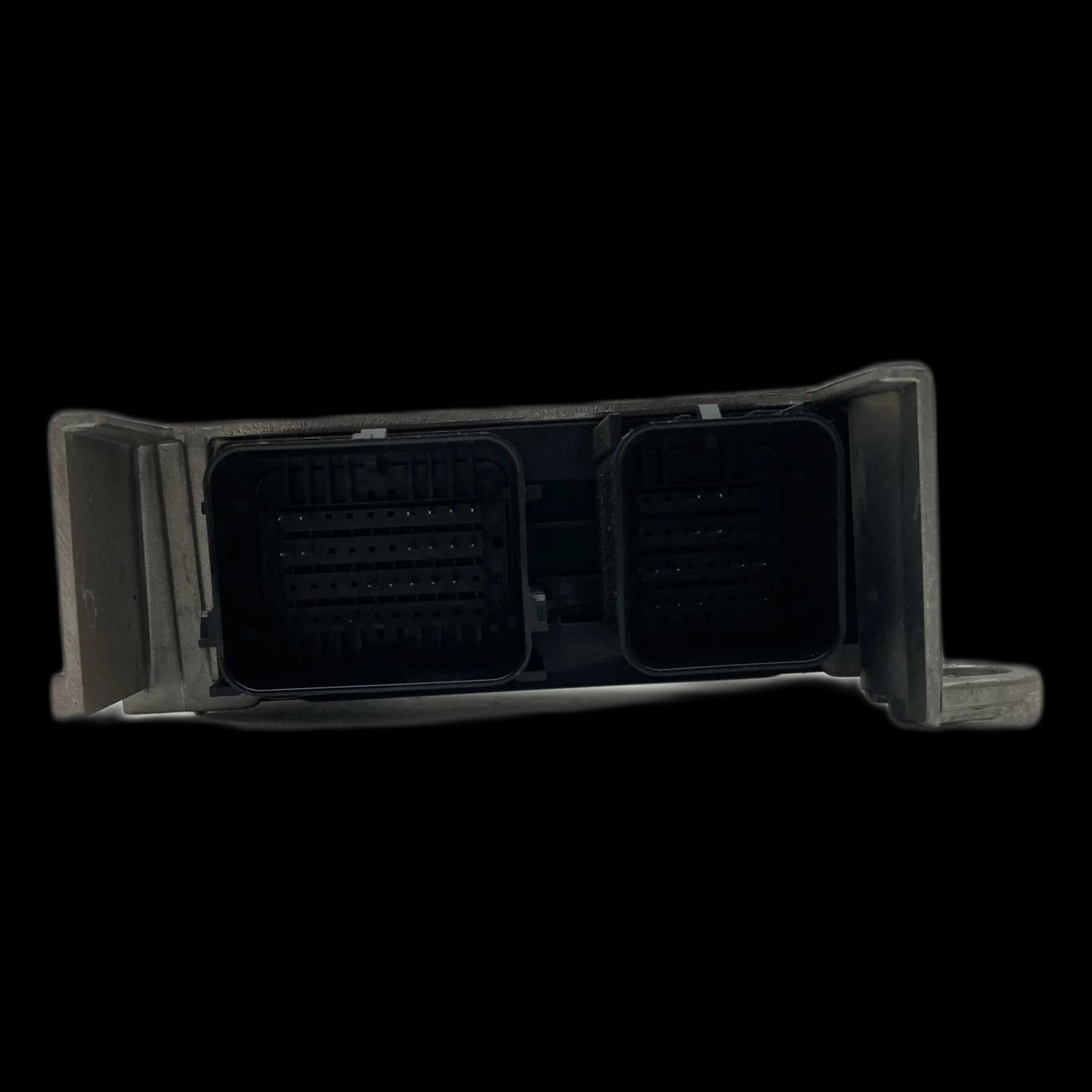

Airbag control unit with part number 4M5T 14B056 AE

What is the function of the Airbag Control Unit 4M5T-14B056-AE?

The airbag control unit with part number 4M5T-14B056-AE, often used in conjunction with Bosch reference 0 285 001 847, serves as the central control unit for the restraint system in the Ford C-Max II. It analyzes data from acceleration and crash sensors and determines whether to deploy airbags and seatbelt pretensioners, ensuring occupant safety.

As a Restraint Control Module, it is the critical component that activates passive safety systems in the event of a collision. It continuously receives signals from various vehicle sensors measuring acceleration, deceleration, and rotational forces.

Based on this information, an internal processor decides within milliseconds whether a crash has occurred and which restraint devices (e.g., front airbags, side airbags, seatbelt pretensioners) need to be deployed. After deployment, the unit stores crash data, resulting in a system lockout.

Why does the Airbag Control Unit 4M5T-14B056-AE fail?

The most common cause of failure for the 4M5T-14B056-AE control unit is the storage of crash data following an accident, which locks the system. Other causes include internal electronic malfunctions leading to complete communication failure, rendering the unit unresponsive to diagnostic tools and triggering the airbag warning light.

The primary reason for malfunction is the accumulation of crash data. Even minor collisions or when only one sensor reports an error (e.g., fault code B0094:93AF for the front crash sensor) can result in the control unit locking functionality and activating the warning light. These stored data must be electronically erased to restore system operation.

Another frequent issue is an internal defect on the circuit board, often causing total communication failure. In such cases, the control unit becomes inaccessible to diagnostic equipment, complicating troubleshooting at the workshop. Aging-related wear of electronic components can also contribute to this problem.

In rarer instances, a defect in the airbag system linked to this control unit may prevent the vehicle from starting despite a functioning starter. This suggests a deeper interconnection with other vehicle systems disrupted by the faulty control unit.

How do you recognize a defect in the 4M5T-14B056-AE control unit?

A defective 4M5T-14B056-AE airbag control unit primarily manifests as a permanently illuminated airbag warning light on the dashboard. Often, the control unit cannot be read by diagnostic equipment (no communication). Specific fault codes such as B0094:93AF may also indicate a systemic issue.

The most obvious symptom is the persistently lit airbag warning light. It does not extinguish after starting the vehicle, signaling a critical fault in the restraint system requiring immediate inspection.

A clear sign of a severe defect is the absence of communication. When a workshop attempts to read the fault memory, the diagnostic tool receives no response from the airbag control unit, making the system invisible to diagnostics.

Stored fault codes readable prior to total failure also provide clues. For example, a code like B0094:93AF points to a problem with the front crash sensor, potentially leading to crash data being saved in the control unit.

A rarer but unmistakable symptom is a vehicle that fails to start while the airbag warning light remains illuminated. This indicates that the control unit’s defect may also affect other systems, such as the immobilizer or ignition system.

In which models is the 4M5T-14B056-AE control unit installed?

The 4M5T-14B056-AE control unit is specifically designed for the second-generation Ford C-Max and Grand C-Max. At Airbag24, we professionally refurbish this module for the Ford C-Max II series (model years 2010–2015) as well as its facelifted variant (2015–2019).

At Airbag24, we repair the airbag control unit with part number 4M5T-14B056-AE and related variants for the following vehicles:

Ford: C-Max II (MK2, 2010–2015), Grand C-Max II (MK2, 2010–2015), C-Max II Facelift (2015–2019), Grand C-Max II Facelift (2015–2019)

Similar fault patterns and control units are also found in other Ford models such as the Focus, Kuga, Fiesta, or Puma, where different but technically related part numbers may apply.

How does repair work at Airbag24?

Repairing the 4M5T-14B056-AE control unit at Airbag24 is a purely electronic process. Upon receipt, the unit is thoroughly analyzed, stored crash data is professionally erased, and internal defects are fixed at the component level. The device is then restored to factory settings and returned with 2 years’ statutory liability for defects after a functional test.

Before removing the control unit, it is advisable to read out the fault memory and document the error codes. This helps technicians perform a targeted diagnosis of the issue.

After sending the unit to Airbag24, it undergoes an initial inspection to verify the reported fault. Subsequently, professional repair is carried out, during which stored crash data is erased, communication is restored, and defective components on the circuit board are replaced.

A comprehensive final test on a specialized test bench ensures that the control unit is fully functional again and that all parameters comply with the manufacturer’s specifications. Following successful testing, the unit is prepared for return shipment.

Repair offers a cost-effective and sustainable alternative to expensive new parts. We provide 2 years' statutory liability for defects on every repaired unit.
