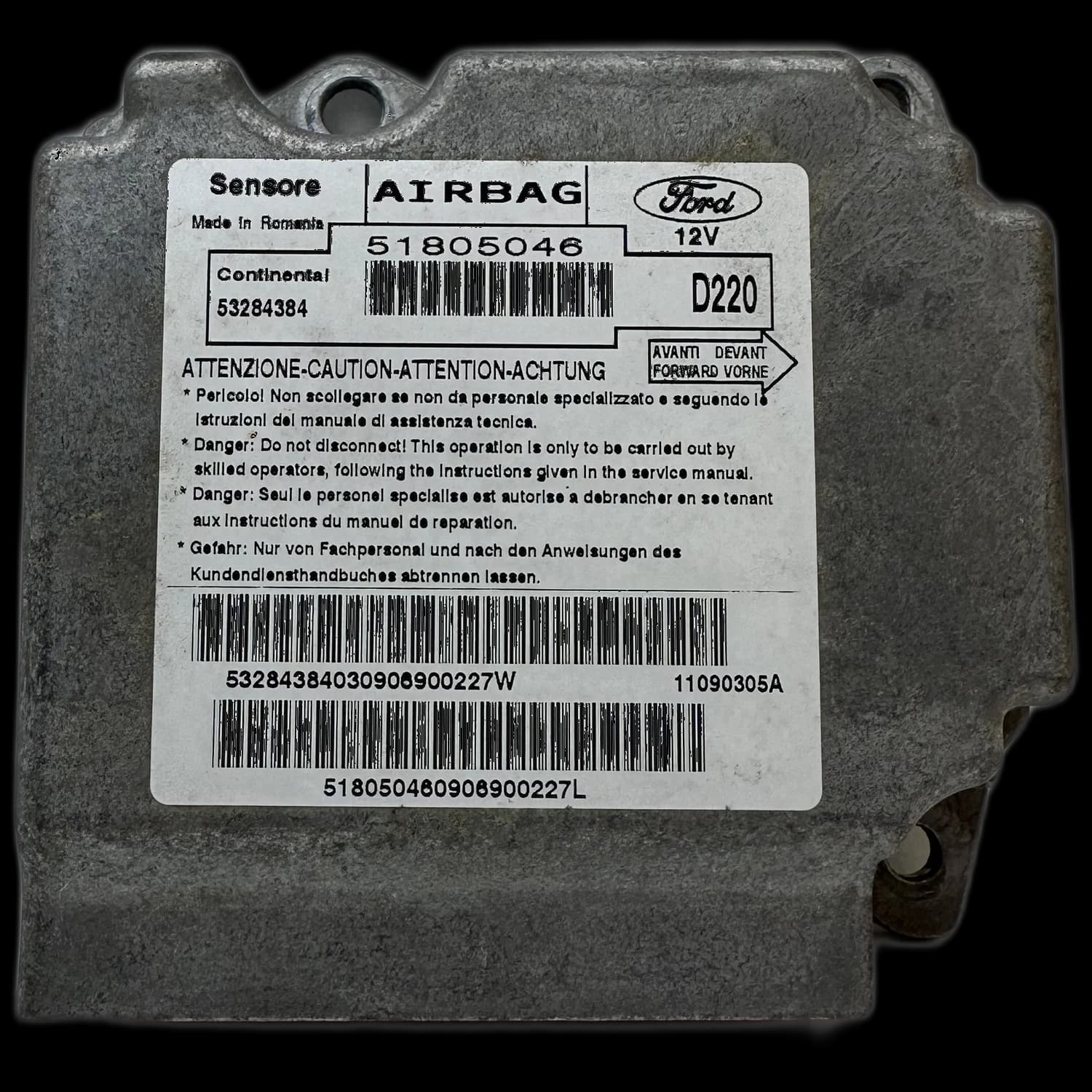

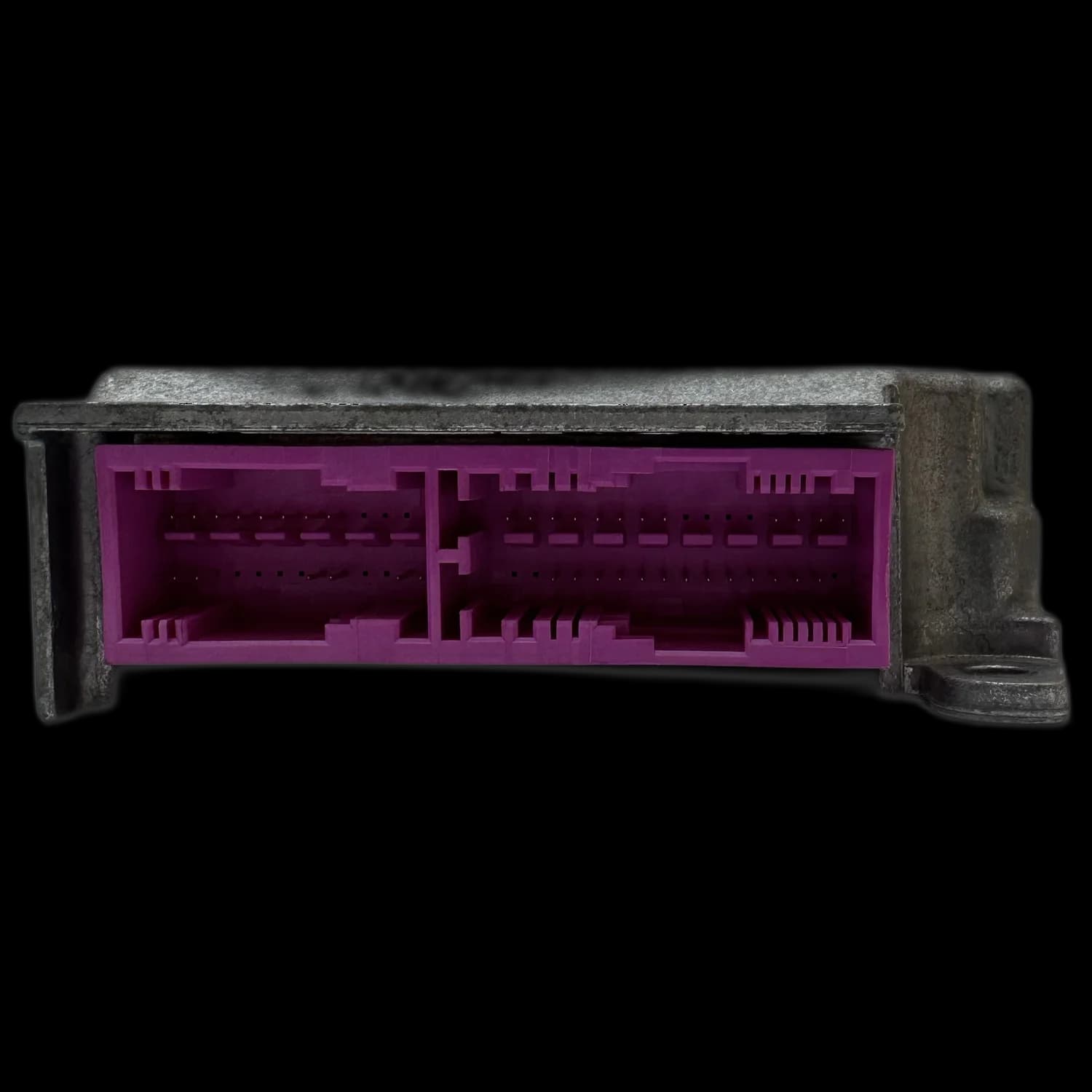

Airbag control unit with part number 51805046

What is the function of Airbag Control Unit 51805046?

The airbag control unit with part number 51805046 is a central safety module manufactured by Continental for the Ford Ka II. It continuously monitors all sensors of the restraint system, processes their data, and determines, in the event of a crash, which airbags and seatbelt pretensioners need to be deployed to protect occupants.

As an SRS control unit (Supplemental Restraint System), it serves as the brain of the entire passive safety system. It communicates with other vehicle components via the CAN bus and stores all relevant system states and fault codes.

This specific unit is typically installed at the front of the vehicle, often in the center tunnel area beneath or in front of the center console. Its proper functioning is critical for vehicle safety, which is why any malfunction requires immediate repair.

What types of failures occur in control unit 51805046?

Typical faults of control unit 51805046 are almost exclusively electronic in nature. First and foremost is the storage of crash data after an accident, which can prevent further functionality. Internal control unit errors caused by corrupted memory data (EEPROM/Flash) or communication issues on the CAN bus are also common.

After an airbag deployment, an irreversible fault entry such as “Crash Data Stored” remains in memory. The control unit locks itself, and simple deletion using workshop diagnostic tools is not possible.

Internal errors appearing in the fault memory as “control unit defective” or “internal memory error” often stem from faulty components in the internal power supply, defective EEPROM or Flash memory chips, or problems with vehicle-specific coding.

Communication problems manifest when the control unit becomes unreachable through the diagnostic port. These are frequently due to defective CAN transceiver chips or cold solder joints on the circuit board.

Malfunctions in peripheral actuation—such as ignition circuits for airbags and seatbelt pretensioners—can also result directly from defective driver modules within the control unit.

How do you recognize a fault in airbag control unit 51805046?

The most obvious symptom of a fault in control unit 51805046 is the permanently illuminated airbag warning light on the instrument cluster. Additionally, diagnostic tools may fail to establish communication with the control unit, or display specific, non‑erasable fault codes such as “internal error.”

The red airbag warning lamp that does not extinguish after starting the vehicle is the primary indication to the driver that the restraint system is inoperative and requires inspection at a workshop.

When reading the fault memory, codes often appear that point directly to an internal defect in the control unit. Following a crash, entries like “crash data stored” clearly indicate that the device needs specialized repair.

Another telltale sign is when the diagnostic tool reports that no connection can be established with the airbag control unit. In this case, one should assume a complete failure of the unit’s communication electronics.

In which vehicles is control unit 51805046 installed?

The Continental airbag control unit 51805046 is specifically designed for the second-generation Ford Ka. At Airbag24, we offer professional repair services for this control unit, which was used in KA2/RU8 model series between 2008 and 2016.

At Airbag24, we repair part number 51805046 for the following model:

Ford Ka 2 (model KA2/RU8), manufactured approximately 2008–2016

How does the repair of control unit 51805046 proceed?

Repair at Airbag24 follows a standardized process: After removal and shipment, the control unit is analyzed on a dedicated test bench. Depending on the nature of the fault, defective electronic components are replaced, and software integrity is restored. A final test ensures full functionality, backed by 2 years' statutory liability for defects. With this control unit, erasing the crash data is often not possible. If the crash data needs to be erased, please contact us briefly before sending the unit in – we will check your part number.

Before removing the control unit, it is essential to read out the fault memory and attach the shipping log. This speeds up diagnosis and enables targeted repairs.

Upon arrival at Airbag24, the unit is connected to a test bench that simulates the vehicle environment, including all sensors and ignition circuits. Here, the exact fault is localized down to the component level.

Restoration takes place directly on the circuit board. Specialists replace faulty voltage regulators, CAN modules, or drivers, and inspect solder joints under a microscope.

Subsequently, the repaired control unit undergoes another comprehensive functional test. Only after all tests have been passed without error is the device approved for return shipment. Each repair comes with 2 years' statutory liability for defects.
