Airbag control unit with part number 5N0 959 655N

What is the function of Airbag Control Unit 5N0959655N?

The airbag control unit with part number 5N0959655N is a central control module for the occupant protection system in certain VW models. It processes signals from crash sensors, controls the deployment of airbags and seatbelt pretensioners in the event of an accident, and stores relevant crash data for later analysis.

As an original Volkswagen component, it is responsible for monitoring and controlling the entire restraint system. Under normal operating conditions, it continuously communicates with the vehicle’s connected sensors to respond promptly to any collision.

In the event of an impact, the control unit analyzes incoming data within milliseconds and determines which safety systems—such as front, side, or head airbags and seatbelt pretensioners—need to be activated.

After deployment, so‑called crash data is permanently stored in the unit’s internal memory. The control unit is typically mounted in the vehicle’s center console to provide optimal protection from external influences.

What defects occur in 5N0959655N?

Defects in the 5N0959655N control unit often manifest as crash data that cannot be erased after an accident. Other common causes include internal software errors triggering error code B2000 (control unit defective) or communication malfunctions that make diagnosis impossible.

The most frequent cause of failure for this control unit is the storage of crash data following a collision. This data locks the device and prevents further use, indicated by the illuminated airbag warning light. Standard erasure via conventional diagnostic tools is then no longer possible.

Another common issue is the internal error code B2000, which points to a defect within the control unit itself. This may result from a software glitch or an internal electronic malfunction and likewise leads to the warning light remaining on continuously.

In some cases, complete communication failure occurs. The control unit becomes unreachable through the diagnostic interface, complicating troubleshooting and suggesting a more serious internal fault.

How do you recognize a defect in the 5N0959655N control unit?

The hallmark symptom of a defect in the 5N0959655N control unit is a persistently or intermittently illuminated airbag warning light on the instrument cluster. Often, the control unit can no longer be accessed using a diagnostic tool, or error codes such as B2000 appear that cannot be cleared.

The most obvious sign is the activated airbag warning light. It fails to extinguish after starting the vehicle or begins flashing during driving, indicating a problem within the safety system.

During workshop diagnostics, the issue frequently shows up as an inability to establish communication with the control unit. The diagnostic tool receives no response despite all connections being correct.

Alternatively, while the fault memory can be read out, the recorded errors—especially “crash data stored” or error code B2000—cannot be deleted. Any attempt to reset the memory ends in failure.

In which vehicles is 5N0959655N installed?

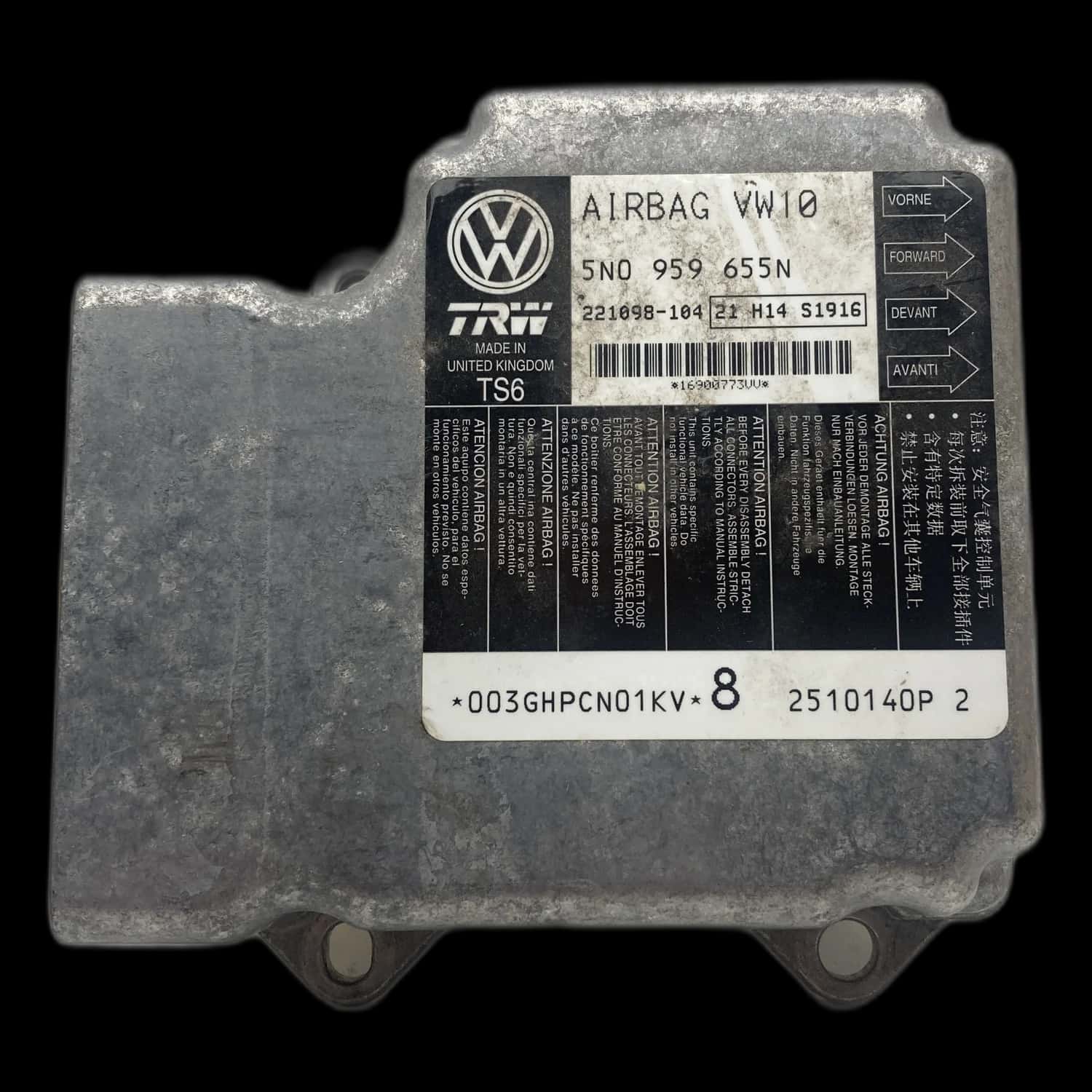

The airbag control unit 5N0959655N is primarily installed in vehicles of the Volkswagen Group. The main models include the VW Passat B6 (3C) and the first-generation VW Tiguan (5N), including the facelifted versions, produced during the specified model years.

At Airbag24, we offer professional repair services for part number 5N0959655N for the following Volkswagen models:

Volkswagen Passat B6 3C (model years 2005–2010)

Volkswagen Tiguan 5N (model years 2007–2011) as well as the facelifted version (model years 2011–2018)

How does the repair of 5N0959655N proceed?

Professional repair of the 5N0959655N control unit at Airbag24 involves targeted software reprogramming to clear internal errors and stored crash data. Upon submission, the unit is analyzed, the fault memory is reset, and a final functional test is performed.

For fast and efficient processing, it is recommended to read out the fault memory before removing the control unit and attach the transmission protocol. This allows our technicians to immediately identify the root cause of the issue.

Once received at Airbag24, the unopened control unit undergoes a detailed analysis. Using specialized software, stored crash data is securely erased, and any software issues are resolved through reprogramming.

Finally, a comprehensive functional test is performed to verify the control unit’s proper operation. We provide a 12-month warranty on every successful repair.

What shipping options are available at Airbag24?

For repairing your control unit at Airbag24, you can either send the package yourself free of charge or arrange a convenient UPS pickup at your preferred location. For returns, we offer free standard shipping as well as faster express services, including cash-on-delivery options.

To send us your defective control unit, you have two convenient choices: you can ship it yourself as an insured parcel, or use our UPS pickup service, which collects the package directly from your address.

For returning the repaired unit, we provide several options to suit your needs. Free UPS standard shipping is our default choice.

If you require faster delivery, UPS express shipping is available. Both standard and express shipping can also be combined with cash-on-delivery. Of course, you’re welcome to pick up your device in person at our facility.
