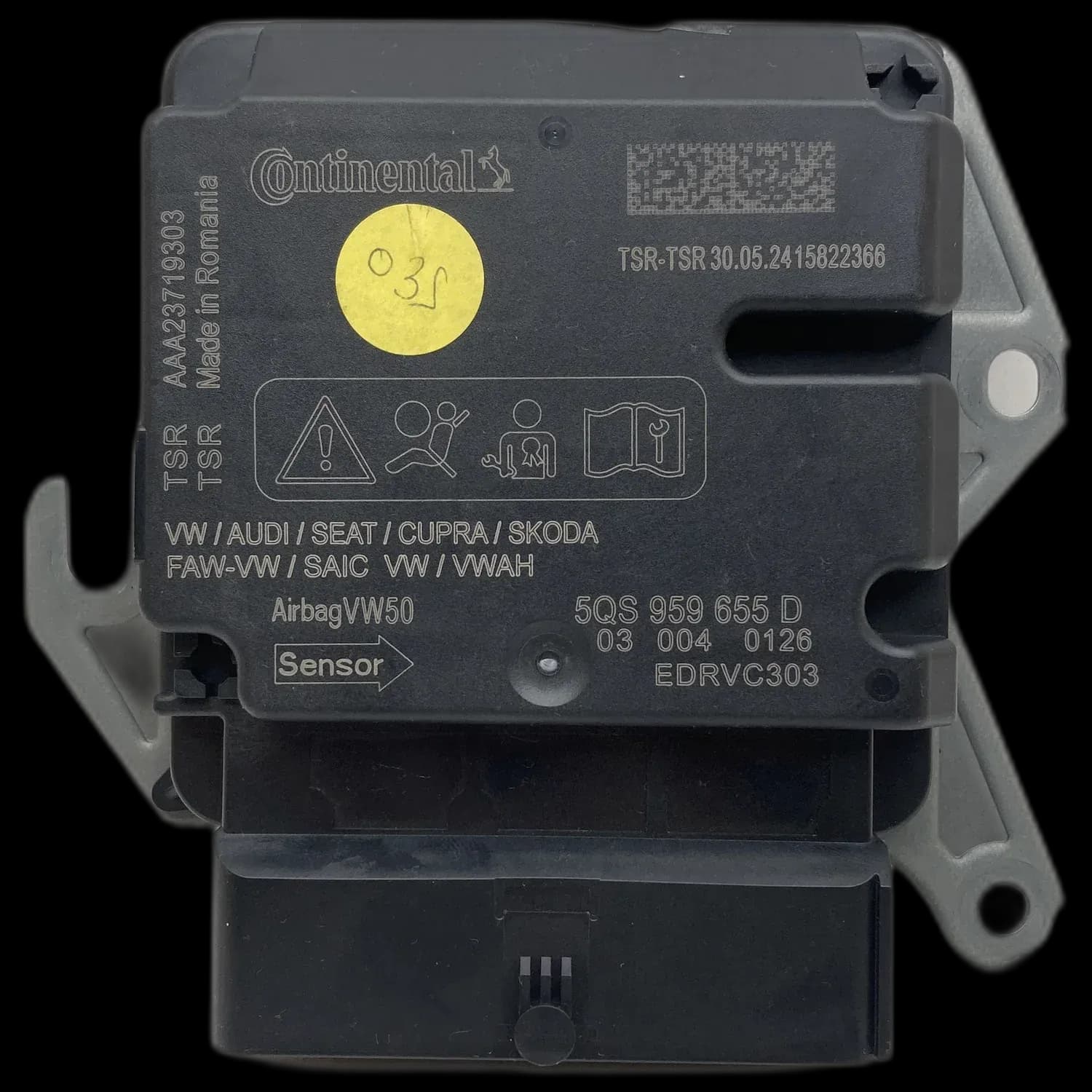

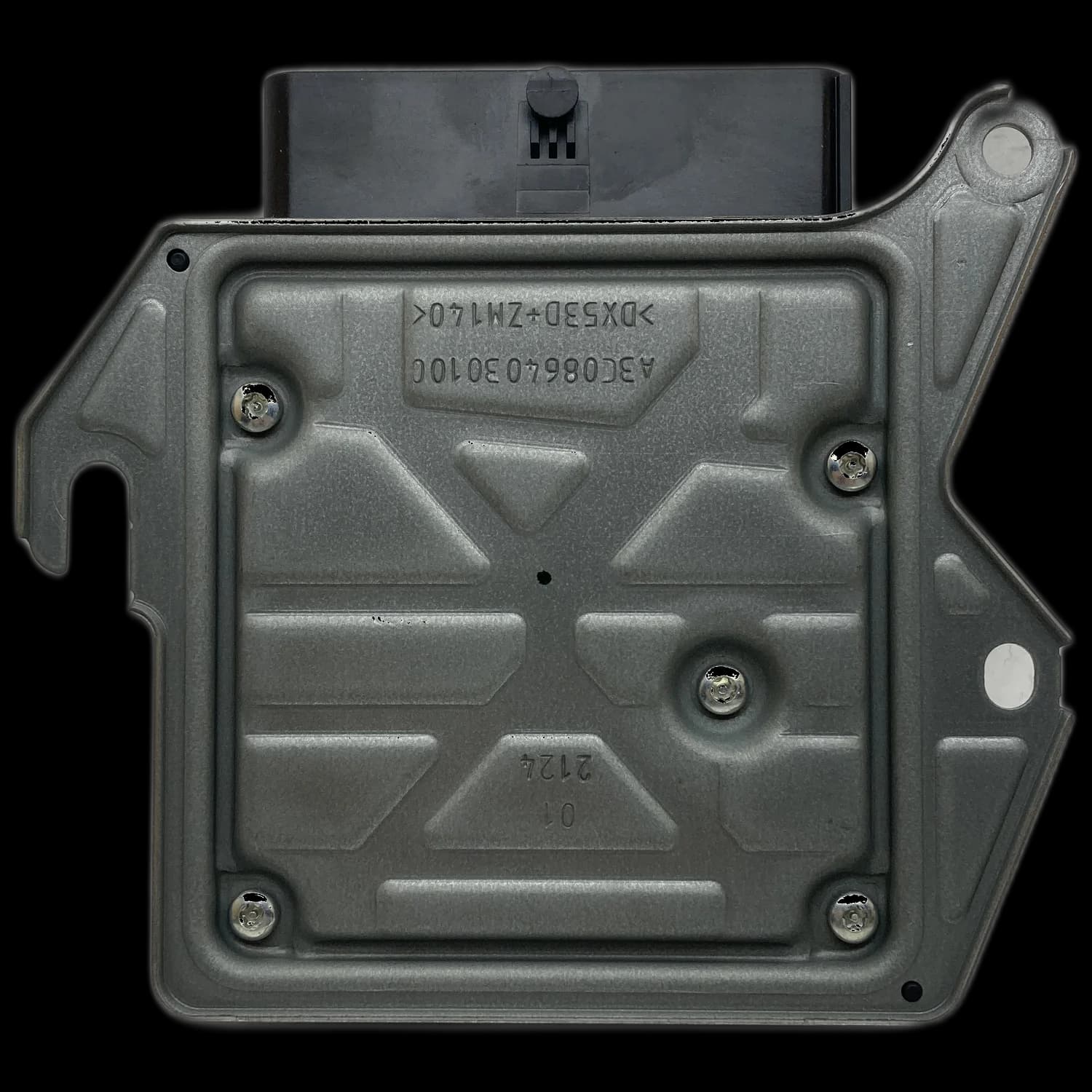

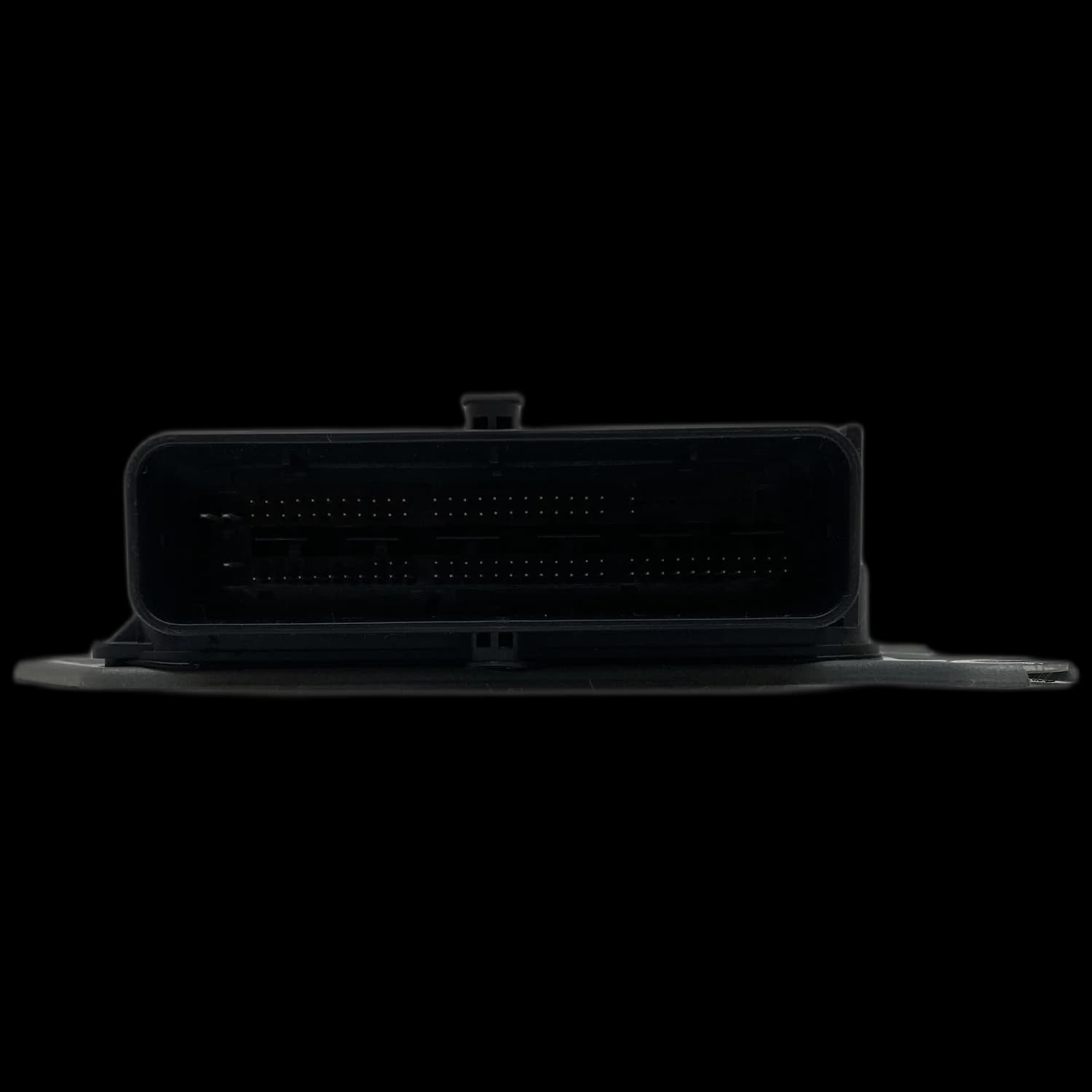

Airbag control unit with part number 5QS 959 655 D

What is the function of Airbag Control Unit 5QS 959 655 D?

The component with part number 5QS 959 655 D is an original airbag control unit (SRS module) from Volkswagen. It is responsible for monitoring and controlling the entire occupant restraint system in vehicles such as the VW Crafter (SZ model year 2017 onward) and the Multivan T7. Its primary task is to process sensor data to precisely deploy airbags and seatbelt pretensioners in the event of a crash.

This control unit serves as the central processing unit of the safety system. It continuously communicates via the CAN bus with crash sensors located at the front, sides, and other relevant areas of the vehicle. Based on the acceleration data provided by these sensors, the module determines within milliseconds whether and which restraint devices need to be activated.

In addition to its deployment function, the control unit performs a self-test of all connected components every time the vehicle is started. If faults are detected in the airbags, seatbelt pretensioners, seat occupancy mats, or internal electronics, the airbag warning light on the instrument cluster illuminates to alert the driver.

Why does control unit 5QS 959 655 D fail?

The most common cause of failure for control unit 5QS 959 655 D is the storage of crash data after an accident. This data locks the module and prevents simple deletion of error codes, making repair or replacement unavoidable. Similarly, internal electronic defects on the circuit board—such as faulty SMD components or issues with the power supply—can also lead to failure.

After an airbag deployment, so‑called crash data is permanently stored in the module’s internal memory. This marking as “consumed” is a manufacturer‑imposed safety measure.

Another potential defect stems from hardware issues directly on the circuit board. Defective capacitors, blown MOSFETs, damaged CAN transceivers, or cold solder joints can disrupt communication with the vehicle. Often, error code 65535 or B1000 (internal control unit fault) will then appear in the fault memory.

It’s important to note that this control unit is listed under various designations, such as 5Q0 959 655 D or 5Q0959655D. Very similar part numbers like 5Q0959655CD may also be installed in related vehicle models and often exhibit comparable fault patterns.

How do you recognize a defect in 5QS 959 655 D?

The clearest symptom of a defect in control unit 5QS 959 655 D is a constantly illuminated or intermittently flashing airbag warning light (SRS lamp) on the dashboard. Additionally, diagnostic tools may fail to establish communication with the control unit, complicating fault analysis. Stored error codes such as “internal fault” or “power supply issue” also point directly to the module.

A persistently lit airbag warning light is the classic indicator. The system thereby signals that it might not function—or not function correctly—in the event of a crash. Ignoring this warning poses a significant safety risk.

If a diagnostic tool can no longer access the control unit, this strongly suggests a severe internal hardware failure. Error codes like 65535, B1000, or B1600 confirm an internal, non‑removable fault within the module itself, necessitating repair.

Specific error messages indicating problems with the CAN bus or the internal power supply are also typical signs of a defect in this particular control unit model. They reveal that the internal electronics are no longer functioning properly.

In which models is airbag control unit 5QS 959 655 D installed?

The airbag control unit with part number 5QS 959 655 D, along with its variants (e.g., 5Q0 959 655 D), is specifically used in newer commercial vehicle and van models from Volkswagen. At Airbag24, we repair this module for the VW Crafter SZ series from model year 2017 onward, as well as the VW Multivan T7 from model year 2021 onward.

At Airbag24, we have successfully repaired this control unit for the following vehicles and model series:

Volkswagen: Crafter (SZ series, from 2017), Multivan (T7 series, from 2021)

How does the repair of 5QS 959 655 D proceed?

The repair process at Airbag24 is designed for safe and sustainable restoration. Upon receipt of the removed control unit, our technicians conduct a thorough diagnosis. Repairs include addressing hardware defects on the circuit board and performing final functional tests to ensure proper communication within the vehicle. We provide 2 years' statutory liability for defects on every repair. With this control unit, erasing the crash data is often not possible. If the crash data needs to be erased, please contact us briefly before sending the unit in – we will check your part number.

First, the control unit housing is carefully opened, and a visual inspection is performed to identify any obvious damage, such as corrosion or signs of burning. This is followed by a detailed analysis of the circuit board at the component level.

Defective electronic components—such as capacitors, MOSFETs, or the CAN transceiver—are identified and replaced with new, high-quality parts. Cold or cracked solder joints are professionally reworked to ensure a durable electrical connection.

If necessary, the software is reinstalled or adjusted to match the vehicle’s configuration.

Finally, the repaired control unit is tested on a test bench to verify its complete functionality. During this process, communication over the CAN bus is simulated, and it is confirmed that all fault codes can be permanently cleared and that the airbag warning light operates correctly.
