Airbag control unit with part number 65 77 9 149 934

What is the function of Airbag Control Unit 65 77 9 149 934?

The component with part number 65 77 9 149 934 is a central airbag control unit, also known as the Safety and Gateway Module (SGM), installed by BMW in the 7 Series (E65, E66). Its main task is to monitor and control the entire occupant restraint system to ensure maximum safety.

As the brain of the safety system, this control unit continuously processes signals from crash sensors distributed throughout the vehicle. It analyzes data in real time to detect the type and severity of a potential collision and initiate the necessary responses.

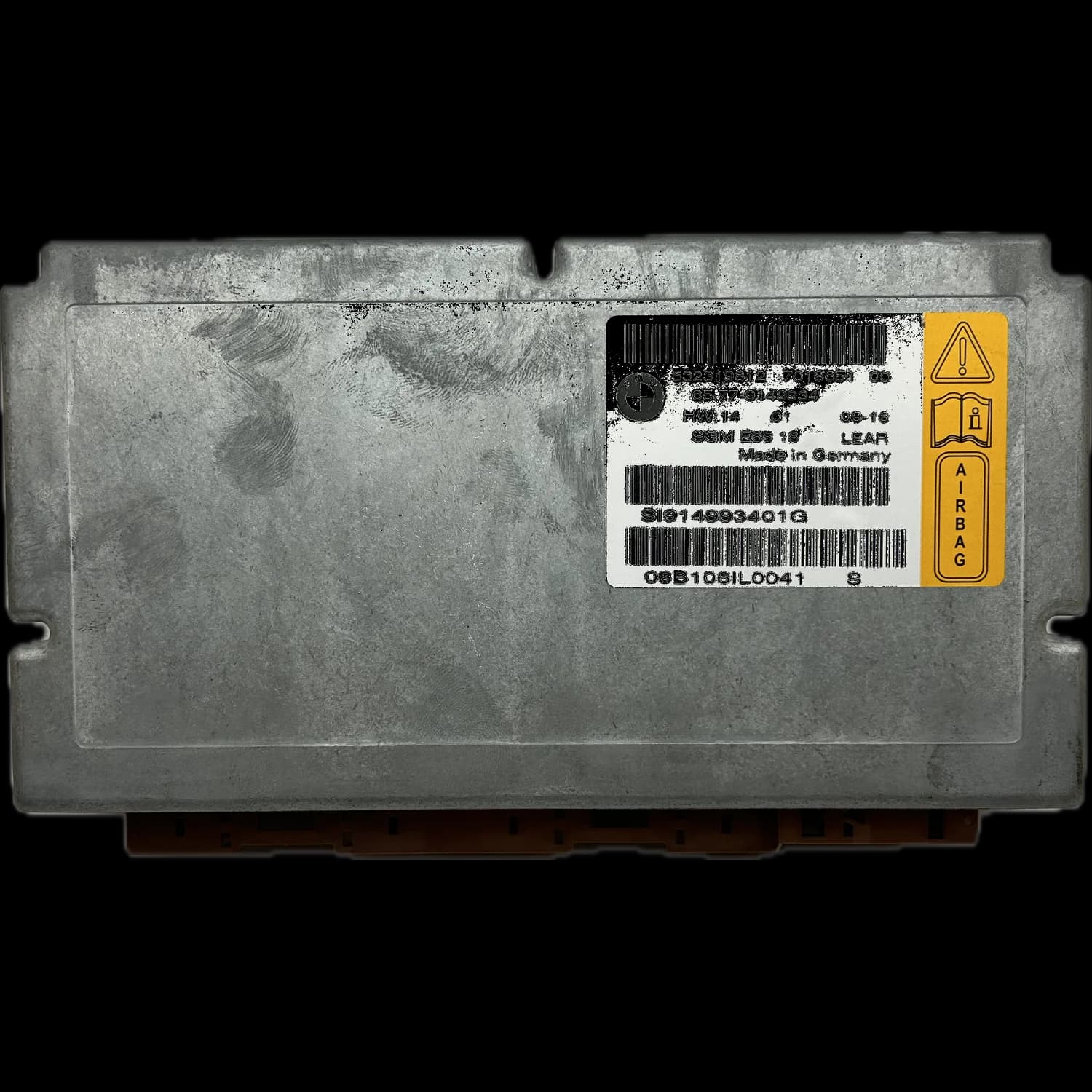

In the event of a collision, the SGM makes the critical decision on which restraint systems need to be activated. It precisely controls the deployment of airbags and seatbelt pretensioners to effectively protect occupants from injury. It is a box, a flat, wide housing; the label reads “SGM E65 18” and “LEAR”.

Why does Control Unit 65 77 9 149 934 fail?

Possible causes of failure for Control Unit 65 77 9 149 934 are error 93F9 (voltage reserve or energy reserve) as well as internal electronic defects in components such as microprocessors or memory modules. General communication failures with the sensors also occur.

A primary cause of failure is internal hardware malfunctions. These can affect components like capacitors, processors, or memory chips. Such failures often result in the control unit ceasing to respond or being unable to establish communication with other vehicle systems.

Error 93F9 indicates a defect in the voltage reserve or energy reserve of the control unit. It cannot be fixed using standard diagnostic tools; a repair of the electronics is required.

How do you recognize a defect in Control Unit 65 77 9 149 934?

A defect in SGM 65 77 9 149 934 typically manifests as a permanently illuminated airbag warning light on the instrument cluster. Another clear indication is the lack of communication with the diagnostic tool, preventing any error codes from being read.

The most obvious symptom is the persistently lit airbag warning light. It does not turn off after starting the vehicle, indicating a serious, stored fault in the restraint system.

An additional common sign is complete loss of communication. Workshops cannot establish a connection to the airbag control unit via the OBD port. The module fails to respond to diagnostic requests, making troubleshooting impossible.

In which BMW models is Control Unit 65 77 9 149 934 installed?

The Airbag Control Unit 65 77 9 149 934 is used in the BMW 7 Series of the E65 and E66 generations.

At Airbag24, we repair the control unit with part number 65 77 9 149 934 for the following BMW models:

BMW 7 Series: E65, E66 L (long-wheelbase version)

What are the advantages of repairing 65 77 9 149 934?

For error 93F9, the key advantage of repair is significant cost savings compared to purchasing a new unit. Additionally, the original vehicle coding is preserved, eliminating the need for time-consuming reprogramming at the workshop.

Repair offers an economically sensible alternative to expensive new purchases. You can save up to 50% of the cost of a new original control unit while fully restoring functionality.

Since the vehicle-specific original unit is repaired, all coding and adjustments remain intact. After repair, the control unit can be easily reinstalled (plug-and-play) without requiring reprogramming at an authorized BMW dealership. All repairs come with 2 years' statutory liability for defects.

How does professional repair at Airbag24 work?

The repair process at Airbag24 begins with removing and sending in the defective control unit. Our technicians perform a precise diagnosis, fix error 93F9, and restore full functionality. Following a final test, the unit is returned to the customer.

Once the removed control unit has been received at Airbag24, a thorough technical analysis is performed to precisely identify the fault. This process determines whether error 93F9 (voltage reserve or energy reserve) is present.

On a control unit of this design, we repair only error 93F9, that is, a defect of the voltage reserve or energy reserve. The fault memory that has been read out must show 93F9; we cannot fix other errors on this control unit. On this design, crash data is not stored in the control unit but in another module of the airbag system, and we do not delete it during the repair. If you would like crash data deleted, please contact us beforehand and we will clarify what is possible.

The actual repair involves replacing defective electronic components of the voltage reserve or energy reserve on the circuit board using professional soldering techniques.

Finally, each repaired control unit undergoes a comprehensive functional test. We ensure that communication operates flawlessly and that no errors remain stored. The unit is then securely packaged and shipped back to you.
