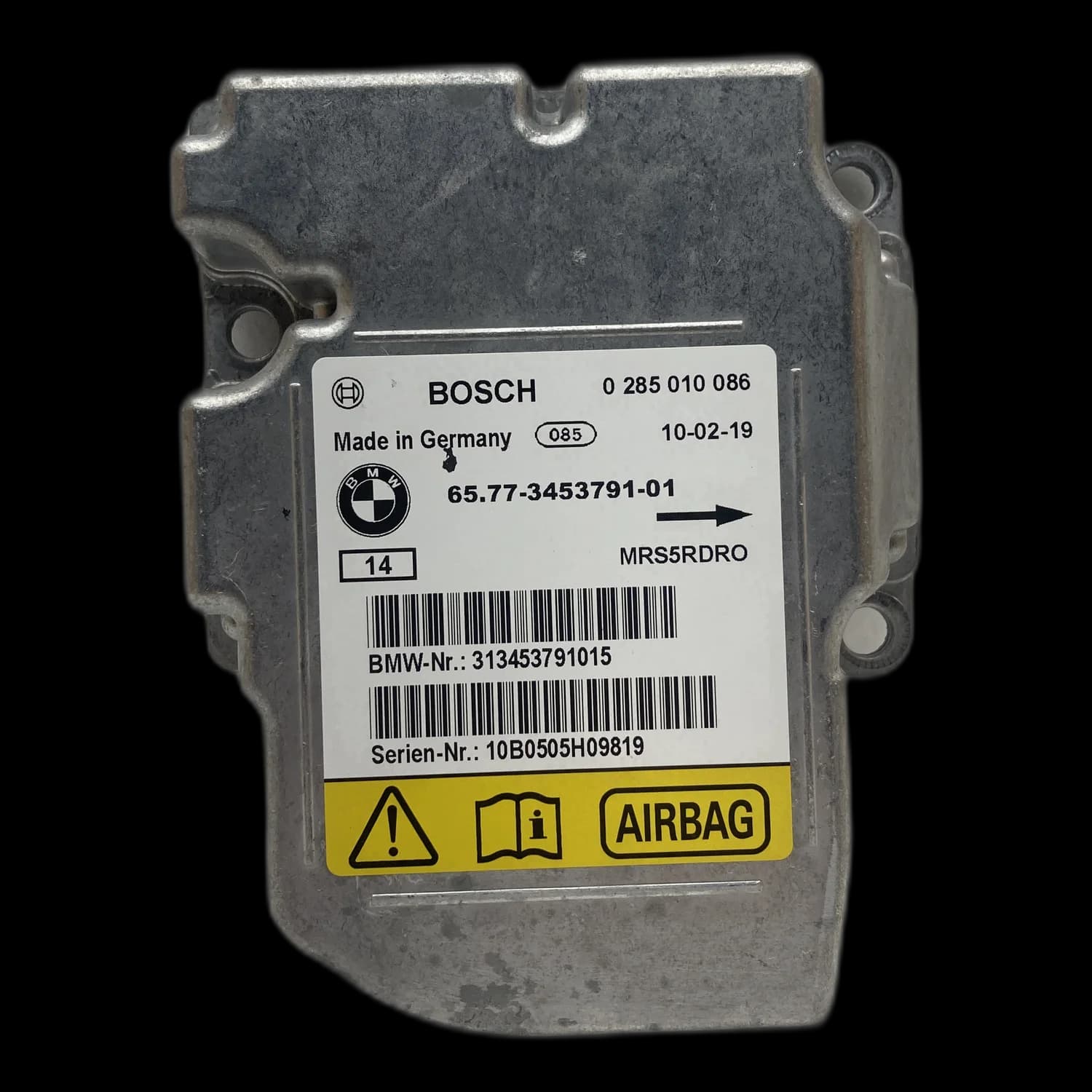

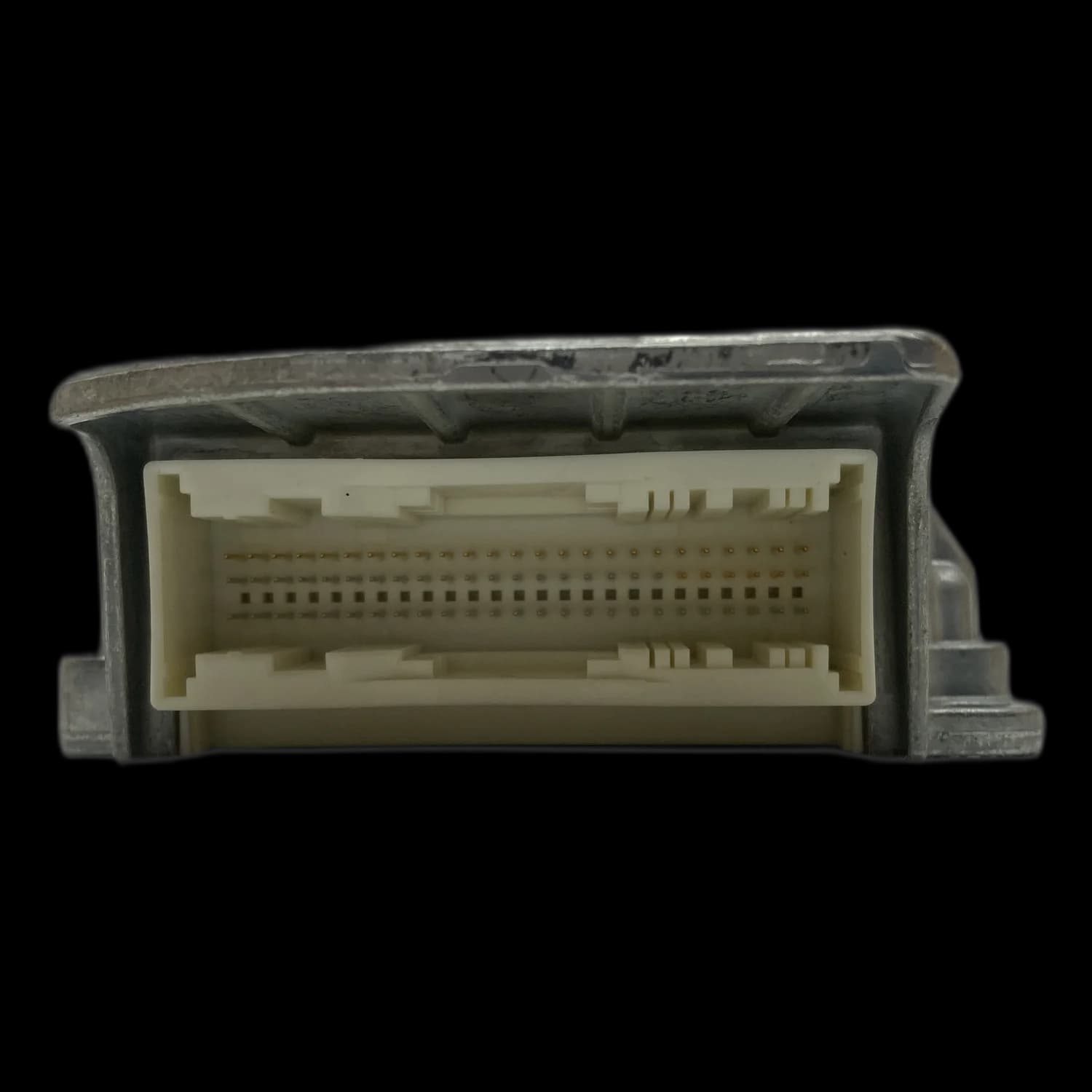

Airbag control unit with part number 6577-3453791-01

What is the function of Airbag Control Unit 6577-3453791-01?

The airbag control unit with part number 6577-3453791-01 serves as the central control module for the entire Supplemental Restraint System (SRS) in the BMW X3 E83. It processes data from the acceleration sensors and, in the event of a crash, deploys the airbags and seatbelt pretensioners. A malfunction results in the deactivation of the entire safety system and must be addressed immediately.

As the “brain” of the Supplemental Restraint System (SRS), this module continuously monitors and evaluates signals from various crash sensors throughout the vehicle. In an emergency, it makes the critical decision about which restraint devices—such as front and side airbags or seatbelt pretensioners—should be activated to provide optimal protection for occupants.

The control unit is often installed beneath the front seats or in the center console. This location makes it susceptible to external factors like spilled liquids or penetrating moisture, which are common causes of electronic malfunctions.

Why does Control Unit 6577-3453791-01 fail?

The most frequent cause of failure for Control Unit 6577-3453791-01 is crash data stored internally after an accident that cannot be erased using standard workshop tools. Additional faults arise from external influences such as moisture, short circuits, undervoltage due to a weak battery, or internal component failures that disrupt communication.

Following an airbag deployment, the control unit records what is known as a “crash lock.” This permanent entry disables the device’s functionality to prevent reuse without professional diagnostics. A skilled repair restores this lock at the software level, returning the unit to its original condition.

Furthermore, hardware defects can also be responsible. External factors like a faulty battery or alternator may lead to undervoltage, damaging electronic components. Moisture ingress or short circuits within the vehicle’s electrical system are additional well-known causes of complete module failure.

An important note from workshop experience: Before attributing the issue to the control unit, other SRS components—such as the seat occupancy sensor or connector harnesses—should be inspected. Using airbag simulators or resistors to bypass these systems is extremely dangerous and will result in the loss of vehicle operating approval.

How do you recognize a fault in 6577-3453791-01?

A malfunction of Control Unit 6577-3453791-01 primarily manifests as the airbag warning light (SRS lamp) remaining illuminated in the instrument cluster. Often, communication with the control unit via an OBD diagnostic tool is no longer possible. Stored error codes indicating an internal control unit fault are also clear indicators.

The most obvious symptom is the persistent activation of the SRS warning light, which fails to extinguish even after the engine has started. This indicates that the entire airbag system is non-functional and would not deploy in the event of a crash, posing a significant safety risk.

Another clear sign is when the service workshop’s diagnostic equipment cannot establish a connection with the airbag control unit. The module ceases to respond to requests, pointing to a severe internal fault.

In some cases, specific error messages are reported that suggest issues with individual components—such as the passenger-side or side airbags, seatbelts, or the fuel shut-off valve—even though the root cause lies within the central control unit itself.

In which BMW models is 6577-3453791-01 installed?

The airbag control unit with part number 6577-3453791-01 is specifically designed for the BMW X3 of the E83 series. At Airbag24, this component is professionally repaired for all variants of the X3 E83, including pre-facelift models and later LCI facelift versions.

The repairs offered by Airbag24 cover the following vehicle models where this control unit was factory-installed:

BMW X3 E83 (model years 2003–2006)

BMW X3 E83 LCI (model years 2006–2010)

The part number may appear on the housing in various formats, such as 65.77-3453791-01 or 6577345379101, but always refers to the same component.

How is 6577-3453791-01 professionally repaired?

Upon submission to Airbag24, Control Unit 6577-3453791-01 undergoes a thorough incoming inspection. The repair process includes safely resetting the stored crash data through software reprogramming. If necessary, defective electronic components are replaced. You receive 2 years' statutory liability for defects on the completed repair.

The process ideally begins at your specialized workshop with a readout of the fault memory. After proper removal, the control unit is sent to Airbag24. If possible, please include a printout of the diagnostic report to expedite fault analysis.

At Airbag24, a detailed technical inspection of the unit is performed. The core of the repair involves erasing the crash data via software and restoring the control unit to factory settings by flashing new firmware. If a hardware defect is present, the affected components on the circuit board are professionally replaced.

Following successful repair and final testing, the control unit is fully functional and ready for installation. After reinstalling it in the vehicle, the vehicle’s fault memory must be cleared to extinguish the airbag warning light.
