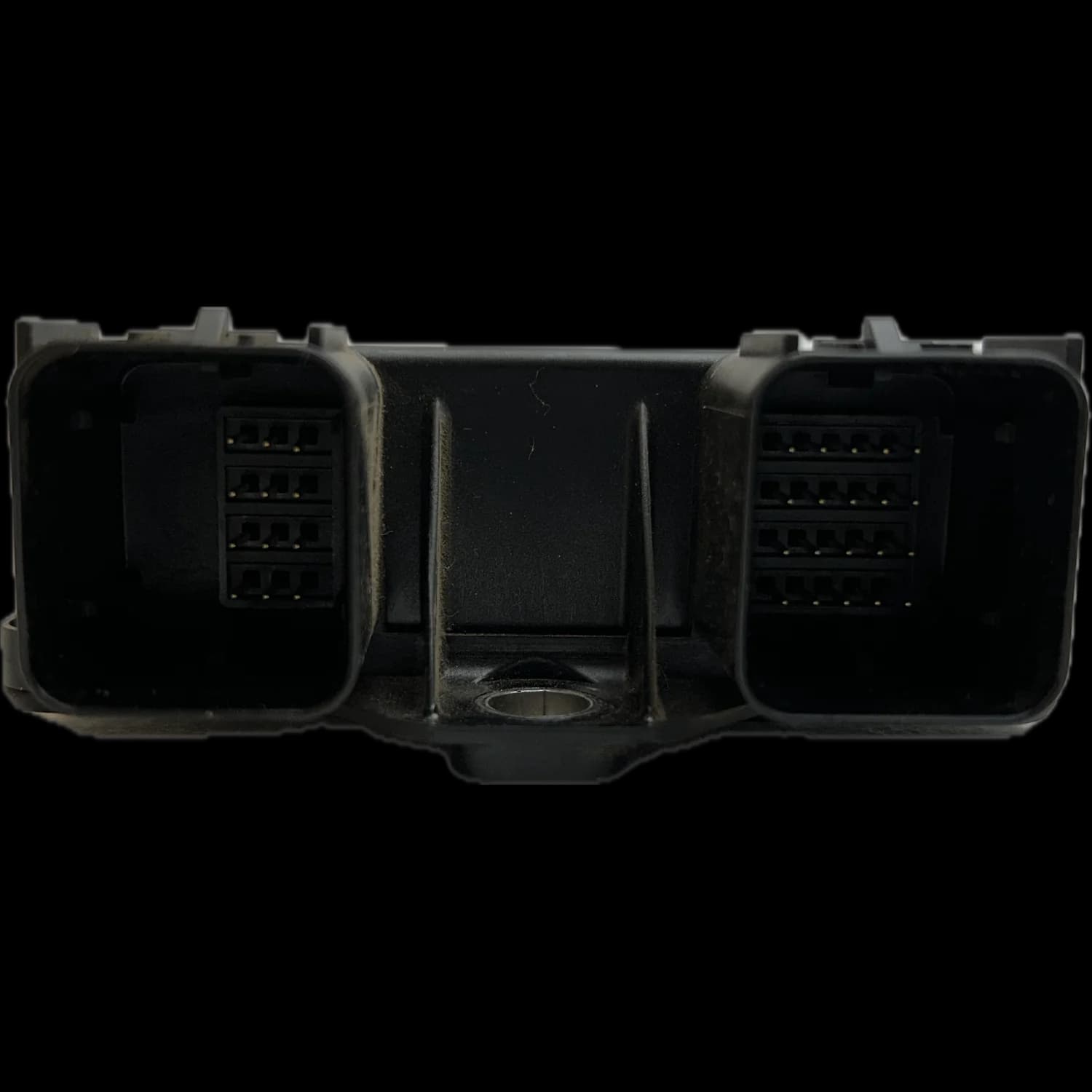

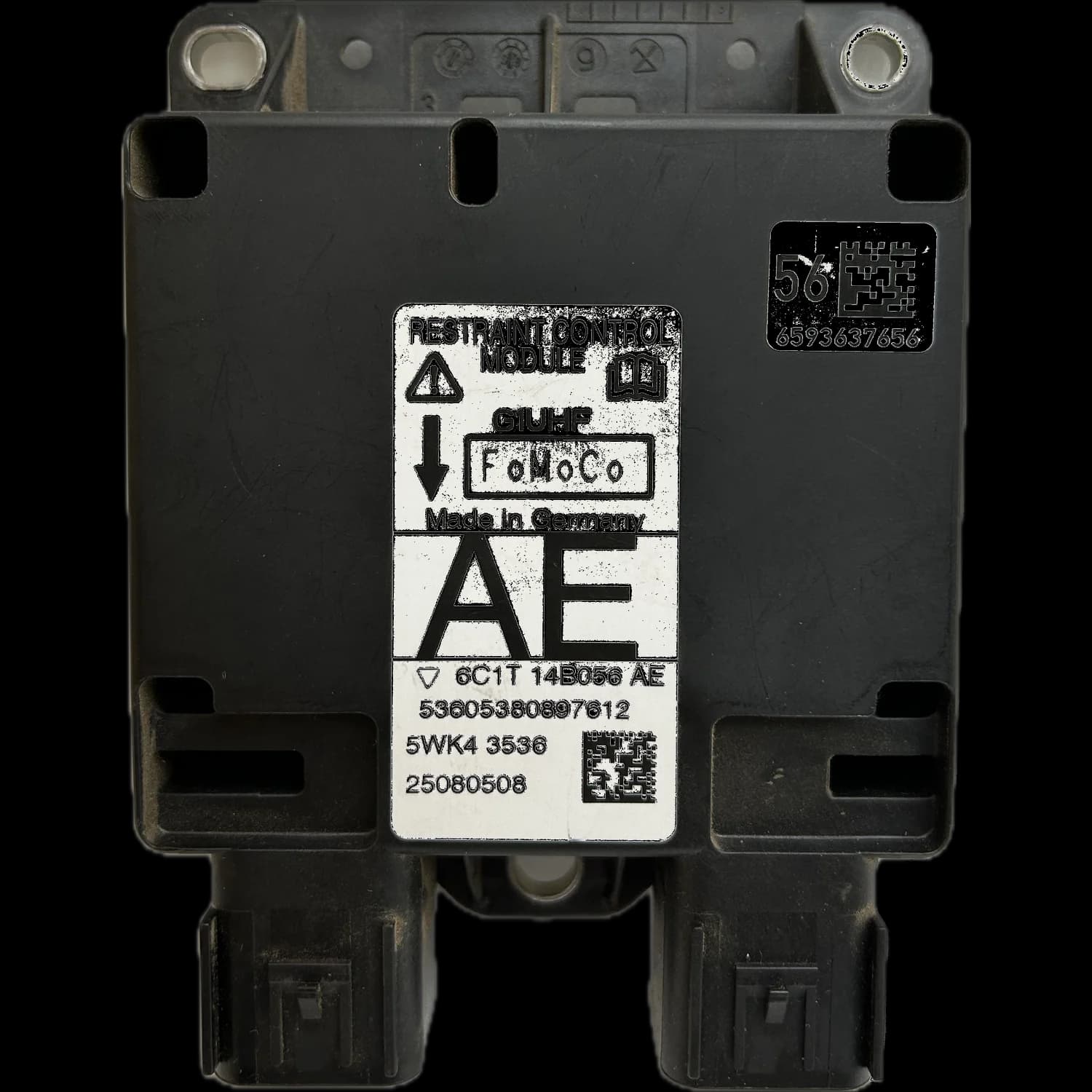

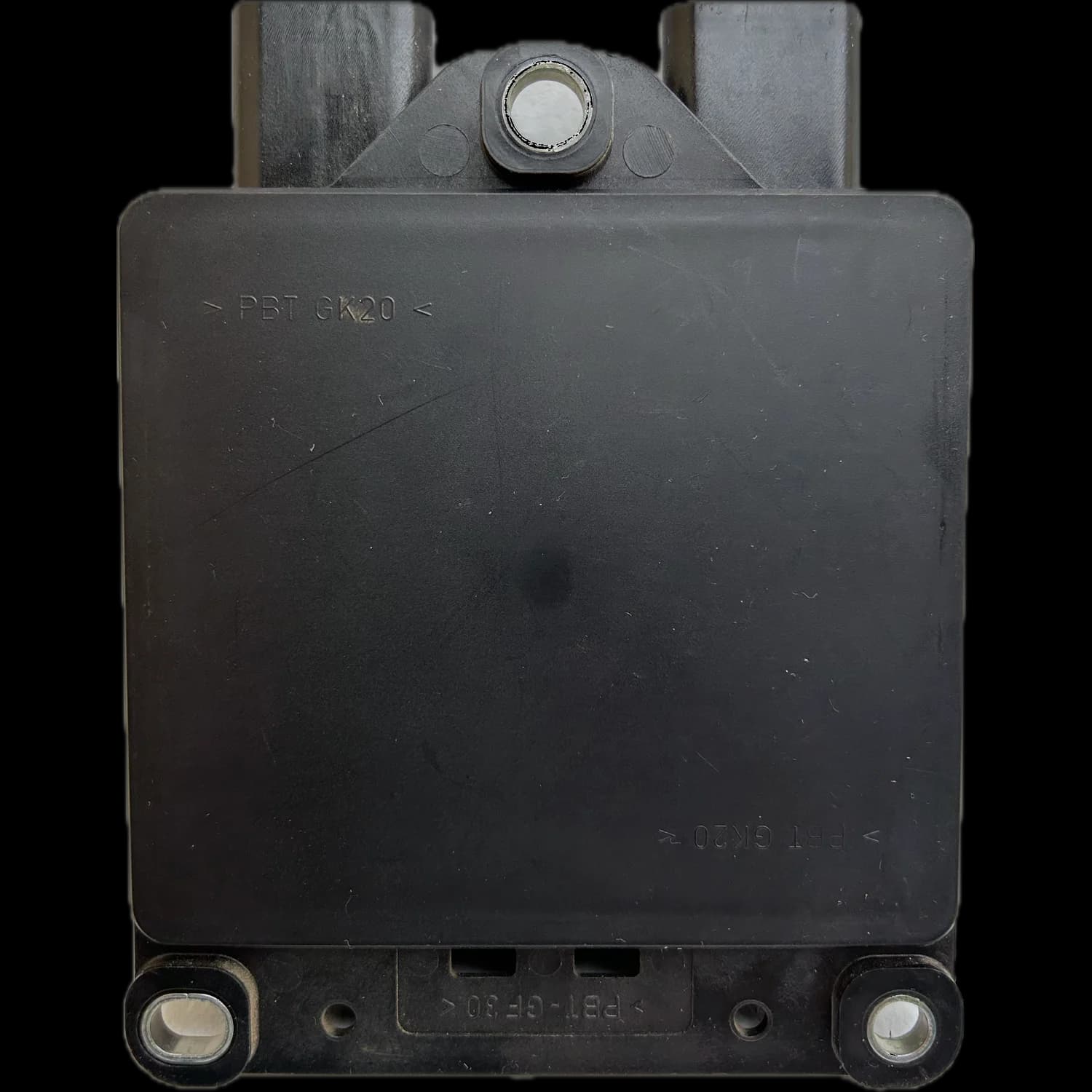

Airbag control unit with part number 6C1T-14B056-AE

What is the function of the airbag control unit 6C1T-14B056-AE?

The airbag control unit 6C1T-14B056-AE is the central control module for the occupant protection system in various Ford Transit models. It analyzes data from impact sensors to precisely deploy airbags and seatbelt pretensioners in the event of a crash. This component is also known by the Siemens/Continental part number 5WK43536.

This original Ford component (FoMoCo), also referred to as the Restraint Control Module (RCM), plays a critical role in passive vehicle safety. It continuously monitors all connected components, such as crash sensors, airbag ignition circuits, and seatbelt pretensioners.

Upon detecting an impact, the control unit determines within milliseconds which restraint systems need to be activated to provide optimal protection for occupants.

Why does the control unit 6C1T-14B056-AE fail?

The most common cause of failure is the storage of crash data after an accident, which locks the control unit. Another major reason is internal electronic defects that result in the persistent error code B1342 “Internal Error.” Complete communication failures, where the unit can no longer be accessed via diagnostics, are also typical.

After an airbag deployment, the control unit stores an “crash event” in its internal memory (EEPROM/Flash) that cannot be erased by workshops. This lock is intentionally implemented by the manufacturer to prevent reuse. A professional repair can reset this data and restore full functionality.

The error code B1342 indicates a serious hardware defect. Common causes include faulty microcontrollers, memory chips, or issues with the internal power supply. This is not a simple software issue but requires targeted intervention on the circuit board.

If communication via the OBD interface is no longer possible, the cause often lies in defective CAN-bus driver chips or damage to the control unit’s internal power supply. As a result, the vehicle diagnostic system can no longer access the module.

Aging and vibration‑induced damage—such as cold solder joints at connector contacts or main processors—can also lead to sporadic failures and implausible error messages in the system.

How do you recognize a fault in the 6C1T-14B056-AE?

A fault is primarily indicated by the airbag warning light on the instrument panel remaining constantly illuminated or glowing. Another clear sign is when the workshop’s diagnostic tool cannot establish communication with the airbag control unit. Stored error codes like B1342 unequivocally confirm the defect.

The most noticeable symptom is the active airbag warning light. It does not turn off after starting the vehicle, signaling to the driver that the restraint system is not operational and would not deploy in an accident.

In the workshop, the fault often manifests as the control unit failing to respond to any diagnostic requests. Reading out the fault memory is therefore impossible, complicating troubleshooting in the vehicle.

If communication is possible, the error code B1342 “Internal Error – Control Unit Defective” is frequently displayed. Following an accident, the entry “Crash Data Stored” further confirms that the control unit must undergo professional resetting.

In which Ford models is 6C1T-14B056-AE installed?

This airbag control unit is mainly used across various generations of the Ford Transit. At Airbag24, repairs are offered for models such as the Ford Transit Mk2, Transit 6 ’06, Transit Mk8, and the newer Transit Custom 2. Technical compatibility is high, especially among the Mk5 and Mk6 series.

At Airbag24, expert repairs are performed on the control unit with part number 6C1T-14B056-AE for a range of Ford vehicles. These include:

Ford: Transit Mk2, Transit 6 ’06 (2006–2013), Transit Mk8, Transit Custom 2 (2023–present).

Analyzing specialized databases reveals particularly widespread use in the Ford Transit Mk5/Mk6 series, as well as specific variants like the Ford Transit Van FA equipped with a 2.2 TDCi engine around the year 2010.

It is important to note that the Siemens/Continental part number 5WK43536 serves as a technically direct replacement for the 6C1T-14B056-AE. Both versions can be repaired identically.

How is the control unit 6C1T-14B056-AE professionally repaired?

After being sent to Airbag24, the control unit undergoes a detailed electronic analysis. The repair process includes selectively erasing stored crash data, fixing hardware issues caused by internal faults, and concluding with a functional test. You receive 2 years' statutory liability for defects on the completed repair.

The process begins with the professional removal of the control unit, typically located in the center console area. After secure shipping and receipt at Airbag24, a comprehensive incoming inspection is performed to verify the reported fault.

For stored crash data, specialized programming tools are used to directly access the memory chip (EEPROM/Flash). The crash information is completely erased, and the unit is restored to its factory settings, making it fully operational once again.

If an internal error such as B1342 is present, the defective electronic components on the circuit board are identified and replaced. This may involve microcontrollers, memory chips, or power supply components. The repair addresses the root cause of the issue.

A key advantage of repair is that vehicle-specific coding is preserved. Following restoration, the control unit is tested on a test bench to simulate the correct operation of all circuits before being returned to you.
