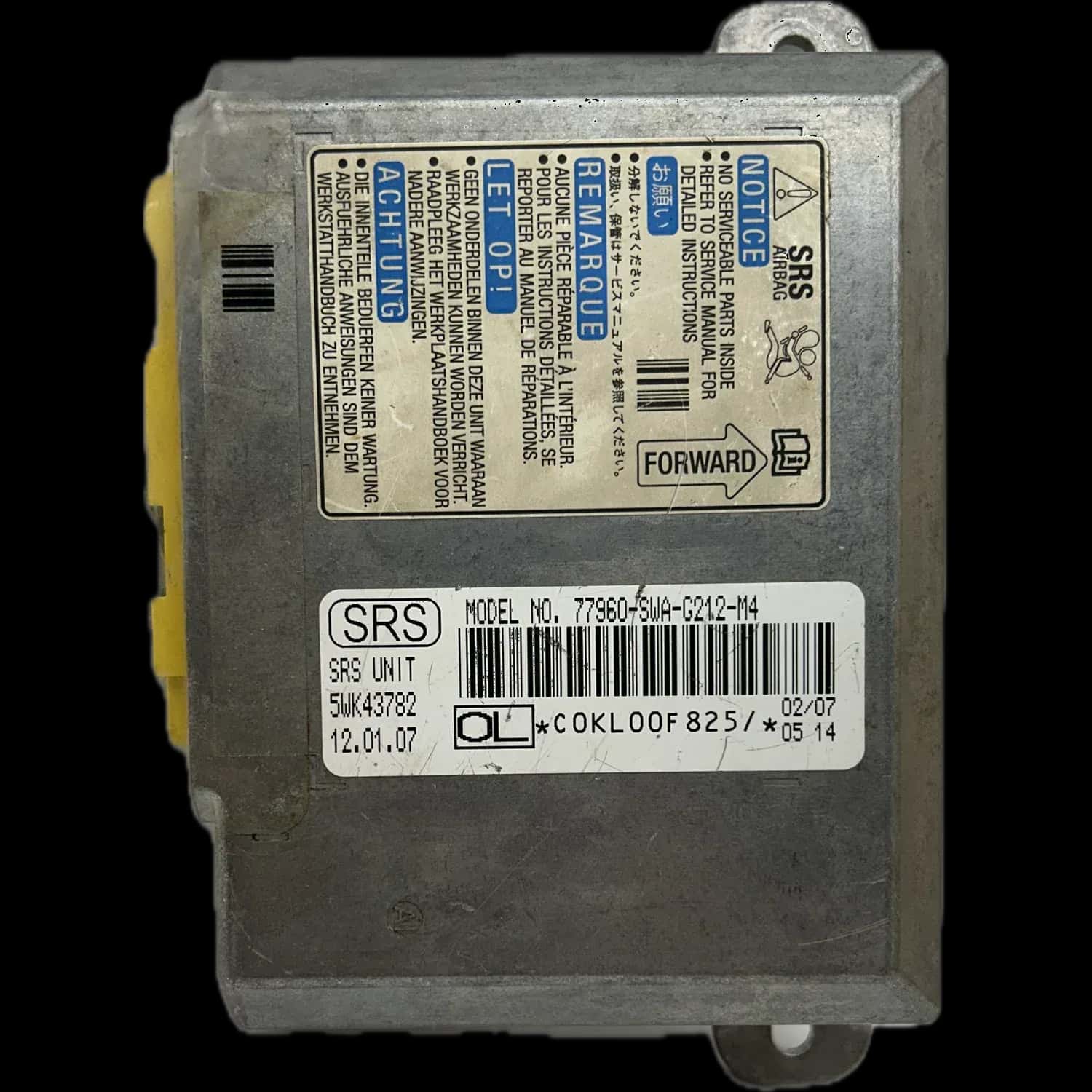

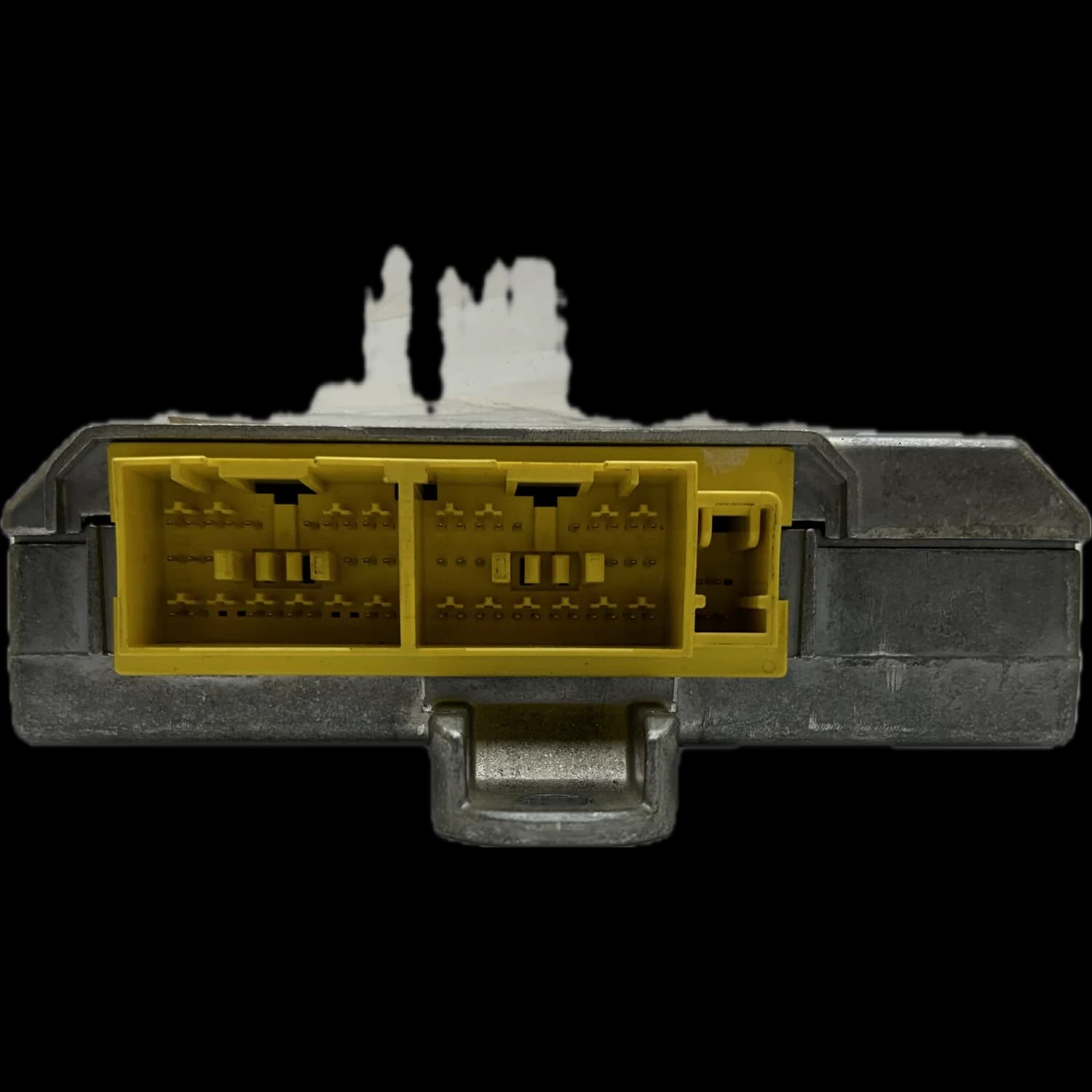

Airbag control unit with part number 77960-SWA-G212-M4

What is the function of the airbag control unit 77960-SWA-G212-M4?

The airbag control unit with part number 77960-SWA-G212-M4 is the central control unit (SRS Control Unit) of the occupant protection system in various Honda CR-V models. Its primary task is to process sensor data to precisely and rapidly deploy the airbags and seatbelt pretensioners in the event of a crash.

This unit continuously monitors signals from the crash sensors (acceleration and pressure sensors) distributed throughout the vehicle. If the control unit detects a collision exceeding predefined thresholds, it sends ignition pulses to the corresponding restraint systems.

It acts as the brain of the entire safety system and is crucial for protecting vehicle occupants. Therefore, proper functionality is safety-critical and essential for passing the main inspection.

Why does the control unit 77960-SWA-G212-M4 fail?

The most common cause of failure for the control unit 77960-SWA-G212-M4 is the storage of crash data after an accident, which locks the system. Other causes include electronic hardware defects such as faulty processors, capacitors, or corrosion damage on the circuit board, all requiring repair.

After a crash, the control unit stores non-erasable crash data in its internal memory. This measure ensures safety by preventing the reuse of a potentially compromised system. The result is a permanently illuminated airbag warning light and a non-functional system, even if the airbags did not deploy.

In addition to crash-related lockups, purely electronic faults can also occur. These include short circuits, cold solder joints, or failure of individual components like processors and capacitors. External factors such as moisture ingress can further lead to corrosion and irreparable damage, making repairs often possible only on unopened, undamaged units.

It should be noted that there are similar but not identical variants, such as part number 77960-SWA-G214-M4. An accurate diagnosis is therefore essential to ensure the correct repair solution.

How do you recognize a defect in the 77960-SWA-G212-M4?

A defect in the control unit 77960-SWA-G212-M4 primarily manifests as a permanently lit airbag or SRS warning light on the instrument panel. Often, the control unit can no longer be accessed with a diagnostic tool, or error codes appear that cannot be cleared.

The clearest symptom is the persistently active airbag indicator light. It does not extinguish after starting the engine, indicating a serious fault stored in the system. This results in immediate failure during the main inspection.

Another clear sign is when a workshop diagnosis reads error codes such as “Crash Data Stored” or “Internal Control Unit Error.” Such errors typically cannot be reset using standard diagnostic tools, as they point to a hardware-level blockage.

In which vehicles is the 77960-SWA-G212-M4 installed?

The airbag control unit with part number 77960-SWA-G212-M4 is specifically designed for various generations and model series of the Honda CR-V. It is used in newer generations as well as in specific trim levels of this model.

At Airbag24, we repair the control unit 77960-SWA-G212-M4 for the following Honda models:

Honda CR-V 4 (RM, 2012–2018) Honda CR-V 5 (2018–2023) Honda CR-V 6 (2022–present) Honda CR-V RD Honda CR-V RE Honda CR-V RM Honda CR-V RW Honda CR-V RT

What are the advantages of repair over a new part?

Repairing the original control unit offers significant cost savings of 70–90% compared to purchasing an expensive new part. Since the vehicle-specific configuration is preserved, no coding or reprogramming is required after reinstallation. Additionally, you receive 2 years' statutory liability for defects on the completed repair.

A new part can cost anywhere from 500 to over 1,000 euros, depending on the manufacturer and model. Repair is a far more economical alternative that restores full system functionality without straining your budget.

A key technical advantage is the preservation of original data. The repaired control unit is immediately ready for use (plug-and-play), eliminating additional workshop costs and the time-consuming effort of complex re-coding.

How is the control unit 77960-SWA-G212-M4 professionally repaired?

After sending the defective unit to Airbag24, it undergoes a thorough diagnosis. Depending on the nature of the fault, stored crash data is removed via an electronic reset, or defective hardware components are expertly replaced. A comprehensive functional test follows before the device is returned with 2 years’ statutory liability for defects.

The process begins with the proper removal of the control unit from the vehicle. The unit should be securely packaged and sent to Airbag24 along with your repair order. It is important that it remains in its original, unopened condition and shows no severe corrosion, heat damage, or water exposure.

At our workshop, technicians first read out the fault memory and internal data using specialized software. Based on this analysis, repairs are carried out: either the crash data is reset and error codes cleared, or, in case of hardware defects, the affected components on the circuit board are replaced with new ones and re-soldered.

After successful refurbishment, each control unit undergoes a final test to verify the correct functioning of all systems. Only then is it approved for return shipment to the customer.
