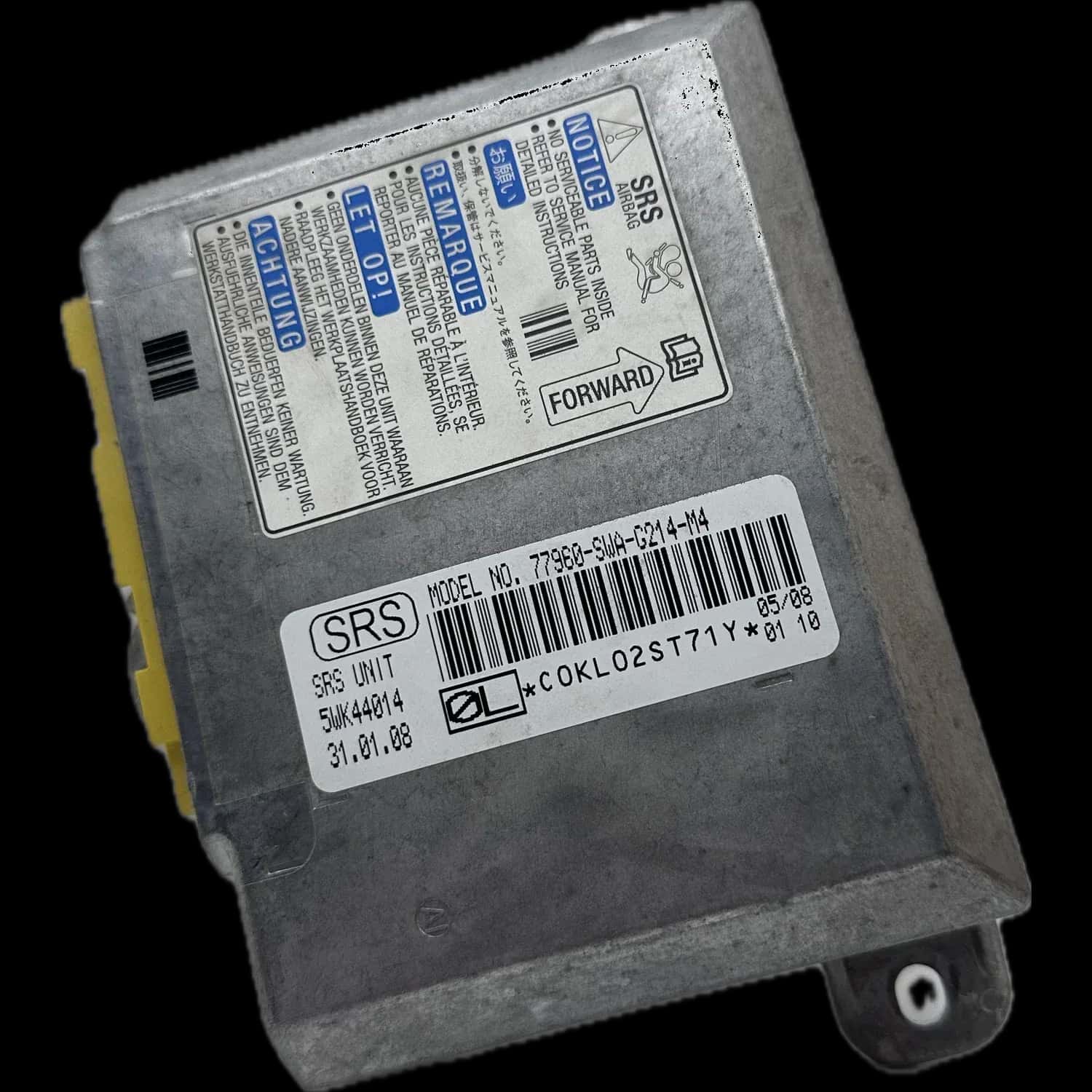

Airbag control unit with part number 77960-SWA-G214-M4

What is the function of the airbag control unit 77960-SWA-G214-M4?

The airbag control unit 77960-SWA-G214-M4 from Siemens is the central control module for the occupant protection system in various generations of the Honda CR-V. It continuously processes data from acceleration and crash sensors to ensure precise, timely deployment of airbags and seatbelt pretensioners in the event of a collision.

As an ECU (Electronic Control Unit), this component constantly monitors all components of the restraint system for proper functionality. This includes individual airbag modules, seatbelt pretensioners, seat occupancy detectors, and associated sensors. With each ignition, the system performs a self-test. If any faults are detected, the airbag warning light on the instrument panel illuminates to alert the driver.

A distinctive feature of this control unit is its compatibility across multiple Honda CR-V generations, underscoring its critical role in the manufacturer’s safety strategy. Technically, it is closely related to other Siemens models such as 5WK44014.

Why does the airbag control unit 77960-SWA-G214-M4 fail?

The most common cause of failure for the 77960-SWA-G214-M4 control unit is an internal electronic malfunction, often triggered by moisture damage or physical stress during a crash. Another primary reason is the storage of crash data after an airbag deployment, which permanently locks the unit.

Following a collision in which the airbags have deployed, the control unit irrevocably writes so‑called crash data into its internal memory. This lockout serves as a safety measure, preventing further operation until the data has been professionally erased and the unit inspected for hardware damage. A simple reset via diagnostic tools is not sufficient in this case.

In addition, age‑related defects in electronic components such as processors or memory chips can also lead to total failure. These issues often manifest as sporadic, non‑erasable fault codes or complete loss of communication with the vehicle’s diagnostic system.

How do you recognize a defect in the 77960-SWA-G214-M4 control unit?

The clearest symptom is a persistently illuminated or flickering airbag warning light on the dashboard. Often, the control unit can no longer be accessed by diagnostic tools (no communication). A specific fault is also the activation of the dashboard illumination when the vehicle is locked.

A typical sign of an internal defect is when the airbag warning light illuminates immediately after starting the engine or while driving and remains on continuously. Attempts to clear the fault memory using a standard diagnostic tool usually fail, or the error reappears right away.

In many cases, communication with the control unit is completely severed. The workshop then cannot establish a connection via the OBD interface to read fault codes or perform diagnostics. The fault memory may also contain specific codes such as “component defective,” indicating an internal hardware issue.

A rarer but well‑known symptom for this component is malfunctioning dashboard illumination. If the dashboard lights up automatically when the vehicle is locked from the outside, this points to a severe internal electronic fault within the airbag control unit.

In which vehicles is the 77960-SWA-G214-M4 control unit installed?

The airbag control unit with part number 77960-SWA-G214-M4 is exclusively used in various generations of the Honda CR-V. At Airbag24, we repair this control unit for RD, RE, RM series, as well as the fifth generation of Honda’s popular SUV model.

At Airbag24, repairs for this control unit are available for the following Honda models and series:

Honda CR-V 2 (RD series, model years 2001–2006) Honda CR-V 3 (RE series, model years 2006–2012) Honda CR-V 4 (RM series, model years 2012–2018) Honda CR-V 5 (from model year 2018)

How does the repair process work at Airbag24?

The repair process at Airbag24 is straightforward. After removal, the defective control unit is securely packaged for transport and sent to us. Our technicians conduct a thorough analysis, erase crash data, replace faulty components, and perform final functional tests. You receive 2 years' statutory liability for defects on the repair.

First, the defective control unit should be professionally removed from the vehicle. Then, fill out the repair form on our website and include it with the package. The unit will then be shipped to Airbag24.

Upon receipt of the control unit, our technicians begin a professional diagnosis at the circuit board level. The focus is on identifying the root cause of the fault—whether it’s a locked memory due to crash data or a hardware defect. Defective electronic components are replaced with high‑quality parts and professionally re-soldered.

A crucial step, especially in accident‑damaged vehicles, is erasing the stored crash data and fully reprogramming the memory. After successful repair, the control unit undergoes a comprehensive functional test to ensure it is fully operational again. The repair restores full functionality without requiring any additional reprogramming on the vehicle.
