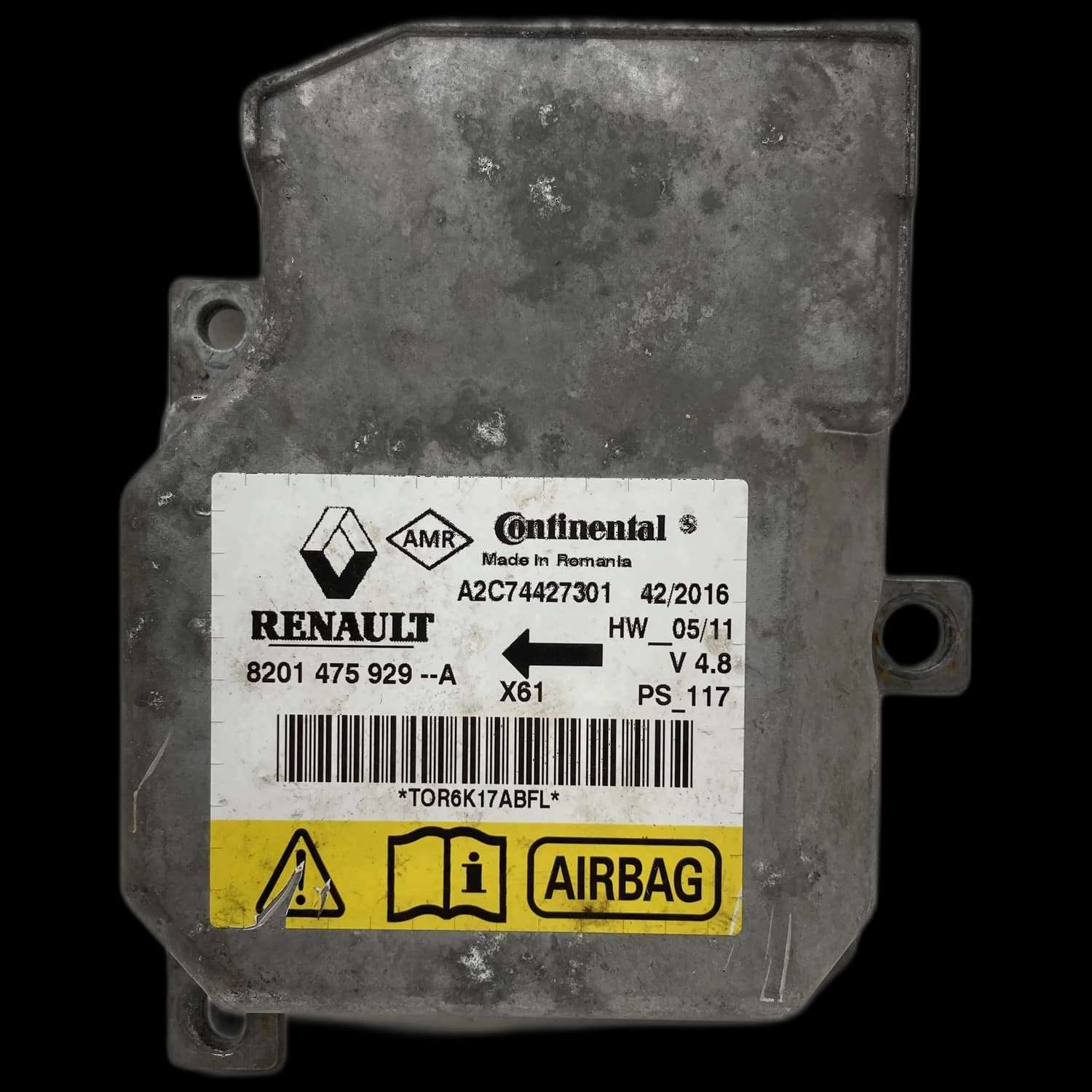

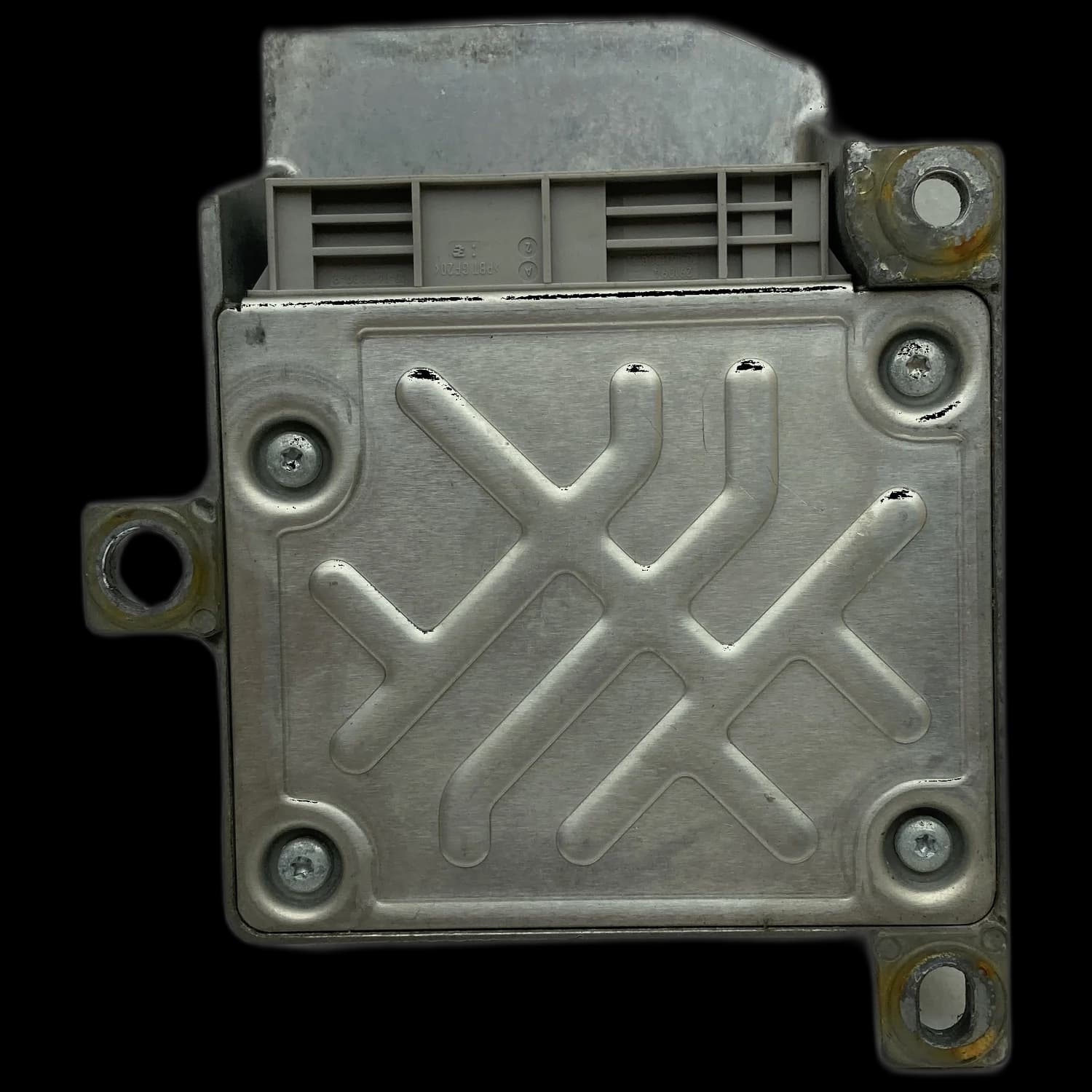

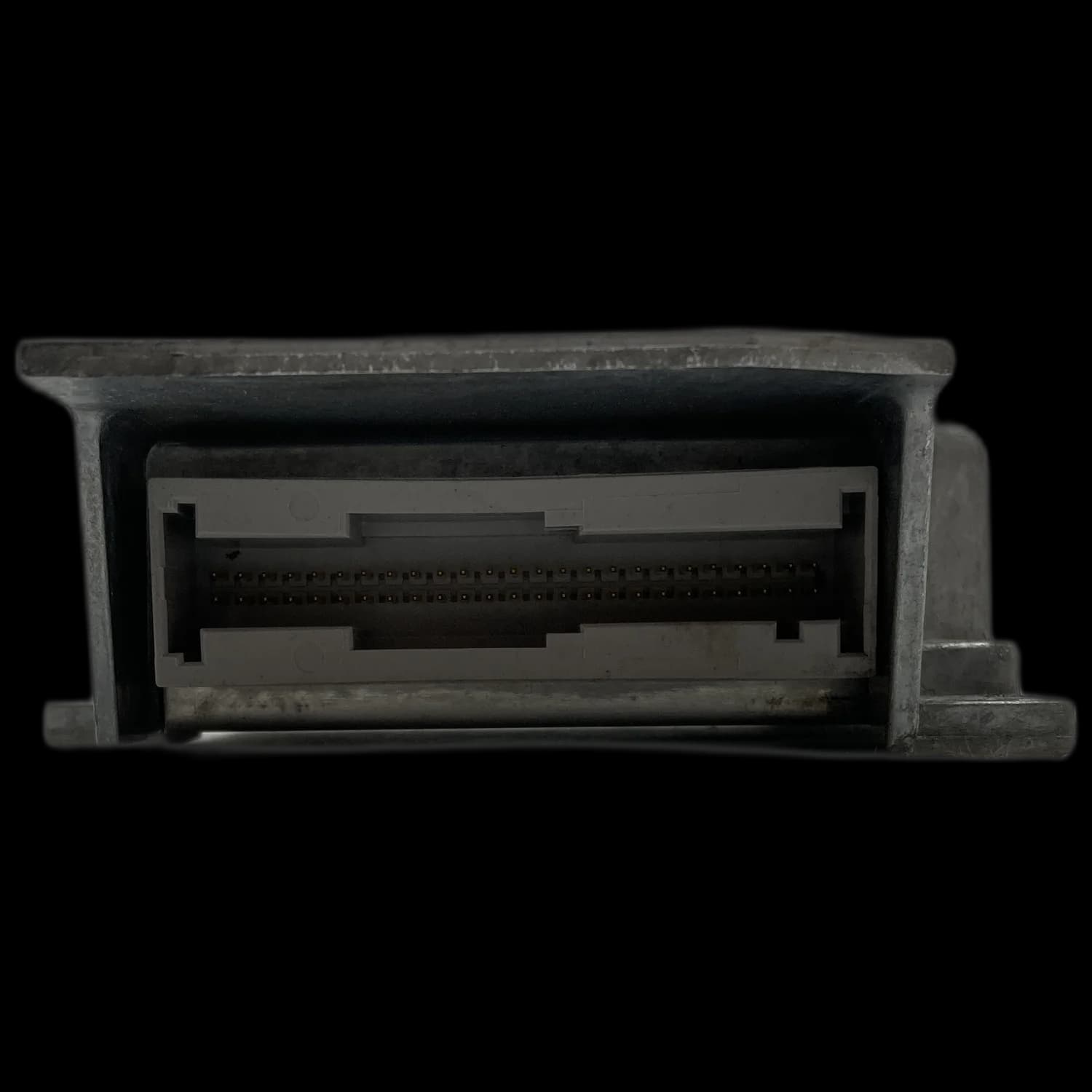

Airbag control unit with part number 8201 475 929

What is the function of the airbag control unit 8201 475 929?

The airbag control unit with part number 8201 475 929 is the central control unit (SRS ECU) for the occupant protection system in the Renault Kangoo II and Mercedes-Benz Citan W415. It is responsible for detecting crash situations and, when necessary, precisely deploying the airbags and seatbelt pretensioners to protect occupants.

As the heart of the safety system, this module continuously processes data from the crash sensors distributed throughout the vehicle. In the event of a collision, it determines within milliseconds which restraint devices need to be activated to ensure maximum protection.

All system-relevant events, especially activations following an accident, are permanently and irreversibly stored in the control unit’s internal memory. Due to its critical safety role, flawless operation is essential for the entire airbag system.

Why does the control unit 8201 475 929 fail?

The most common cause of failure for the control unit 8201 475 929 is the storage of crash data after an accident, which permanently locks the device. Similarly, internal electronic faults can result in errors such as B0100 (internal electrical fault), requiring component-level repair that cannot be resolved by simple deletion.

After airbags or seatbelt pretensioners have been deployed, the manufacturer locks the control unit for safety reasons. This lock is permanent and can only be lifted through specialized electronic repair, where crash data is professionally erased and the unit restored to factory settings.

Internal faults like code B0100 indicate a defect in the internal electronics, such as faulty memory chips or processors. Error B101C (seatbelt buckle switch) may also originate within the control unit itself, even if the external component has already been replaced. Additional error codes like FFFF or an unrecoverable internal fault (code 01) confirm a defect in the device.

This control unit is also known under alternative part numbers, often technically identical or compatible. These include: 8201229153, 8201734041, 8201150650, 8201025625, 2840211503, and 8200098402.

How do you recognize a defect in the control unit 8201 475 929?

A defect in the control unit 8201 475 929 primarily manifests as a constantly illuminated airbag warning light on the instrument cluster. Other clear indicators include the diagnostic tool’s inability to communicate with the control unit or the failure to permanently erase stored error codes such as B0100.

The most obvious symptom is the active airbag warning light. It fails to extinguish after starting the vehicle, signaling a serious issue in the safety system that could compromise the vehicle’s roadworthiness.

In many cases, a workshop using its diagnostic equipment can no longer establish communication with the airbag control unit. The module does not respond to requests, making precise diagnosis of external components impossible and pointing to total failure of the device.

Even when communication is possible, error codes indicating an internal fault (e.g., “B0100: Internal Electrical Fault”) cannot be cleared. This is a clear sign that the root cause lies within the control unit itself, rather than in sensors or wiring.

In which vehicles is the control unit 8201 475 929 installed?

The airbag control unit with part number 8201 475 929 was specifically developed for the second-generation Renault Kangoo (II) and the technically related Mercedes-Benz Citan W415. Airbag24 repairs cover these models throughout their production lifetimes, restoring full functionality.

At Airbag24, we repair this control unit for the following specific vehicle models:

Renault: Kangoo II (model years 2008–2021)

Mercedes-Benz: Citan W415 (model years 2012–2021)

What are the advantages of repair over a new part?

Repairing the control unit 8201 475 929 offers significant benefits: cost savings of up to 70% compared to an expensive new part (up to €750), preservation of the original vehicle coding for easy plug-and-play installation, and 2 years’ statutory liability for defects on the work performed.

The financial advantage is the key factor. A new part can cost up to €750 depending on the manufacturer, while professional repair costs only a fraction of that amount. This makes refurbishment the most economically sensible solution.

Since the original control unit is repaired, all vehicle-specific data and coding remain intact. After installation, the refurbished unit can be immediately put back into service without time-consuming reprogramming or recalibration at an authorized dealership.

With 2 years’ statutory liability for defects on the repair, you can be confident that the control unit will function reliably and according to manufacturer specifications—just like a brand-new part.

How does the repair of control unit 8201 475 929 work?

Repair at Airbag24 follows a standardized process: After you send in the removed control unit, it undergoes a comprehensive electronic analysis. Next, crash data is erased, internal faults are corrected, and the unit is tested on test benches before being returned with 2 years’ statutory liability for defects.

Before removal, a specialized workshop should clearly identify the fault as originating from the airbag control unit. A diagnostic report submitted along with the unit helps our technicians perform a quick and precise analysis. The control unit is often located beneath the driver’s seat.

Upon receipt at Airbag24, our specialists conduct an initial inspection. This is followed by professional repair, which—depending on the nature of the fault—may involve erasing crash data, replacing defective components on the circuit board, or correcting internal memory errors.

Finally, each repaired control unit undergoes rigorous quality control to ensure flawless operation of all safety‑critical functions. The unit is then returned to you in factory condition and ready for installation.
