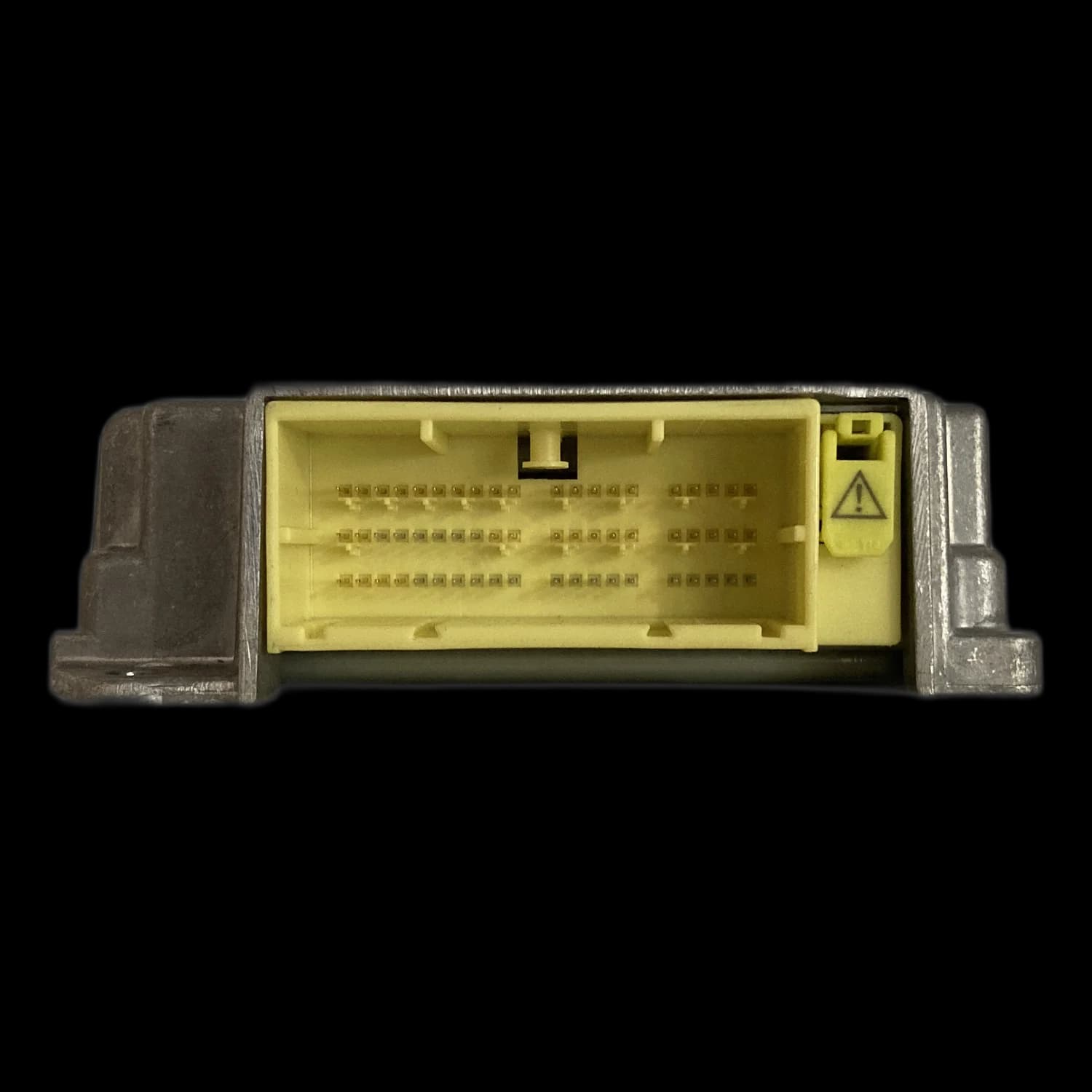

Airbag control unit with part number 8635A321

What is the function of the airbag control unit 8635A321?

The airbag control unit with part number 8635A321 is the central control unit (SRS ECU) for the occupant protection system in certain Mitsubishi models. It analyzes data from the acceleration sensors to detect collisions and, in the event of a serious accident, rapidly deploys airbags and pretensioners, thereby ensuring vehicle safety.

As the brain of the passive safety system, this control unit—manufactured by companies such as Denso—continuously processes information from the vehicle’s crash sensors. When a collision exceeds predefined thresholds, the ECU sends critical ignition signals to the respective airbag modules and pyrotechnic seatbelt pretensioners.

Therefore, flawless operation of the 8635A321 is essential. Any internal fault or defect will disable the entire airbag system and trigger the SRS warning light, posing a significant safety risk.

Why does the airbag control unit 8635A321 fail?

The most common causes of failure for the 8635A321 control unit are stored crash data following an accident, which locks the device, as well as internal hardware malfunctions on the circuit board. Water ingress and general electronic malfunctions can also lead to complete failure and activate the airbag warning light.

After a collision, the control unit stores so‑called crash data—a safety feature that prevents reuse without professional diagnostics. As a result, the unit becomes internally locked and must be professionally reset.

Internal hardware defects are another widespread source of failure. Components on the circuit board, such as processors or memory chips, may fail. These defects often manifest as specific error codes like B1C47, indicating an internal control unit issue.

Water damage caused by leaks in the vehicle leads to corrosion of sensitive electronic components and circuit traces. This can cause short circuits and irreparably damage the control unit.

How do you recognize a defect in the 8635A321 control unit?

The clearest sign of a defect in the 8635A321 control unit is the permanently illuminated or flashing SRS airbag warning light on the instrument cluster. Additionally, specific error codes such as B1C47 or B1557 may be read, and in some cases, communication with the diagnostic tool becomes impossible.

The activated SRS light is the vehicle’s direct warning that the restraint system is not functioning. In the event of a crash, the airbags will not deploy, making immediate diagnosis and repair essential.

During workshop diagnostics, specific error codes can often be retrieved. For part number 8635A321, errors B1C47 (internal control unit fault) and B1557 are particularly typical and directly indicate a defect within the unit itself.

A more serious symptom is complete loss of communication. If the diagnostic tool cannot establish a connection with the airbag control unit, it usually points to a severe internal hardware failure, such as a short circuit or a power supply malfunction.

In which vehicles is the 8635A321 control unit installed?

The airbag control unit with part number 8635A321 is specifically used in vehicles manufactured by Mitsubishi. It is notably installed in models such as the Mitsubishi ASX of the GA series (2010–2016) and the Mitsubishi Outlander of the ZK series.

At Airbag24, we repair the 8635A321 control unit for the following Mitsubishi models:

Mitsubishi ASX (GA series, model years 2010–2016)

Mitsubishi Outlander (ZK series)

Since vehicle manufacturers often use the same components across model lines, it is crucial that the part number matches exactly to ensure compatibility.

How is the 8635A321 control unit repaired?

The repair process is straightforward: After sending the removed control unit to Airbag24, a systematic analysis and restoration takes place. Crash data is erased, and any hardware defects are fixed. The repaired unit is then tested and returned ready for installation, without requiring re‑coding in the vehicle.

Once the defective unit arrives at Airbag24, technicians perform an initial inspection to verify reported issues. They read out the fault memory and examine the hardware for visible damage, such as water ingress.

The core of the repair involves professionally erasing stored crash data and addressing the root cause of the problem. Defective electronic components are replaced to restore full functionality. Finally, the control unit is tested on a bench to validate successful repair.

A key advantage of repair is that the vehicle’s original configuration remains intact. Once installed, the control unit is immediately fully functional (plug-and-play), eliminating the need for time-consuming reprogramming at an authorized dealer. We provide 2 years' statutory liability for defects on every repair.
