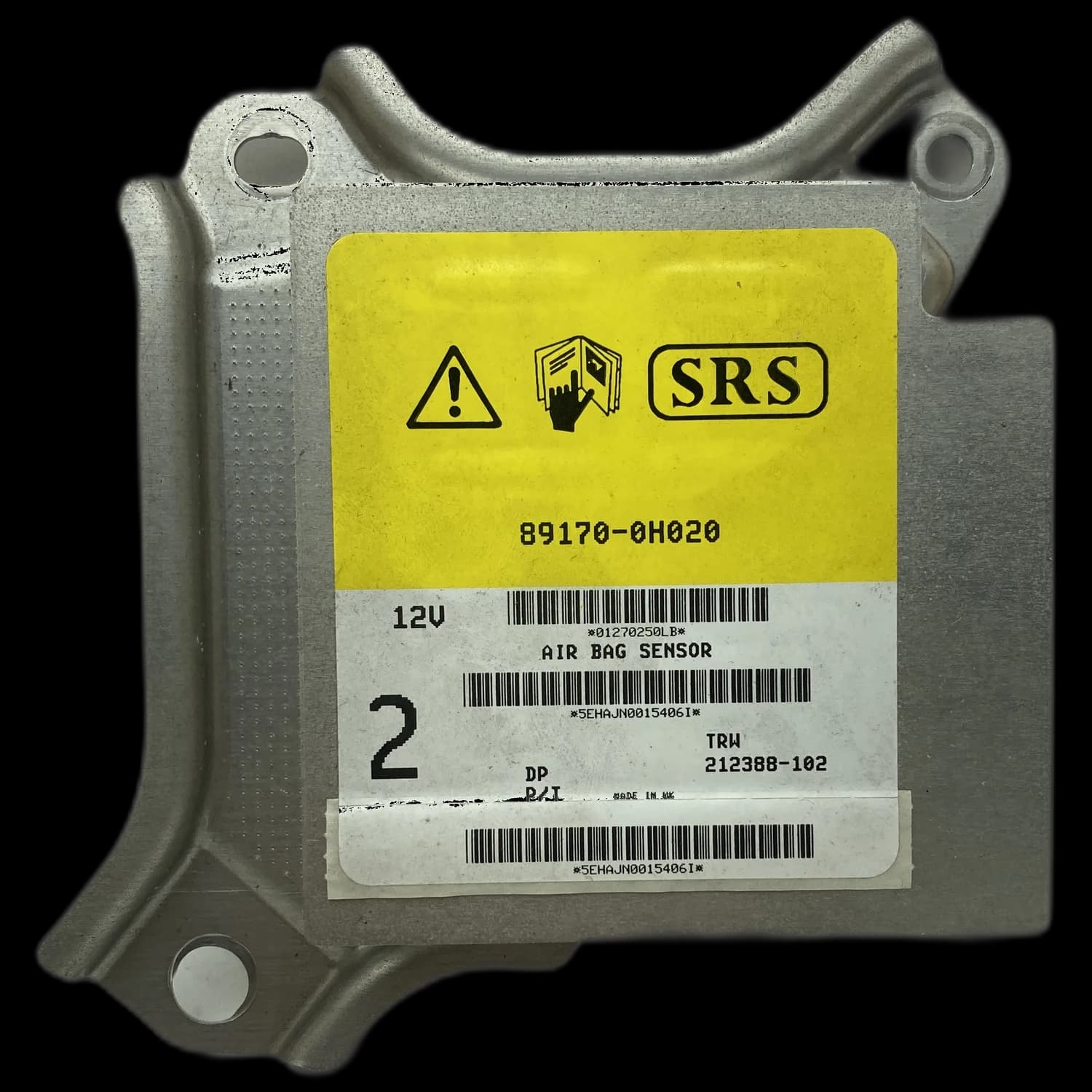

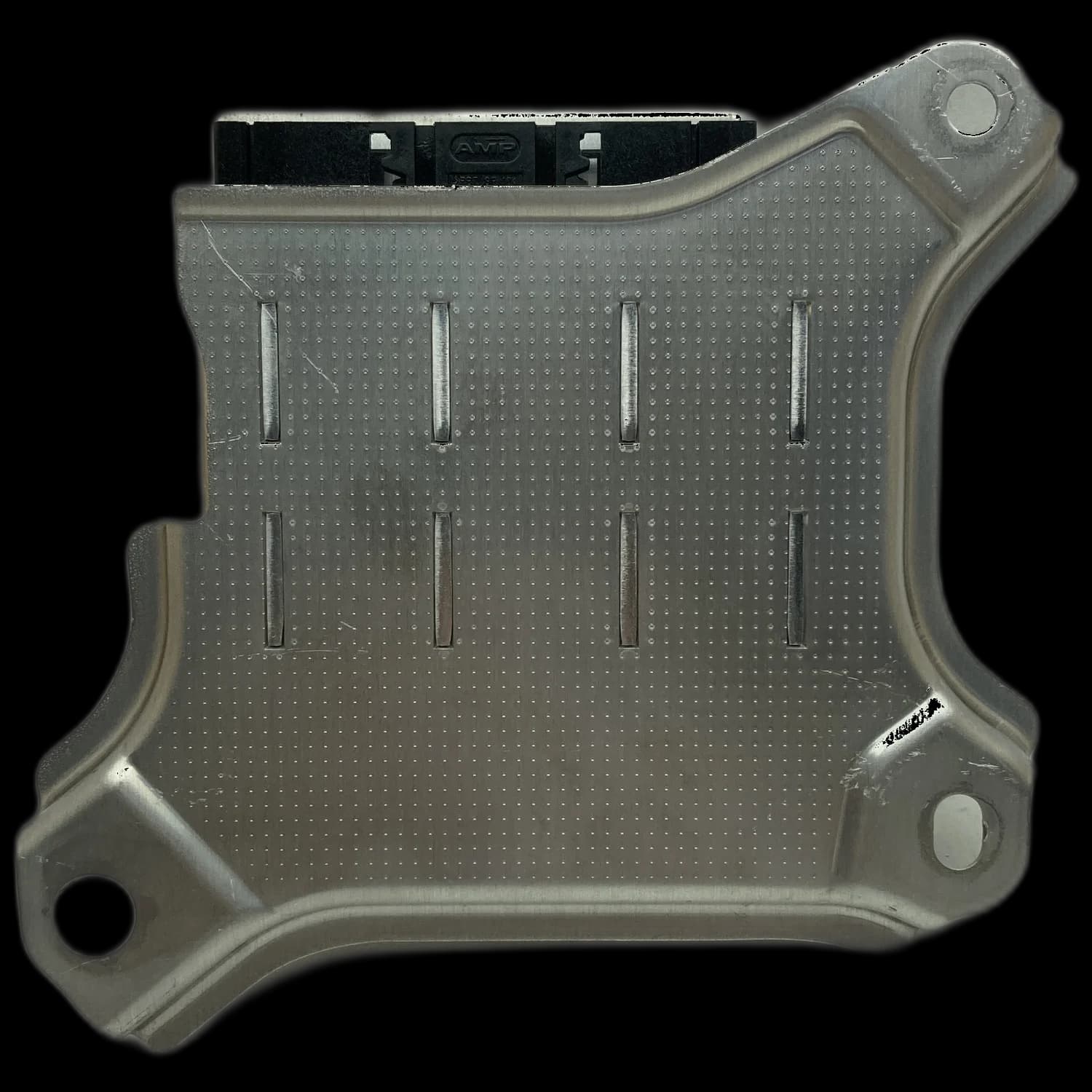

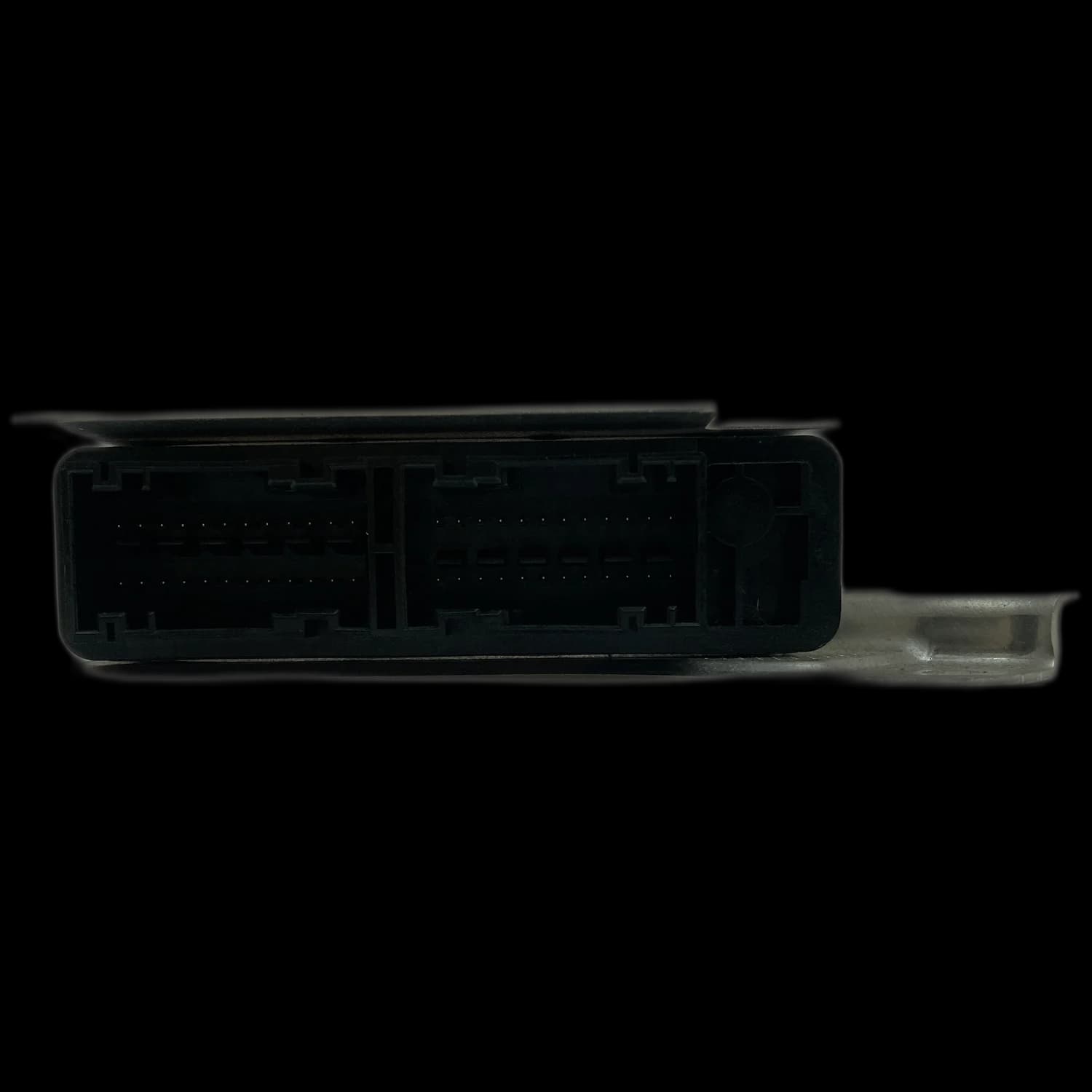

Airbag control unit with part number 89170-0H020

What is the function of the airbag control unit 89170-0H020?

The airbag control unit with part number 89170-0H020 is the central control module for the entire occupant protection system in the Toyota Aygo AB10 series. It processes signals from crash sensors, controls the deployment of airbags and seatbelt pretensioners, and stores relevant crash data after an accident.

As a core component of passive vehicle safety, this module continuously monitors all connected sensors and system components, such as seat occupancy mats and igniters. In the event of a collision, it determines within milliseconds which restraint systems need to be activated to provide optimal protection for occupants.

At the same time, it serves as a data logger, permanently recording relevant accident data after a deployment event. This function is crucial for accident analysis but, once triggered, prevents further operation of the unit until professional repair is performed.

Why does the airbag control unit 89170-0H020 fail?

The most common cause of failure for control unit 89170-0H020 is the storage of crash data, which locks the system after an accident or due to internal errors. Other defects arise from aging electronic components, moisture ingress, or loss of the programmed Vehicle Identification Number (VIN).

After a crash, crash data is written to the control unit’s internal memory. This data retention is a safety feature that disables the module for reuse. Even without an actual accident, internal faults or voltage spikes can mistakenly trigger a crash entry, locking the system.

Hardware failures are also a frequent cause. Aging, vibrations, or moisture intrusion can lead to cold solder joints, faulty capacitors, or microcontroller malfunctions. A specific issue with this unit is VIN loss, which disrupts communication with other vehicle systems.

It’s important to note that several variants of this control unit exist. Part numbers such as 89170-0H010, 89170-0H030, or 89170-0H050 are often technically related or interchangeable but exhibit similar fault patterns.

How do you recognize a defect in the control unit 89170-0H020?

A defect in the airbag control unit 89170-0H020 primarily manifests as a constantly illuminated or intermittently flashing airbag warning light on the instrument cluster. Often, communication with the control unit via a diagnostic tool becomes impossible, and stored error codes cannot be cleared.

The most obvious sign is the active airbag warning light. It indicates a fault in the restraint system and suggests that airbags may not deploy—or may deploy incorrectly—in the event of a crash. Consequently, the vehicle is no longer roadworthy.

Another clear symptom is the inability to perform diagnostics. When a specialized workshop attempts to access the airbag control unit using an OBD scanner, communication fails. The module does not respond to requests, making precise fault analysis impossible.

Even when communication is possible, stored error codes often remain unerasable. Messages referencing sensors or seat occupancy mats persist indefinitely, despite external components being in good condition. This points to an internal fault within the control unit.

An important warning from workshop experience: Using airbag simulators, resistors, or other bypass devices to deactivate the warning light is life‑threatening. Such manipulations mask the underlying defect, render the airbag system inoperable, and result in the loss of vehicle operating approval.

In which vehicles is the control unit 89170-0H020 installed?

The airbag control unit with part number 89170-0H020 was specifically developed for the Toyota Aygo. It was used throughout the first generation (AB10), including all facelifts from 2005 to 2014. Compatibility with the successor AB40 series is also possible.

At Airbag24, we repair the control unit 89170-0H020 for the following Toyota Aygo model series:

- Toyota Aygo AB10 (model years 2005–2009)

- Toyota Aygo AB10 1st facelift (model years 2009–2012)

- Toyota Aygo AB10 2nd facelift (model years 2012–2014)

Is repairing the control unit 89170-0H020 worthwhile?

Yes—repair is the most economical and technically sound solution. It is significantly cheaper than purchasing a new unit and safer than buying a used one, where it’s often unclear whether crash data has already been stored. Additionally, you receive a 12‑month warranty on the work performed.

A new part from the manufacturer comes with high costs. Repairing it offers savings of often over 70% and restores the original device’s full functionality. All vehicle-specific data, such as the VIN, remain intact, eliminating the need for time-consuming coding or reprogramming in the vehicle.

Used control units from car recyclers pose a significant risk. Their history is often unknown, and crash data may also be stored. Only a professional inspection and refurbishment, like that performed during repair, guarantees a fault-free and safe component.

How is control unit 89170-0H020 professionally repaired?

Repair at Airbag24 begins with an incoming inspection of the removed control unit. Stored crash data is then erased, the software reprogrammed, and any defective hardware components replaced. Following a final check, the unit is returned ready for installation, complete with a 12-month warranty.

First, a specialist workshop should verify—by reading the fault memory—that the defect truly lies within the control unit. After proper removal, the unit is securely packaged for transport and sent to Airbag24 along with a repair form.

In our specialized workshop, technicians conduct a detailed analysis. The core of the repair involves erasing crash data and reprogramming the internal memory. If hardware defects are present, affected components such as microcontrollers or capacitors are expertly replaced.

Following successful repair and passing quality control, the control unit is shipped back. Upon reinstalling it in the vehicle, the vehicle’s fault memory must be cleared to reset the system. A test drive afterward is recommended.

What shipping options are available at Airbag24?

To ensure fast and secure processing, Airbag24 offers flexible shipping options. You can send your defective control unit yourself free of charge or arrange convenient UPS pickup. For return shipping, you have free standard delivery, express options, and cash-on-delivery available.

For outbound shipping, you can choose: send the package to us on your own or book our UPS pickup service, which collects the package from a location of your choice. Alternatively, you can drop off the unit in person at our facility.

For returning the repaired control unit, we offer several options: free UPS standard shipping, faster UPS express shipping, and both methods with the option of cash-on-delivery. Personal collection at our workshop is also possible.
