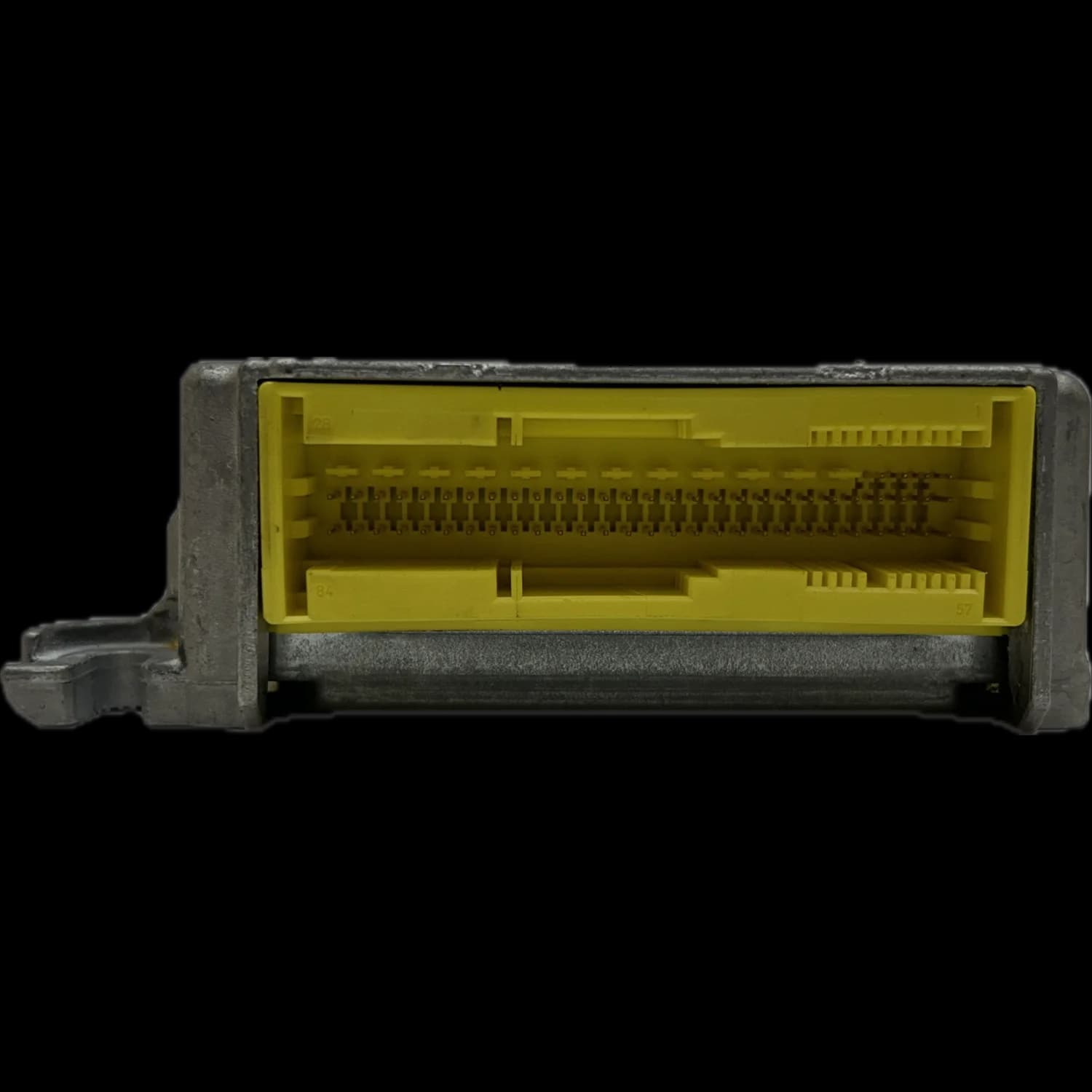

Airbag control unit with part number 8E0 959 655 B

What is the function of the airbag control unit 8E0 959 655 B?

The part number 8E0 959 655 B refers to an airbag control unit from Bosch/TRW, used in models such as the Audi A4/S4 (B6/B7) and Seat Exeo. It serves as the central control unit for the entire occupant protection system, processing signals from crash sensors and deploying airbags and seatbelt pretensioners when necessary. Repair is possible for many electronic faults.

As the “brain” of the passive safety system, this ECU (Electronic Control Unit) continuously monitors all connected components, including various acceleration and pressure sensors in the vehicle, seatbelt pretensioners, airbag modules, and seat occupancy detection. The control unit analyzes their signals in real time to detect an impending collision.

In the event of a crash, the control unit makes the critical decision about which restraint systems need to be activated. At the same time, it acts as a data logger, permanently storing accident-related information—known as crash data. This function often necessitates repair, even if no airbags were deployed.

Why does the control unit 8E0 959 655 B fail?

The most common causes of failure for the 8E0 959 655 B control unit are internal electronic malfunctions, such as defective SMD components (voltage regulators, MOSFETs), as well as stored crash data following an accident. Communication issues, where the unit can no longer be accessed via diagnostics, or moisture damage also frequently lead to complete failure and a lit airbag warning light.

A major reason for repair is internal defects on the circuit board. Over time, electronic SMD components like voltage regulators, capacitors, or MOSFETs may fail due to thermal stress and aging. Faulty or corroded solder joints likewise result in malfunctions or total failures.

Another very common cause is the storage of crash data. After an accident—even minor collisions without airbag deployment—the control unit locks up and requires servicing. Clearing this data is a core part of the repair process but is subject to strict safety and documentation requirements.

External factors, such as ingress of moisture, can cause corrosion on connectors or traces, leading to intermittent errors or complete loss of communication. Improper repair attempts in the past can also result in irreparable damage.

In practice, variants such as 8E0 959 655 A or 8E0 959 655 J are also encountered. Although related, when replacing the unit, it’s essential to ensure the exact hardware version and correct coding for the specific vehicle to guarantee full functionality.

How do you recognize a defect in the 8E0 959 655 B?

A defect in the airbag control unit 8E0 959 655 B primarily manifests as a constantly illuminated airbag warning light on the instrument cluster. Often, the workshop can no longer establish communication with the control unit, or sporadic, non‑erasable error codes related to internal electronics appear in the fault memory.

The clearest symptom is the persistently active airbag warning light. It does not turn off after starting the vehicle, signaling a critical system error that requires immediate inspection.

Another clear indication is a complete loss of communication. If a diagnostic tool cannot connect to the airbag control unit, this points to a severe internal hardware fault or a problem with the power supply.

In addition, specific error codes may be stored in the vehicle’s fault memory, directly indicating an internal defect in the control unit. These errors typically cannot be permanently cleared and reappear immediately.

In which vehicles is the 8E0 959 655 B installed?

The airbag control unit 8E0 959 655 B is primarily installed in Volkswagen Group vehicles based on the A4/8E platform. This includes the Audi A4 and S4 of the B6 and B7 series (Type 8E/8H), as well as the Seat Exeo (Type 3R). At Airbag24, we repair this control unit for the aforementioned models.

At Airbag24, we have successfully refurbished this component for the following models:

Audi: A4 / S4 (B6 and B7 series, Type 8E/8H, circa 2000–2008)

Seat: Exeo (Mk1 series, Type 3R, circa 2008–2013)

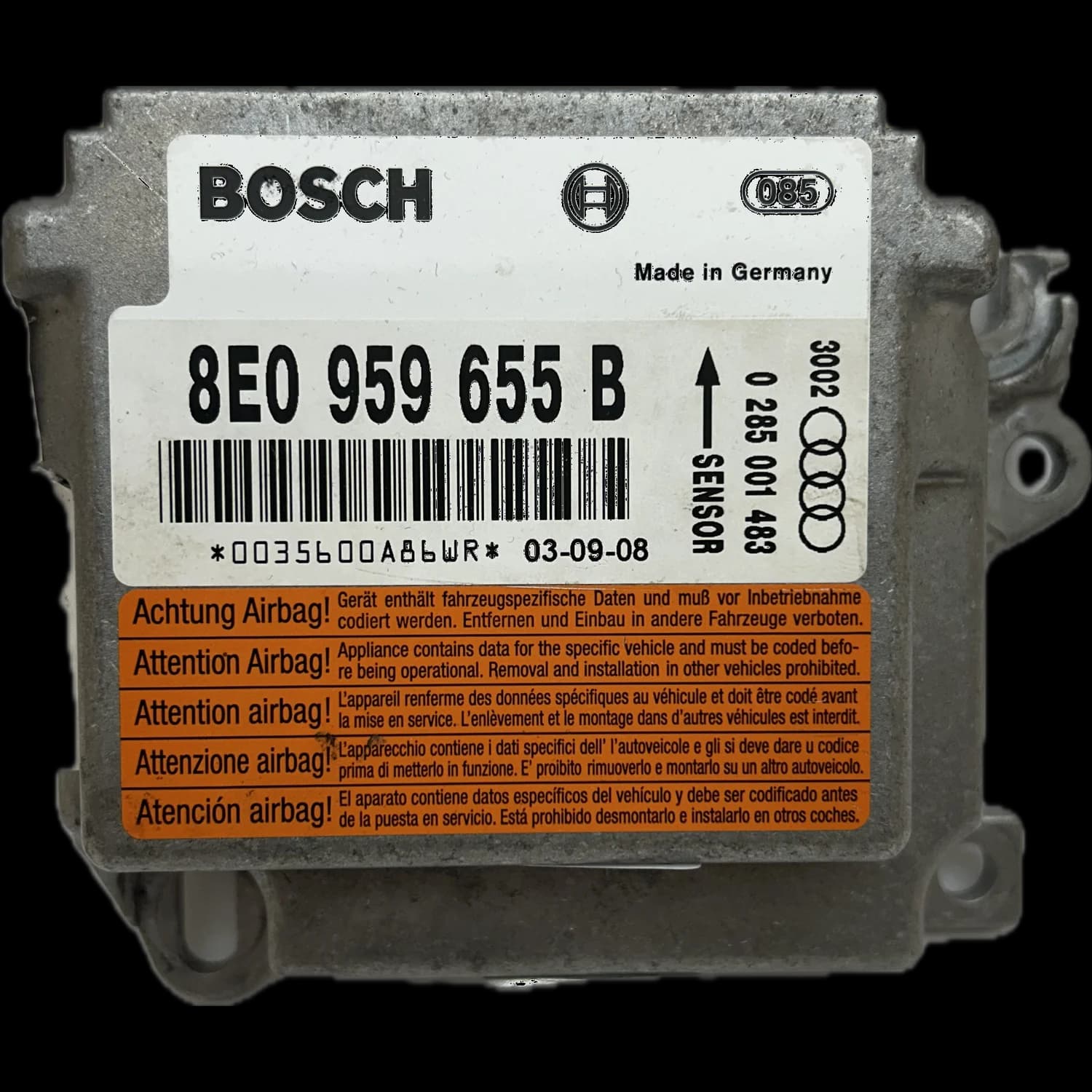

Due to the manufacturer’s platform strategy, it is crucial to always verify the exact part number stamped on the control unit housing, as related variants may also be installed.

How is the 8E0 959 655 B control unit professionally repaired?

At Airbag24, upon receipt, the 8E0 959 655 B control unit undergoes a comprehensive diagnosis, checking voltages and bus communications. Defective electronic components on the circuit board are then replaced, solder joints are reworked, and stored crash data is reset. A final functional test ensures the quality of the repair, backed by 2 years' statutory liability for defects.

After being sent to Airbag24, the control unit first undergoes a thorough incoming inspection. Technicians perform a visual check and measure supply voltages as well as bus communication to precisely locate the fault.

Next, the housing is carefully opened to inspect the circuit board. Defective SMD components are identified and replaced with new, high-quality parts. Retinning critical connections is also part of the standard process to ensure the repair’s long-term reliability.

If crash data has been stored, it is reset in compliance with all safety‑related and legal requirements, restoring the control unit to its original factory‑condition functionality. The repaired control unit comes back with all vehicle data and is ready for immediate use after reinstallation — coding or programming is not necessary.

A final functional test on the test bench simulates real‑world vehicle conditions and confirms that all functions have been fully restored. We provide 2 years' statutory liability for defects on every repair.
