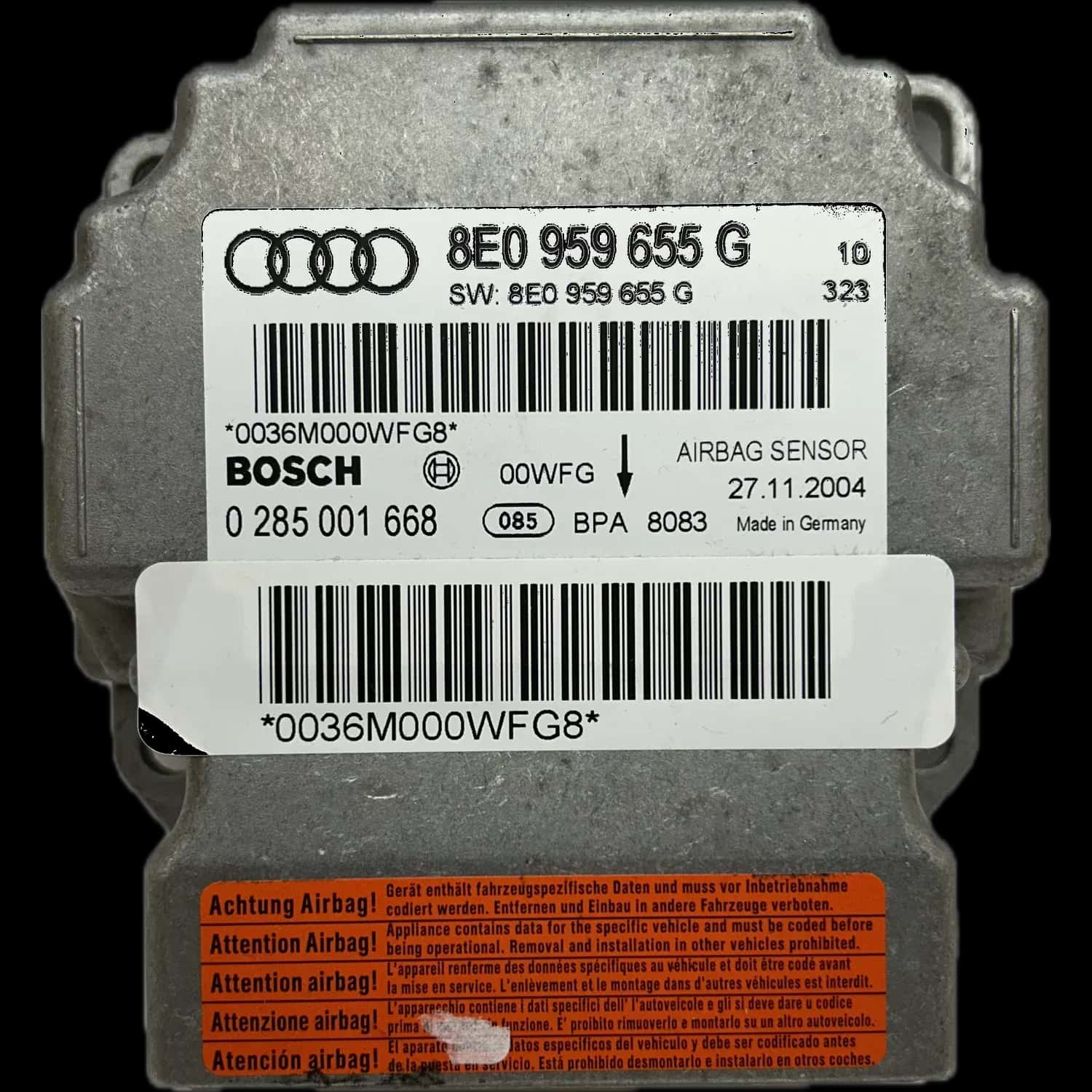

Airbag control unit with part number 8E0 959 655 G

What is the function of the airbag control unit 8E0 959 655 G?

The airbag control unit with part number 8E0 959 655 G, also known by Bosch numbers 0285001668 or 0285001400, is the central control unit for the passive safety system in various Audi and Seat models. It processes signals from crash sensors, deploys airbags and seatbelt pretensioners in the event of a collision, and permanently stores relevant crash data.

As the “brain” of the restraint system, this control unit continuously monitors all connected components—from impact sensors in the vehicle’s front and sides to individual airbag modules and seatbelt pretensioners. It ensures that, in an emergency, the system reacts within milliseconds to provide optimal protection for occupants.

A key function is storing crash data. After deployment, the control unit locks itself internally to prevent improper reuse. This lock is permanent and can only be lifted through professional repair and targeted data reset.

Why does the control unit 8E0 959 655 G fail?

The most common cause of failure for the control unit 8E0 959 655 G is the storage of crash data following an accident. Other defects arise from internal electronic malfunctions, short circuits, or damaged cable connections, leading to persistent, non‑erasable fault codes such as B1000, 3009, 474, 1794, or 01315.

Even after a minor collision where only the seatbelt pretensioners have deployed, the unit writes a permanent crash record into its internal memory. This inevitably triggers the airbag warning light and disables normal system operation. Simply clearing the fault memory via a diagnostic tool is no longer sufficient in such cases.

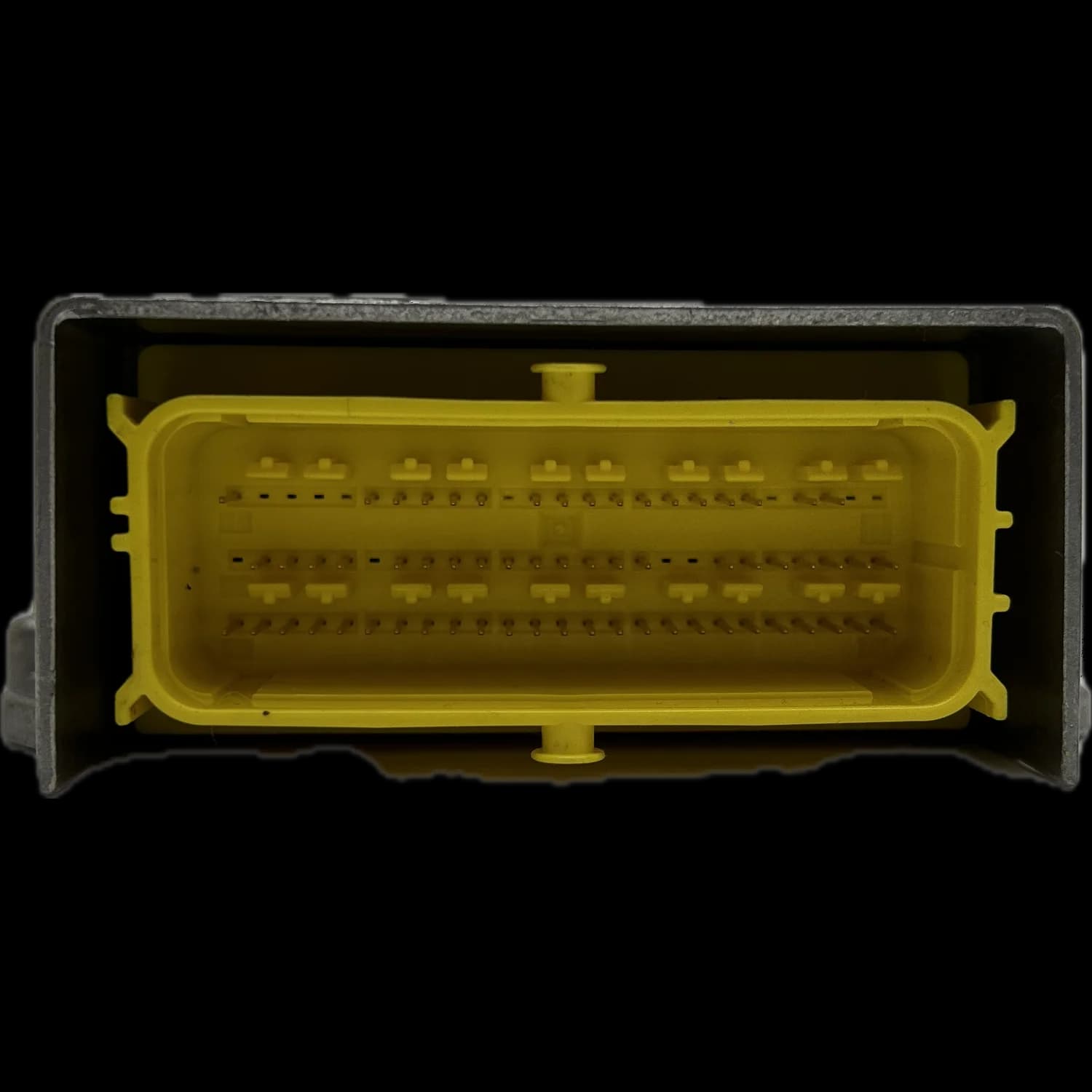

In addition to stored crash data, internal hardware defects on the circuit board may also be responsible. Faulty electronic components or short circuits can completely disrupt communication with the control unit. Often, peripheral issues—such as a damaged cable to the seatbelt pretensioner caused by frequent seat adjustments—can result in persistent fault entries indicating an internal defect.

It’s important to note that there are several compatible versions of this part number, including 8E0 959 655 J, 8E0 959 655 K, and 8E0 959 655 M, which may exhibit similar fault patterns.

How do you recognize a defect in the control unit 8E0 959 655 G?

A defect in the airbag control unit 8E0 959 655 G primarily manifests as the airbag warning light remaining constantly illuminated in the instrument cluster. Additional symptoms include loss of communication with a diagnostic tool or the presence of persistent fault codes that cannot be cleared.

The most obvious sign is the active airbag warning light. It fails to turn off after starting the vehicle, signaling a serious malfunction in the safety system. Such a vehicle would likely receive significant failing marks during a mandatory technical inspection.

Another clear indication is when a workshop using a diagnostic tool like VCDS cannot establish communication with the control unit at address 15 (Airbag). The unit no longer responds to requests, suggesting a complete failure of its internal electronics.

Even if communication is possible, specific, permanently stored fault codes point to an internal defect or stored crash data. These faults cannot be cleared with standard workshop testers and require specialized repair of the control unit itself.

In which vehicles is the control unit 8E0 959 655 G installed?

The airbag control unit 8E0 959 655 G is mainly used in Audi and Seat vehicles from the mid-2000s. At Airbag24, we repair this control unit for models including the Audi A4, S4, RS4, as well as the Seat Exeo. It is crucial to verify the exact part number.

At Airbag24, we offer professional repair services for the control unit with part number 8E0 959 655 G for the following specific models:

Audi:

• A4 B7 8E (2004–2008)

• S4 B6 8E (2003–2004)

• RS4 B7 8E (2005–2009)

Seat:

• Exeo 3R (2008–2011)

• Exeo 6R Facelift (2011–2013)

How does the repair of the control unit proceed at Airbag24?

Repair at Airbag24 involves a complete overhaul of the control unit, including erasing crash data and replacing defective components. After removal and shipment, the unit is analyzed, repaired, and thoroughly tested. The original coding is preserved, ensuring the device becomes fully operational immediately upon reinstallation.

The process ideally begins with a diagnosis performed on the vehicle. Reading the fault memory (e.g., via VCDS at address 15) confirms the defect and provides crucial clues about its cause. Subsequently, the control unit is removed and securely packaged for shipment to us.

Upon receipt at Airbag24, our technicians conduct a detailed component-level analysis. Defective components on the circuit board are identified and replaced with high-quality spare parts. A key step is the professional reset of permanently stored crash data, restoring the control unit to its factory settings.

A significant advantage of repair is that the vehicle-specific coding remains fully intact. The repaired control unit is therefore “plug-and-play” and does not require re‑programming at the workshop. We naturally provide 2 years’ statutory liability for defects on every repair.
