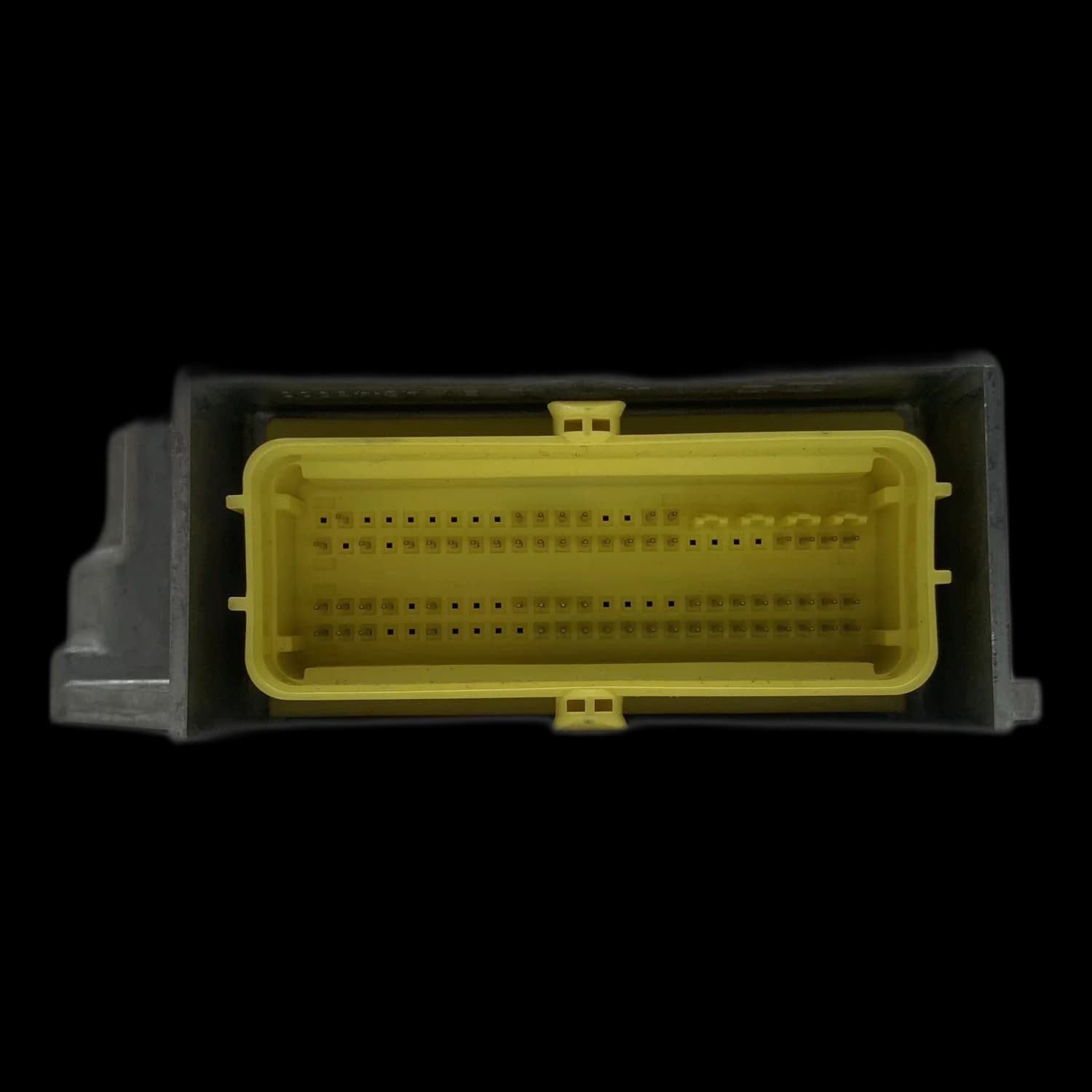

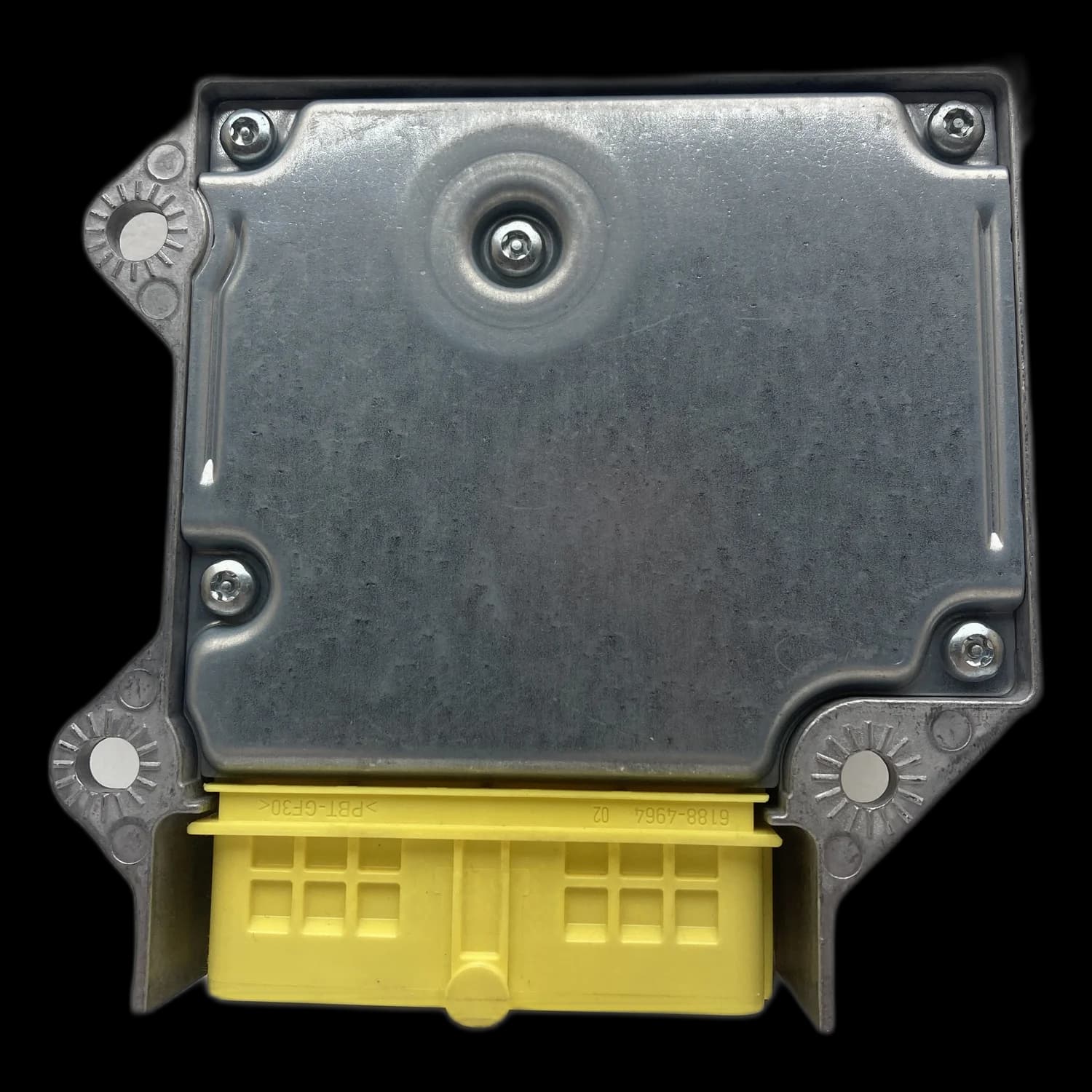

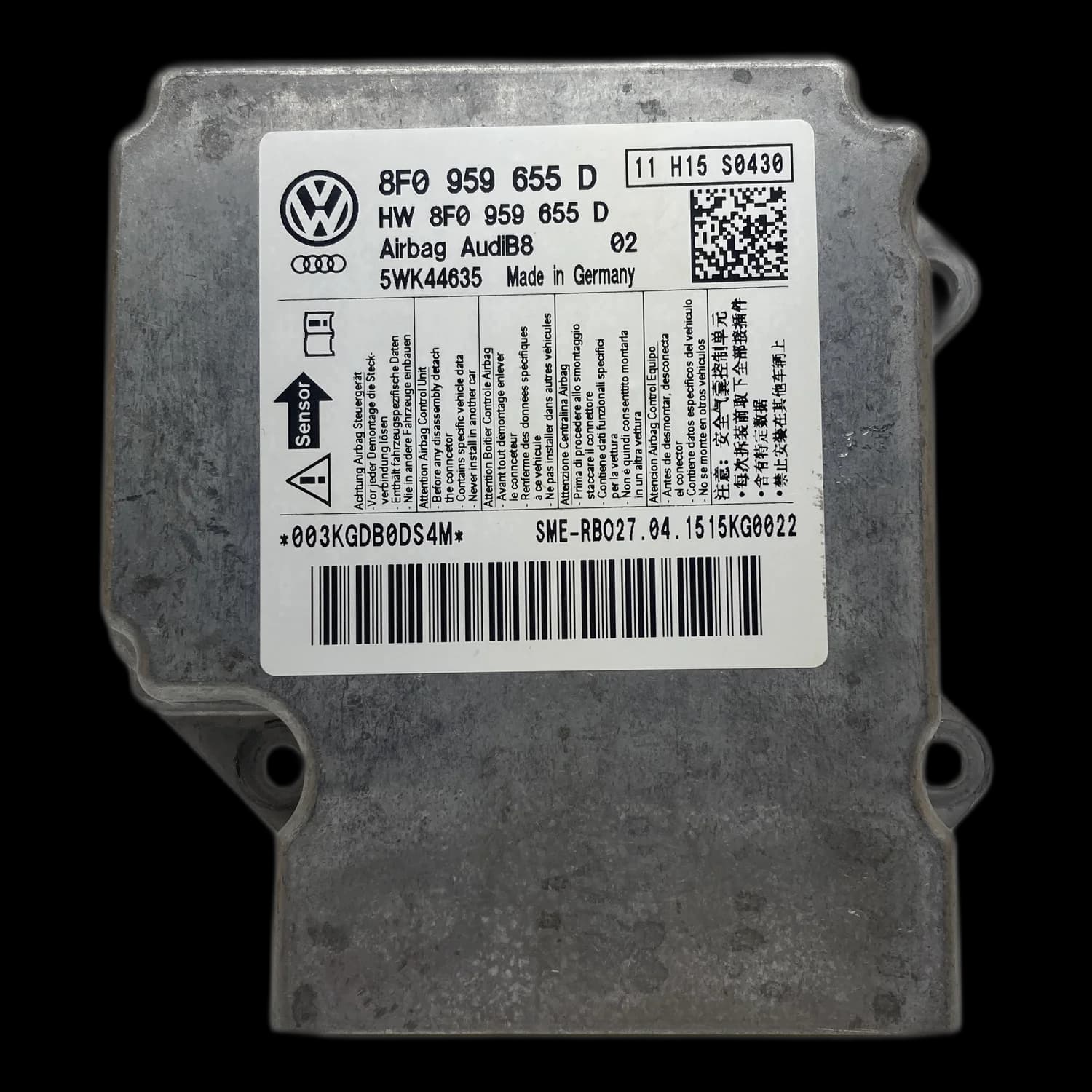

Airbag control unit with part number 8F0 959 655 D

What is the function of the airbag control unit 8F0959655D?

The part number 8F0959655D refers to an airbag or SRS control unit specifically installed in the Audi A5 (8F) Cabriolet. As the central control unit of the passive safety system, its task is to evaluate signals from the vehicle’s crash sensors and, in the event of a collision, precisely activate restraint systems such as airbags and seatbelt pretensioners.

This control unit serves as the brain of the entire occupant protection system. It continuously monitors the vehicle’s longitudinal and lateral acceleration, along with other vehicle dynamics data, to reliably detect a collision and initiate the necessary protective measures within milliseconds.

In addition, the module communicates seamlessly with other control units in the vehicle via the CAN bus and performs a self-diagnosis at every vehicle start-up. System faults are stored in the internal fault memory and indicated by the illumination of the airbag warning light.

Why does the control unit 8F0959655D fail?

The most common cause of failure for the control unit 8F0959655D is the storage of crash data after an accident, which the system locks for safety reasons. Another major cause is internal hardware defects on the circuit board, leading to error codes such as “65535 – Control Unit Fault” and blocking communication.

Following a collision, irreversible crash-event data is saved in the control unit’s memory. This lock cannot be resolved simply by clearing the fault memory at a workshop; it requires specialized intervention to reset this data at the chip level.

Electronic defects on the circuit board are also prevalent. Aging processes or thermal stress can result in faulty SMD components such as voltage regulators, CAN transceivers, or capacitors. Broken solder joints or defects in the microcontroller area are typical issues that demand professional repair at the component level.

In rare cases, repair may be impossible—particularly when there is severe physical damage, such as extensive water damage with advanced corrosion, fire damage, or a destroyed microcontroller. In these situations, replacing the unit is unavoidable.

How do you recognize a defect in the control unit 8F0959655D?

A defect in the airbag control unit 8F0959655D primarily manifests as the airbag warning light remaining constantly illuminated in the instrument cluster. Another clear indication is when the control unit becomes unreachable via a diagnostic tool, meaning no communication takes place. Occasional error messages can also signal a problem.

The most obvious symptom is the persistently lit airbag warning light. It fails to extinguish after starting the vehicle, indicating a serious, safety-critical fault in the system that must be inspected immediately.

A more severe symptom is complete loss of communication. If the workshop attempts to read the fault memory, the diagnostic tool reports “no communication” or “control unit not responding.” This often points to an internal hardware failure, such as in the power supply or the module’s CAN transceiver.

Saved error codes are also a direct indicator. Specifically, error code “65535 – Control Unit Fault” or other internal error codes (e.g., B1000) clearly indicate an irreparable defect within the control unit that cannot be fixed through software updates or coding adjustments.

In which vehicles is the control unit 8F0959655D installed?

The airbag control unit with part number 8F0959655D is used exclusively in the Audi A5 series. It is designed for the Cabriolet model and covers both the original version and the facelifted variant.

At Airbag24, we repair the control unit with part number 8F0959655D for the following models:

Audi A5 8F Cabrio (2007–2011)

Audi A5 8F Cabrio Facelift (2011–2016)

How is the airbag control unit 8F0959655D professionally repaired?

Professional repair of the 8F0959655D at Airbag24 includes precise electronic analysis, proper deletion of stored crash data, replacement of defective components on the circuit board, and a final communication test. We provide a 12-month warranty on every repair performed.

After submission to Airbag24, the restoration follows a proven procedure. First, an incoming inspection is conducted, during which the unit is visually examined for external damage such as corrosion or burn marks, and the fault memory is read—if communication is possible.

Subsequently, repair is performed at the circuit board level in an ESD‑protected environment. Technicians identify and replace defective SMD components such as voltage regulators or CAN modules using specialized rework stations, and, if necessary, repair damaged solder joints or traces.

A key step, especially after a crash, is erasing the crash data stored in memory. This process resets the control unit and restores full functionality, ensuring the system is ready for use again.

Finally, a comprehensive functional test is carried out to verify that the control unit communicates correctly with diagnostic tools and passes all internal self‑tests. Only after successful testing is the unit approved for return shipment.
