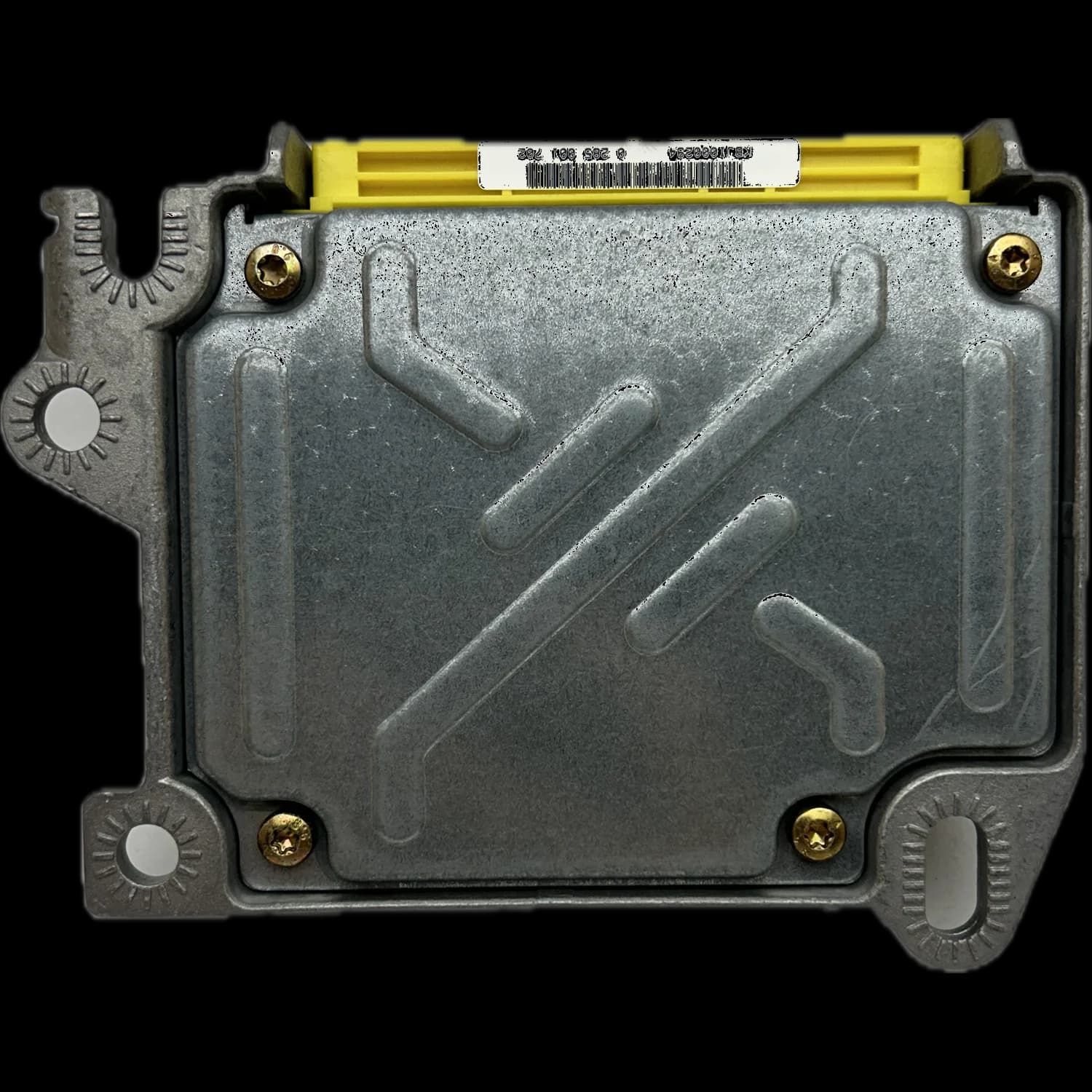

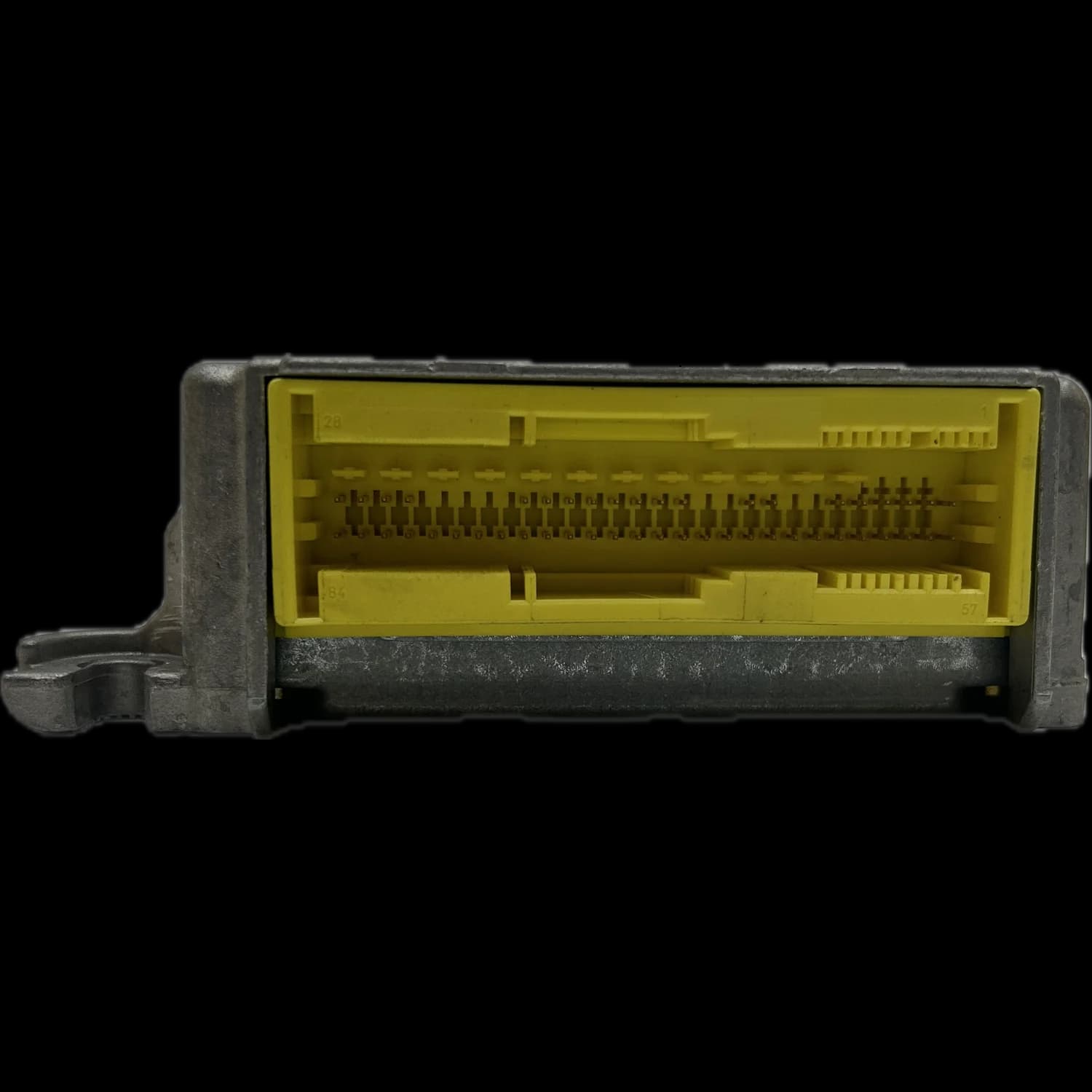

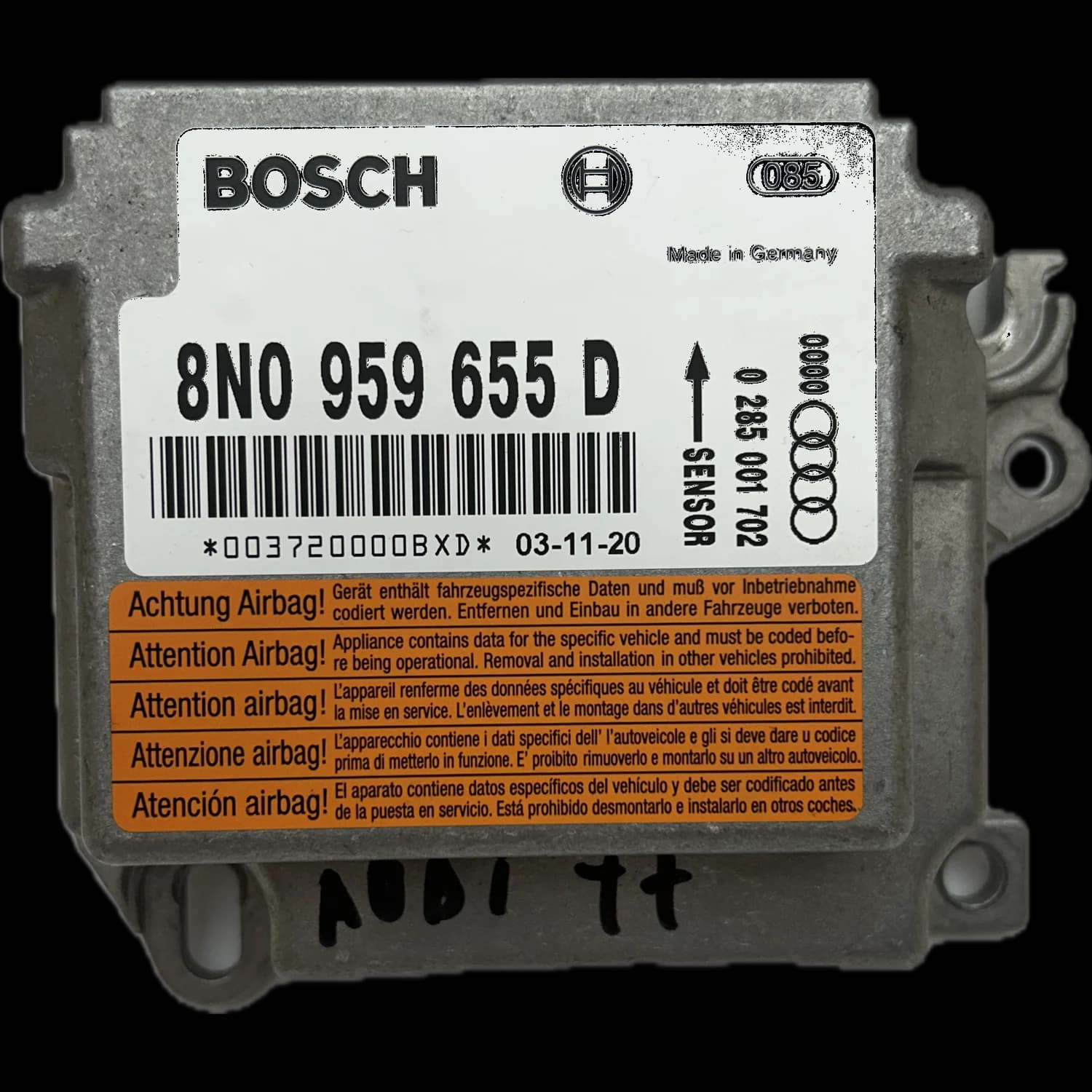

Airbag control unit with part number 8N0 959 655 D

What is the function of the airbag control unit 8N0 959 655 D?

The airbag control unit with part number 8N0 959 655 D is the central control module for the occupant protection system in the Audi TT 8N. It analyzes data from the crash sensors, deploys the airbags and seatbelt pretensioners in the event of a collision, and— as a safety‑related measure—stores crash data, which results in the system being locked.

This module, known as the airbag ECU, is a sensitive electronic component essential for the vehicle’s passive safety. It continuously monitors all components of the airbag system, from the impact sensors to the airbag igniters.

This control unit is often a variant from Bosch, bearing reference number 0 285 001 279. Technically equivalent part numbers such as 8N8 909 601 are also used for the same function in these vehicles.

Why does the control unit 8N0 959 655 D fail?

The most common cause of failure is the storage of crash data after an accident, which permanently locks the control unit. Similarly, internal electronic faults—often due to aging—can lead to total failure, indicated by the non‑erasable error code 65535 (“control unit defective”) in the fault memory.

Following a collision, the control unit is intentionally blocked to prevent further driving with a potentially compromised safety system. This lock often cannot be cleared through standard workshop diagnostics.

A widespread internal defect is error code 65535. This generic error code signals an irreparable internal hardware or software fault, requiring reprogramming or repair at the component level.

Another critical issue is complete communication loss. The control unit no longer responds to requests from an OBD diagnostic tool, making troubleshooting impossible.

Error codes such as 01228, 01578, or 00588 point to problems with the igniter circuits, often originating within the control unit itself. However, before removal, it’s important to rule out other potential causes, such as cable breaks or issues with the slip ring, to avoid misdiagnosis.

How do you recognize a defect in the control unit 8N0 959 655 D?

The clearest sign of a defect is the airbag warning light that remains constantly illuminated on the instrument cluster. Additional symptoms include the lack of communication with the control unit via the OBD interface and the presence of specific, non‑erasable error codes like 65535 (“control unit defective”).

The airbag warning light, which fails to turn off after starting the engine or illuminates during driving, is the first and most important indication to the driver that there is a problem with the restraint system.

In the workshop, this suspicion is confirmed when the diagnostic tester cannot establish a connection to the airbag control unit. Such communication failure prevents reading or clearing error codes.

If communication is possible, stored errors like 65535 or indications of igniter issues (e.g., 00588) are clear indicators of a defect in the 8N0 959 655 D control unit.

In which vehicles is the control unit 8N0 959 655 D installed?

The airbag control unit 8N0 959 655 D was specifically developed for the first generation of the Audi TT (Type 8N). It is used in both the original models and the facelifted versions of this series and is well known as a weak point.

At Airbag24, we repair the 8N0 959 655 D control unit for the entire Audi TT 8N lineup. Our repairs cover both the early models produced from 1998 to 2000 and the revised facelift models manufactured between 2000 and 2006.

Is repairing the control unit 8N0 959 655 D worthwhile?

Yes, repair is highly cost‑effective. It can save up to 70% compared to purchasing a new unit, which typically costs between 400 and 600 euros. Moreover, professional refurbishment offers a high success rate and comes with a 12‑month warranty.

According to available data, a new control unit with part number 8N0 959 655 D can cost up to 600 euros, plus installation and required coding fees at the workshop.

Repair is not only more economical but also a sustainable solution, as it reuses an existing component.

Even when communication with the diagnostic tool is lost, the repair success rate remains very high. Specialized providers can erase stored crash data and fix internal faults—something conventional workshops cannot achieve.

How is the control unit 8N0 959 655 D professionally repaired?

After being sent to Airbag24, the control unit undergoes a thorough incoming inspection. The repair includes targeted reprogramming, secure erasure of crash data, and correction of software or hardware faults. Following this, the device’s full functionality is verified and returned with a 12-month warranty.

Before removing the control unit—typically located beneath the center console in the Audi TT 8N—the fault memory should be read out and documented. This assists technicians in performing a precise analysis.

Upon receipt at Airbag24, the unit is subjected to a comprehensive diagnostic process to identify the exact cause of the fault.

The actual repair is carried out at the electronic level: stored crash data is permanently erased, software errors are corrected, and defective components on the circuit board are replaced as needed, restoring the original functionality.

After successful repair and final testing, the control unit can be reinstalled in the vehicle. Typically, a brief adjustment or coding by the workshop is required to fully adapt it to the vehicle.

What shipping options does Airbag24 offer?

Airbag24 provides a straightforward shipping process. You can send your defective control unit free of charge or arrange for a convenient UPS pickup. For returning your repaired unit, you have access to free standard UPS shipping, as well as faster express and cash-on-delivery options.

For sending your removed control unit back, you have two choices: pack it yourself and ship it to us at no cost, or use UPS’s convenient pickup service at your preferred location.

Once the repair is complete, we’ll ship the unit back to you. You can choose between free standard UPS shipping, faster UPS express delivery, or cash-on-delivery (both standard and express). Personal collection is also available.
