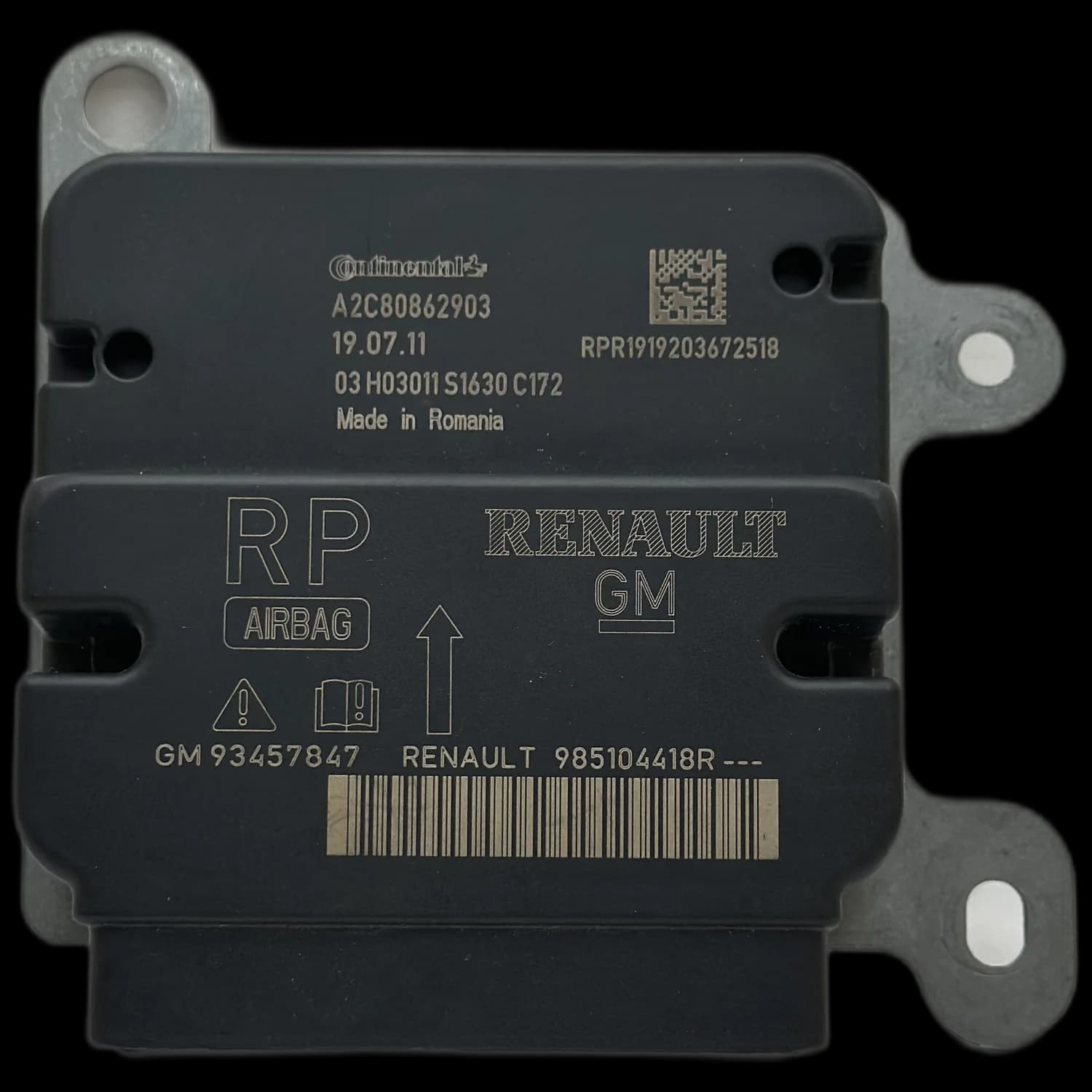

Airbag control unit with part number 985104418R

What is the function of the airbag control unit 985104418R?

The airbag control unit with part number 985104418R is an original Renault OEM component that serves as the central control unit for the entire restraint system. It is primarily installed in models such as the Renault Trafic and Opel Vivaro, tasked with accurately detecting crash situations and activating critical safety systems like airbags and seatbelt pretensioners.

This component, often referred to as a crash sensor, continuously collects and processes data from various acceleration and yaw rate sensors throughout the vehicle. In the event of a collision exceeding predefined thresholds, the control unit 985104418R sends ignition signals to the corresponding airbag modules and seatbelt pretensioners within milliseconds.

Following a crash, the device stores so‑called crash data, which prevents re‑activation and locks the system until it has been properly repaired. Therefore, flawless operation of this control unit is crucial for occupant safety.

Why does the control unit 985104418R fail?

Defects in the control unit 985104418R typically arise from stored crash data after an accident, which blocks its functionality for safety reasons. Other common causes include electronic malfunctions on the circuit board, water damage due to body panel leaks, or moisture ingress. These hardware defects lead to failure of the airbag system and necessitate professional repair.

The most frequent cause of failure is the storage of crash data. Even minor collisions where no airbags deployed—such as a rear-end impact—can trigger the control unit to log an internal error and lock itself. This entry cannot be cleared using standard diagnostic tools.

Moisture and resulting corrosion are also widespread causes of malfunctions. Penetrating water can cause short circuits on the circuit board and permanently damage sensitive electronic components like processors or memory chips.

In rarer cases, internal component failures may occur without external influence. This affects parts such as capacitors, resistors, or solder joints on main processors, leading to communication breakdowns or incorrect fault diagnoses. Repairing such defects is routine for specialized service providers working with control units from manufacturers like Bosch, Delphi, or Continental.

How do you recognize a defect in the control unit 985104418R?

A defect in the control unit 985104418R primarily manifests as the airbag warning light constantly illuminated on the instrument cluster. Often, communication with the control unit becomes impossible, or specific fault codes such as B1000 (control unit defective), internal errors, or non‑erasable crash data remain stored in the fault memory.

The clearest symptom is the persistently lit airbag warning light. It does not extinguish after starting the engine, signaling a serious fault in the restraint system that disables the entire assembly. During a mandatory technical inspection, this condition will inevitably result in failure.

Another clear indication is when the diagnostic tool cannot establish a connection with the airbag control unit. In other cases, communication may still be possible, but fault codes appear, pointing to an internal defect. The B1000 fault code is a typical sign of an irreparable internal hardware failure.

Sometimes, specific faults are recorded that might initially suggest other causes. For example, a fault code for the driver’s airbag could appear even though the coil spring has already been replaced, or issues with seatbelt pretensioners or side airbags may be reported, with the root cause lying directly in the control unit.

In which vehicles is the control unit 985104418R installed?

The airbag control unit 985104418R is found in a range of van models from Renault, Opel, and Fiat. It was primarily installed in the Renault Trafic, Opel Vivaro, and Fiat Talento. At Airbag24, we professionally repair this control unit for all mentioned vehicles, restoring full functionality.

At Airbag24, the part number 985104418R is accepted for repair in the following models and series:

Renault:

- Renault Trafic II (2001–2014) - Renault Trafic III (2014–present) - Renault Trafic IV

Opel:

- Opel Vivaro B (2014–2019)

Fiat:

- Fiat Talento (from 2016; compatibility must be verified)

How does the repair of the control unit 985104418R proceed?

Repair at Airbag24 follows a standardized process to ensure the highest quality and safety. After submitting your unopened control unit, it is first diagnosed to identify the exact cause of the fault. Next, crash data is erased, and any defective components on the circuit board are replaced. Following a final functional test, you receive a fully operational control unit backed by 2 years' statutory liability for defects.

It is recommended to read out the fault memory and note down the error codes before removing the control unit. This helps technicians perform targeted diagnostics.

Upon arrival of the unit at Airbag24, our specialists conduct a detailed analysis. The repair focuses on addressing the specific cause, whether it involves erasing crash data from the memory chip or replacing defective electronic components.

Subsequently, the control unit is tested on a test bench to ensure flawless operation of all circuits and proper communication. The device leaves our facility only when it has reached the condition of a new part. You receive 2 years' statutory liability for defects on the completed repair.
