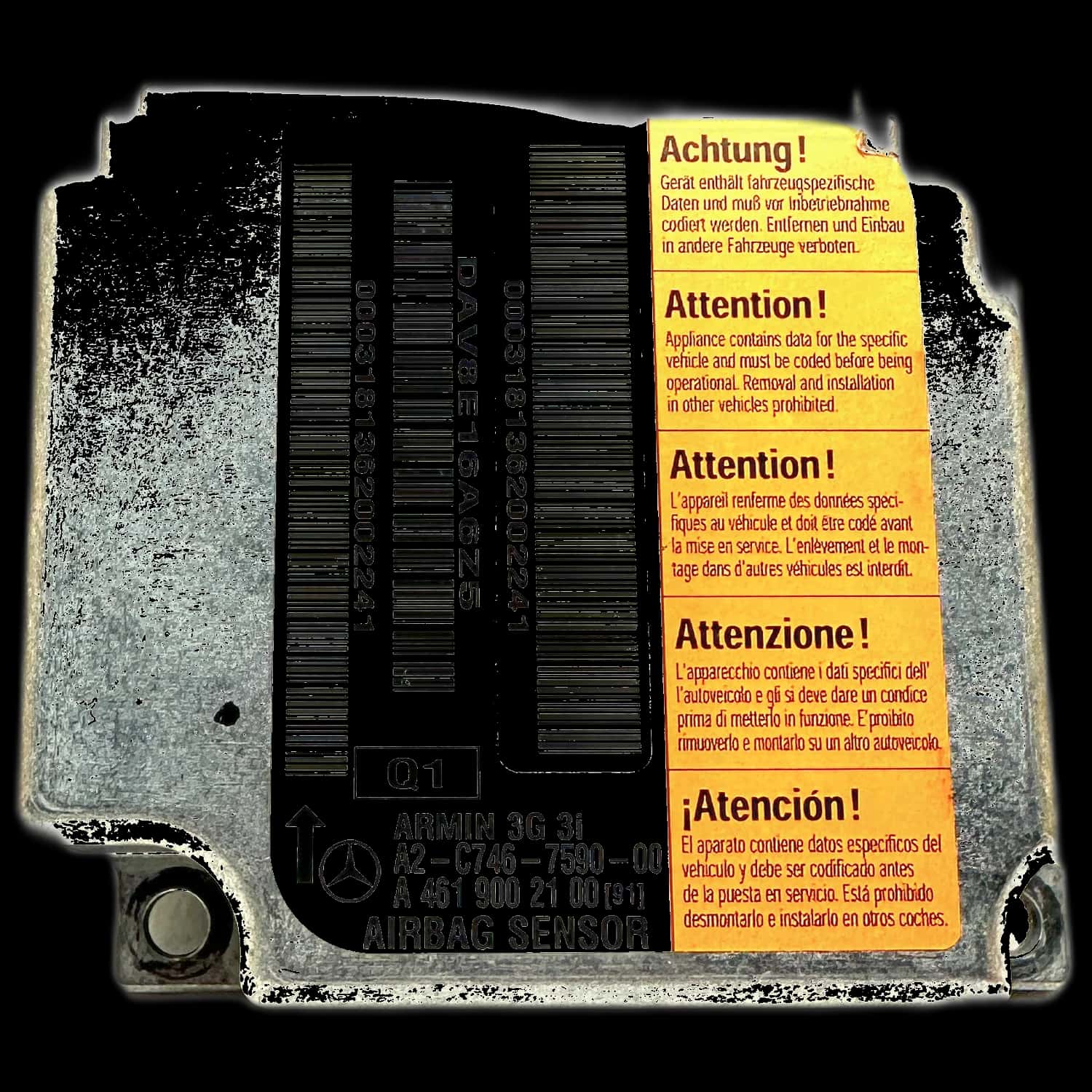

Airbag control unit with part number A 461 900 21 00 (91)

What is the function of the airbag control unit A 461 900 21 00 (91)?

The airbag control unit A 461 900 21 00 (91) is the central control module for the passive safety system in the Mercedes-Benz G-Class, W461 series. It processes data from crash sensors and is responsible for precisely and timely deploying airbags and seatbelt pretensioners in the event of a collision.

As the “brain” of the restraint system, this module continuously monitors all connected components, including various crash sensors, the airbag modules themselves, and the pyrotechnic seatbelt pretensioners.

In the event of a collision detected by the sensors, the control unit makes a split-second decision on which restraint systems need to be activated. This function is critical for protecting vehicle occupants.

The unit is specifically designed for use in the Mercedes-Benz G-Class W461, manufactured from 1992 to 2001, and communicates with other vehicle systems.

Why does the control unit A 461 900 21 00 (91) fail?

Defects in the control unit A 461 900 21 00 (91) often result from external factors such as short circuits or undervoltage in the vehicle’s electrical system, caused by faulty batteries or alternators. Other common causes include moisture damage, cable breaks, and pre-existing damage from improper repair attempts that lead to internal malfunctions.

A frequent source of failure is voltage fluctuations in the vehicle’s electrical system. An aging battery or a defective generator can cause undervoltage, damaging the sensitive electronics inside the control unit and resulting in internal errors.

Physical impacts, such as cable breaks in the wiring harness or corrosion at connector contacts, disrupt communication with sensors or the vehicle itself. The control unit interprets these interruptions as faults, triggering the warning light.

Especially for control units installed beneath the seats, moisture damage poses a significant risk. Spilled beverages or water ingress can cause short circuits on the circuit board, irreparably damaging the device.

Improper repair attempts in the past are also frequently the root cause of later failures. Incorrect diagnosis or attempts to fix issues without the necessary expertise can lead to permanent hardware damage.

How do you recognize a defect in the A 461 900 21 00 (91)?

A defective control unit A 461 900 21 00 (91) primarily manifests as a permanently or intermittently illuminated airbag warning light on the instrument cluster. Often, communication with diagnostic equipment becomes impossible, and fault codes stored in the error memory cannot be cleared—especially after a crash (crash data).

The most obvious sign is an active airbag or SRS warning light. If it remains steadily lit or flashes sporadically, the system indicates a fault and may become completely inoperative during an emergency.

Another clear symptom is when a professional workshop’s diagnostic tool cannot establish communication with the airbag control unit. The module no longer responds to queries, significantly complicating troubleshooting.

Often, fault codes pointing to defective components like crash sensors or seat-mounted airbags cannot be erased—even after replacing those parts. The fault remains stored within the control unit itself.

Following a crash, the unit stores so‑called crash data. These records lock the control unit and often cannot be removed using standard workshop testers. As a result, the airbag warning light stays on permanently.

It is critically important from a safety standpoint to understand: as long as the warning light remains active, neither airbags nor seatbelt pretensioners will deploy in the event of another accident. Furthermore, the vehicle will fail its mandatory technical inspection.

Explicit warnings are issued against tampering, such as using simulators or resistors to bypass the system. Such interventions are life‑threatening, invalidate the vehicle’s operating permit, and must never be performed. Work on the airbag system should only be carried out by trained professionals.

In which vehicles is the control unit A 461 900 21 00 (91) installed?

The airbag control unit with part number A 461 900 21 00 (91) is specifically designed for the Mercedes-Benz G-Class, W461 series, produced between 1992 and 2001. At Airbag24, we professionally refurbish this specialized control unit exclusively for this vehicle generation.

At Airbag24, we repair the part number A 461 900 21 00 (91) for the following model:

Mercedes-Benz: G-Class W461 (model years 1992–2001)

How does the repair of A 461 900 21 00 (91) at Airbag24 work?

After you send the removed control unit A 461 900 21 00 (91) to Airbag24, a comprehensive analysis is performed. Our technicians carry out reprogramming and reliably erase stored crash data. Following professional refurbishment and final testing, you will receive the unit back with 2 years' statutory liability for defects.

The repair process begins with the proper removal of the control unit at your workshop. Ideally, please include an up-to-date diagnostic printout with the package, documenting any stored fault codes.

Upon receipt at Airbag24, the control unit is inspected by specialized technicians. The focus is on analyzing internal faults and verifying the hardware.

The actual refurbishment involves professional reprogramming of the device and securely erasing the stored crash data, restoring the control unit to full working condition.

After repair, the control unit undergoes thorough functional testing to ensure correct operation. You receive 2 years' statutory liability for defects on every repair performed.

Once reinstalled in the vehicle, the vehicle’s fault memory should be cleared once.
