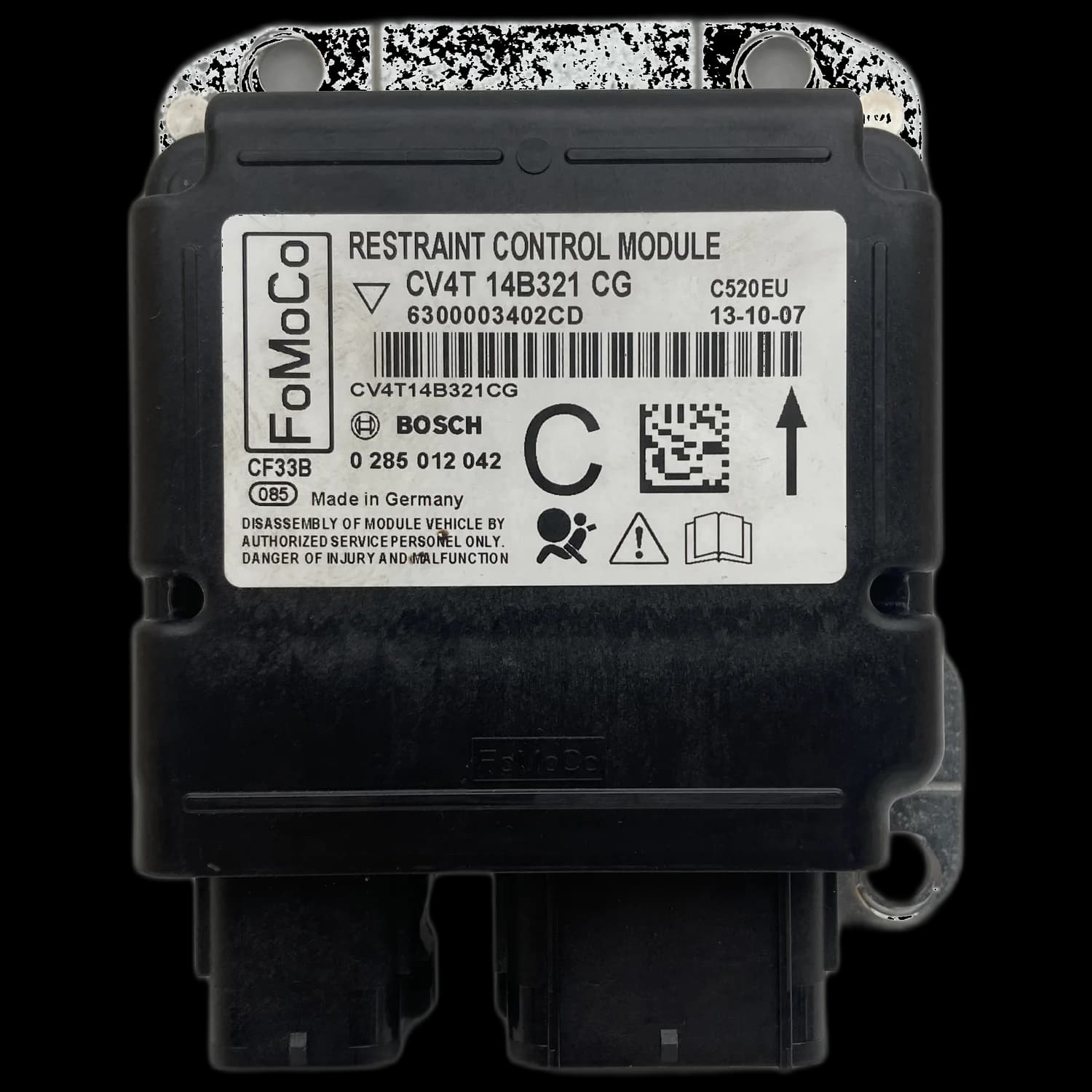

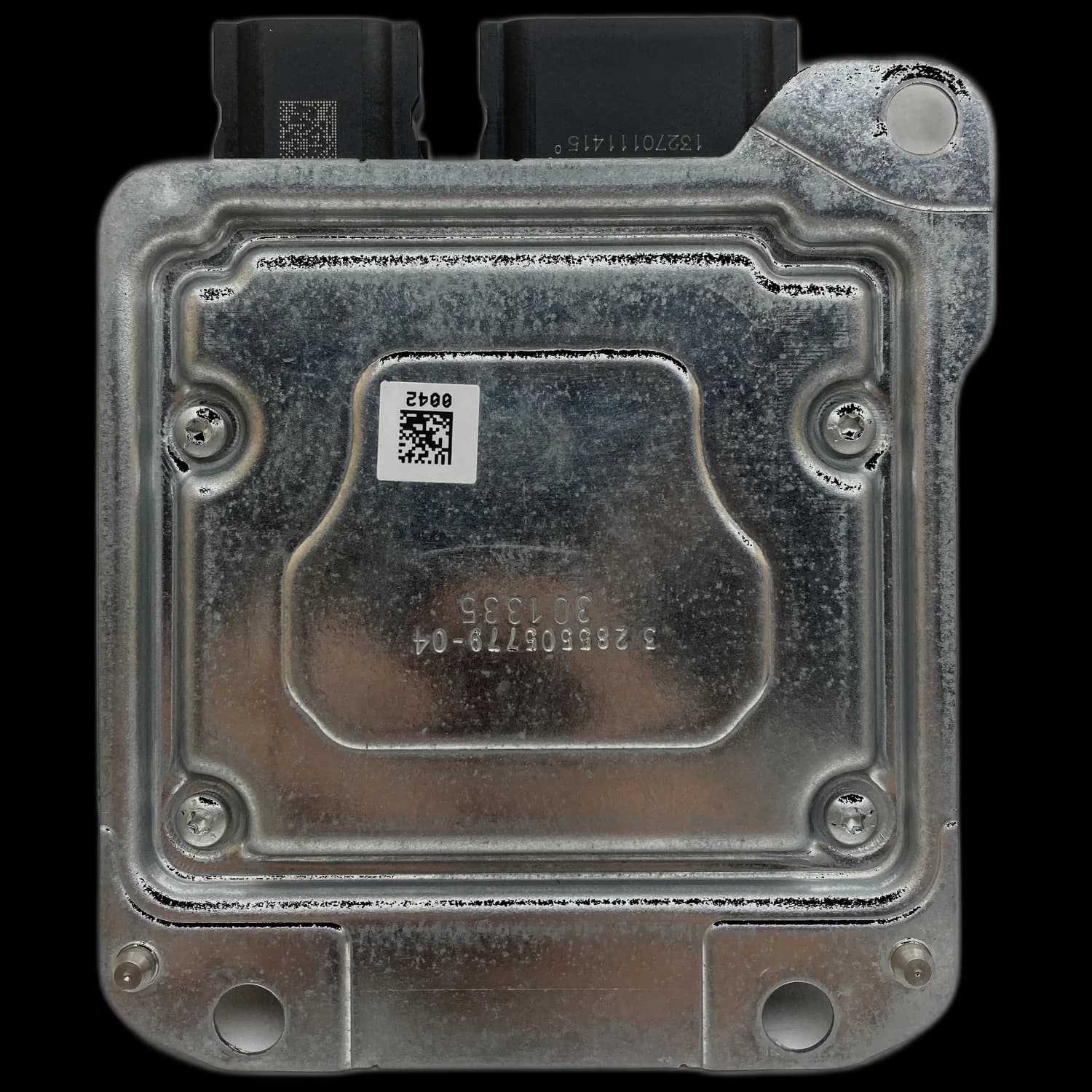

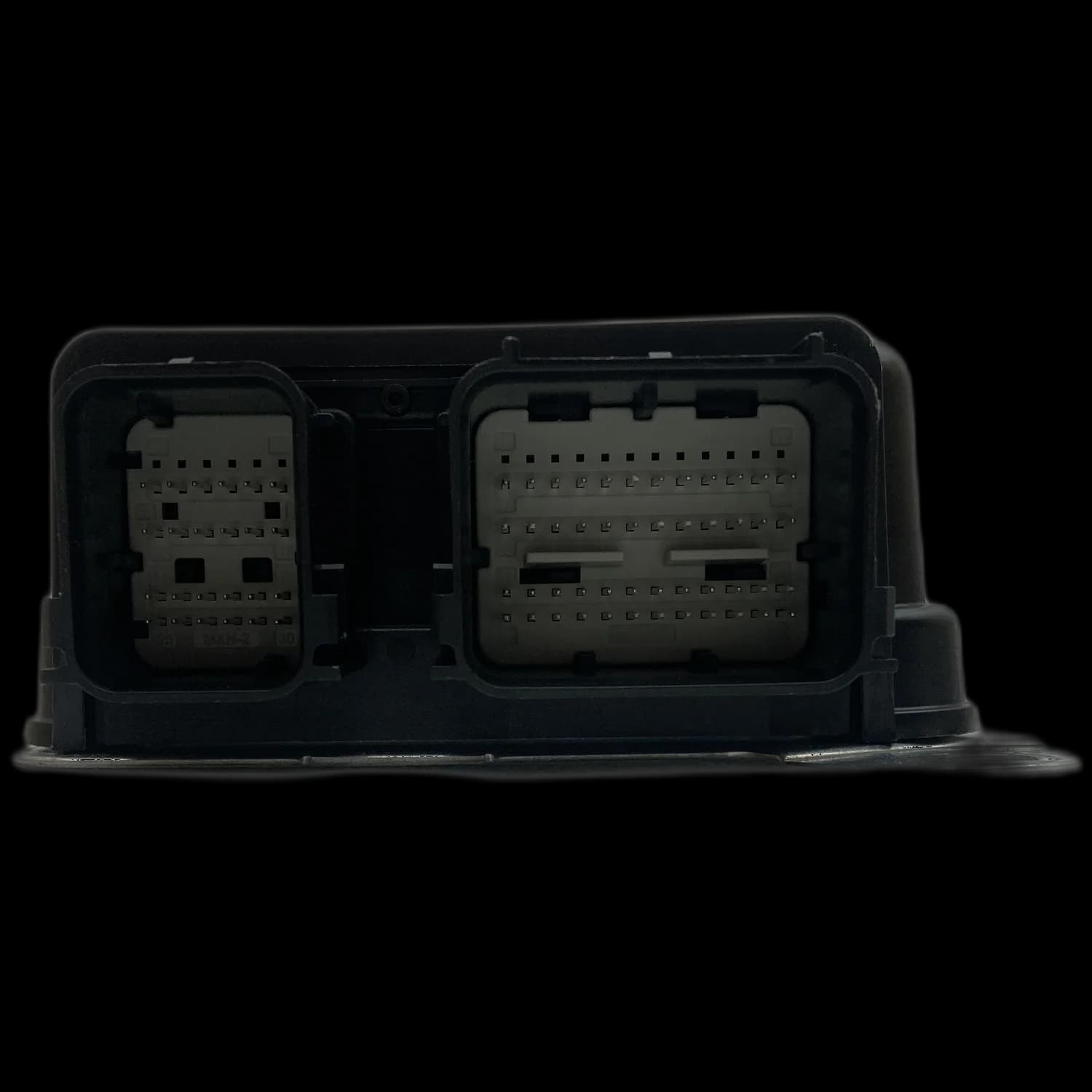

Airbag control unit with part number CV4T 14B321 CG

What is the function of the airbag control unit CV4T 14B321 CG?

The airbag control unit with part number CV4T 14B321 CG, internally designated as Bosch 0 285 012 042, serves as the central control module for the occupant restraint system (SRS). It processes data from crash sensors, deploys airbags and seatbelt pretensioners in the event of a collision, and stores relevant crash data.

As the “brain” of the safety system, this module continuously monitors and evaluates signals from acceleration and pressure sensors within the vehicle. If it detects a collision exceeding predefined thresholds, it sends ignition commands to the appropriate restraint systems—such as front, side, or head airbags—as well as pyrotechnic seatbelt pretensioners—within milliseconds.

In addition, the device records all pertinent accident-related data. This capability is crucial for analyzing accident sequences; however, it also results in the control unit becoming locked after deployment, necessitating repair.

What types of failures occur in the CV4T 14B321 CG?

The most common issue is the storage of crash data following airbag or seatbelt pretensioner deployment, which locks the control unit. Another typical failure mode involves internal electronic malfunctions that cause complete communication breakdown with diagnostic equipment, rendering the module inoperable.

After an accident in which the restraint systems have been activated, the control unit writes an irreversible fault entry into its internal memory. This lockout is a manufacturer‑imposed safety feature designed to prevent further use of a potentially damaged component. Consequently, the airbag warning light remains illuminated permanently.

Even without an accident, purely electronic faults can arise. Components on the circuit board—such as capacitors or the processor itself—may fail, often leading to total loss of communication so that the control unit becomes unreachable via the OBD interface.

It’s important to note that the part number CV4T 14B321 CG is specific. Do not confuse it with similarly sounding numbers like CV4T-14B321-CH or 9V4T-14B321-AA, as these are intended for different vehicle configurations and are incompatible.

How do you recognize a fault in the CV4T 14B321 CG control unit?

The clearest indication of a malfunction is the persistently illuminated airbag warning light on the instrument cluster. Another clear symptom occurs when workshops using diagnostic tools cannot establish communication with the airbag control unit, suggesting a complete internal failure.

The airbag warning light—typically a red or yellow pictogram depicting a passenger with an airbag—signals a problem within the safety system. After starting the vehicle, it should briefly illuminate and then extinguish. If it stays on continuously, the system is disabled and will not function in the event of a crash.

If a workshop cannot read fault codes from the SRS module via the OBD port—or fails to establish any connection at all—this strongly suggests a severe hardware defect within the control unit itself. The device no longer responds to external requests and is therefore inoperative.

In which vehicles is the CV4T 14B321 CG installed?

The airbag control unit with part number CV4T 14B321 CG is specifically found in Ford models. It is primarily used in the second generation of the Ford Kuga, both in the original model and in the facelifted version.

At Airbag24, we professionally refurbish the CV4T 14B321 CG control unit for the following models:

Ford Kuga 2 (MK2) manufactured between 2012 and 2016

Ford Kuga 2 (MK2) Facelift models manufactured between 2016 and 2019

How is the CV4T 14B321 CG control unit professionally repaired?

At Airbag24, repairs follow a certified process: First, all stored crash data is completely and securely erased. This is followed by a thorough electronics diagnosis, during which defective components are replaced. The module is thus restored to factory condition and fully functional again.

Upon receipt at Airbag24, the control unit undergoes an initial inspection. The core of the repair lies in the expert deletion of crash data from the internal memory, thereby lifting the device’s lockout. This allows the airbag warning light to be cleared after reinstallation.

Simultaneously, technicians examine the entire circuit board for electronic defects. Faulty components—such as capacitors or other parts that may cause communication issues—are professionally replaced. Finally, the control unit is tested for full functionality to ensure safety. We provide a 12-month warranty on every repair.

What shipping options does Airbag24 offer?

To send us your defective control unit, you can either return it yourself at no cost or arrange a convenient UPS pickup from your preferred location. For the return shipment after repair, we provide free standard UPS shipping as well as faster express options, each also available with cash-on-delivery.

For the outbound shipment, you have two simple choices: Send the removed control unit to us yourself, or arrange a paid UPS pickup directly from your workshop or private address.

After the repair is completed, several return shipping options are available: free standard UPS shipping, faster UPS express shipping—both with the option of cash-on-delivery—and in-person pickup at our facility.
