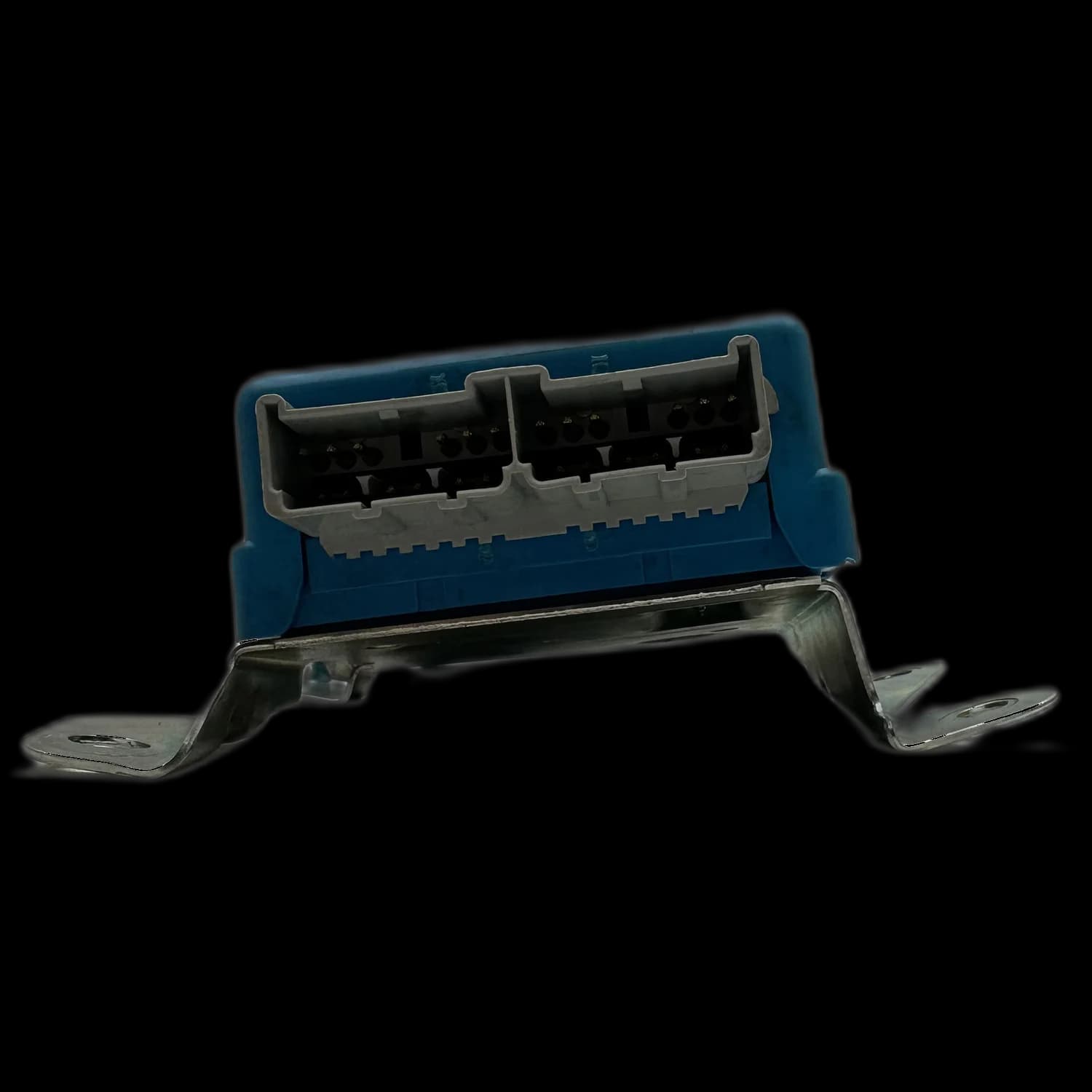

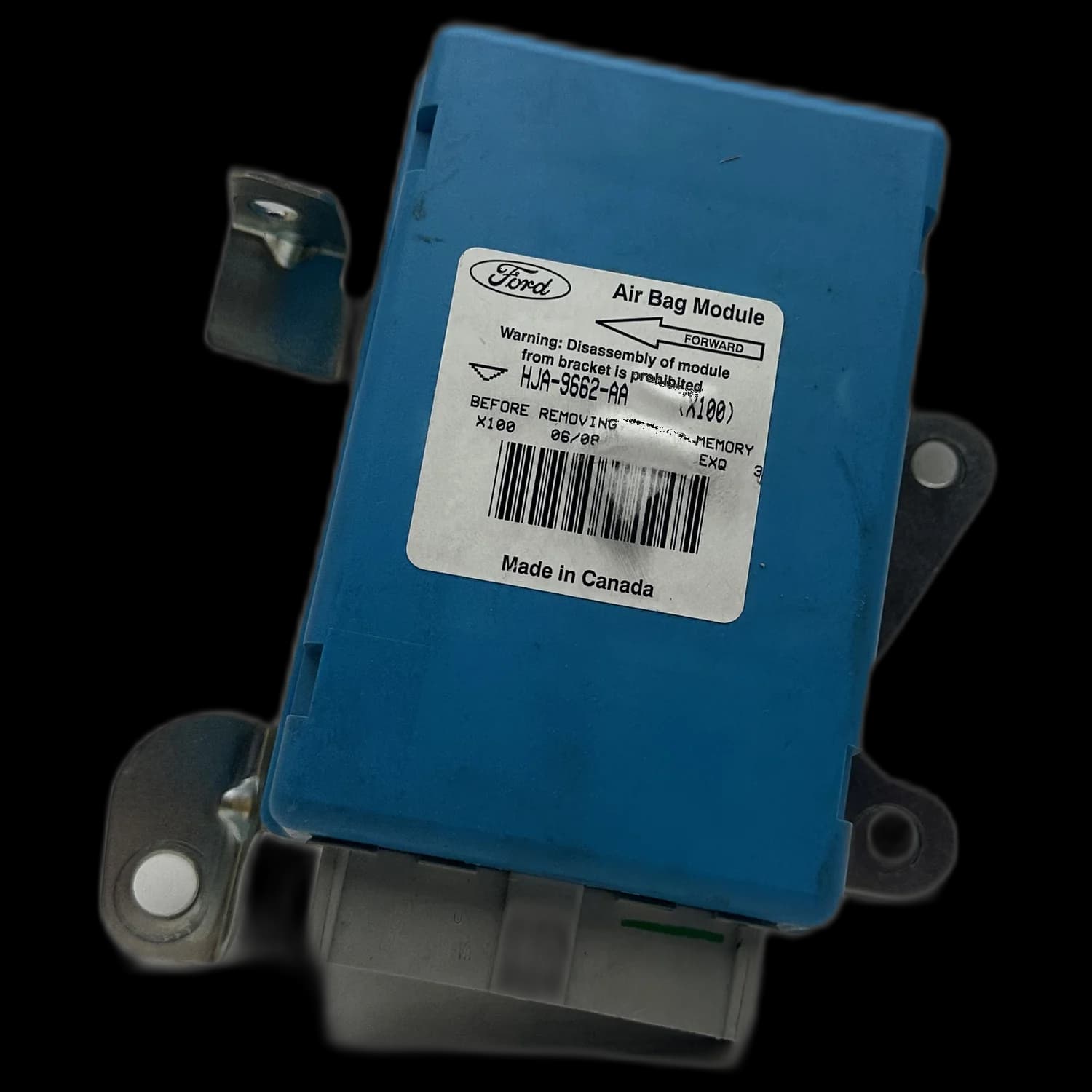

Airbag control unit with part number HJA9662AA

What is the function of the airbag control unit HJA9662AA?

The airbag control unit with the original Jaguar OEM part number HJA9662AA is the central control unit for the occupant restraint system. It processes data from acceleration and crash sensors and, within milliseconds, decides whether to deploy airbags and seatbelt pretensioners to protect vehicle occupants in the event of a collision.

As the “brain” of the safety system, this control unit is responsible for monitoring all relevant components. It performs a self-test every time the vehicle is started and ensures that all sensors, airbag modules, and seatbelt pretensioners are operational. If a fault is detected, the airbag warning light on the instrument cluster illuminates.

This unit is specifically designed for use in various Jaguar models and communicates via the CAN bus with other control units in the vehicle, incorporating accident-related data—such as vehicle speed and braking events—into its decision-making process.

What types of defects occur in HJA9662AA?

The most common causes of failure for HJA9662AA include stored crash data after an accident, which locks the device, as well as internal electronic malfunctions. These can result in complete communication failure or persistent error messages, even when no accident has occurred. Repair efforts focus on resolving these hardware and data-storage issues.

A primary reason for repair is the storage of crash data. After an accident in which the restraint system has deployed, the control unit irrevocably writes a data record into its internal memory. This lockout entry prevents reuse and must be professionally reset.

In addition, various electronic components on the circuit board may fail, leading to malfunctions such as loss of communication with diagnostic tools or permanently illuminated warning lights. Such defects typically originate at the hardware level and require repair by a qualified specialist.

For some vehicle models, such as the Jaguar XJ X350, an alternative OEM part number AW9314D374CA exists, which can also be affected by the same defects. Therefore, a thorough diagnosis is essential before proceeding with repairs.

How do you recognize a defect in HJA9662AA?

A defect in the HJA9662AA control unit usually manifests as a continuously illuminated airbag warning light. Additional signs include lack of communication with diagnostic equipment, specific flashing patterns of the warning light in XKR models, or malfunctions in the dashboard illumination when locking the vehicle. These symptoms indicate an internal fault.

The clearest symptom is the persistently lit airbag warning light on the instrument cluster. It signals a problem within the restraint system that may be caused by the control unit itself and does not extinguish even after clearing the fault memory.

Another clear indication is when the control unit becomes unreachable via the OBD interface. In such cases, workshops cannot perform diagnostics or read out the fault memory, pointing to a serious internal defect.

Especially in Jaguar XKR models, distinct flashing patterns of the warning light can correspond to specific fault codes. Unusual electrical phenomena, such as malfunctions in the dashboard illumination when locking the car, are also associated with a defective airbag control unit.

In which Jaguar models is HJA9662AA installed?

The airbag control unit HJA9662AA is an original OEM part number used in various Jaguar vehicles. It is primarily found in the XJ series (X350, X358, XJ6 Series II), as well as in the XK8, XKR (X100) sports car series, and the later XK (X150). At Airbag24, we have experience repairing this specific module across all mentioned models.

At Airbag24, we service the HJA9662AA part number for a range of Jaguar models. Our expertise particularly covers:

Jaguar XJ: This includes the X350 series (2003–2006) and the facelifted X358 model (2006–2009), as well as the classic XJ6 Series II.

Jaguar XK: Repairs are available for both the older XK8/XKR generation (X100) and the newer XK/XKR series (X150).

How does the repair of HJA9662AA proceed at Airbag24?

After removing and shipping the defective control unit to Airbag24, a comprehensive diagnosis is performed on specialized test benches. The repair involves erasing crash data and fixing electronic faults at the component level. Following successful testing, the unit is returned to the customer, backed by 2 years’ statutory liability for defects on the completed repair.

First, a specialized workshop should clearly attribute the fault to the airbag control unit. After professionally removing the unit, please send it securely packaged to Airbag24. Upon receipt of your package, our technicians will begin a detailed analysis to determine the exact cause of the failure.

The actual repair focuses on two key areas, depending on the findings: either the professional erasure of stored crash data or the repair of the electronics. During this process, defective components such as processors, memory chips, or other parts on the circuit board are identified and replaced. The unit’s functionality is then thoroughly tested in a simulation.

Following successful repair and final testing, the control unit is fully operational again. It can be reinstalled in the vehicle without additional coding or programming—plug-and-play. Every repair we perform comes with a standard 2 years’ statutory liability for defects.
