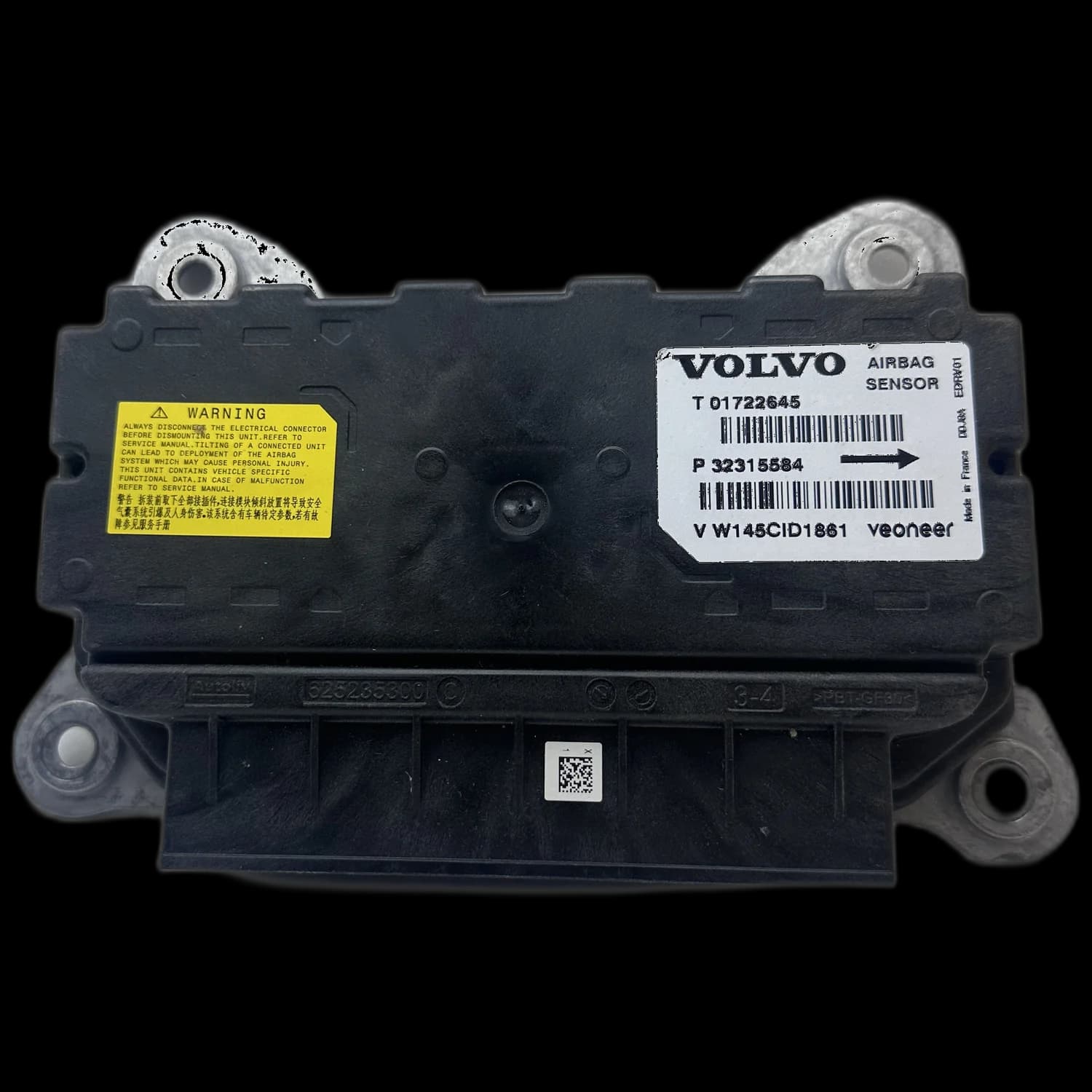

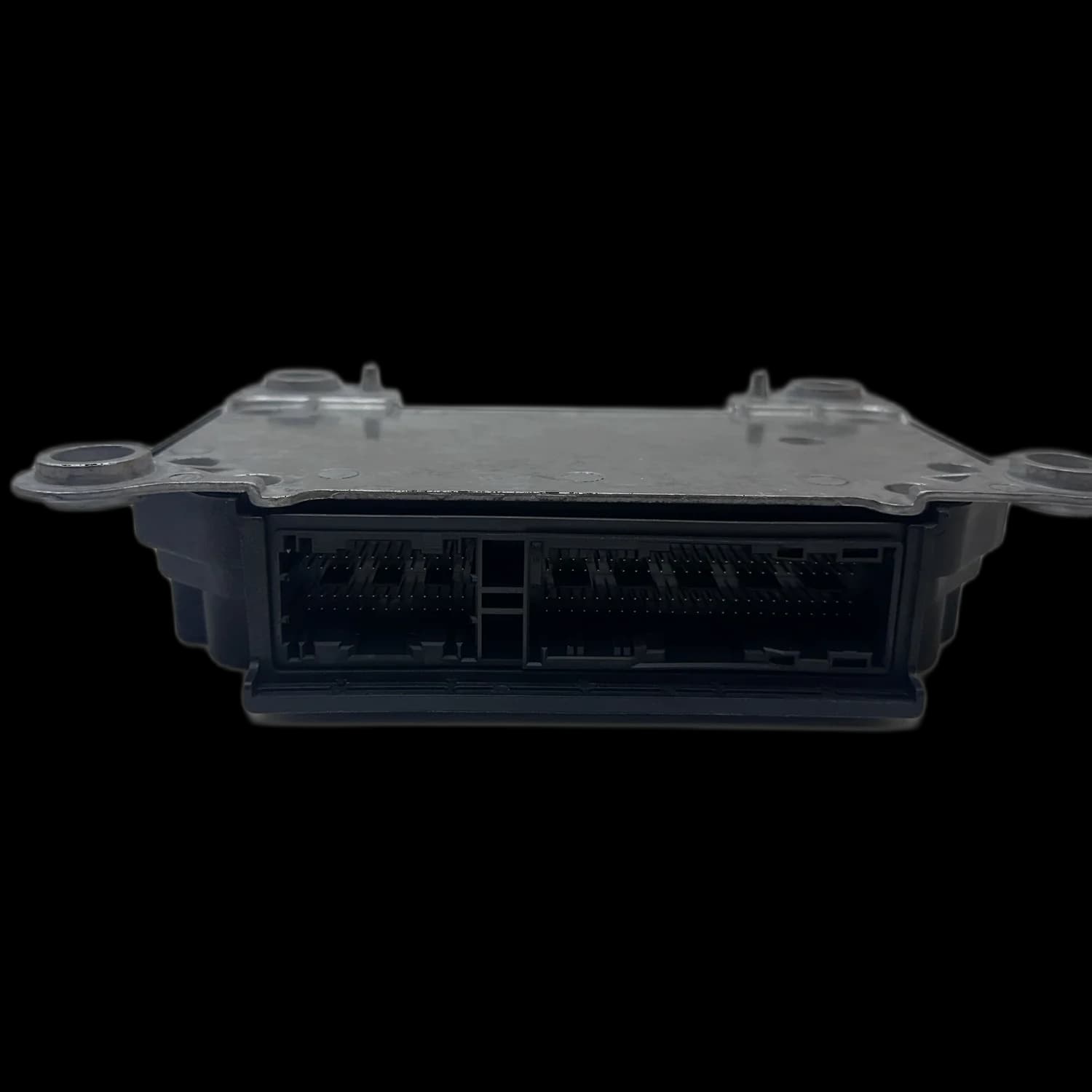

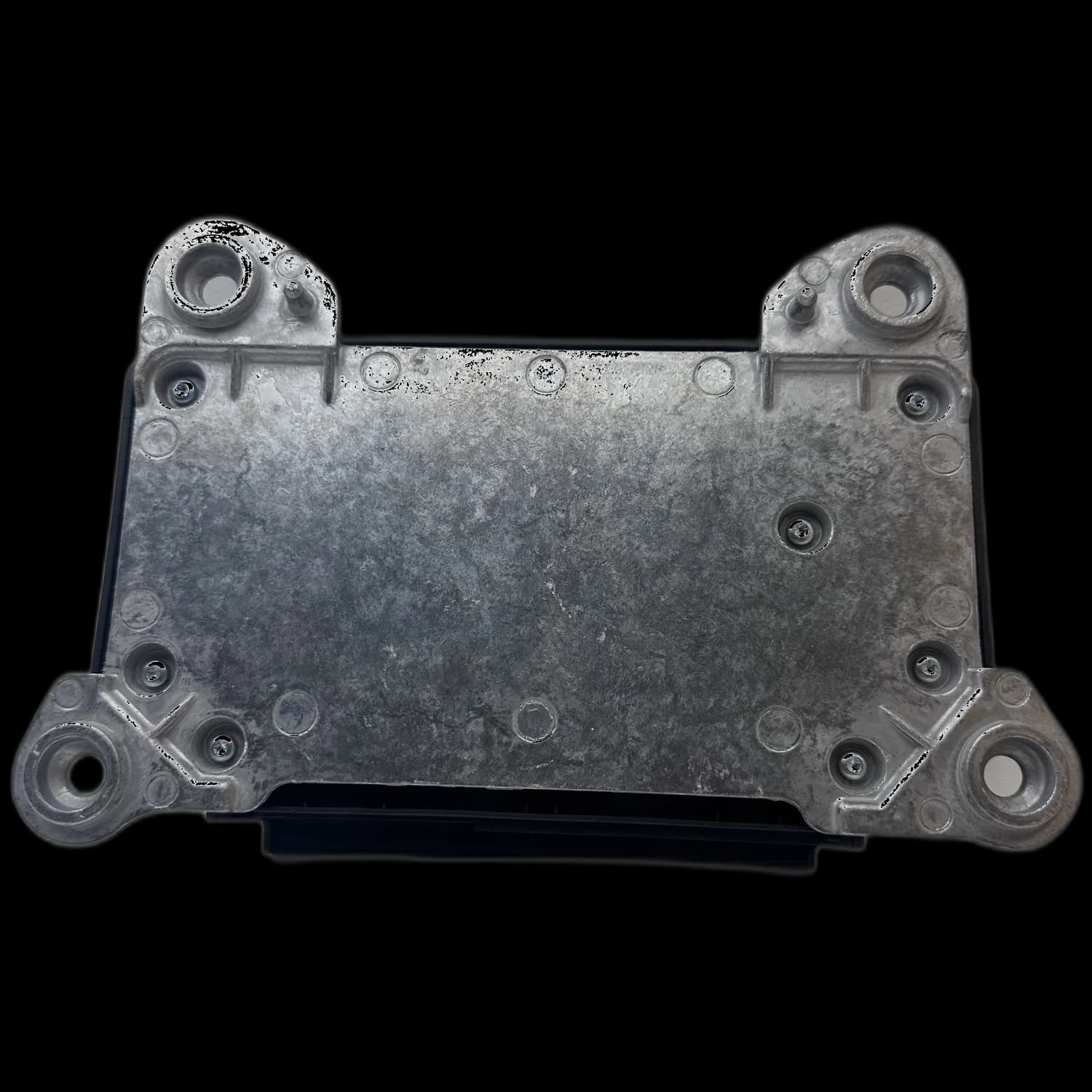

Airbag control unit with part number P32315584

What is the function of the airbag control unit P32315584?

The airbag control unit with part number P32315584 is the central control unit (SRS ECU) for the passive safety system in modern Volvo vehicles built on the SPA platform. It processes signals from crash sensors and determines whether to deploy airbags and seatbelt pretensioners. This module is related to Bosch part number 0285012268.

As the “brain” of the Safety Restraint System (SRS), this control unit continuously monitors all connected components, including various airbags (driver, passenger, side, and curtain airbags), seatbelt pretensioners, seat occupancy sensors, as well as acceleration and pressure sensors distributed throughout the vehicle.

In the event of a crash, the electronics analyze incoming sensor data within milliseconds. Based on the severity and type of impact, the necessary restraint systems are activated to provide optimal protection for occupants. After deployment, the unit stores crash data, which locks out further functionality until inspection or repair.

Why does the P32315584 control unit fail? Common defects

Defects in the P32315584 control unit often arise from internal electronic faults that can occur even without an accident. The main causes include undervoltage, short circuits, or fluid damage. Another frequent issue is the storage of non‑erasable crash data after a collision, which locks the system.

A common source of failure is hardware damage on the circuit board, triggered by voltage fluctuations in the vehicle’s electrical system—such as those caused by a faulty battery or alternator. Internal short circuits or cold solder joints can also lead to malfunction. Since the control unit is typically installed beneath the seats, fluid ingress is another typical cause.

Following a crash, so‑called crash data is written into the control unit’s memory. This data locks the module and prevents re‑deployment until professional repair is performed. Often, the programmed Vehicle Identification Number (VIN) is also lost in the process.

This control unit is technically related to part numbers P31318792, 31295241, P31406637, and Bosch reference 0285012268. The fault patterns in these variants are frequently identical.

How do you recognize a defect in the P32315584?

The most obvious symptom of a defect is the permanently illuminated airbag or SRS warning light on the instrument cluster. Often, the control unit can no longer be accessed via OBD diagnostics. Typical error codes include U3000 (internal control unit error) or SRS-00D0 (faulty configuration).

If the red SRS warning light fails to extinguish after starting the vehicle, the entire airbag system is disabled. This poses a significant safety risk and may result in failure during the mandatory technical inspection (TÜV).

Another clear indication is that workshop diagnostic tools cannot establish communication with the airbag control unit. In the fault memory of other control units, communication errors such as SRS-00D5 (CAN/LIN bus error) or SRS-U014000 (loss of connection to the Central Electronic Module) may be recorded.

Specific error codes directly indicating a defect include U200B (faulty power supply), U3000 (general control unit error), as well as crash‑related entries like CFFF or B1193. In some cases, components such as the seat occupancy mat may also be incorrectly flagged as defective.

An important safety warning: Attempting to manipulate the system using simulators, resistors, or jumpers is extremely dangerous and will result in the revocation of the vehicle’s operating permit.

In which vehicles is the P32315584 control unit installed?

The P32315584 airbag control unit is primarily used in Volvo vehicles. It is specifically designed for the modern SPA platform and is mainly found in the second‑generation Volvo XC60 and its sibling, the Volvo XC90. At Airbag24, we professionally repair this module.

At Airbag24, the P32315584 control unit is repaired for the following models:

Volvo: XC60 SPA (model years 2017–2021), XC60 SPA Facelift (from 2021 onward)

The control unit is also closely related to the Volvo XC90 built on the SPA platform and is used there in certain configurations as well.

How is the P32315584 professionally repaired?

Professional repair of the P32315584 at Airbag24 involves precise analysis and component‑level restoration. Upon receipt of the removed unit, both hardware defects—such as faulty voltage circuits—and software issues—including stored crash data and lost VIN information—are addressed. Each repair comes with 2 years' statutory liability for defects.

The process ideally begins with a diagnostic report from your workshop prior to removal. After safely removing the control unit with the battery disconnected, you send it in. At Airbag24, the unit is first tested on a specialized test bench to reproduce the reported errors.

The actual repair depends on the nature of the fault. For hardware damage, defective electronic components such as processors, memory chips (EEPROM), or voltage converters are replaced. For software issues, crash data is securely erased and the original vehicle identification number is reprogrammed. The control unit is then fully functional again and must be installed back into the same vehicle.

Following successful repair and a final functionality test, the control unit is returned. After reinstallation, any remaining error codes in the vehicle’s fault memory may need to be cleared on-site. Repair offers a cost-effective and sustainable alternative to an expensive new part.
