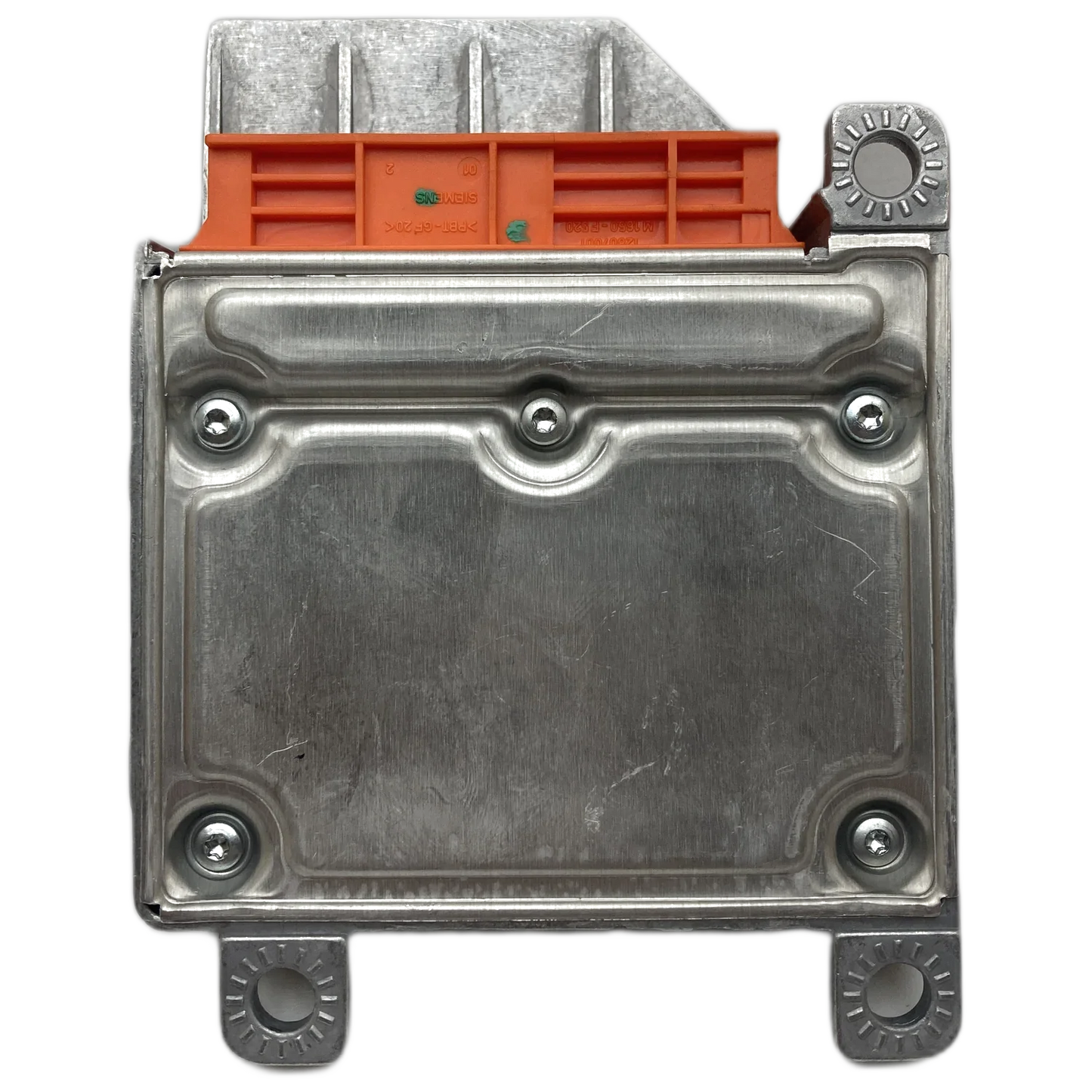

What is a BMW 3 Series E36 airbag control unit?
The BMW 3 Series E36 airbag control unit is the central safety unit in the vehicle, activating all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of a collision. It continuously monitors sensors, stores relevant crash data, and ensures the proper functioning of all safety-relevant airbag modules, which is crucial for safety.
This electronic module processes signals from various acceleration sensors in the vehicle. It is responsible for determining the optimal ignition timing for airbags and seatbelt pretensioners.
The control unit also continuously performs self-tests and reports system errors via the airbag warning light in the instrument cluster.
Why is the BMW 3 Series E36 airbag control unit defective?
A BMW 3 Series E36 airbag control unit often fails because it develops internal electronic errors, whether due to aging, voltage spikes, moisture damage, or after an accident that permanently stores crash data. This often leads to safety system failure and requires professional repair or replacement to restore operational safety.
Common causes of failure are internal hardware defects that can develop over time due to temperature fluctuations or vibrations.
A faulty power supply, whether due to undervoltage or overvoltage, can also permanently damage the sensitive control unit. This may require a replacement or a BMW 3 Series E36 airbag control unit repair.
Deployment of the airbags in an accident leaves "crash data" in the memory that can only be erased by special devices; otherwise, the control unit remains blocked or is considered "defective."
If your E36 displays error codes like "internal control unit error," this is a strong indication of a broken airbag control unit.
Common error codes for BMW 3 Series E36 airbag control unit repair
During BMW 3 Series E36 airbag control unit repairs, specific error codes are often encountered that indicate internal problems or communication errors within the control unit. These codes are crucial for precise diagnosis and troubleshooting, as they provide precise clues to the cause of the failure.
- Code 1 → SRS control unit internal error → Cause: Internal self-test error or problems with the power supply.
- Code 2 → Driver's side airbag ignition circuit defective → Cause: Defect in the driver's airbag circuit, often after work on the steering wheel.
- Code 05 → Belt tensioner driver side activation circuit error → Cause: Problem in the activation circuit of the belt tensioner on the driver side.
- Code 06 → Passenger side belt tensioner activation circuit error → Cause: Problem in the activation circuit of the passenger side belt tensioner.
- Code 240 → Control unit internal error → Cause: Further general internal error status of the airbag control unit.
What part numbers are available for the BMW 3 Series E36 airbag control unit repair?
For BMW 3 Series E36 airbag control unit repairs, specific OEM part numbers are essential to ensure compatibility and proper function. These original part numbers are available directly from the manufacturer BMW or its suppliers such as Bosch and must exactly match your vehicle model.
- 65 77 8 374 799 (BMW / Bosch)
- 65 77 8 369 023 (BMW)
- 65 77 8 362 119 (BMW)
- 65 77 8 355 2763 (BMW)
- 65 77 8 369 828 (BMW)
These part numbers are only relevant for the airbag control unit of the BMW 3 Series E36 and do not refer to sensors or other modules.
Before repairing or replacing the defective control unit, it is imperative to check the vehicle identification number (VIN).
Functionality and technical features of the E36 airbag control unit
The airbag control unit in the BMW E36 evaluates all crash data and decides on the timely deployment of the airbags and seatbelt pretensioners. It processes data from electronic acceleration sensors and mechanical sensor systems in the vehicle.
In addition to the trigger function, the control unit has a self-diagnosis function that detects errors and reports them via the warning light. After an accident, it stores important crash data relevant for diagnosis and further repairs.
It works closely with other satellite control units and the safety battery terminal. Weight detection on the passenger seat serves to intelligently control airbag deployment.
Installation position and special features of the BMW 3 Series E36
The airbag control unit in the BMW E36 is typically located in the interior, often under the rear seat or near the glove compartment. The exact location may vary depending on the model and year.
It is connected to the vehicle's electrical system via a special orange safety connector that is secured against accidental disconnection. The wiring connects the control unit to all airbag sensors, crash sensors, and the airbags and seat belt pretensioners.
After a replacement or repair of the BMW 3 Series E36 airbag control unit, it is essential to recode the control unit to the specific vehicle. This can be done at a specialized workshop with the appropriate diagnostic software.
There are various versions and manufacturers of this control unit, such as TEMIC or BMW's own parts. All have integrated misfire protection mechanisms, which increases the system's safety.
For the professional repair of a defective airbag control unit or its replacement after a failure, precise knowledge and often special tools are required.
