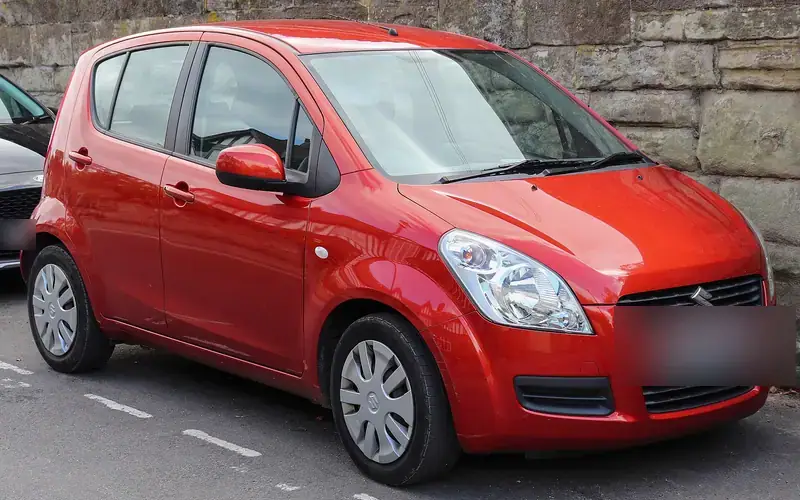

Suzuki Splash EX airbag control unit repair

What is a Suzuki Splash EX airbag control unit?

The Suzuki Splash EX airbag control unit is the central safety unit in your vehicle, continuously monitoring all sensors of the airbag system. In the event of a collision, it analyzes the data and precisely controls the deployment of the airbags and seatbelt pretensioners to ensure optimal safety for the occupants of the Suzuki Splash EX. This module also stores important crash data.

This electronic control unit, often referred to as the airbag CPU, forms the heart of the Supplemental Restraint System (SRS). It is largely responsible for the passive safety of the driver and passengers.

Its primary task is to react to accident situations in a fraction of a second. To do this, it collects data from crash sensors strategically placed throughout the vehicle.

Why is the Suzuki Splash EX airbag control unit defective?

A Suzuki Splash EX airbag control unit can fail because it often needs to be replaced after an accident because crash data is permanently stored or internal components have been damaged by overvoltage. Age-related wear, moisture, or wiring errors can also lead to failure, making a Suzuki Splash EX airbag control unit repair unavoidable.

Common causes of failure are internal hardware defects or software errors that can impair the proper functioning of the airbag system. In such cases, the airbag warning light on the dashboard indicates a malfunction.

Sometimes it's not the control unit itself that's broken, but rather a faulty sensor or wiring. A precise diagnosis is crucial for taking the correct action and repairing the problem.

Common error codes for Suzuki Splash EX airbag control unit repair

During Suzuki Splash EX airbag control unit repair, various error codes may occur, indicating communication problems or system malfunctions, although specific codes for this model are rarely publicly documented. Error code B1000 is a common example of control unit communication failures, requiring a detailed diagnosis.

• B1000 → Control unit communication error → interruption of the data line or internal control unit error

For a precise diagnosis of your Suzuki Splash EX airbag control unit, we recommend visiting a specialist workshop. They have specialized diagnostic equipment to read model-specific error codes and perform targeted repairs.

Official service bulletins often provide more detailed information on specific faults. A specialist can also determine whether the fault lies in the control unit or whether other components such as sensors or wiring are responsible for the failure.

What part numbers are available for the Suzuki Splash EX airbag control unit repair?

For the Suzuki Splash EX airbag control unit repair, the manufacturer part number 38910-52K90 is stored for this repair product. It belongs to airbag control units of this model and can be compared with the number on the label of your control unit before you create your repair order.

The part number is shown on the label of the airbag control unit and can be stated in the repair order.

Suzuki Splash EX Airbag Control Unit Repair: Compatibility & Installation

Repairing the Suzuki Splash EX airbag control unit requires specific compatibility features and installation positions to ensure proper function of the safety system. The control unit is specifically designed for the Suzuki Splash EX from 2007 onwards and is mounted centrally in the vehicle, usually under the center console.

This airbag control module is primarily designed for Suzuki Splash EX models from 2007 onwards, specifically for vehicles with engine code A5B310. It is suitable for various trim levels, including 3- or 5-door body styles, and can be installed in models with or without air conditioning.

Typically, you'll find the control unit in the center console, below the gearshift or handbrake. The connectors are designed for the various airbag sensors and the airbags themselves and are identified by special yellow airbag connectors that ensure a clear connection.

Professional installation of the repaired Suzuki Splash EX airbag control unit is important because it is immediately ready for use. The repaired unit comes back with all vehicle-specific data and requires no additional programming – quick reintegration into your vehicle is guaranteed.
