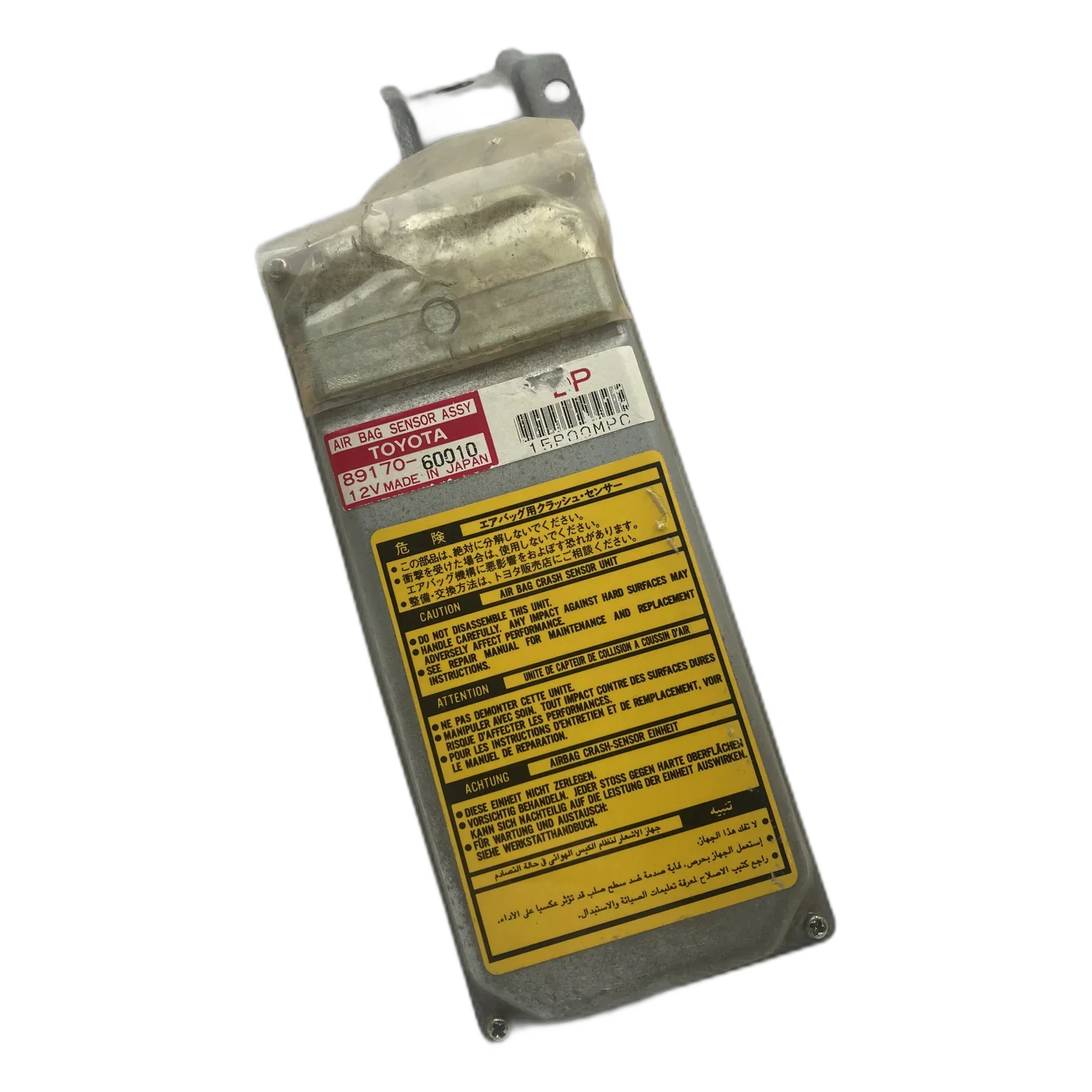

What is a Toyota Land Cruiser J80 airbag control unit?
The Toyota Land Cruiser J80 airbag control unit, also known as the SRS ECU, is the central safety unit that activates all occupant restraint systems in the event of an accident. It continuously monitors sensors, stores crash data, and ensures the proper deployment and functionality of all airbag modules in the vehicle for maximum occupant protection.
This electronic control unit (ECU) is a central element of the Supplemental Restraint System (SRS).
It receives and processes inputs from impact sensors and initiates the ignition of the airbag modules when critical signals are detected.
The control unit has connections for the 12V supply voltage and ground.
In addition, there are interfaces to the airbag modules for the driver and front passenger as well as a connection to the diagnostic check connector.
Why is the Toyota Land Cruiser J80 airbag control unit defective?
The Toyota Land Cruiser J80 airbag control unit can fail, often after an accident, due to internal electronic component failure, voltage fluctuations, or water damage, leading to system malfunctions. If it's broken, the airbag warning light often illuminates, preventing the airbags from deploying correctly and necessitating a professional Toyota Land Cruiser J80 airbag control unit repair.
After an accident, the device typically stores crash data and must be reset or replaced.
Internal component defects caused by age or environmental influences can cause malfunctions.
Incorrect voltages, such as overvoltages, can also damage the module's sensitive electronics.
Water ingress or moisture causes corrosion of circuits, resulting in erratic behavior or total failure.
A permanently illuminated airbag warning light on the dashboard is a common sign of a faulty control unit and requires immediate diagnosis.
Common error codes for Toyota Land Cruiser J80 airbag control unit repair
There are no specific OBD-II or manufacturer-specific codes documented exclusively for the Toyota Land Cruiser J80 airbag control module. Instead, the system uses proprietary blink codes or a short-circuiting procedure via the diagnostic port to indicate common airbag system errors that may require Toyota Land Cruiser J80 airbag control module repair.
The Toyota J80 model primarily uses manufacturer-specific procedures to diagnose the airbag system.
These often involve shorting the TC and AB pins on the diagnostic connector.
The airbag warning light then displays specific flashing codes that indicate a fault.
There are no official OBD-II or B codes documented exclusively for the J80 control unit.
An error such as "control unit defective" is signaled on the J80 as a non-specific system error via a blink code, not as a separate B-code.
Codes like B1000 ("Control Unit Communication Error") are common for other brands, but are not officially documented for the J80.
- Error code: No specific OBD-II code documented Meaning: The J80 airbag control unit does not display standardized OBD-II codes. Cause: The J80 diagnostic system is specialized in blink codes and does not use general B codes for control unit errors.
- Error code: System error (blink code) Meaning: A fault in the airbag control unit or in the entire airbag system of the vehicle. Cause: Internal module defect, sensor error or problems in the wiring harness, which are signaled by non-specific flashing codes.
What part numbers are available for the Toyota Land Cruiser J80 airbag control unit repair?
For Toyota Land Cruiser J80 airbag control unit repairs, the only verified exact OEM part numbers are 89170-60540 and 89170-60160. Both are genuine Toyota manufacturer part numbers, which are essential for system compatibility and safety. Before installation, a precise comparison with the original part number is always crucial for a successful Toyota Land Cruiser J80 airbag control unit repair.
A verified OEM part number is 89170-60540, listed as the original SRS airbag control unit for the Toyota Land Cruiser J80.
This number is listed by specialized repair sources as compatible for J80 model years.
Part number 89170-60160 is also an official Toyota OEM number.
It appears in official Toyota spare parts catalogs for the Land Cruiser, which confirms its authenticity.
For maximum safety, an exact comparison should always be made with the original OEM number installed in the vehicle before installation.
After installing the new module, programming or testing by the Toyota dealer may be required.
