Volkswagen Transporter T5 airbag control unit repair

What is a Volkswagen Transporter T5 airbag control unit?

The Volkswagen Transporter T5 airbag control unit is the central safety unit that precisely activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors relevant crash sensors, stores important accident data, and ensures the proper functioning of all airbag modules in the vehicle for maximum safety.

This control unit, also known as the ECU (Electronic Control Unit), is the heart of the passive safety system in your Volkswagen Transporter T5. It receives and evaluates signals from sensors throughout the vehicle in real time. Based on this data, the control unit decides on the necessary triggering measures in milliseconds.

The correct functioning of the airbag control unit is crucial for occupant safety. A malfunction can result in airbags not deploying in an emergency or the warning light remaining permanently illuminated, requiring immediate Volkswagen Transporter T5 airbag control unit repair.

Why is the Volkswagen Transporter T5 airbag control unit defective?

A Volkswagen Transporter T5 airbag control unit is often defective because crash data is irretrievably stored after an accident or internal components have been damaged by overvoltage and short circuits. Communication errors in the CAN bus or aging processes can also lead to failure of the electronic components, necessitating repair or replacement.

After an accident, the control unit is usually locked because it permanently stores crash data to prevent the airbags from functioning properly after the incident. This data must be professionally erased to restore the unit to working order.

Internal electronic defects, often caused by moisture or vibration, can also lead to failure. This is often indicated by a permanently illuminated airbag warning light in the dashboard of your VW T5. A professional diagnosis is essential to determine the exact cause and the necessary Volkswagen Transporter T5 airbag control unit repair.

Common error codes for Volkswagen Transporter T5 airbag control unit repair

Specific error codes in the airbag control unit of the Volkswagen Transporter T5 indicate internal defects, stored crash data, or communication problems in the vehicle network that require targeted diagnostics. These codes are crucial for identifying the exact cause of a malfunction and initiating the necessary Volkswagen Transporter T5 airbag control unit repair.

• B1028 00 → Front crash data stored → These codes indicate that crash information is stored in the control unit after a frontal impact, which prevents activation.
• B1071 F0 → Crash data belt tensioner saved → Indicates that relevant crash information was permanently saved in the control unit after the belt tensioners were triggered.
• 00588 → Driver airbag igniter (N95) resistance too high/too low → This manufacturer-specific code indicates problems with the driver airbag igniter circuit, which may be due to the control unit or the wiring.
• U1111 00 → Missing message from airbag control unit (communication error) → Indicates that the airbag control unit is not receiving or sending the required data via the CAN bus.
• U1112 00 → Implausible message reception (functional restriction) → Reports that data received from the airbag control unit is faulty or unreliable, which restricts system functionality.
• U1113 00 → Errors in other modules, function restricted → This code indicates that a malfunction in another connected control module is affecting the function of the airbag ECU.

What part numbers are available for the Volkswagen Transporter T5 airbag control unit repair?

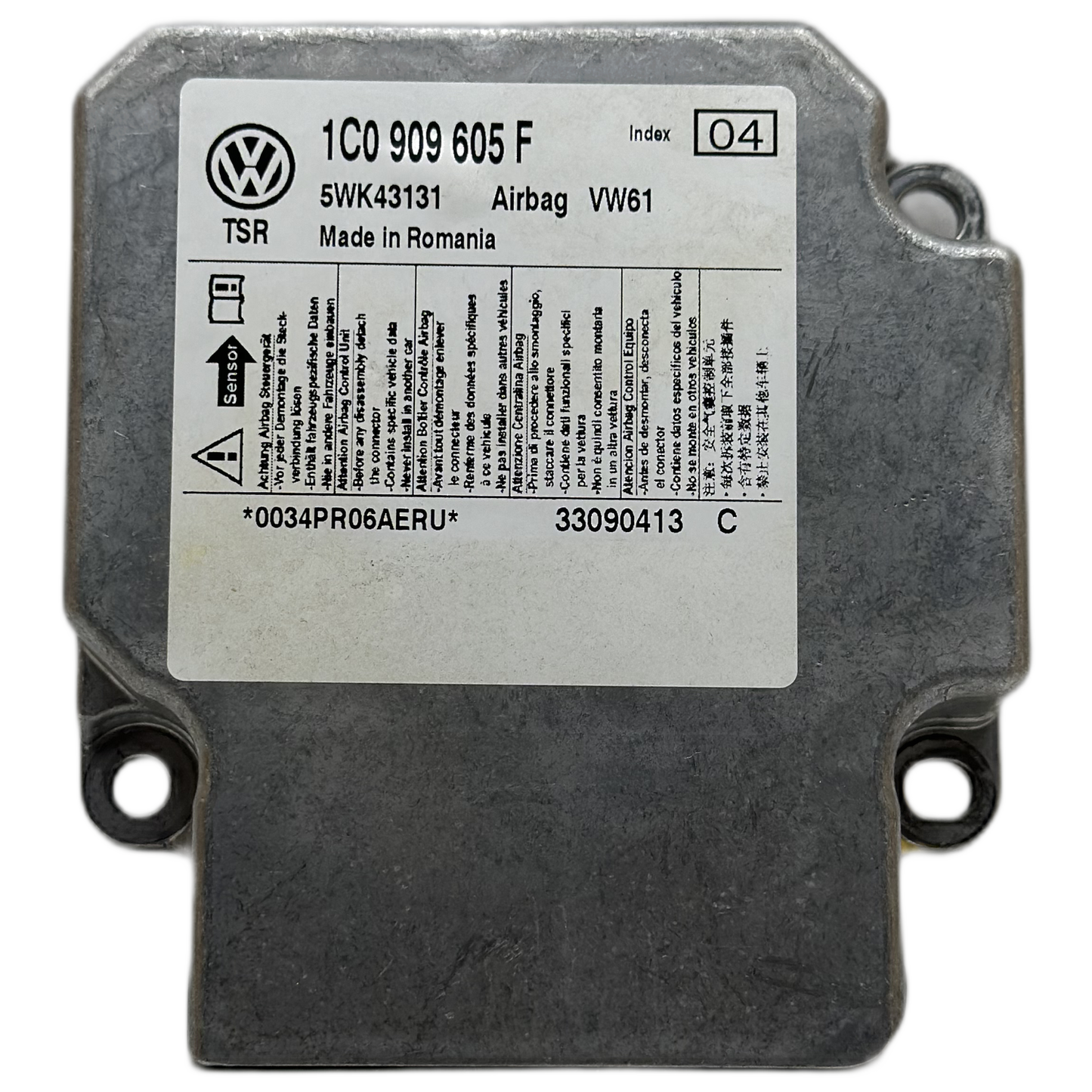

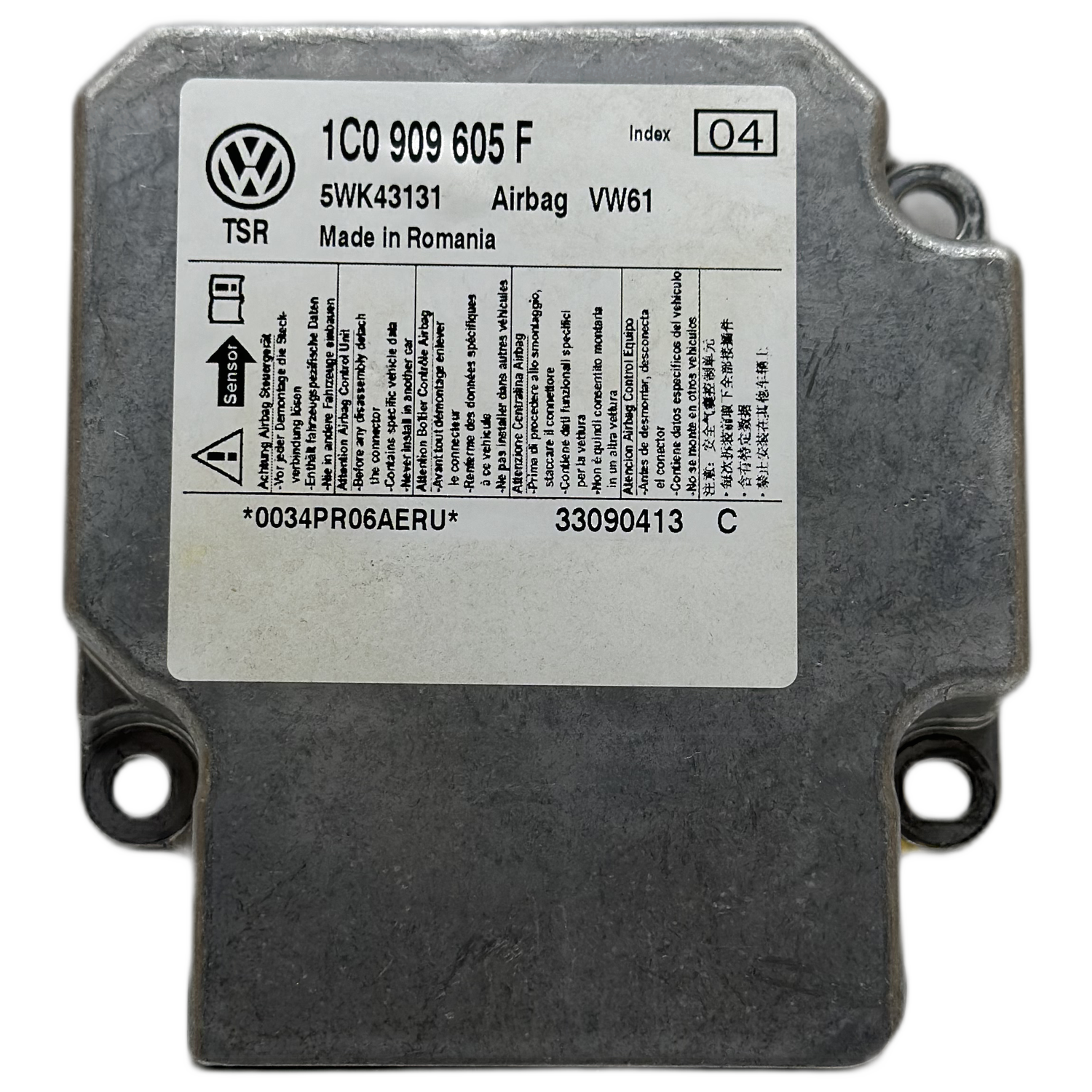

For Volkswagen Transporter T5 airbag control unit repairs, various, precisely matching OEM part numbers are crucial to ensure system compatibility and safety. The most common original Volkswagen part numbers include 7E0 959 655 B, 1C0 909 605 A, and 7E0 959 655, which have been verified specifically for the VW T5.

Correctly identifying the part number is the first and most important step in any diagnosis or repair. You can find this number directly on the housing of your installed airbag control unit. Any discrepancy can lead to incompatibility and impair the function of the airbag system.

Here are the most important OEM part numbers relevant to your Volkswagen Transporter T5 airbag control unit:

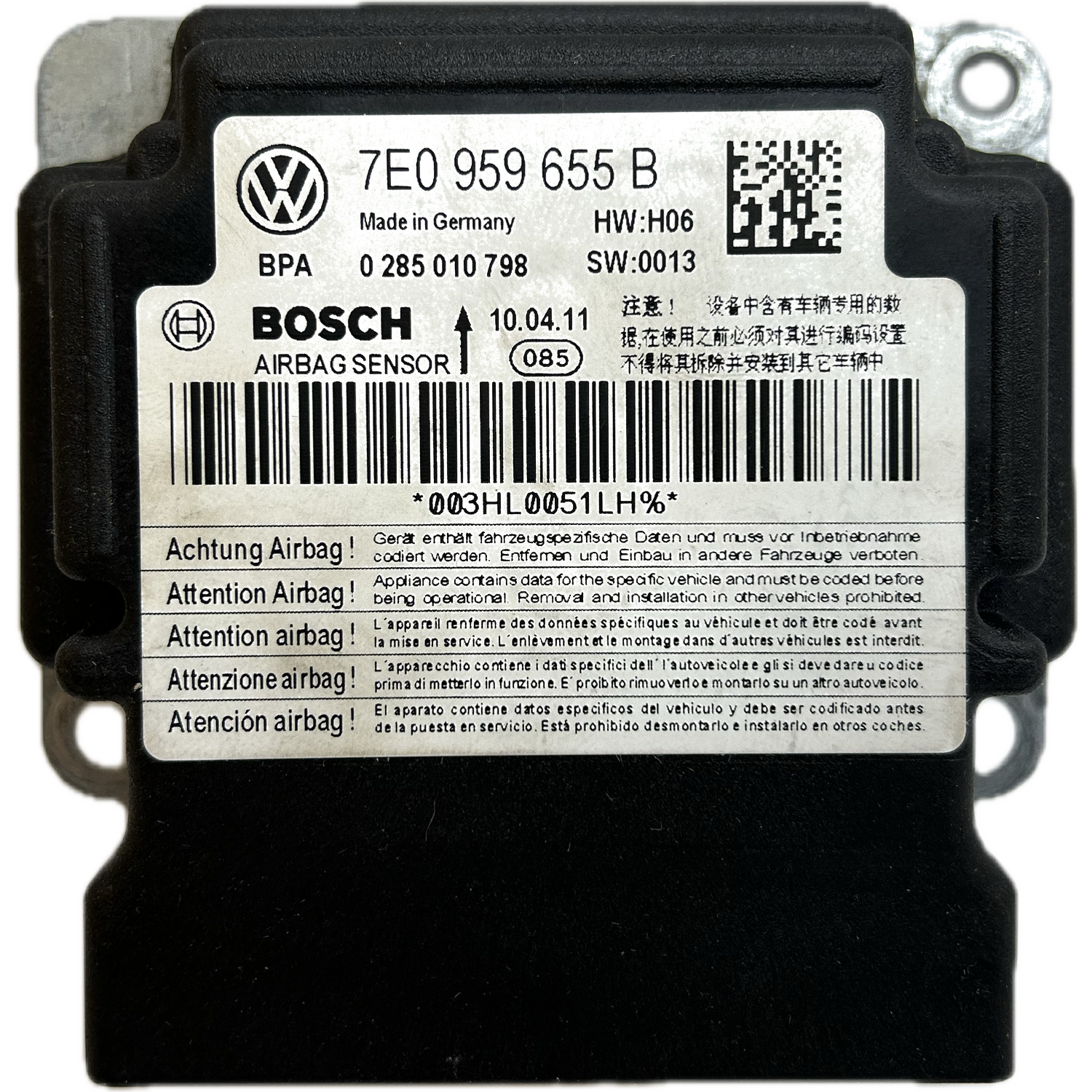

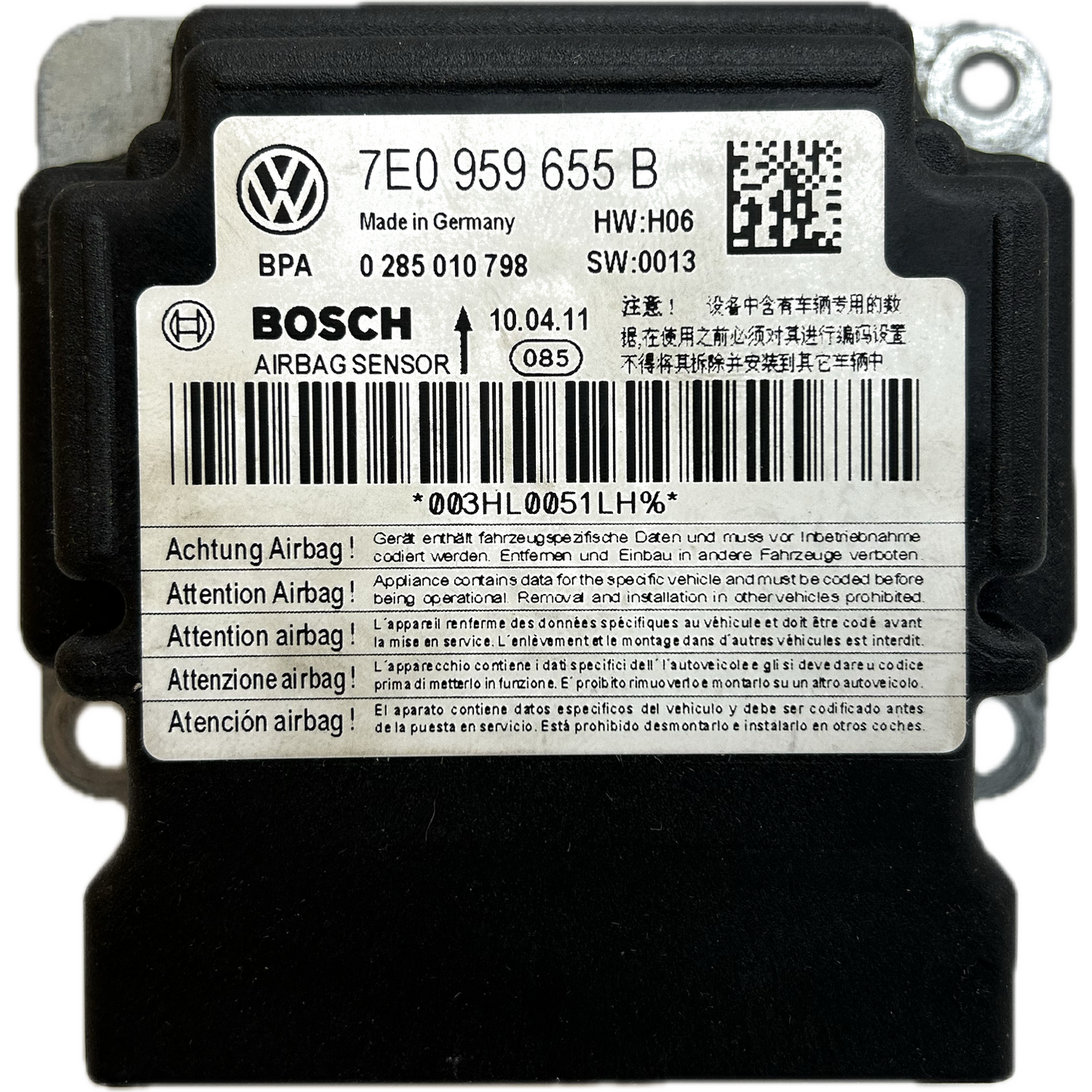

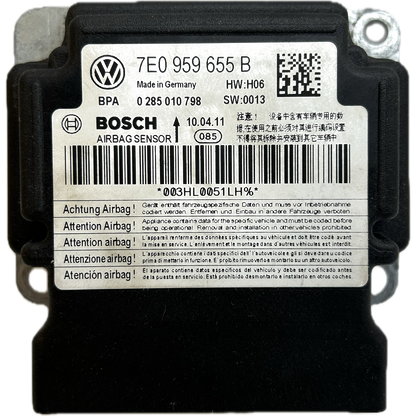

• 7E0 959 655 B : A widely used original OEM part number for the VW Transporter T5, often found in later models up to 2010. This number has been confirmed multiple times as an airbag control unit.

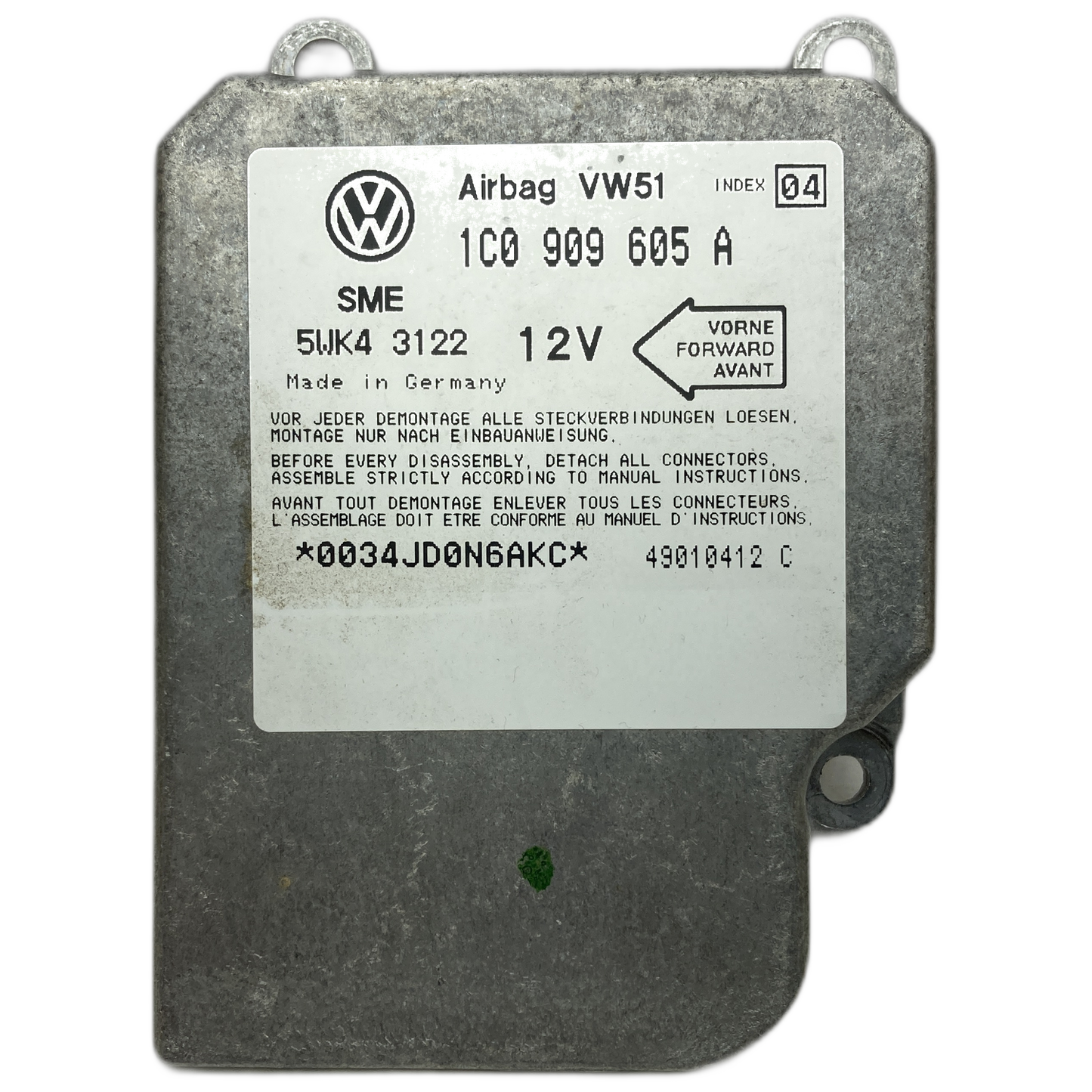

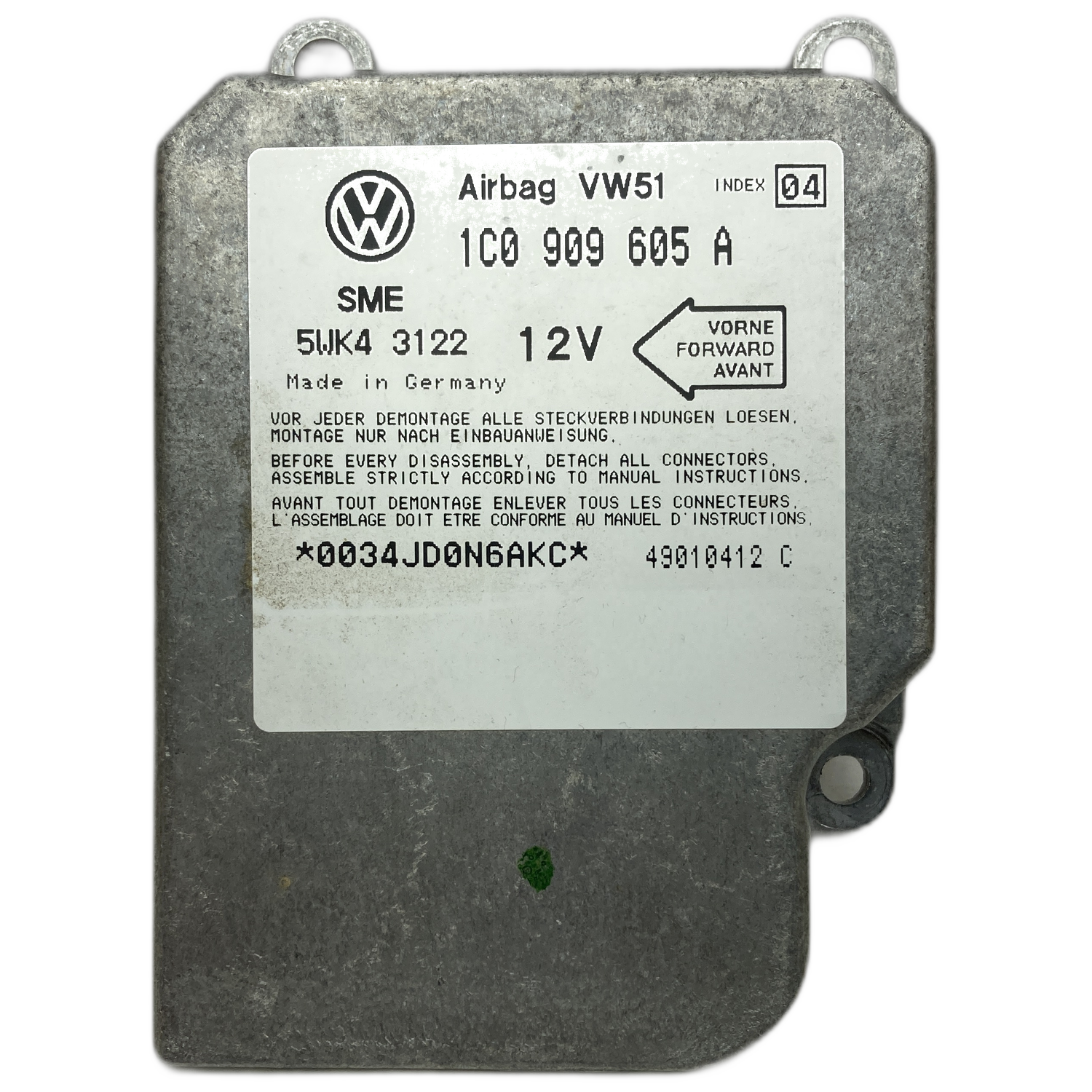

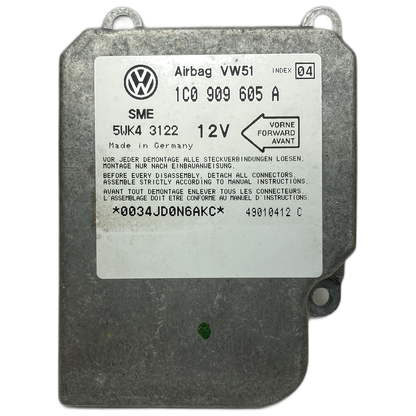

• 1C0 909 605 A : Also an original OEM part number that was frequently installed in VW Transporter T5 models from 2003 to 2008. It is listed as a suitable spare part by various suppliers.
• 7E0 959 655 : This part number without a suffix serves as the base number for airbag control units in the VW T5. It can serve as an alternative or used version of 7E0 959 655 B.

Always make sure that the part number of the replacement unit exactly matches that of your defective control unit to ensure smooth integration into the vehicle system and a successful Volkswagen Transporter T5 airbag control unit repair.
