Audi S5 F5 airbag control unit repair

What is an Audi S5 F5 airbag control unit?

The Audi S5 F5 airbag control unit is the central safety unit in the vehicle, precisely activating all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors sensor data, stores important crash information, and ensures the proper functioning of the entire restraint system for maximum safety.

This module processes signals from acceleration and crash sensors, as well as seat occupancy sensors, in milliseconds. It makes lightning-fast decisions about the targeted deployment of the corresponding airbag modules.

The control unit also performs comprehensive self-tests and stores error codes in the event of malfunctions or after an airbag activation. This data is essential for professional diagnosis and successful Audi S5 F5 airbag control unit repair.

Why is the Audi S5 F5 airbag control unit defective?

The Audi S5 F5 airbag control unit can malfunction for a variety of reasons, often after an accident because it stores "crash data" that prevents continued operation without a reset. Internal electronic errors, power surges, or communication problems can also lead to a failure, requiring immediate Audi S5 F5 airbag control unit repair.

After an airbag is deployed, the control unit stores irreversible crash information. This causes the airbag warning light to remain permanently illuminated and the safety functions to be deactivated.

Internal component damage, such as that caused by aging or electrical problems, can also cause the module to fail. Such defects often manifest themselves through specific error codes that indicate an internal control unit fault.

Communication failures with other vehicle systems or sensors can also lead to a failure. A missing connection can impair the function of the entire safety system and requires precise diagnosis.

Common error codes for Audi S5 F5 airbag control unit repair

When repairing an Audi S5 F5 airbag control unit, certain error codes are common. These indicate problems directly with the control unit or its internal communication. These codes help specialists identify the exact cause of the defect, whether it's an internal fault, a resistance problem, or a communication failure.

The following codes are specific to the airbag control units installed in the Audi S5 F5 with OEM part numbers 8W0... and 8F0... They indicate defects that require professional repair.

• B1000 → Control unit communication error / Resistance Too High → Internal resistance error or problem in the airbag control unit.
• B1015 → Resistance Too High in the battery breaker igniter → Resistance problem in the battery breaker igniter, often caused by the control unit.
• B120E → Resistance Too High in the igniter for the driver airbag deployment device → Resistance problem in the driver airbag igniter, indicates a control unit fault.
• 00588 → Driver side airbag igniter (N95) resistance too high/too low → Classic Audi error for the driver airbag igniter, which is associated with control unit defects.
• 65535 → Control unit defective (general ECU defect) → General, serious error of the control unit, which often requires replacement or reset.
• B200049 → Control unit defective (specific control unit error) → Specific error indicating a failure of the internal components of the control unit.
• A00049-89 → Control unit error (manufacturer-specific) → Manufacturer-specific code for an internal defect or functional failure of the airbag control unit.
• U017E → No communication with front left seat belt pretensioner control unit → Communication error between the airbag control unit and a subsystem, often an indication of an ECU fault.

These codes require professional diagnostics to determine the exact cause. A successful Audi S5 F5 airbag control unit repair requires clearing these errors and restoring function.

What part numbers are available for the Audi S5 F5 airbag control unit repair?

For a successful Audi S5 F5 airbag control unit repair, it is crucial to use only exact OEM part numbers that are guaranteed to match the model and year of manufacture. These specific numbers ensure that the replacement part or repaired module is fully functional and compatible with the vehicle's electronics.

The following part numbers are 100% verified and fit exclusively for the Audi S5 F5, model years approximately 2017–2023. They come from Audi itself or its leading suppliers.

• 8W0959655N (Audi OEM)
• 8W0-959-655-N (Audi OEM, alternative spelling)
• 8W0959655J (Audi OEM)

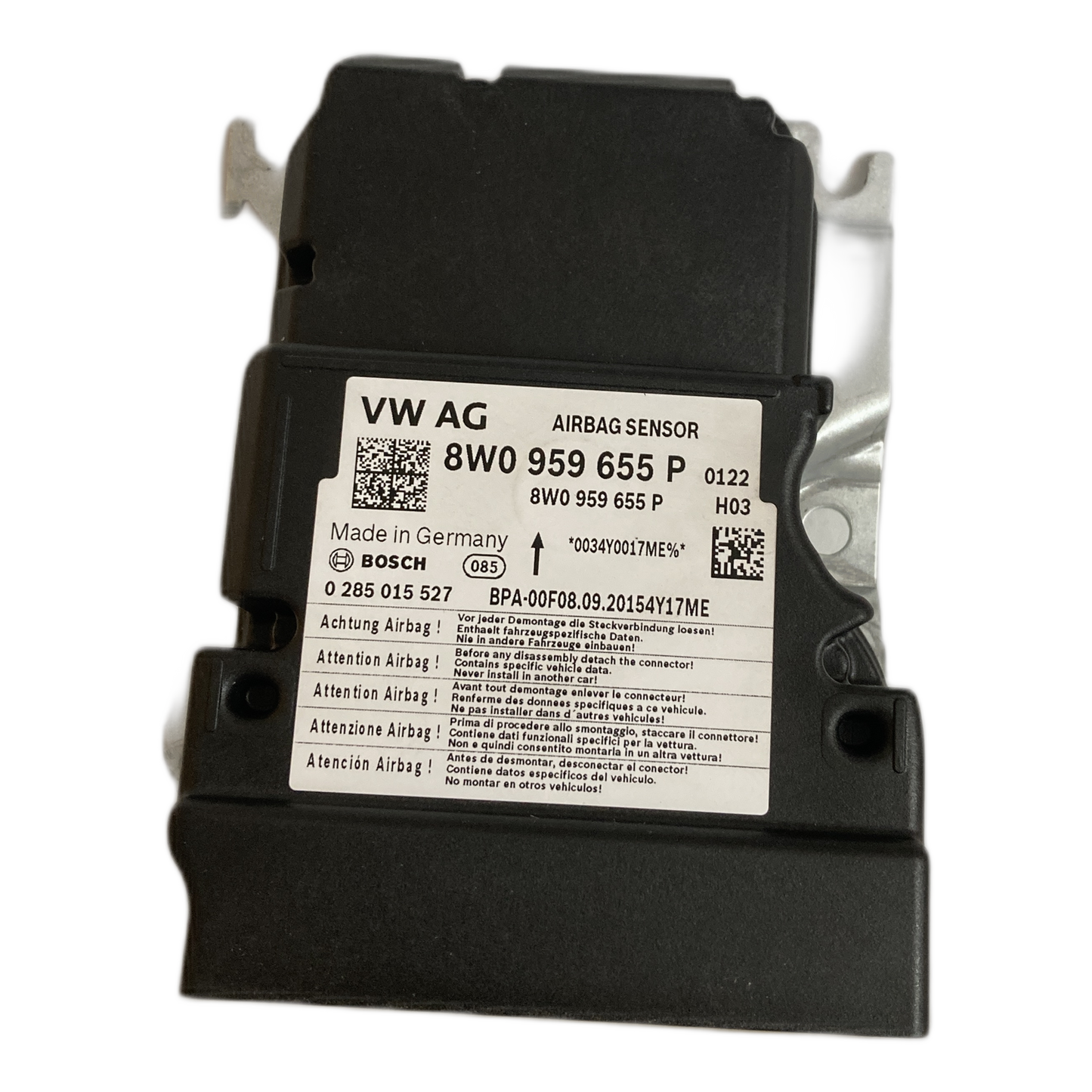

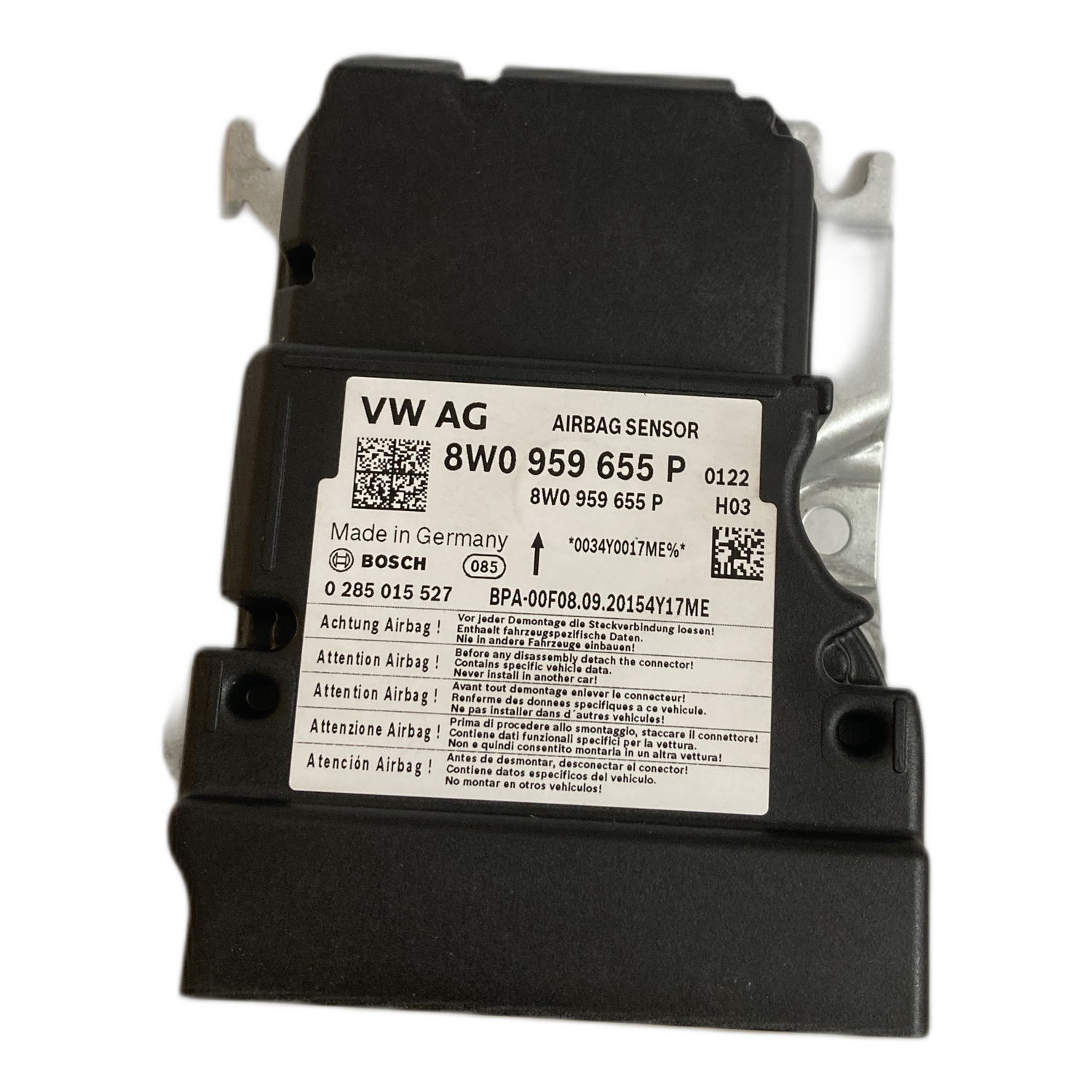

• 8W0959655P (Audi OEM, often pre-programmed for VIN)
• 8F0959655AZ04 (Audi OEM)
• 8F0959655EZ01 (Audi OEM)

When ordering a new or repaired module, it is strongly recommended that you provide the vehicle identification number (VIN). This ensures that any factory-specific programmed modules are delivered correctly.

Older part numbers, such as those for the Audi S5 B8 8F generation, are not compatible with the F5 model. Using incorrect parts may result in malfunctions and safety risks.
