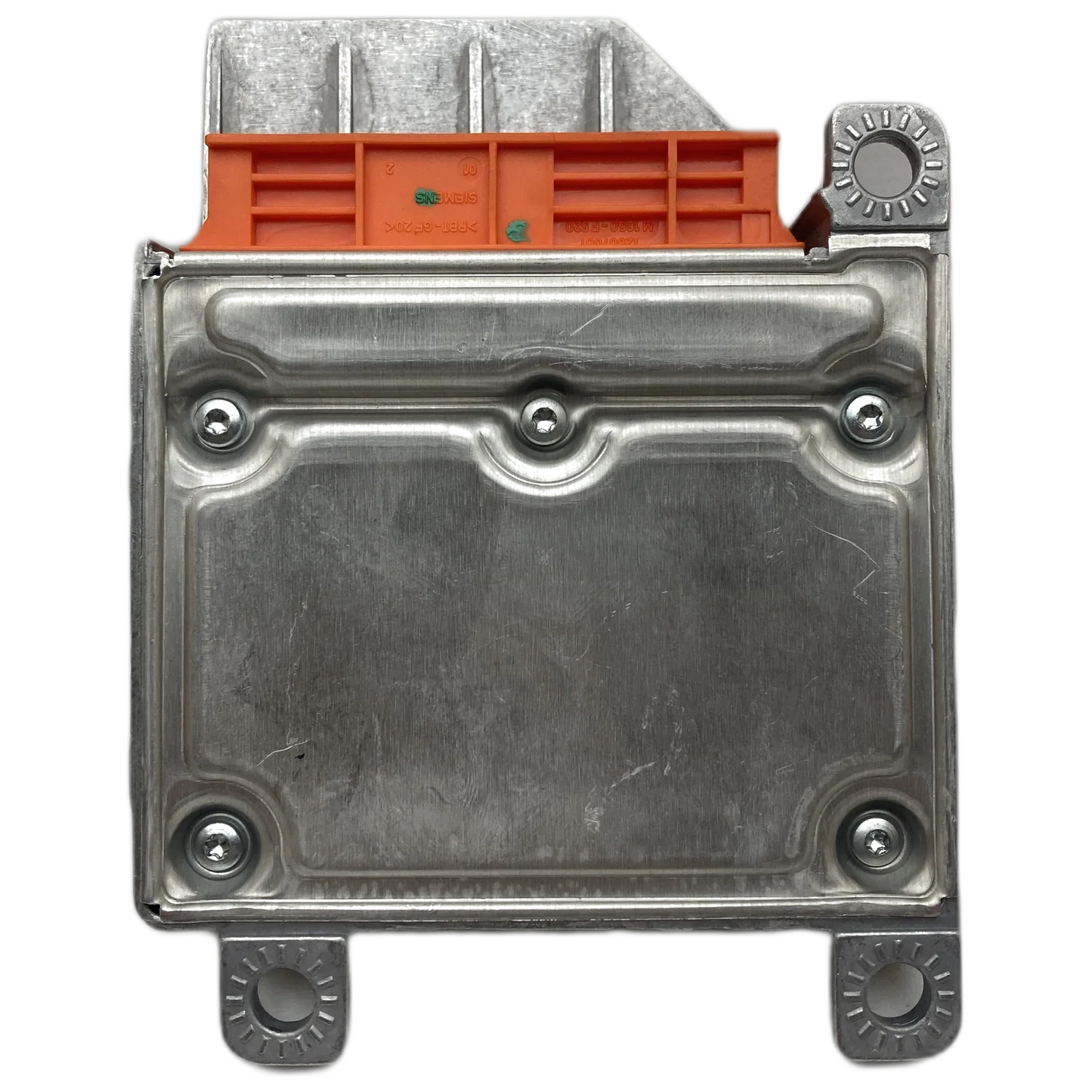

BMW 5 Series E39 Airbag Control Unit Repair

What is a BMW 5 Series E39 airbag control unit?

The BMW 5 Series E39 airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It constantly monitors sensors in the vehicle, stores important crash data, and ensures the proper functioning of all airbag modules.

This module, also known as MRS (Modular Restraint System), is crucial for the passive safety of your vehicle.

It acts as the brain of the airbag system, which must react lightning fast in the event of an impact.

Why is the BMW 5 Series E39 airbag control unit defective?

The BMW 5 Series E39 airbag control unit can fail for a variety of reasons, often after an accident, which stores crash data, or due to internal electronic errors and voltage problems. A defective control unit usually results in the airbag warning light constantly illuminating and prevents the safety system from functioning.

Common causes are internal circuit errors that can occur without external influence.

Low on-board voltage can also lead to malfunctions or failure of the module.

Communication problems with other vehicle systems are another reason why the control unit may be broken.

After an accident, crash data is stored in the module, making reuse impossible without special repairs.

Common error codes for BMW 5 Series E39 airbag control unit repair

During BMW 5 Series E39 airbag control unit repairs, specific error codes may occur that indicate internal defects, voltage issues, or communication problems within the module. These codes are crucial for an accurate diagnosis and successful resolution of the problem.

• 0000F0 → Internal control unit error (MRS error) → Signals an internal defect in the airbag control unit.
• 000011 / 50 → Supply voltage too low → Indicates insufficient power supply for the control unit.
• 240 → Airbag control unit defective / Internal control unit error → Causes the airbag warning light to illuminate permanently and blocks the memory from being erased.
• U1726 → No communication with airbag control unit → Indicates a faulty connection to the module, often an indicator of a defect.

What part numbers are available for the BMW 5 Series E39 airbag control unit repair?

For BMW 5 Series E39 airbag control unit repairs, several specific OEM part numbers are relevant to ensure exact compatibility. These numbers are crucial for identifying the correct module for your vehicle and performing a replacement or repair.

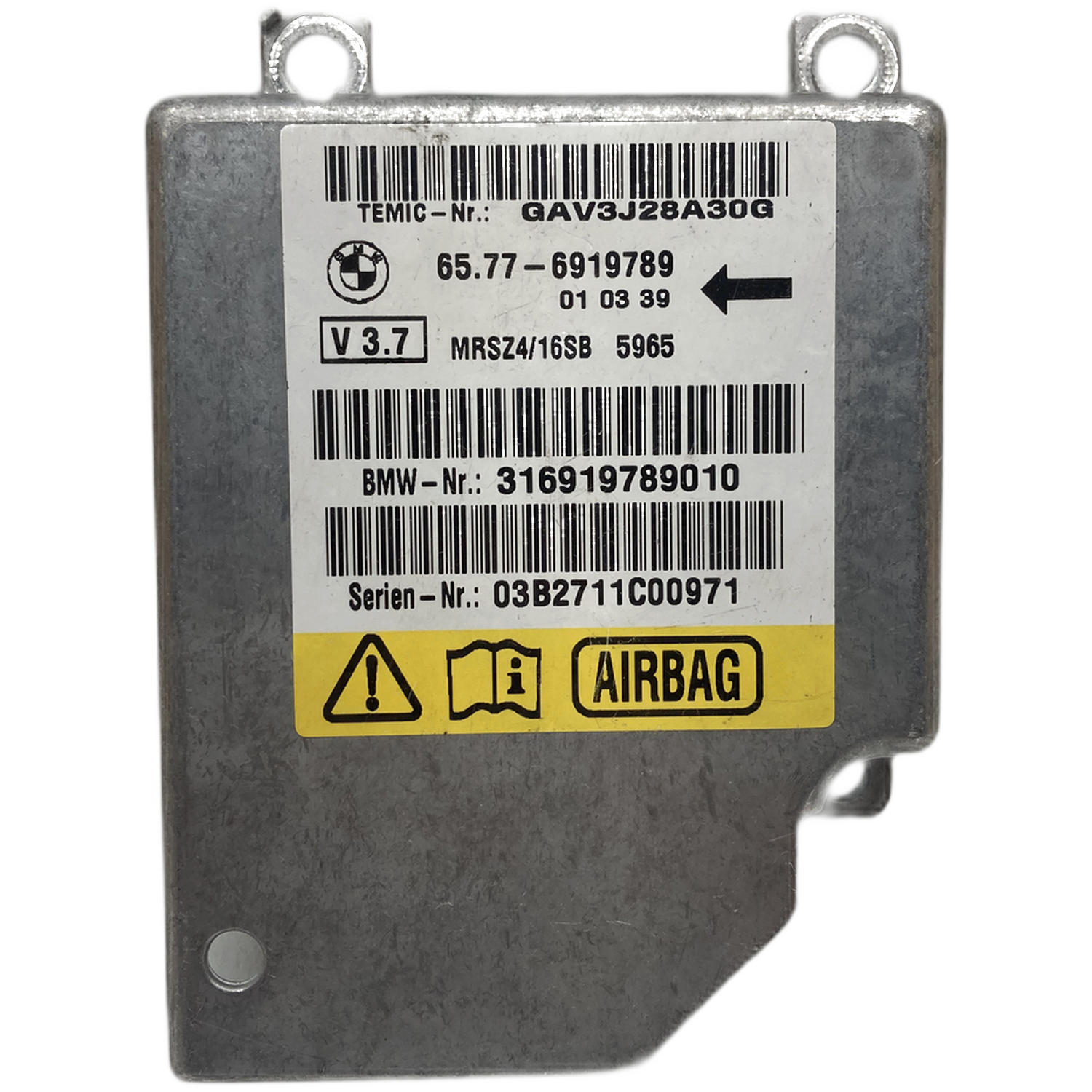

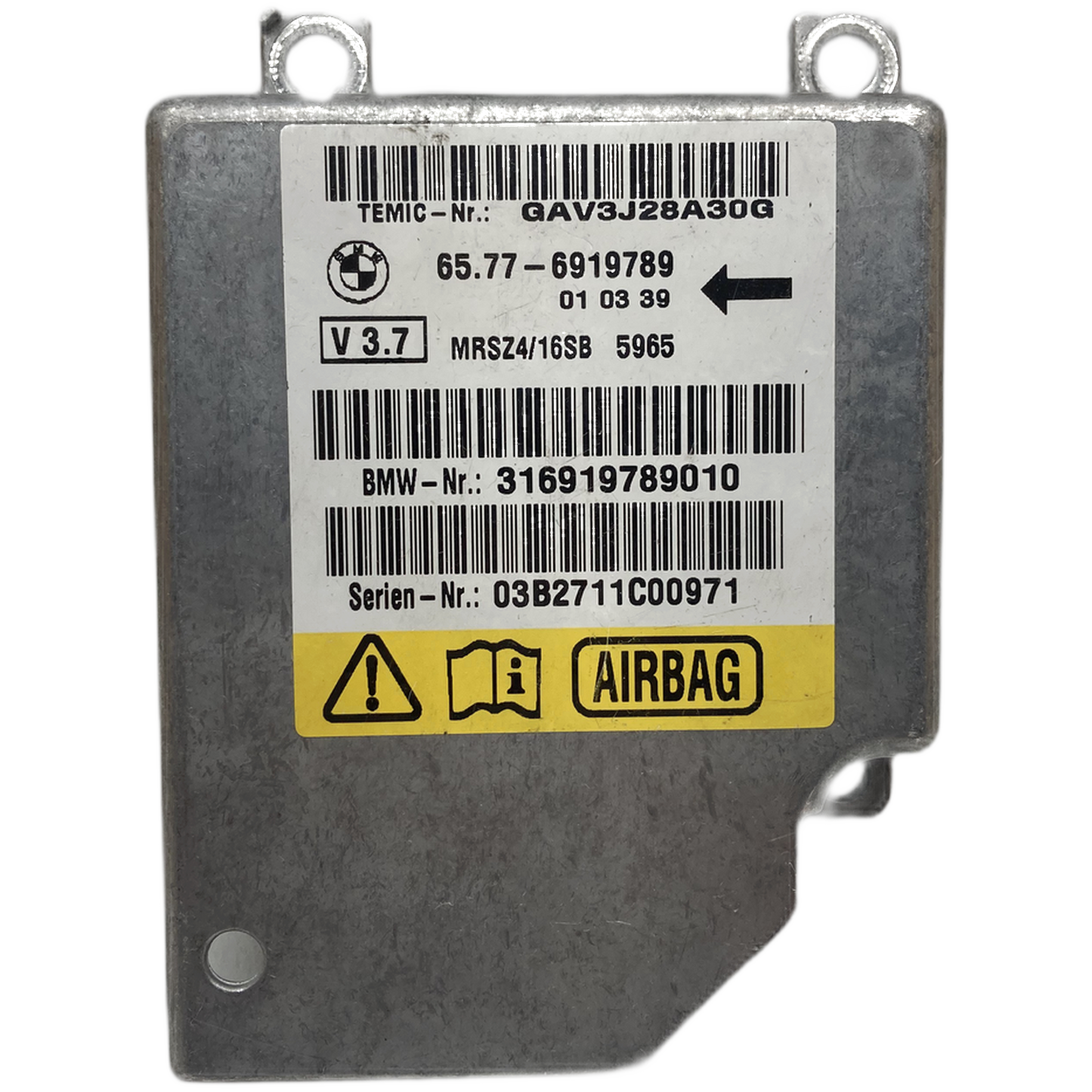

• 65.77-6919789 → Manufacturer: BMW / Bosch → Type: Original OEM airbag control unit.

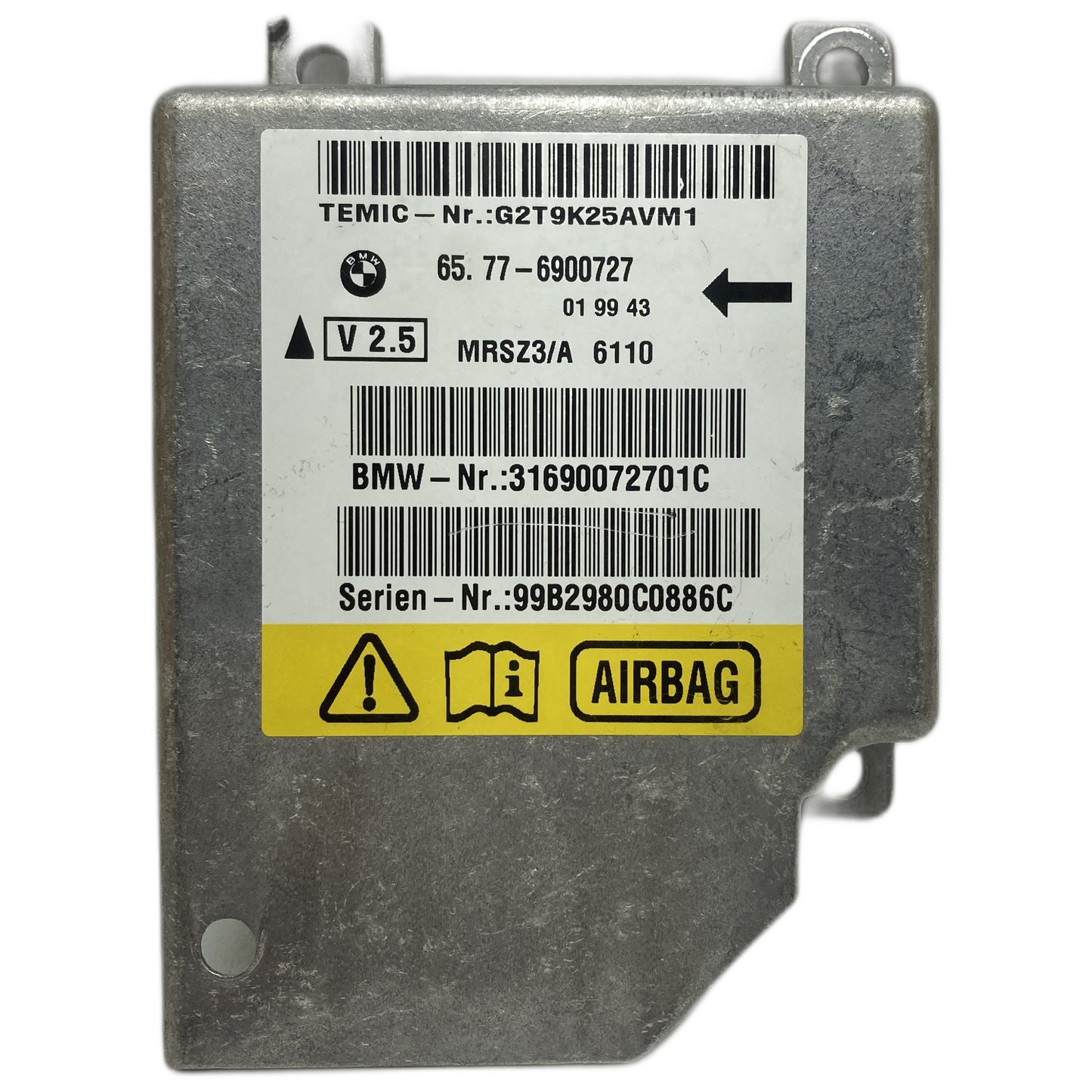

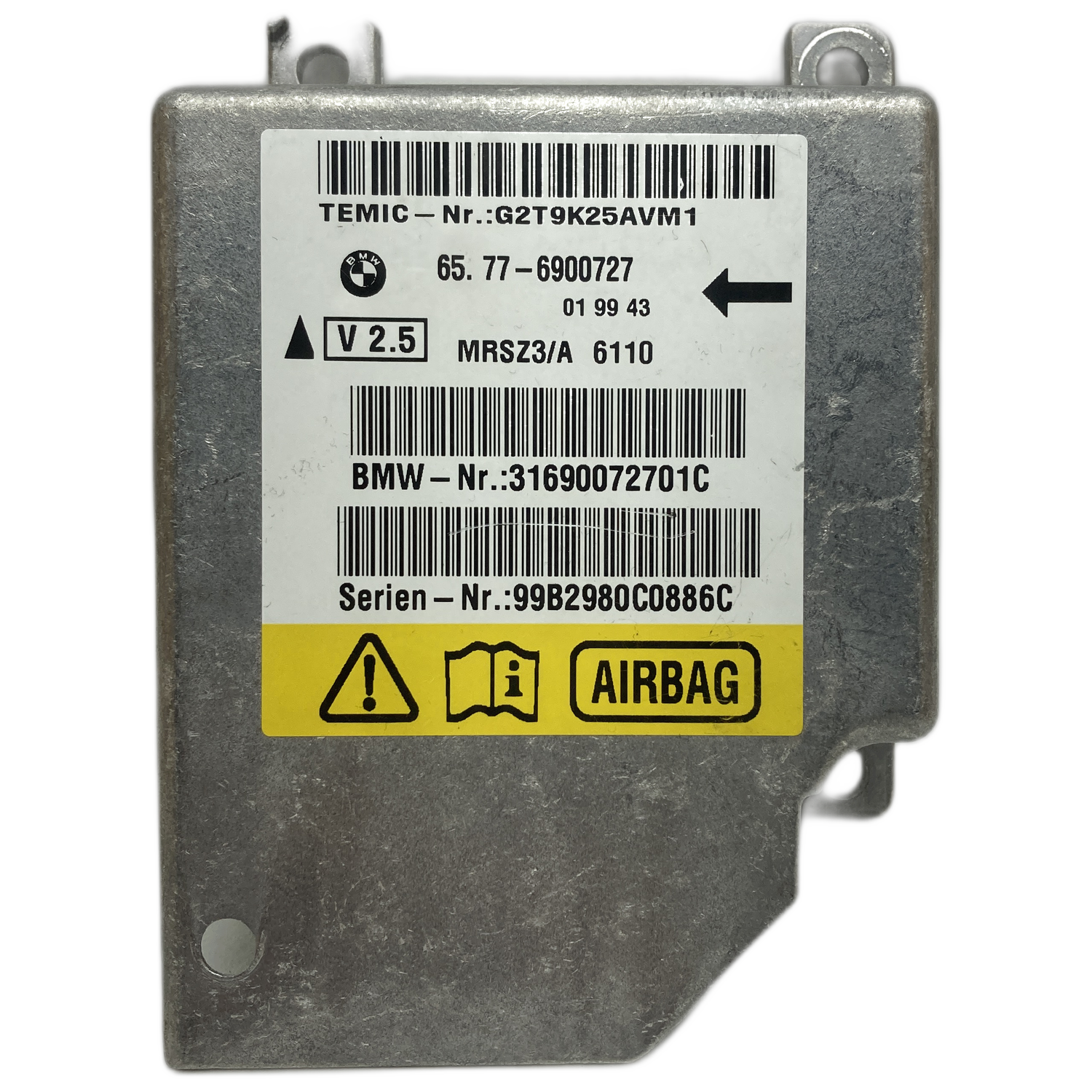

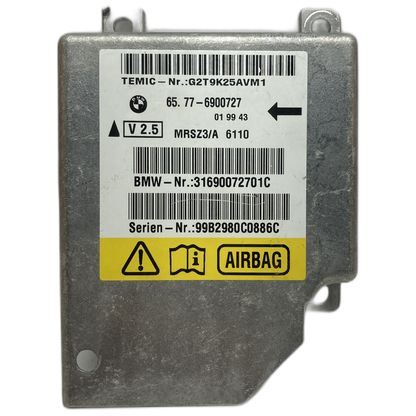

• 65 77 6 900 727 → Manufacturer: BMW / Bosch → Type: Original OEM airbag control unit.
• 65 77 6 919 789 → Manufacturer: BMW / Bosch → Type: Original OEM airbag control unit.

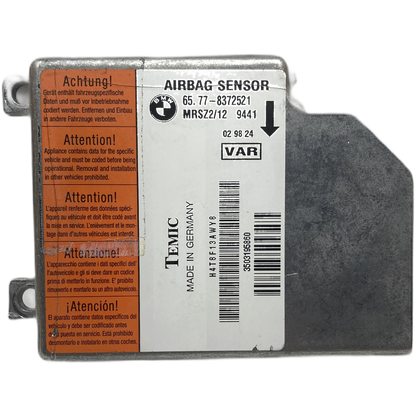

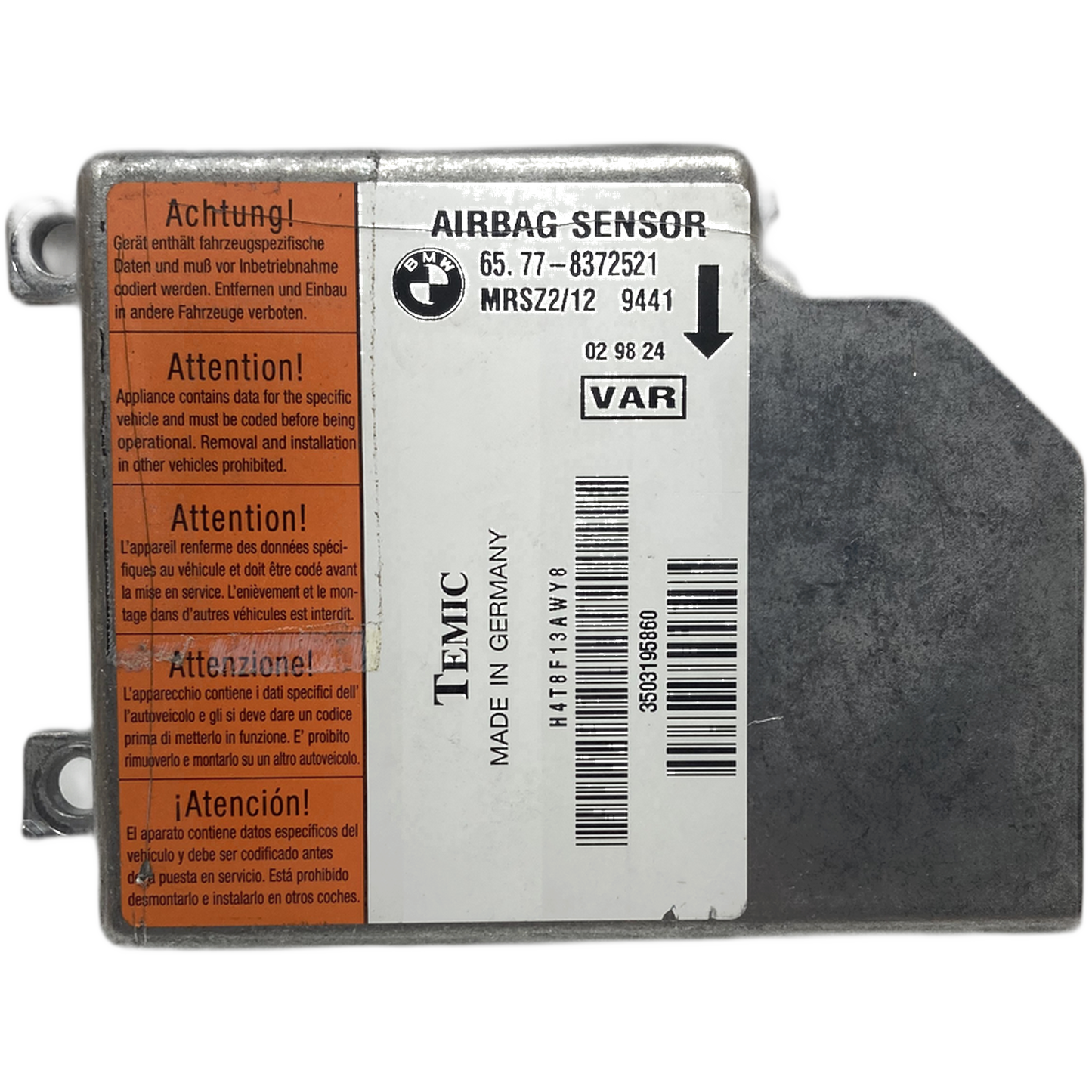

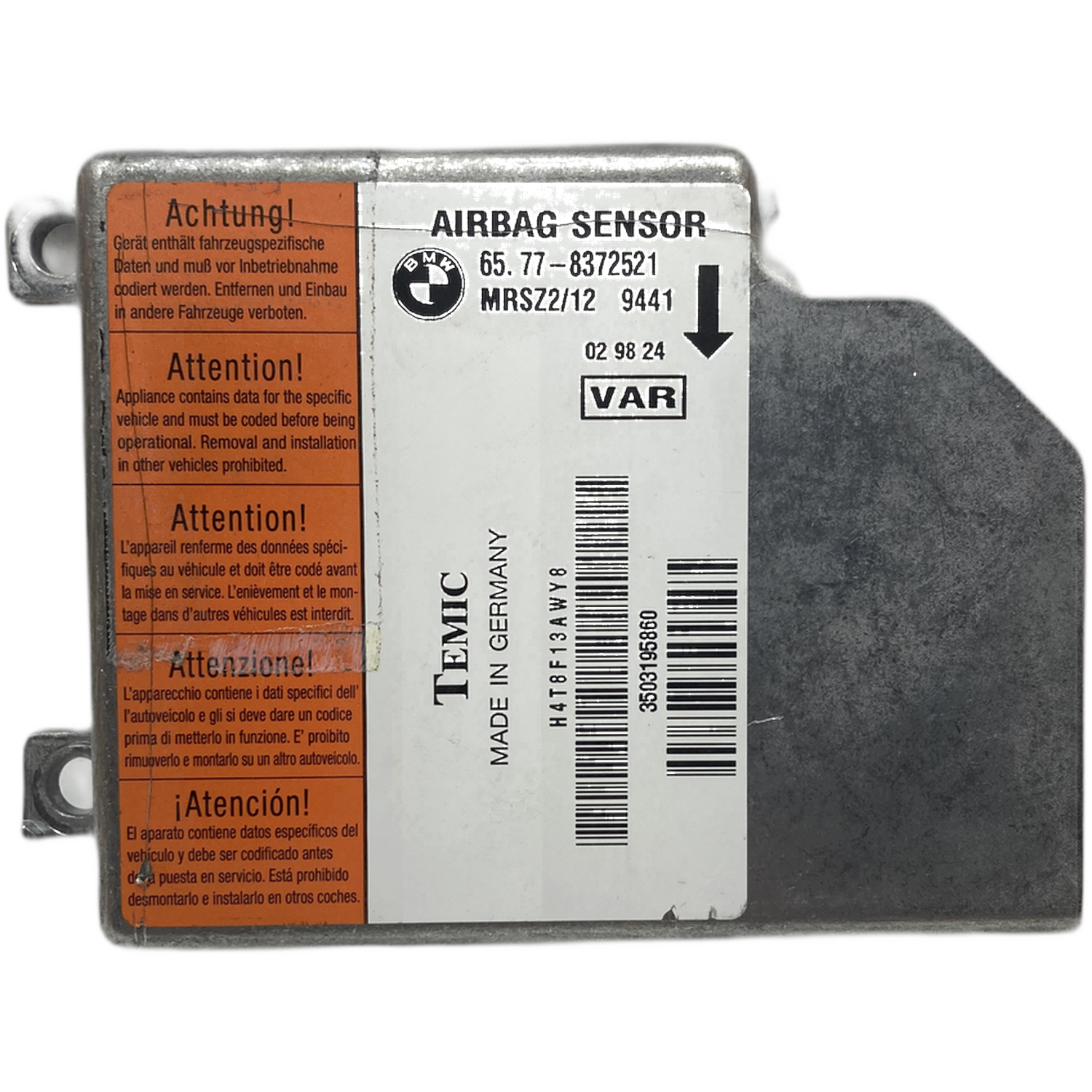

• 65778372521 → Manufacturer: BMW → Type: Original OEM airbag control unit.

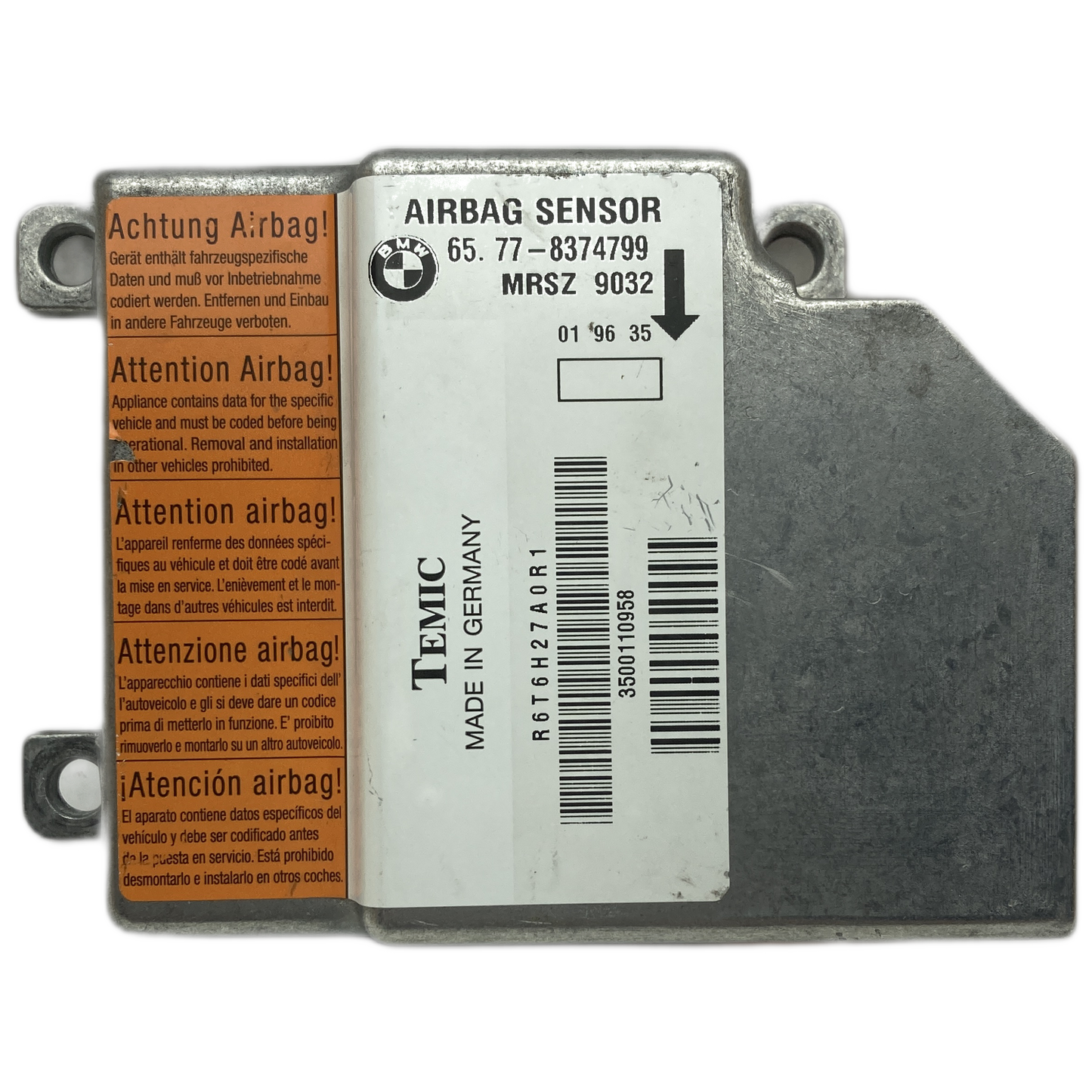

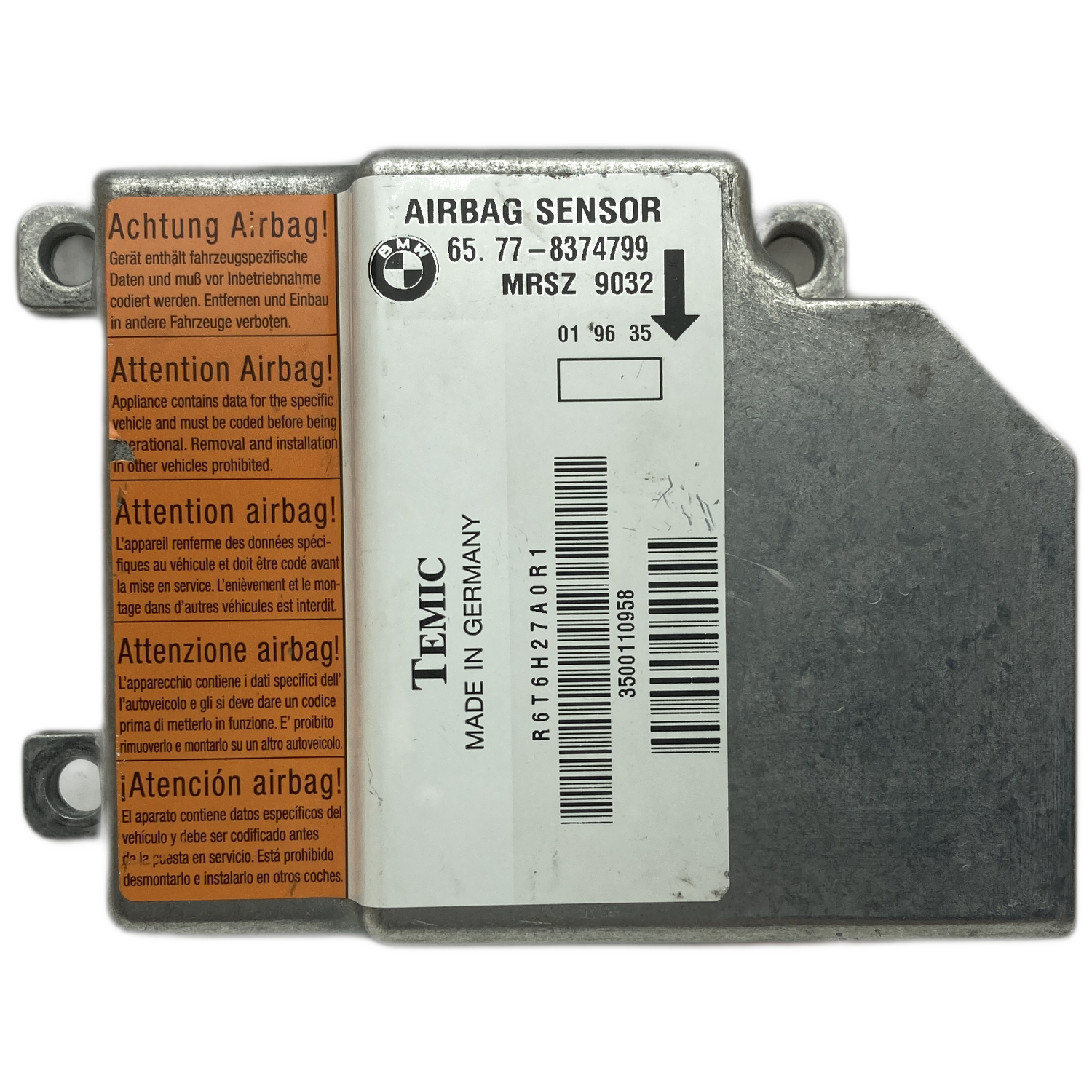

• 65778374799 → Manufacturer: BMW → Type: Original OEM airbag control unit.

These part numbers are 100% verified for the BMW E39 airbag control unit.

They refer exclusively to the MRS module and not to sensors or other components.

Technical specifications of the BMW 5 Series E39 airbag control unit

The BMW 5 Series E39 MRS airbag control unit is equipped with original OEM software that requires no recoding after repair or crash data deletion (plug & play). It operates on 12 volts of on-board voltage and features communication interfaces for sensors and airbags.

It is designed to precisely deploy airbags and seat belt pretensioners in the event of an accident.

Crash data storage is a key feature that requires repair for recovery.

The module processes signals from acceleration and impact sensors.

It is tailored to the specific safety requirements of the BMW E39.

Compatible vehicle models and years of manufacture for the BMW 5 Series E39 airbag control unit

The BMW 5 Series E39 airbag control unit is specifically designed for BMW 5 Series E39 models (sedan, touring) built approximately from 1997 to 2003. It is compatible with various engine variants, but the exact fit should always be checked using the vehicle identification number (VIN) to avoid incorrect orders.

Compatibility extends across all engine codes of the E39 series.

Checking the chassis number is essential for a precise selection.

Similar airbag system architectures also enable compatibility with series such as the E38 7 Series.

Functionality and special features of the BMW 5 Series E39 airbag control unit repair

The airbag control unit continuously monitors sensors and, in the event of an accident, specifically triggers the airbag modules, storing crash data. A professional BMW 5 Series E39 airbag control unit repair involves erasing this data and correcting internal errors, often using a plug-and-play procedure without recoding.

After an accident, the control unit's error memory must be cleared to deactivate the warning light.

The repair restores full functionality so that the airbag system is ready for use again.

Typical repair times for a defective airbag control unit are 3 to 5 working days.

The modules are robustly built, but almost always require repair after a crash.

Installation position and connections of the BMW 5 Series E39 airbag control unit

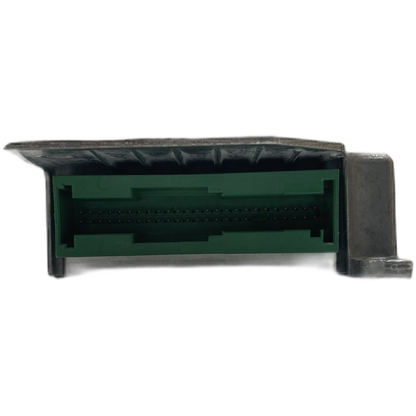

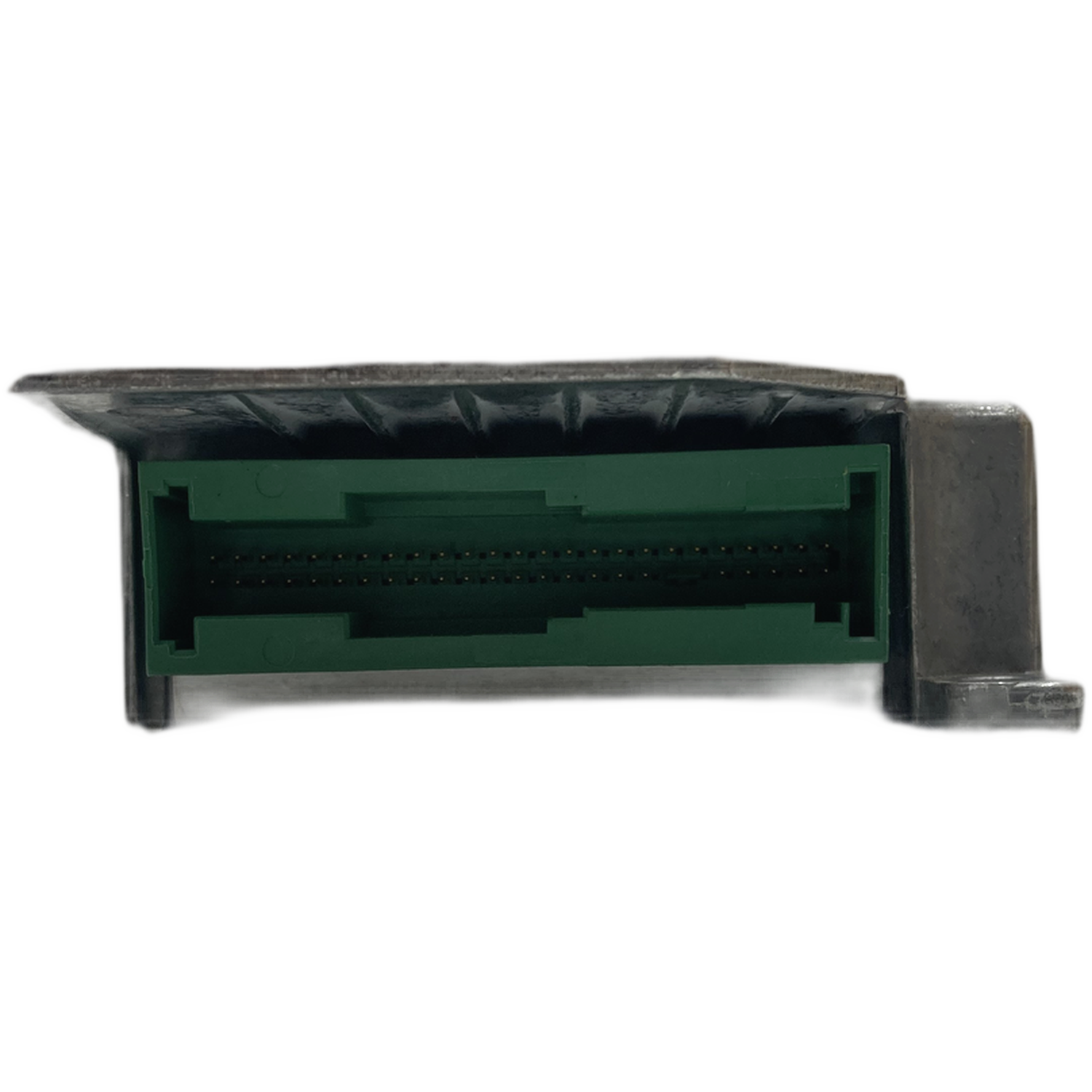

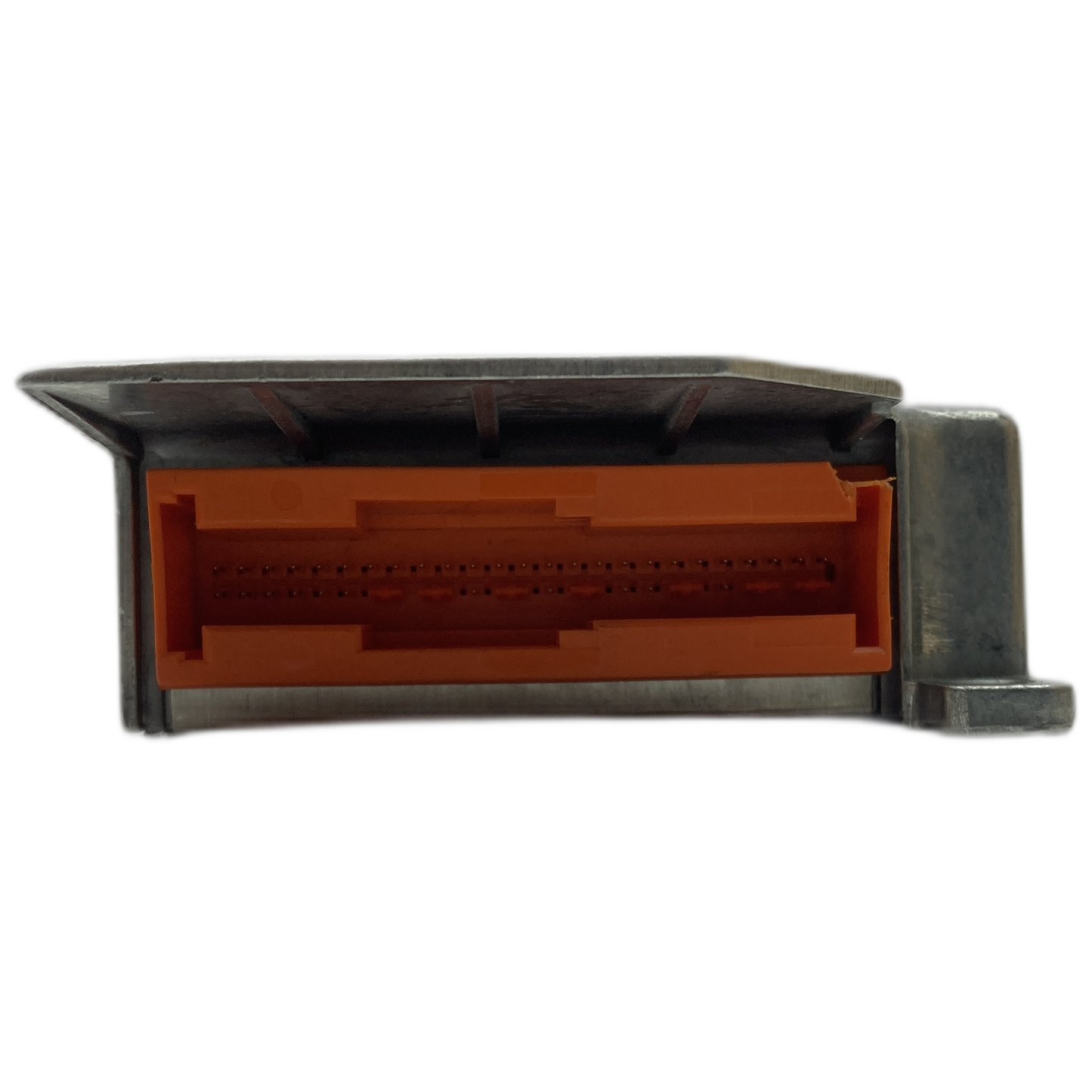

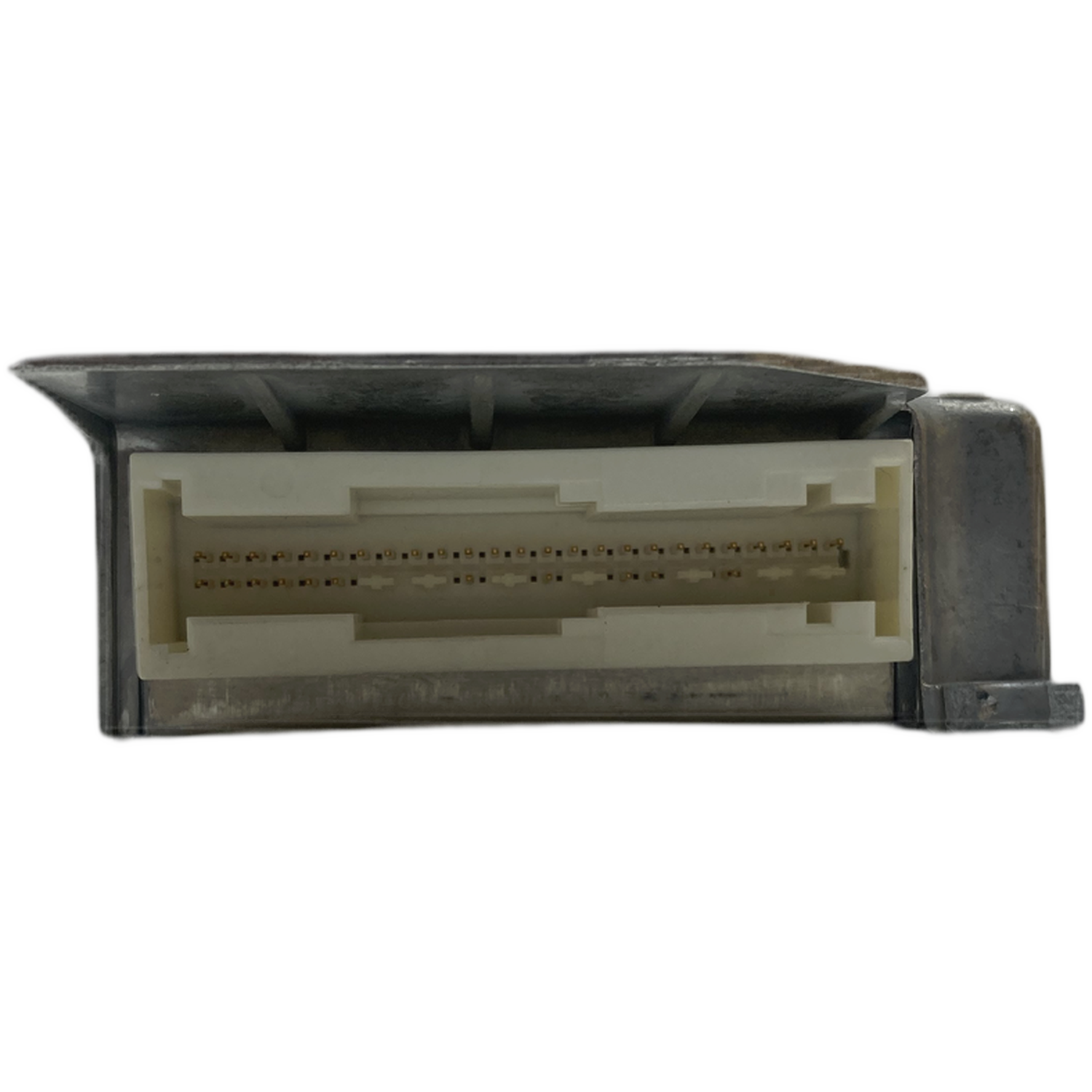

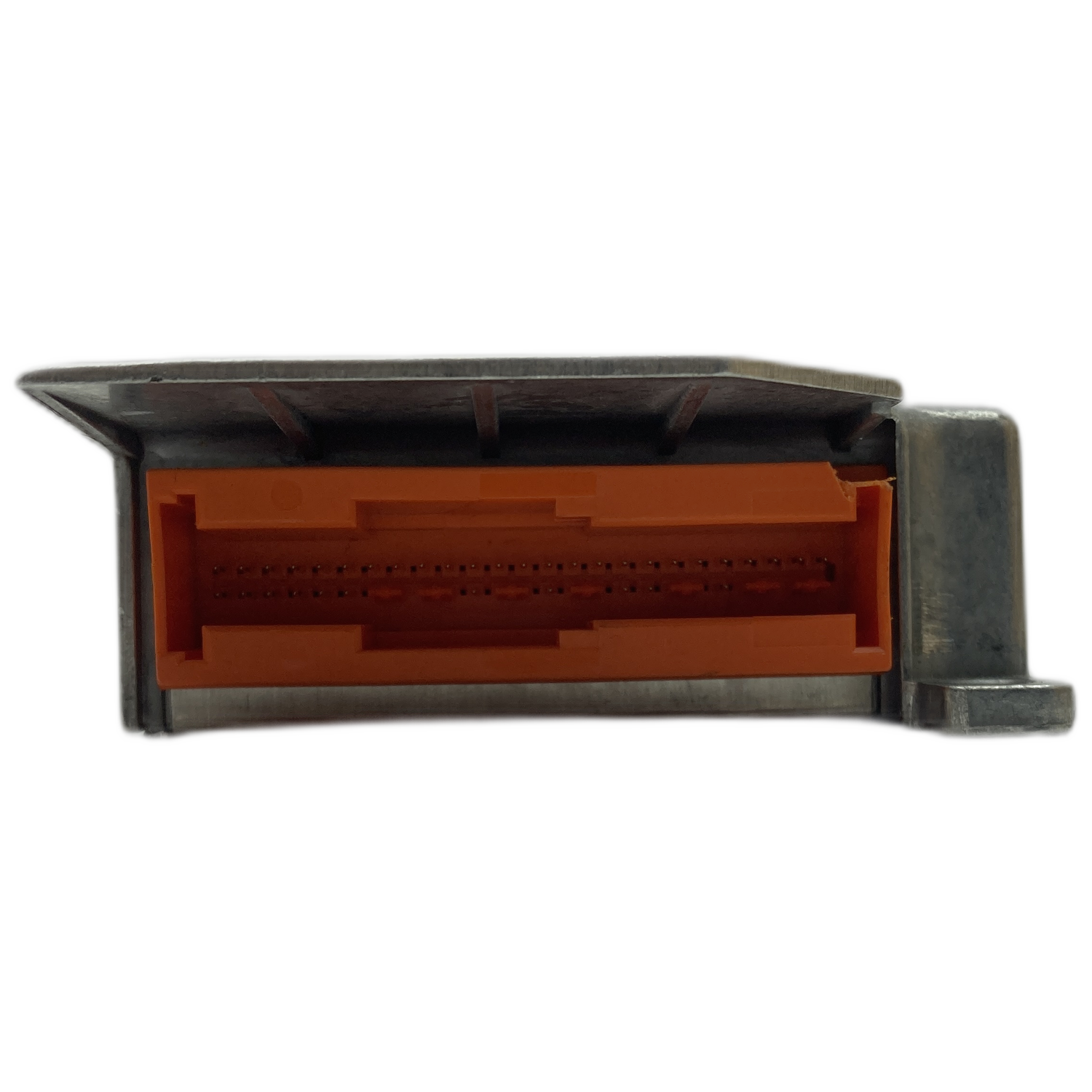

The BMW 5 Series E39 airbag control unit is typically located under the passenger seat or in the center console and is permanently mounted to the vehicle chassis. It connects to the airbag system via specialized, yellow-labeled connectors featuring 2 to 3 pins and short-circuit protection to ensure safe installation.

The exact position is crucial for the correct function of the sensor data acquisition.

The connectors have safety mechanisms to prevent accidental ignition.

Correct alignment and secure connection are of utmost importance for operational safety.
