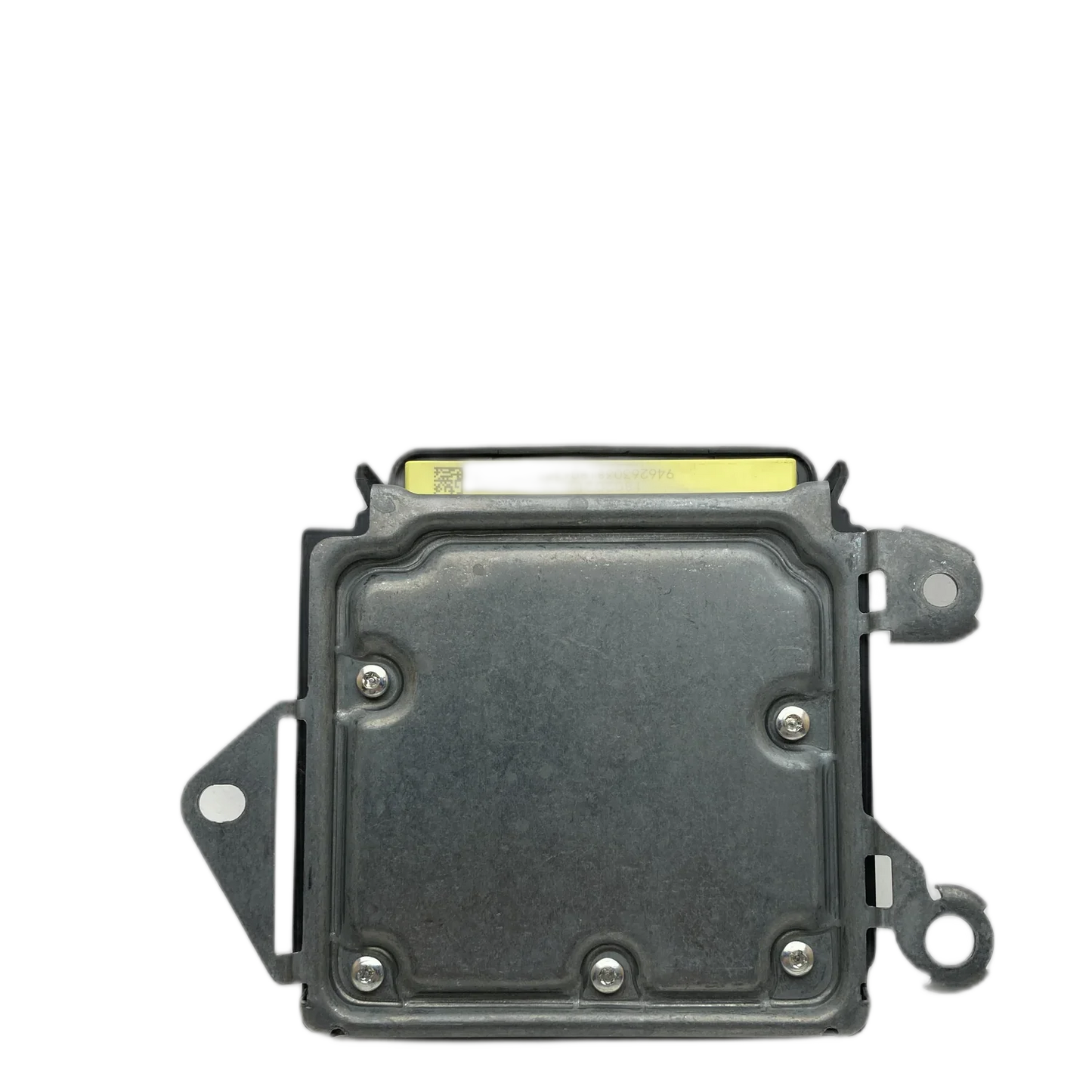

Honda Civic 10th generation Airbag Control Unit Repair

What is a Honda Civic 10th generation airbag control module?

The Honda Civic 10th generation airbag control unit is the central safety unit that activates all occupant restraint systems, such as front, side, and curtain airbags, as well as seatbelt pretensioners, in the event of an accident. It precisely monitors sensors, stores important crash data, and ensures the proper function and deployment of all airbag modules for maximum occupant safety in your vehicle.

This essential module, also known as the SRS Control Module, is responsible for the continuous monitoring of the entire airbag system. It ensures that all required restraint systems are deployed quickly and correctly in the event of a collision.

Precise control of airbags and seatbelt pretensioners is crucial for protecting vehicle occupants. Proper functioning is therefore essential for safety and prevents fault indications such as the illuminated airbag warning light.

Why is the Honda Civic 10th generation airbag control unit defective?

The Honda Civic 10th generation airbag control unit often fails due to internal memory errors (EEPROM), damaged hardware components, or crash data stored permanently after an accident that triggers an error message. Such damage typically requires a professional Honda Civic 10th generation airbag control unit repair or module replacement.

Common causes of failure include internal communication errors or voltage problems that impair functionality. Improper disassembly or extreme temperature fluctuations can also damage the control unit, necessitating repair.

Especially after an accident, the module permanently stores crash data that cannot be easily erased, making a Honda Civic 10th generation airbag control unit repair inevitable. Without repair, the airbag system remains inactive and the warning light remains permanently on.

Common error codes for Honda Civic 10th generation airbag control unit repair

During Honda Civic 10th generation airbag control module repair, specific trouble codes may occur that indicate internal problems or communication issues with the module. These include codes for stored crash data (B1200) or hardware defects (B1400), which require precise diagnosis and expertise to restore the safety system.

These error codes indicate a problem with the airbag control unit itself, not with external sensors or other components. A precise diagnosis is the first step toward a successful Honda Civic 10th generation airbag control unit repair.

The airbag warning light is activated immediately as soon as one of these error codes is stored in the control unit's error memory, signaling that the system may not be functioning.

• B1000: Internal control unit communication error → Indicates problems with data transmission within the airbag control unit.
• B1100: Internal memory error (EEPROM) → Indicates corruption of the non-volatile memory in the module.
• B1200: Crash data storage active → Means that the control unit has permanently saved crash data after an accident and requires repair.
• B1300: No communication with control unit → The diagnostic device cannot establish a connection to the airbag control unit.
• B1400: Internal hardware error → Indicates a defect in the electronic hardware of the airbag control unit.
• B1500: Airbag control unit power supply error → A problem with the module's power supply was detected.

What part numbers are available for the Honda Civic 10th generation airbag control unit repair?

For the Honda Civic 10th generation airbag control unit repair, numerous part numbers are listed for this repair product, including 77960-TBA-A01, 77960-TBA-A02, 77960-TGG-A03 and 77960-TGH-A01. The numbers named are Honda manufacturer numbers for airbag control units of this model. The label on your control unit helps with the matching.

Also listed are 77960-TBA-A03, 77960-TBA-A04, 77960-TBA-A05, 77960-TBA-A06, 77960-TGH-A02, 77960-3A2-A810-M2, 77960-TFK-D010-M4 and 77960-TGN-G230-M4. More matching numbers can be found in the part number list on this page.

The part number is printed on the label of the airbag control unit and can be stated in the repair order.

Technical details of the Honda Civic 10th generation airbag control unit

The Honda Civic 10th generation airbag control unit is designed for the FC/FK generation (approx. 2015-2022) and serves as the central control unit for all SRS components, from front airbags to curtain airbags and seat belt pretensioners. It processes signals from impact sensors and seat occupancy sensors to ensure optimal occupant safety in the event of a crash and is ready for immediate use after repair without the need for relearning.

This module is strategically positioned centrally in the vehicle, often under the center tunnel or center console. This position ensures optimal wiring to all sensors and airbag units.

The control unit continuously monitors all relevant sensors and can differentiate between different types of impact. This allows only the necessary airbag units to be activated, avoiding unnecessary deployments.

A special feature is that many of these Honda control units do not require reprogramming after a professional Honda Civic 10th generation airbag control unit repair, which significantly simplifies reinstallation. This saves time and money in the workshop.
