Honda CR-V 4 RM Airbag Control Unit Repair

What is a Honda CR-V 4 RM airbag control unit?

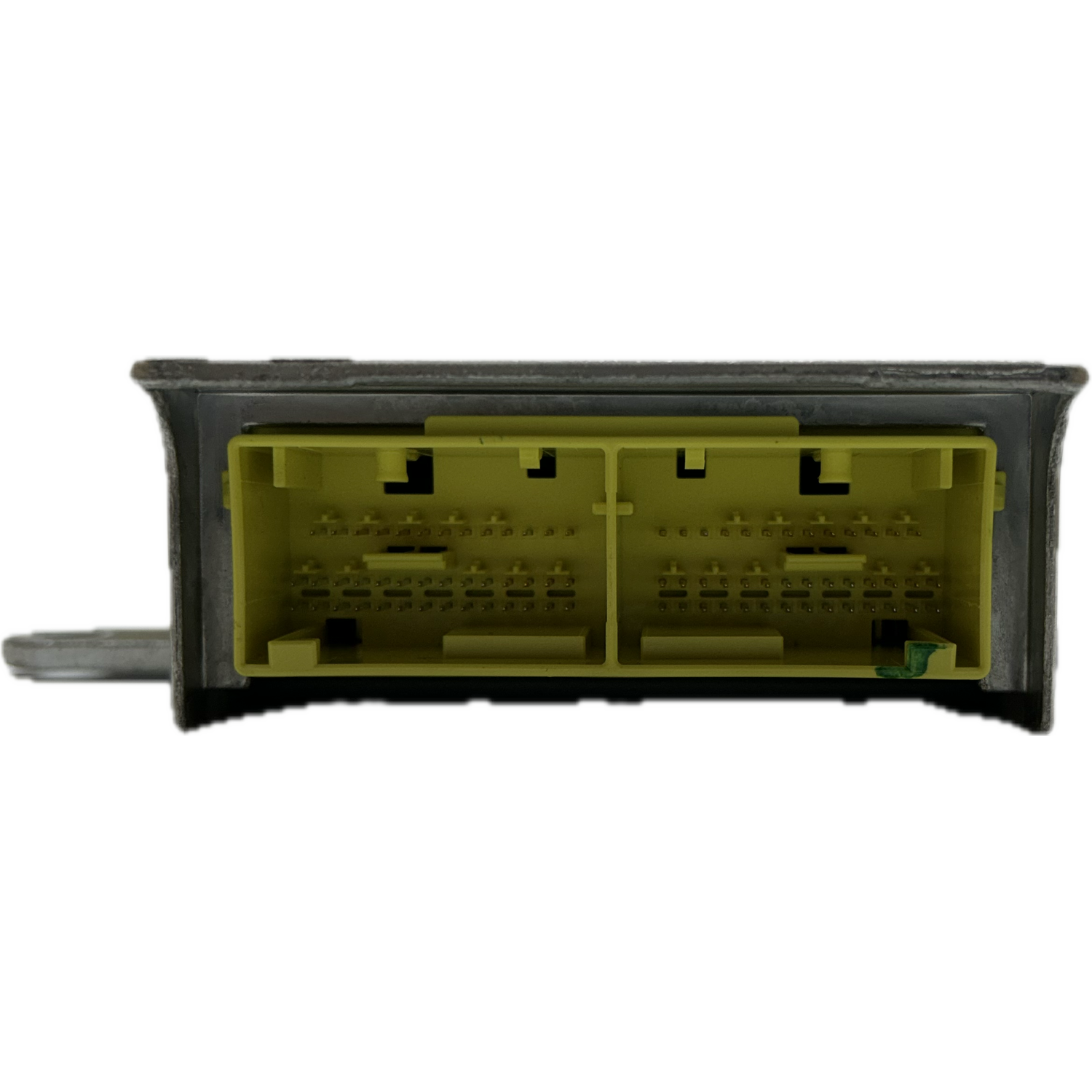

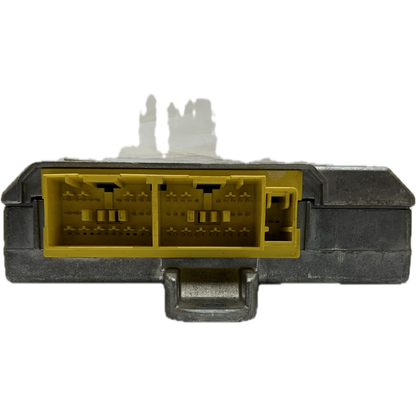

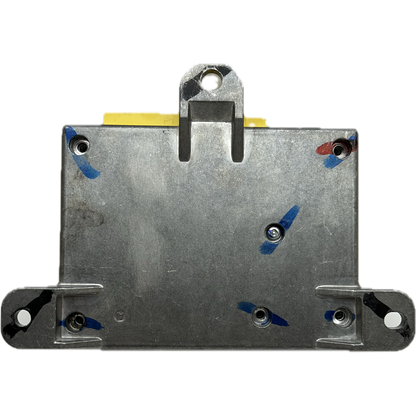

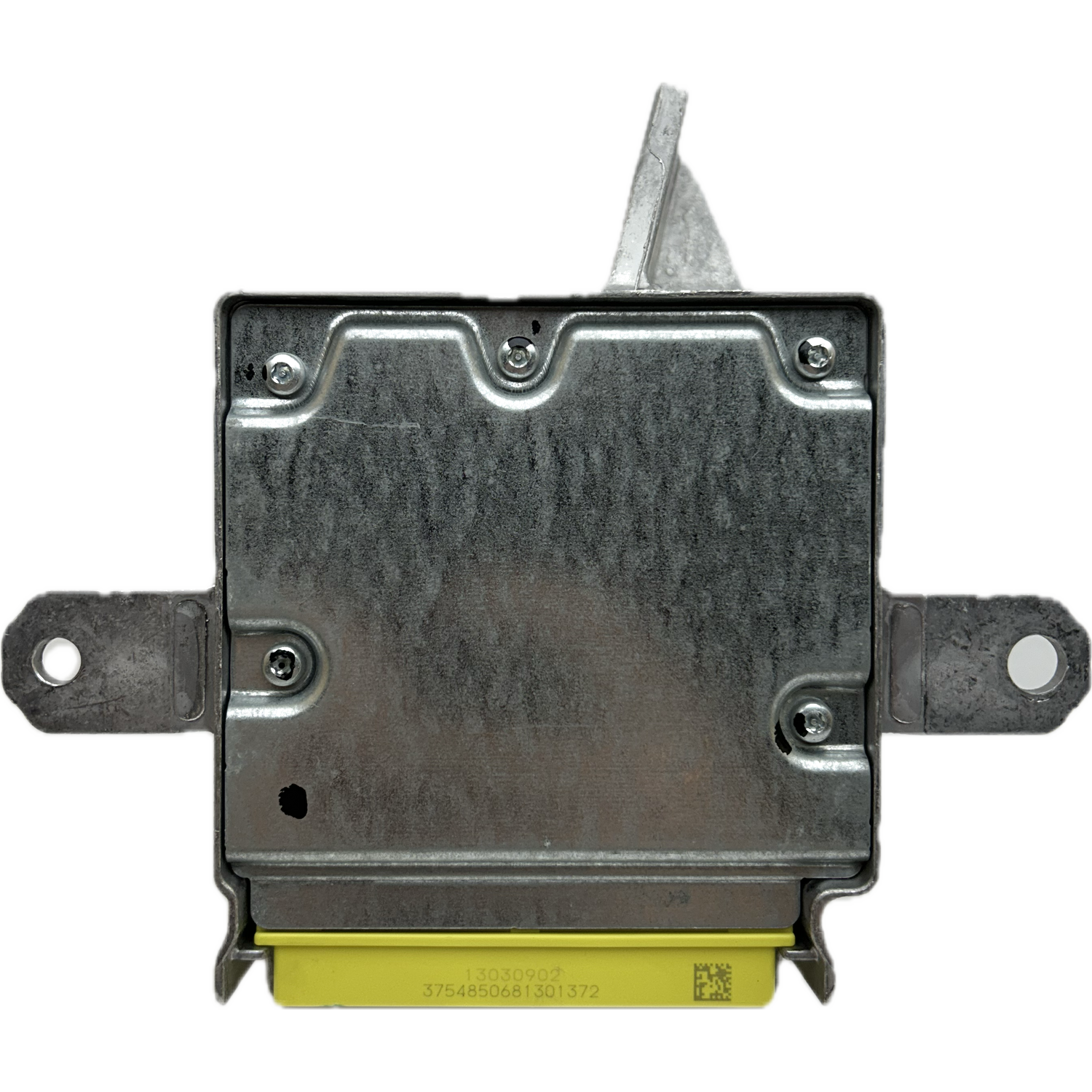

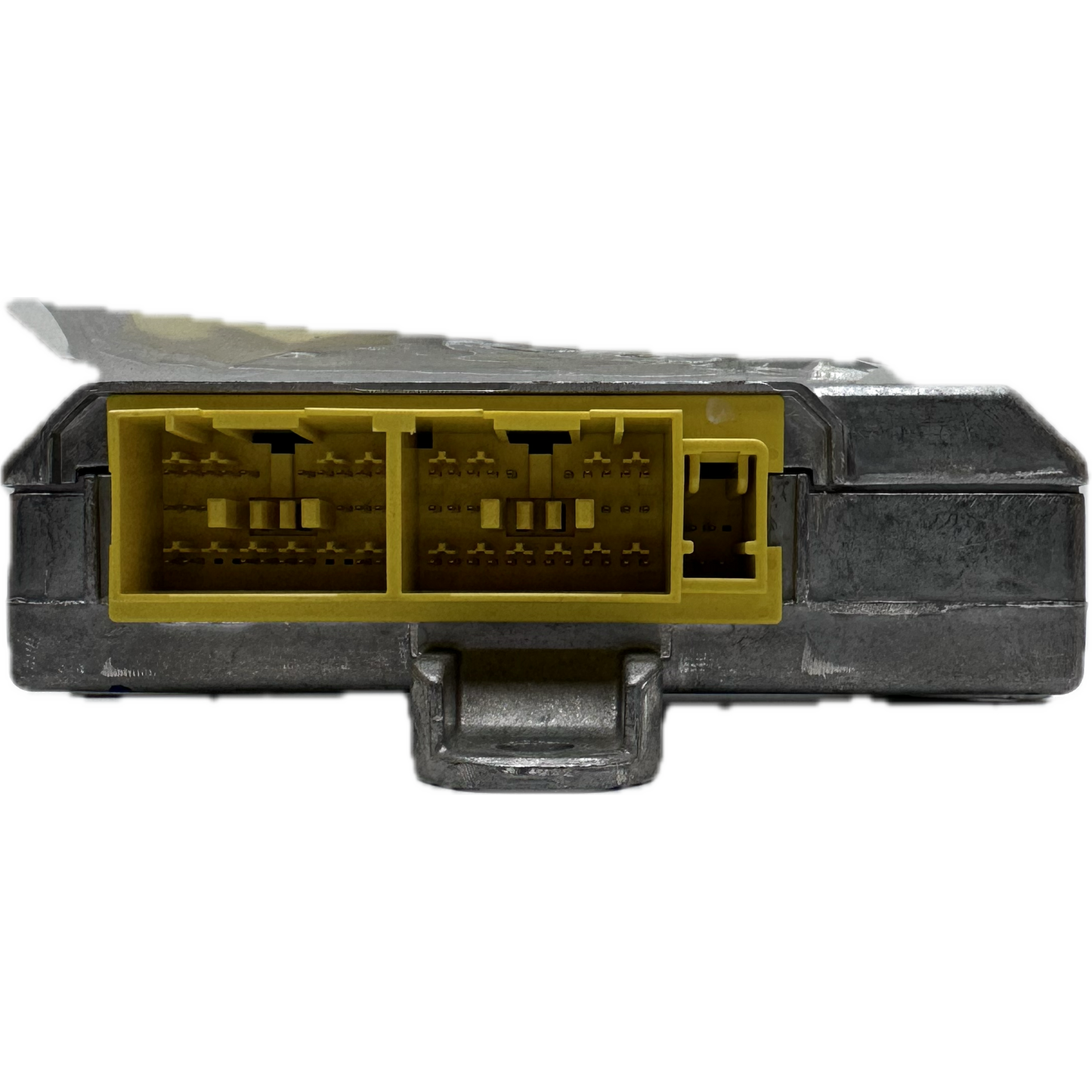

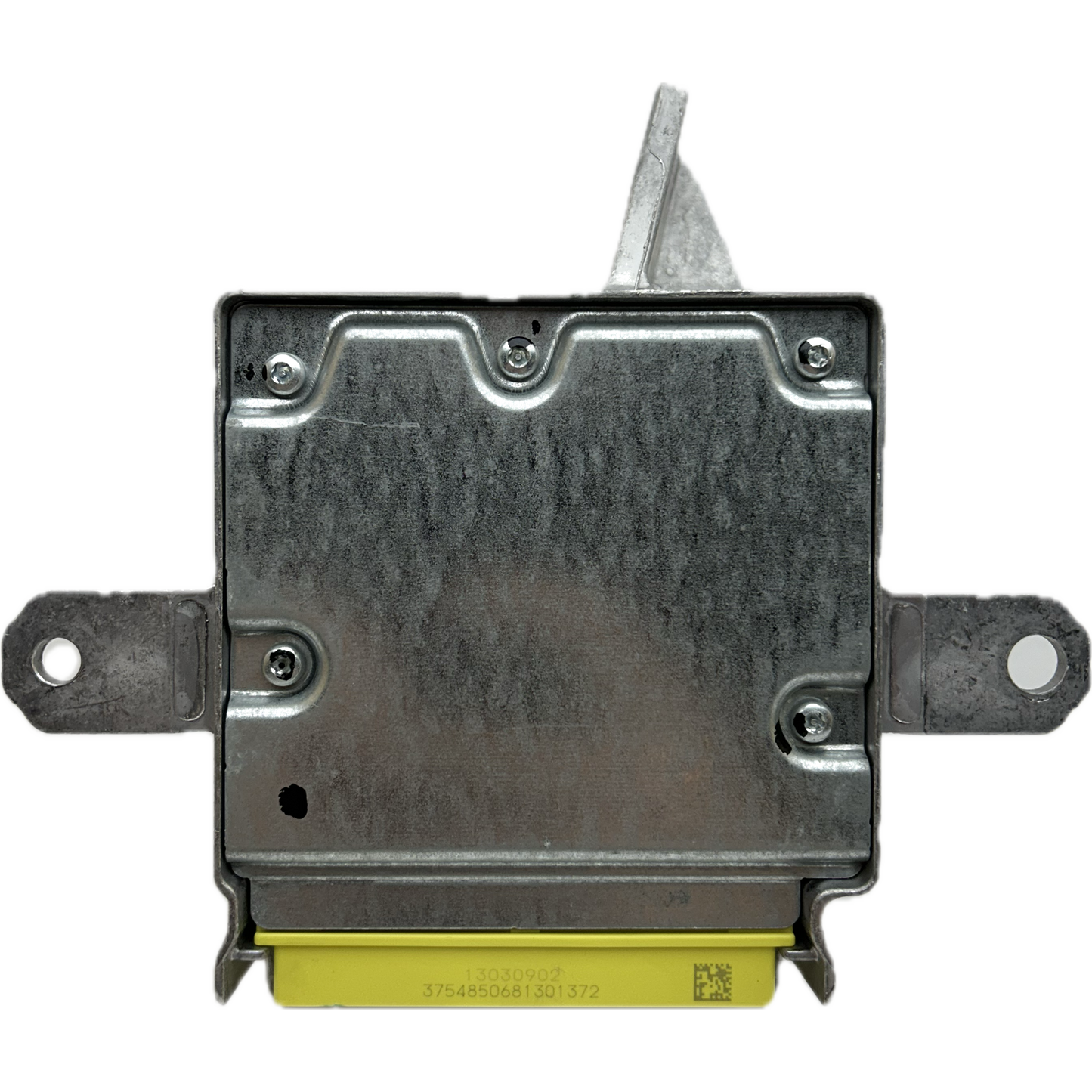

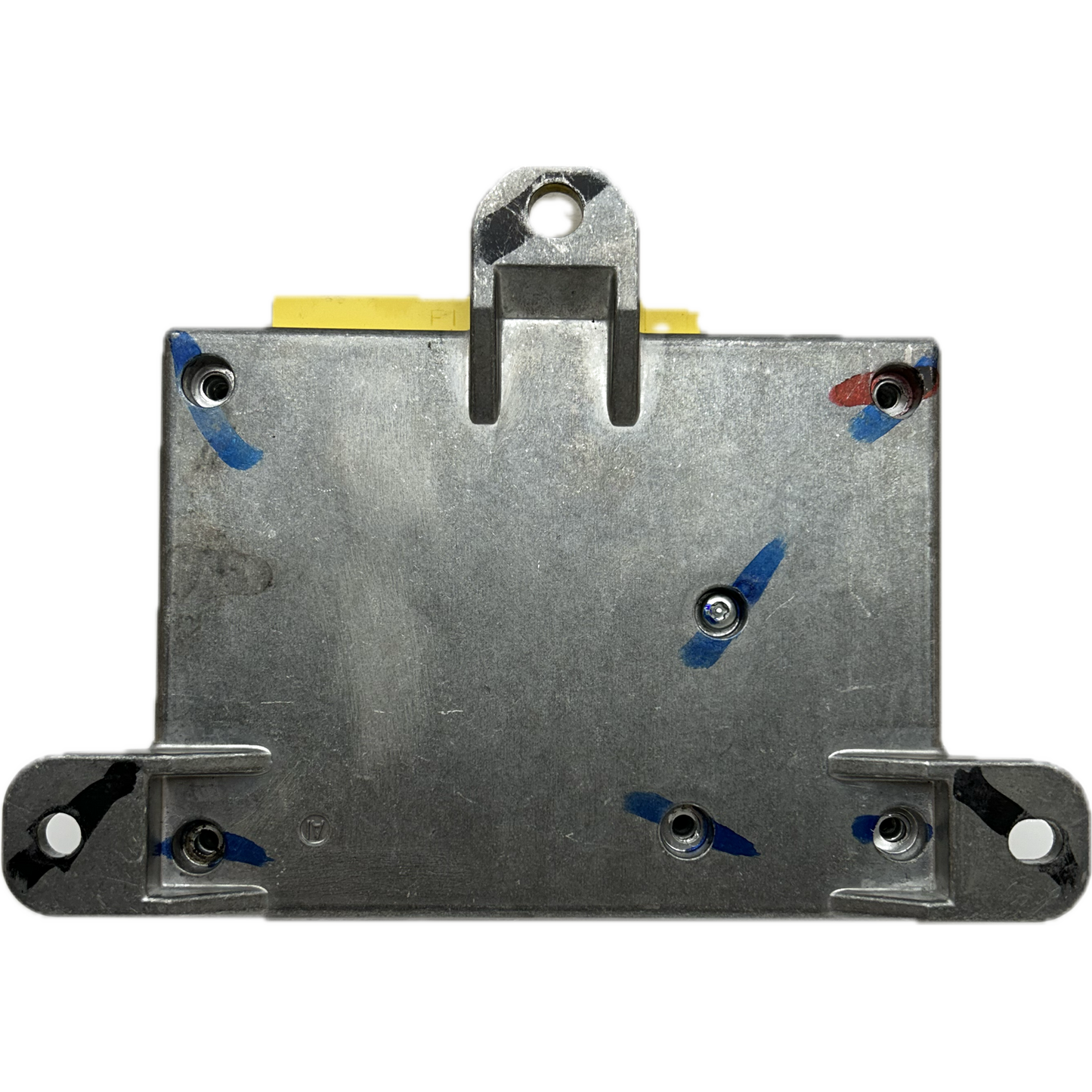

The Honda CR-V 4 RM airbag control unit is the central safety unit of the Supplemental Restraint System (SRS), which precisely coordinates the deployment of all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules for maximum safety.

The control unit monitors and controls all airbag and seatbelt components in the Honda CR-V. It processes signals from front, side, and curtain airbag sensors, as well as seat occupancy sensors.

This unit also collects data from weight sensors for occupant classification and a rollover sensor, allowing it to adjust airbag deployment as needed.

In the event of an accident, the control unit stores detailed crash data for diagnostic purposes. This data cannot simply be deleted after an incident, requiring professional repair.

Why is the Honda CR-V 4 RM airbag control unit defective?

A Honda CR-V 4 RM airbag control unit is often defective because it permanently stores crash data after an accident, internal hardware or software errors occur, or communication is disrupted. This results in the airbag warning light remaining permanently illuminated and the vehicle's safety system no longer functioning.

One of the most common reasons is the storage of crash data after an accident, which requires professional deletion. Without this reset, the airbag warning light remains active and the system is marked as defective.

Internal errors such as faulty flash memory (B1622) or general control unit failures (B1500) can render the control unit unusable. Such defects impair the entire functionality of the airbag system.

Loss of communication with other modules, such as the Gauge Control Module (B1178), also indicates a failure. A successful Honda CR-V 4 RM airbag control module repair is crucial for driving safety.

Common error codes for Honda CR-V 4 RM airbag control unit repair

During Honda CR-V 4 RM airbag control unit repairs, specific error codes may occur that directly indicate problems with the control unit itself, such as internal defects, communication failures, or unresolved crash data. Accurate diagnosis of these codes is crucial for successful airbag system repair.

• B1000 → Control unit communication error → Error in the data connection of the control unit.
• B1178 → Loss of communication with Gauge Control Module → No connection to a central display module.
• B1500 → Internal airbag control unit error → Hardware or software defect in the control unit.
• B1622 → Internal flash memory error in the control unit → Problem with the non-volatile memory of the control unit.
• B1750 → No communication with the airbag control unit possible → The control unit does not respond to diagnostic requests.
• B1790 → Error deleting crash data → Saved accident data cannot be deleted.
• B1820 → Problem resetting crash data → The control unit cannot clear the accident condition.

What part numbers are available for the Honda CR-V 4 RM airbag control unit repair?

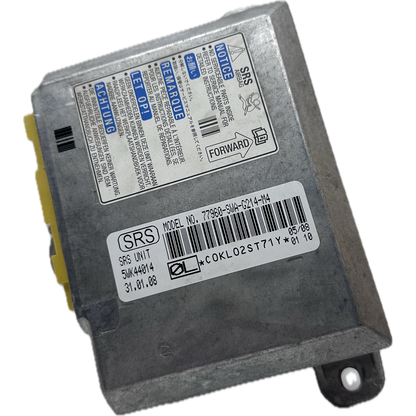

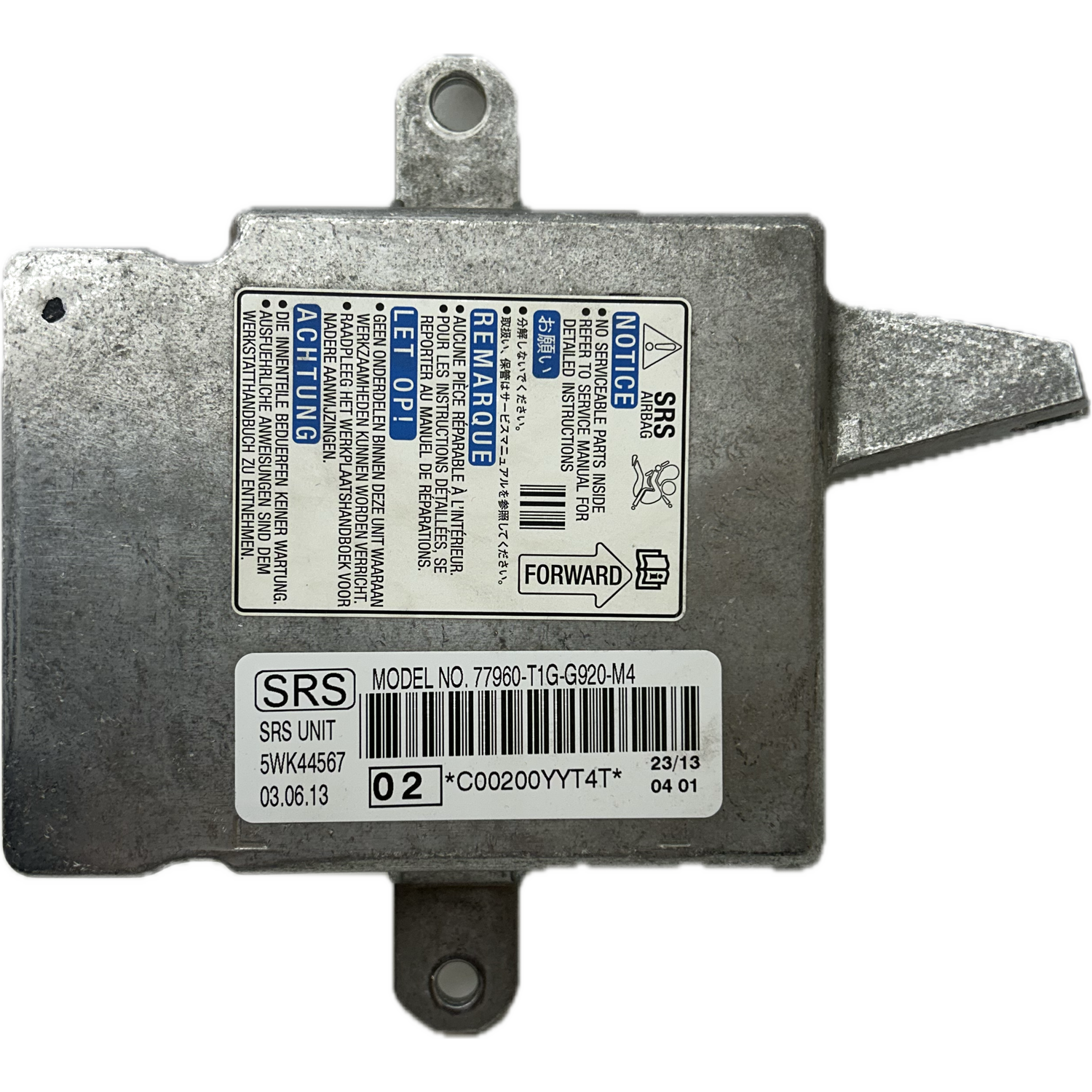

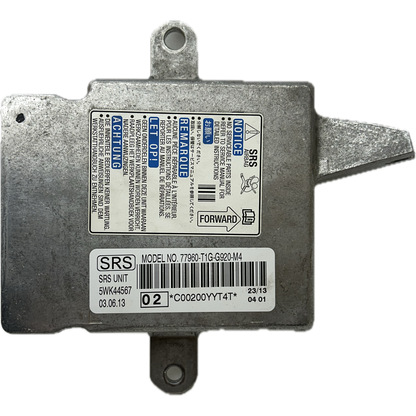

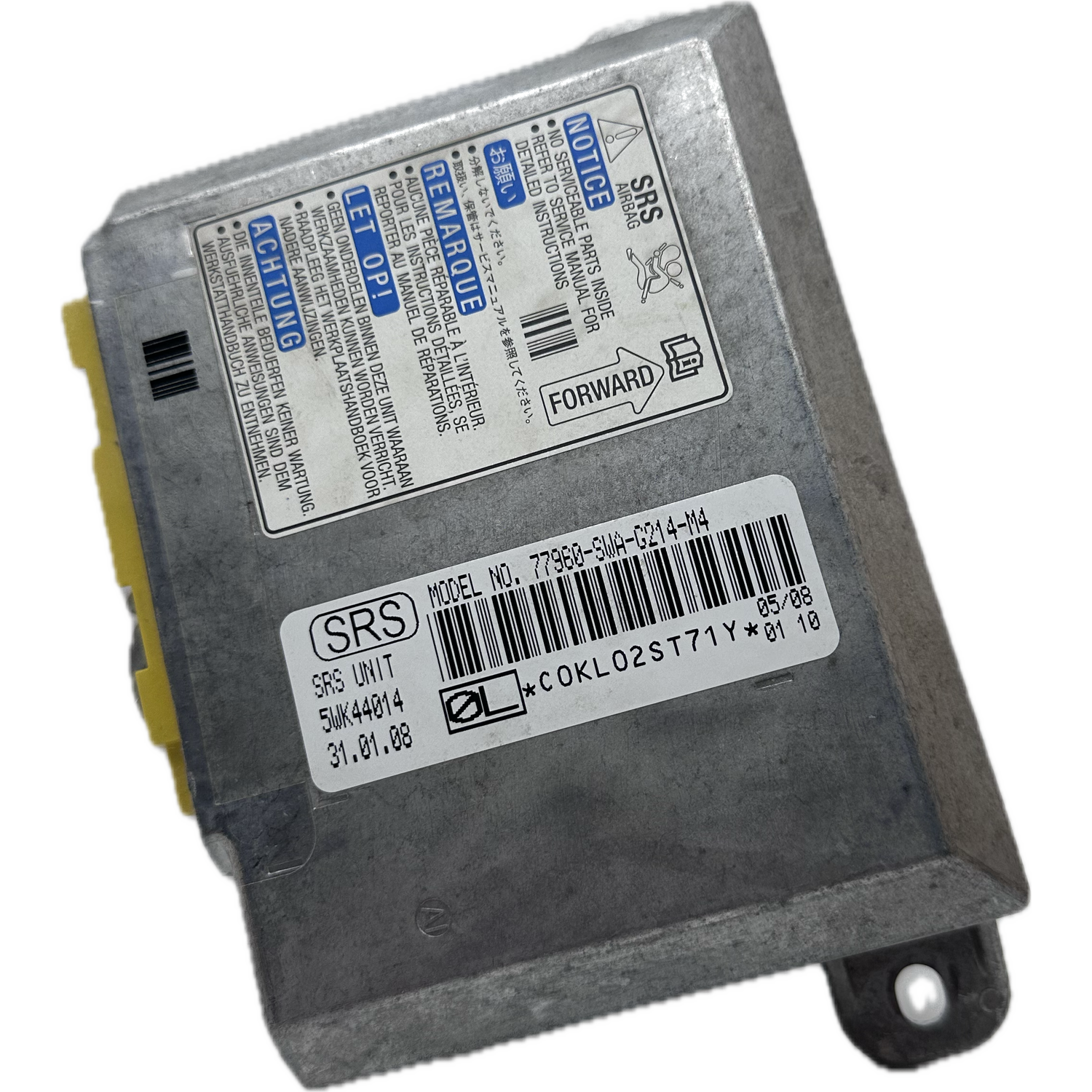

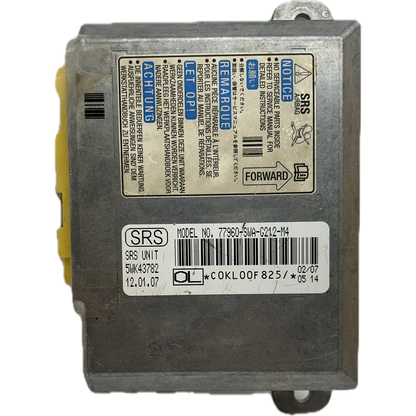

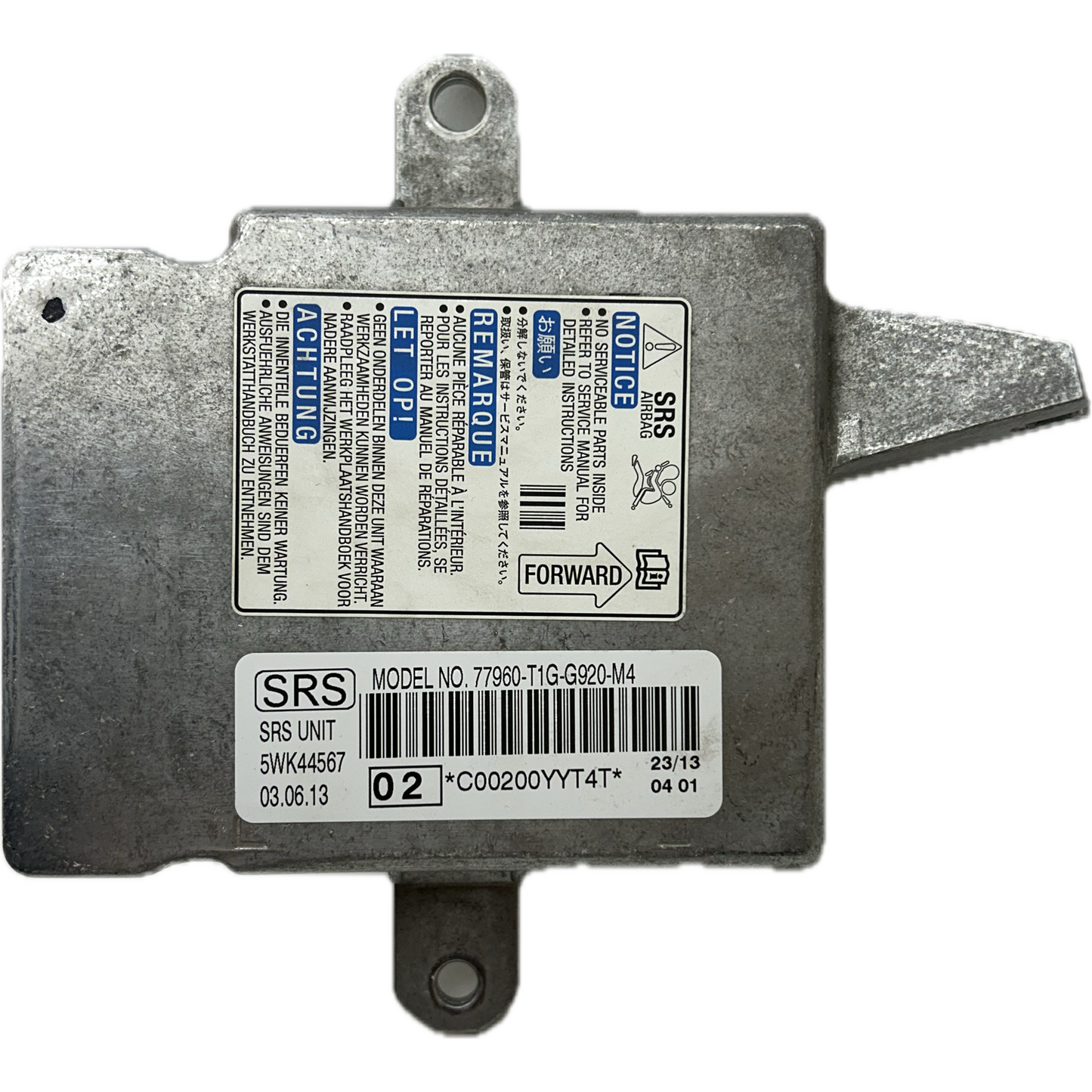

For the Honda CR-V 4 RM airbag control unit repair, several part numbers are assigned to this repair product, for example 77960-T0A-3070-M4 and 77960-T0A-A012-M1. They belong to airbag control units of this model. The part number is printed on the label of the airbag control unit and can be stated in the repair order.

The following numbers are also assigned to this repair product: 77960-T0A-A210-M1, 77960-T0A-C811-M4, 77960-T0A-F610-M3, 77960-T0A-H911-M4, 77960-T0A-J010-M4, 77960-T0A-M010-M1, 77960-T0A-P810-M4, 77960-T0A-S812-M1, 77960-T0A-Y910-M1 and 77960-T1G-E920-M4. These are Honda manufacturer part numbers. Other matching numbers are listed in the part number list on this page.
