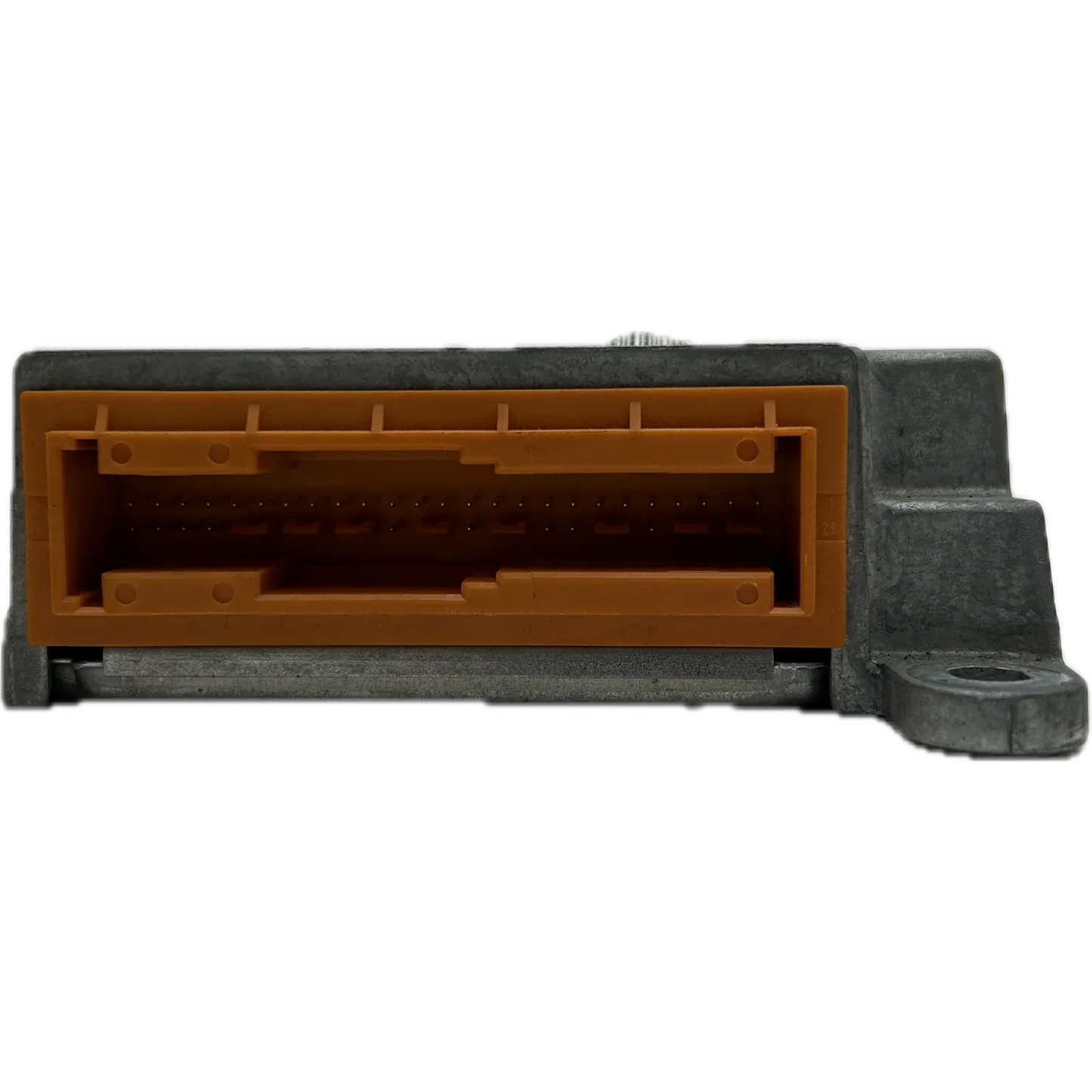

Peugeot 206 CC I airbag control unit repair

What is a Peugeot 206 CC I airbag control unit?

The Peugeot 206 CC I airbag control unit is the heart of the occupant protection system and essential for your safety. It continuously monitors the vehicle sensors, reliably detects accidents, and instantly deploys airbags and seatbelt pretensioners in an emergency to maximize passenger protection.

It processes signals from acceleration sensors and crash sensors to precisely detect accident situations. The control unit thus ensures the correct functioning of all components of the passive safety system.

After an impact, the module stores important crash data that is crucial for diagnosis and accident reconstruction. It also features an internal error log that activates the airbag warning light in the event of a malfunction, enabling rapid diagnosis.

The control unit is usually located centrally in the center console or in the passenger footwell. There, it is optimally protected from mechanical influences to ensure its functionality at all times.

The connection to airbags, seat belt pretensioners, and sensors is made via special connectors, usually marked yellow. These connectors are equipped with safety mechanisms to prevent accidental activation.

Why is the Peugeot 206 CC I airbag control unit defective?

A Peugeot 206 CC I airbag control unit often fails because it stores crash data after an accident, preventing it from being reused. Internal software errors, communication problems, or voltage spikes can also lead to failure, making repair or replacement unavoidable.

After an airbag is deployed, the control unit stores an irreversible crash data record. This record prevents the system from functioning again, even if the vehicle is otherwise intact, and must be erased.

Internal memory errors or logical software errors are other common causes of a defect. These problems often result in the airbag warning light remaining permanently illuminated and no communication with the diagnostic system being possible.

Communication problems with the vehicle (e.g., CAN bus errors) or voltage fluctuations in the vehicle electrical system can also damage the airbag control unit. This manifests itself in a lack of response or unexplained error messages.

A defective airbag control unit poses a safety risk. It can no longer protect the occupants in the event of a subsequent accident, so a prompt Peugeot 206 CC I airbag control unit repair is urgently required.

Common error codes for Peugeot 206 CC I airbag control unit repair

When repairing the Peugeot 206 CC I airbag control unit, specific B-codes are crucial, as they directly indicate internal problems with the control unit or communication errors. Reading these error codes with specialized diagnostic tools like PP2000 is the first step toward precise error analysis and resolution.

• B1000 → Control unit communication error → The airbag control unit does not communicate correctly with other vehicle systems, often due to cable defects or missing voltage.
• B1003 → Internal memory error (EEPROM) → There is an error in the internal data memory of the airbag control unit that requires repair.
• B1035 → Internal software error / control unit logic error → A fault in the internal software or processing logic of the control unit was detected.
• B1234 → Error in the diagnostic server (communication problem) → The connection or data transmission between the control unit and the diagnostic system is faulty.
• B1614 → Voltage failure / battery voltage error → The airbag control unit is not receiving sufficient or stable power from the vehicle electrical system.
• B1658 → Control unit coding or initialization error → The control unit has not been coded or initialized correctly, which affects its function.
• B1678 → Malfunction in the internal control unit transceiver → There is a problem with the transmitter module within the airbag control unit.
• B1800 → Unknown control unit error (generic) → A general, unspecified error in the airbag control unit was detected.

Deleting crash data is one of the most common repair procedures when the airbag system has been deployed. This is the only way to restore the control unit to a functional state and successfully reset the error log.

It's important to note that these error codes directly affect the airbag control unit, not external sensors or seatbelt pretensioners. A precise diagnosis often avoids the costly replacement of the entire module.

What part numbers are available for the Peugeot 206 CC I airbag control unit repair?

For the Peugeot 206 CC I airbag control unit repair, several authentic part numbers from Peugeot/PSA and supplier Autoliv are relevant. Using a matching part number is crucial to ensure compatibility and full functionality of the airbag system after the repair.

Peugeot / PSA: 6547WJ, 6556N9, 9641728780, 9652275880

Autoliv (OEM supplier): 9644903480

These OEM part numbers have been carefully verified and are 100% compatible with the airbag control unit of the Peugeot 206 CC I. They guarantee that you will receive an original part or an equivalent replacement part.

When selecting a replacement part, it is crucial to check the exact part number of your vehicle. This prevents compatibility issues and ensures that all airbag components can be controlled correctly.

A professional workshop or specialized repair service can help you identify the correct part number for your Peugeot 206 CC I airbag control unit repair and carry out the replacement professionally.
