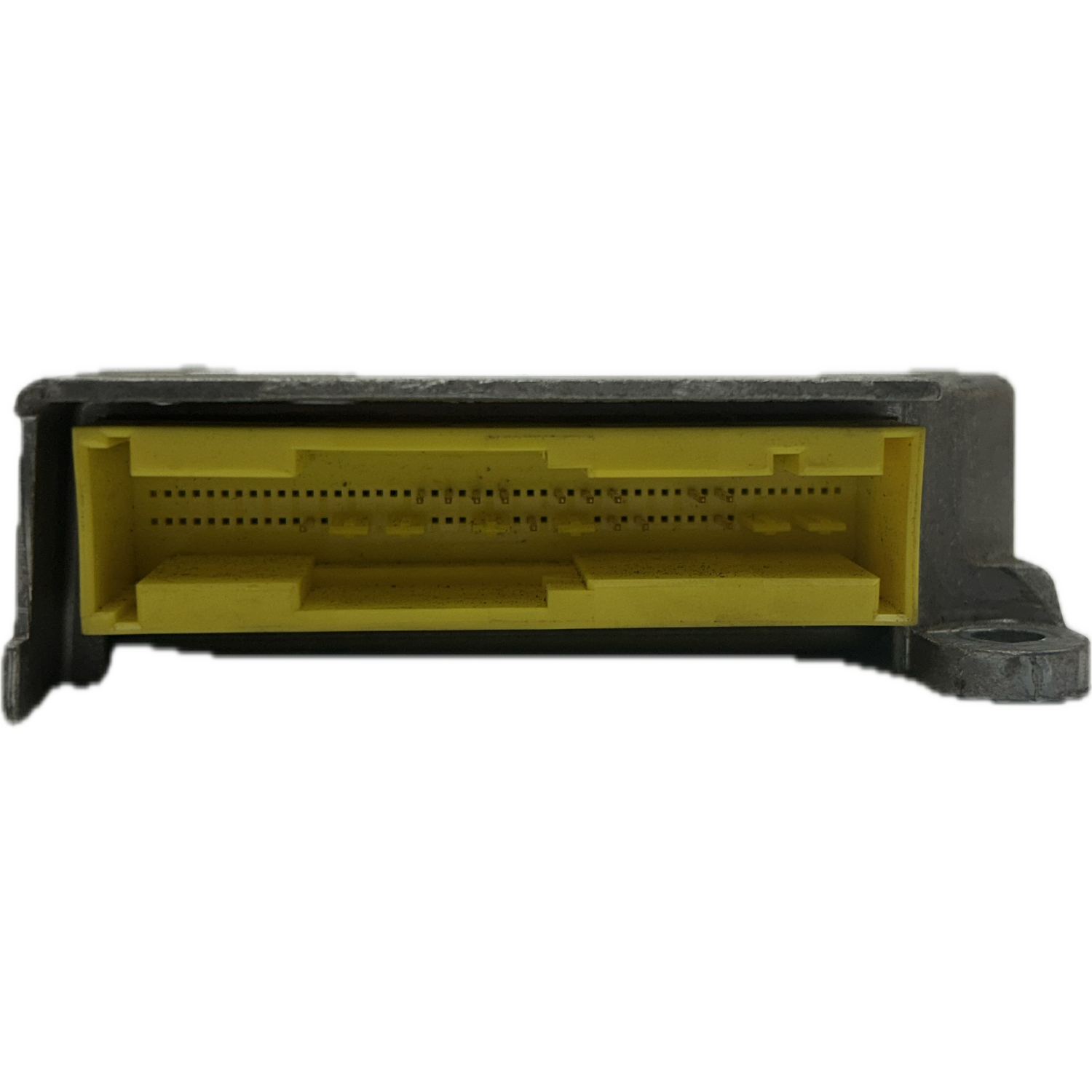

What is a Seat Ibiza Cupra Mk4 airbag control unit?
The Seat Ibiza Cupra Mk4 airbag control unit is your vehicle's central safety unit, activating all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It continuously monitors the vehicle's sensors and stores relevant crash data, ensuring the proper functioning and instantaneous deployment of all passive safety systems in the event of an impact.
This module is the brain of the airbag system and is located inside the vehicle. It evaluates signals from acceleration sensors to accurately determine the severity of an accident.
Faults in this important component can impair safety function and require a professional Seat Ibiza Cupra Mk4 airbag control unit repair.
Why is the Seat Ibiza Cupra Mk4 airbag control unit defective?
A Seat Ibiza Cupra Mk4 airbag control unit often fails because it stores crash data after an accident, which blocks the system, or because internal electronic components fail due to age or overvoltage. This causes the airbag warning light to stay permanently illuminated and the safety systems to no longer function, making repair or replacement mandatory.
After the airbags are deployed, the control unit stores specific crash data. This data blocks the device's functionality and requires data deletion.
Internal faults, such as a faulty control chip or communication problems, can also cause failure. This often manifests itself in diagnostic codes or a persistent airbag warning light and requires a specialized Seat Ibiza Cupra Mk4 airbag control unit repair.
Common error codes for Seat Ibiza Cupra Mk4 airbag control unit repair
When a Seat Ibiza Cupra Mk4 airbag control unit repair is necessary, specific error codes are often read out that indicate a defect in the control unit itself, not in sensors or other components. These codes signal internal system errors, communication malfunctions, or stored crash information that require professional repair.
- 17748 → Airbag control unit communication error → The control unit cannot communicate correctly with other vehicle systems.
- 16395 → Airbag control unit error → An unspecified internal defect has occurred in the control unit.
- 65535 → Control unit defective (VCDS diagnosis) → Clear indication of irreparable or serious internal damage to the airbag ECU control chip.
- 532 → Control unit power supply error (Gutmann diagnosis) → The control unit is not receiving a correct or stable power supply, which leads to malfunctions.
- B1000 → Control unit communication error (generic VAG) → General error code that indicates disturbed data transmission with the airbag control unit and requires immediate Seat Ibiza Cupra Mk4 airbag control unit repair.
What part numbers are available for the Seat Ibiza Cupra Mk4 airbag control unit repair?

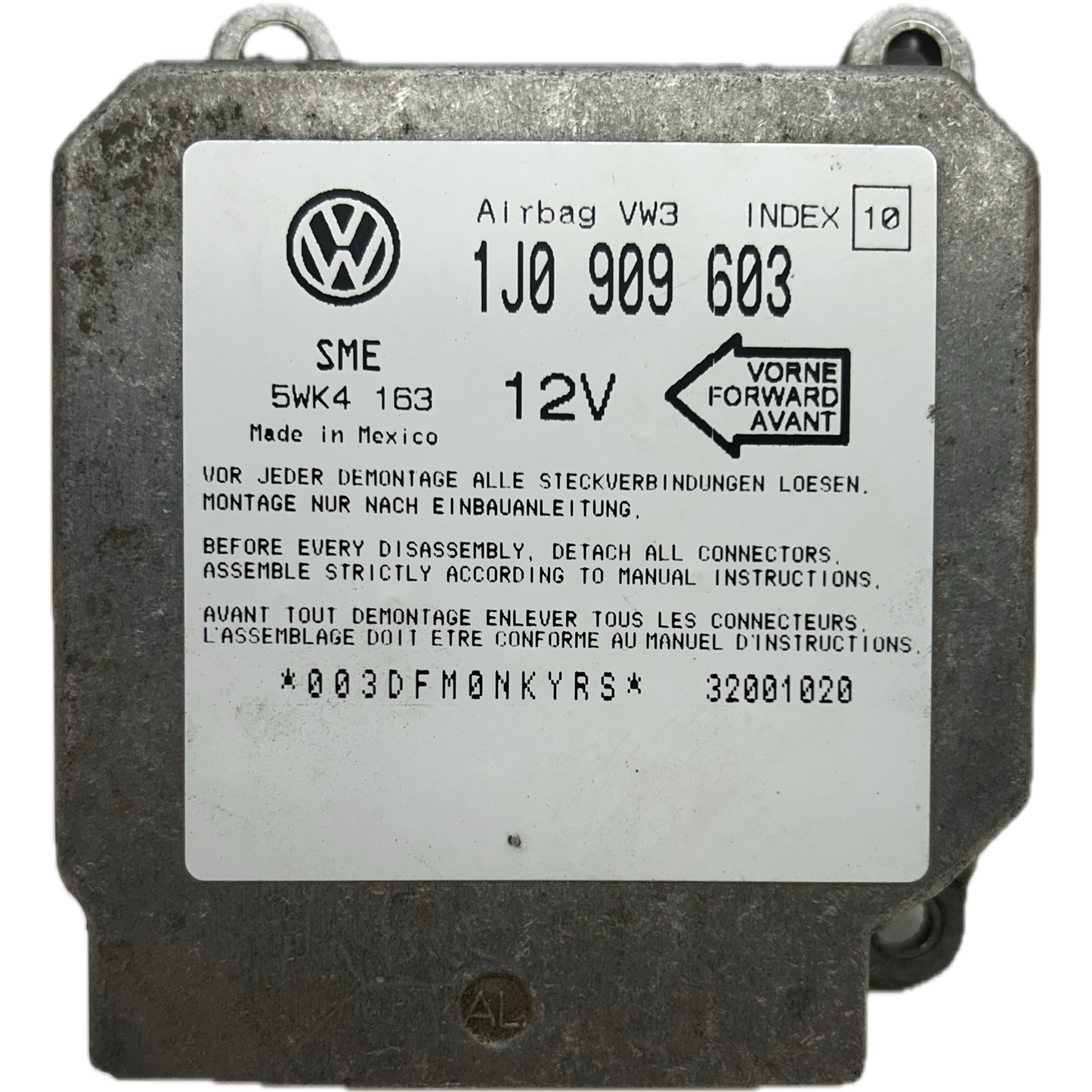

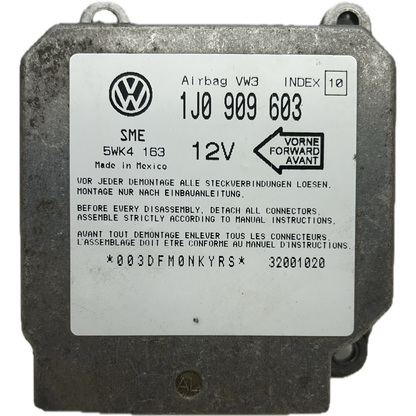

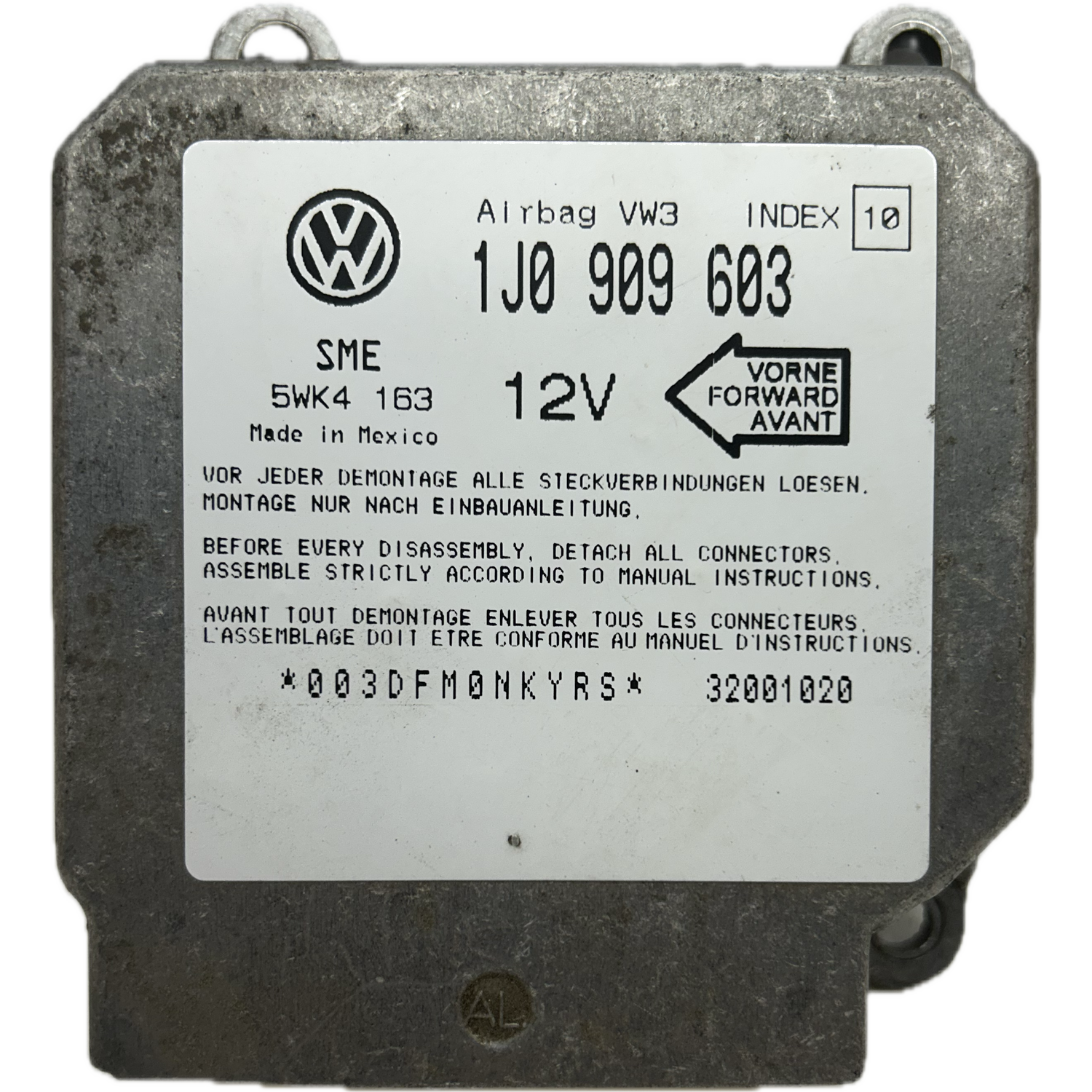

For the Seat Ibiza Cupra Mk4 airbag control unit repair, three verified OEM part numbers are primarily relevant: the VAG original number 1J0 909 603, the Siemens/Continental supplier number 5WK4163, and the alternative Siemens/Continental OEM number 5QF959655N for newer models. These numbers identify the exact airbag control unit for the Seat Ibiza Cupra Mk4 and are crucial for the correct repair or replacement.
The main OEM part number is 1J0 909 603, which is directly attributed to the Volkswagen Group. This number confirms the fit for your Seat Ibiza Cupra Mk4 airbag control unit.
The corresponding supplier part number is often 5WK4163, which is manufactured by Siemens or Continental. Both numbers refer to the same control unit and are relevant for a successful Seat Ibiza Cupra Mk4 airbag control unit repair.
For newer versions of the Ibiza, the number 5QF959655N from Siemens/Continental can also be used, but compatibility should be checked based on the year of manufacture and equipment.
How does the Seat Ibiza Cupra Mk4 airbag control unit repair work?
The Seat Ibiza Cupra Mk4 airbag control unit repair begins with a comprehensive diagnosis to identify the exact error code and determine the cause, followed by professional restoration of the internal electronics and erasure of crash data to restore full functionality of the safety system. The repaired control unit is then subjected to a final inspection and prepared for reinstallation.
After the defective control unit has been removed, a detailed fault analysis is performed. Specialists check the circuit boards for damage and replace any defective components if necessary.
A key step is deleting the crash data stored in the control unit after an accident, which inhibits its function. This is crucial for a successful Seat Ibiza Cupra Mk4 airbag control unit repair.
Finally, the repaired control unit is subjected to a functional test to ensure that it is fully operational before being reinstalled.
When does a Seat Ibiza Cupra Mk4 airbag control unit repair make sense?
A Seat Ibiza Cupra Mk4 airbag control unit repair is always advisable if the airbag warning light is constantly illuminated, specific error codes such as "Control unit defective" or "No communication" are displayed, or crash data is stored in the system after an accident. In these cases, a cost-effective repair is often the preferred alternative to an expensive replacement to restore full safety.
If your vehicle has been in an accident and the airbags are deployed, the control unit must be repaired based on the stored crash data. Without repair, the safety system remains inactive.
Even in cases of internal faults that lead to failures or communication problems, repairing the control unit is often the more cost-effective option. A professional diagnosis confirms the need for a Seat Ibiza Cupra Mk4 airbag control unit repair.
Installation position and connections of the Seat Ibiza Cupra Mk4 airbag control unit
The Seat Ibiza Cupra Mk4 airbag control unit is strategically located in the vehicle's center tunnel, typically behind the passenger-side storage compartment, as this central position allows for optimal impact force detection. It is firmly bolted to the body and connected to the vehicle's electrical system, the CAN bus, and all airbag modules via dedicated electrical connectors. The correct installation orientation is crucial.
This installation position is crucial because the control unit has integrated acceleration sensors. A defined installation direction is marked by an arrow on the device and must be strictly adhered to.
The electrical connections include the power supply, CAN bus lines for communication, and signal lines to the airbag modules and belt pretensioners. Proper installation is essential for the proper functioning of the Seat Ibiza Cupra Mk4 airbag control unit repair.
Compatible models for Seat Ibiza Cupra Mk4 Airbag Control Unit Repair
The Seat Ibiza Cupra Mk4 airbag control unit repair described here is primarily relevant for the Seat Ibiza IV Type 6J (approx. 2008–2015) and Type 6P (approx. 2015–2017), although the core functions and technical specifications may also apply to other models in the Ibiza series with similar part numbers. Exact compatibility should always be checked against the specific OEM part number and year of manufacture to ensure optimal safety.
Although the core functionality is similar, there are differences in the internal configurations between the generations. This requires precise coordination when repairing the Seat Ibiza Cupra Mk4 airbag control unit.
Part numbers such as 6Q0 909 605AE or the Bosch designation 6R0959655C are commonly found in these models. Checking your vehicle's original part number is always advisable to ensure the correct repair or replacement.
