What is a Suzuki Alto HA24 airbag control unit?
The Suzuki Alto HA24 airbag control unit is the central safety unit that activates all occupant restraint systems in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle, which is essential for passenger safety.
It is a safety-critical electronic component that precisely controls the deployment of the airbags and seat belt pretensioners.
This control unit processes signals from crash sensors and internal vehicle data in order to react quickly in the event of an impact.
Why is the Suzuki Alto HA24 airbag control unit defective?
The Suzuki Alto HA24 airbag control unit may be defective because it stores crash data after an accident that needs to be erased, or because it has internal electronic malfunctions. These problems then cause the airbag warning light to activate, making a Suzuki Alto HA24 airbag control unit repair essential.
Common causes are internal circuit errors or the storage of so-called “hard crash data” after an accident.
This data prevents the system from being reactivated without a professional reset service or replacement, making the Suzuki Alto HA24 airbag control unit repair necessary.
Common error codes for Suzuki Alto HA24 airbag control unit repair
Suzuki Alto HA24 airbag control unit repair is often triggered by specific error codes that indicate internal problems or communication failures within the control unit. These codes, such as B1000 and B1055, signal direct ECU errors and activate the airbag warning light, requiring a precise diagnosis.
- B1000 → Control unit communication error → The airbag ECU cannot communicate with other systems.
- B1055 → Airbag control unit error (Suzuki specific) → The airbag ECU shows internal malfunctions.
These codes are solely control unit specific and require a detailed analysis of the airbag module to determine the cause and perform a successful Suzuki Alto HA24 airbag control unit repair.
What part numbers are available for the Suzuki Alto HA24 airbag control unit repair?
For the Suzuki Alto HA24 airbag control unit repair, two OEM part numbers are primarily relevant: the original Suzuki number 38910-79600 and the Bosch/Siemens OEM number 38910-68K20. These numbers ensure the exact compatibility of the replacement part with the Suzuki Alto HA24 vehicle model.
- 38910-79600 → Suzuki → Original airbag control unit for Alto HA24/FF 1.1
- 38910-68K20 → Bosch/Siemens (OEM) → Compatible airbag module, commonly used in reset service.
The correct part number is crucial to ensure that the Suzuki Alto HA24 airbag control unit repair is successful and the system functions properly.
Technical data and functions of the Suzuki Alto HA24 airbag control unit
The Suzuki Alto HA24 airbag control unit is a sophisticated electronic unit that continuously monitors all airbag systems and sensors. In the event of an impact, it rapidly evaluates data to precisely deploy airbags and seatbelt pretensioners and stores important crash information for post-accident diagnostics.
It processes sensor signals from crash sensors and is connected to the vehicle network to exchange data with other control units.
After an accident, the device stores specific crash data, which must be deleted before the system can be put back into operation.
The control unit supports error diagnosis via OBD-II and is designed for an operating voltage of 12V, suitable for the 5-speed manual transmission model.
Compatibility and years of manufacture for the Suzuki Alto HA24 airbag control unit

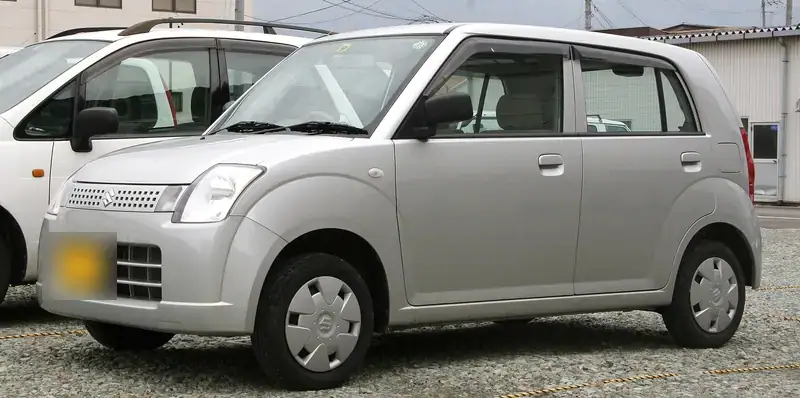

The Suzuki Alto HA24 airbag control unit is specifically designed for the Suzuki Alto HA24 hatchback (FF variant) built between September 2004 and December 2008. It is compatible with models equipped with a 1.1-liter gasoline engine and standard safety features such as front airbags and seatbelt pretensioners.
Compatibility extends primarily to vehicles with 46 kW (63 hp) power and is designed for left-hand drive models.
Even though later models such as HA25 or HA35 use similar components, this control unit is precisely tailored to the aforementioned HA24 models, which must be taken into account when repairing the Suzuki Alto HA24 airbag control unit.
Installation position and special features of the Suzuki Alto HA24 airbag control unit repair
The Suzuki Alto HA24 airbag control unit is typically located centrally in the vehicle, usually near the dashboard or center console, and is permanently mounted there. Its strategic position and robust electrical connections are crucial for reliable operation and successful Suzuki Alto HA24 airbag control unit repair.
It has a multi-plug connector that connects to crash sensors, steering wheel modules and belt tensioners.
A special feature is the possibility of repair by deleting crash data and reinitializing, which represents a more cost-effective alternative to expensive new purchases.
Before recommissioning after a Suzuki Alto HA24 airbag control unit repair, the system must always be checked for internal damage and correct function to ensure complete safety.
