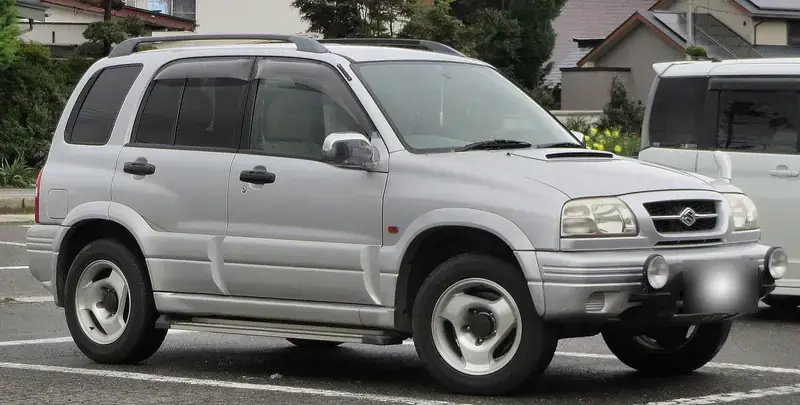

What is a Suzuki Escudo TD airbag control unit?
The Suzuki Escudo TD airbag control unit is the central safety unit that instantly activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It receives signals from impact sensors, stores relevant crash data, and ensures the precise function of all safety components to provide maximum occupant protection.
This module continuously receives signals from acceleration and impact sensors in the vehicle.
If defined thresholds are exceeded, for example due to a frontal or side impact, the airbags and belt tensioners are triggered.
Activation occurs through the ignition of gas generators that inflate the airbag with nitrogen or argon within milliseconds.
The control unit selectively monitors front and side impact scenarios and triggers only the required airbags and belt tensioners on the affected side.
After deployment, the airbags quickly collapse to make it easier for occupants to exit the vehicle.
Components may be hot after activation, and the released gases and talcum powder are harmless.
Why is the Suzuki Escudo TD airbag control unit defective?
A Suzuki Escudo TD airbag control unit can be defective because it permanently stores crash data after an accident, internal component failures occur due to aging or overvoltage, or software corruption impairs functionality. This often leads to the airbag warning light illuminating and the failure of the entire safety system.
Common causes of a defect are stored crash data after an accident, which block the module and make a **Suzuki Escudo TD airbag control unit repair** unavoidable.
Internal errors in the airbag control unit, such as those indicated by error codes B1055 or B1080, lead to a failure of the safety systems.
Power supply problems or internal watchdog errors, signaled by B1100 and B1120, can also cause a broken control unit.
A defective control unit significantly impairs occupant safety and requires professional diagnosis and repair in a qualified workshop.
Often, replacing or reprogramming the module is necessary to restore the function of the airbag system.
Common error codes for Suzuki Escudo TD airbag control unit repair
During a Suzuki Escudo TD airbag control unit repair, specific error codes often occur, indicating internal defects or communication problems within the control unit itself. These codes, such as B1055 or B1000, are crucial for an accurate diagnosis because they point directly to the airbag control unit, not to sensors or modules.
- B1000 → Control unit communication error → Problems in data transmission between the airbag ECU and other systems.
- B1055 → Airbag control unit internal error → A defect or malfunction inside the airbag control unit itself.
- B1080 → Internal memory error control unit → Damage or corruption of the memory in the airbag module, often after an accident.
- B1100 → Airbag control unit voltage supply error → Problems with the electrical power supply to the control unit.
- B1120 → Internal watchdog error (control unit reset) → The control unit has performed an internal reset, which indicates system instability.
These error codes indicate a failure of the control unit and require accurate diagnosis to initiate the correct **Suzuki Escudo TD airbag control unit repair**.
What part numbers are available for the Suzuki Escudo TD airbag control unit repair?
For the **Suzuki Escudo TD airbag control unit repair**, the OEM part numbers 38910-50J1 (Suzuki original) and 152300-6270 (OEM suppliers such as Bosch/Autoliv) are primarily relevant. These numbers guarantee exact compatibility with the Suzuki Escudo TD and Grand Vitara I models from approximately 1995-1999 and are crucial for replacement or repair.
Suzuki OEM part number 38910-50J1 identifies the original airbag control unit specifically designed for the first generation Suzuki Escudo TD and Grand Vitara.
The number 152300-6270 is a confirmed original replacement number from an OEM supplier, which also fits these vehicle models.
It is critical to use an exact part number when repairing or replacing the control unit to ensure full functionality and safety.
Please note that the airbag control unit is coded to the vehicle's specific vehicle identification number (VIN), which is why reprogramming is often necessary after a replacement.
For a successful **Suzuki Escudo TD airbag control unit repair**, it is recommended to contact specialized service providers who have expertise in programming and resetting these modules.
Refurbished or reprogrammable modules are cost-effective alternatives to buying a new one if your control unit is broken.
