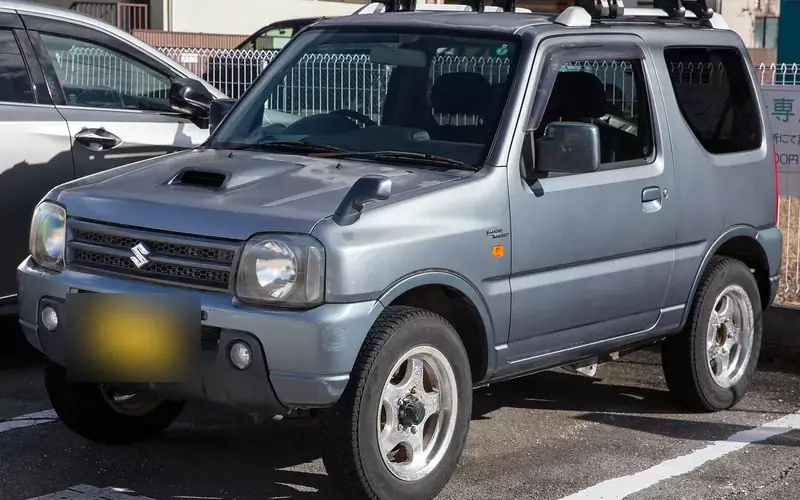

Suzuki Jimny JB23 airbag control unit repair

What is a Suzuki Jimny JB23 airbag control unit?

The Suzuki Jimny JB23 airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of a collision. It precisely monitors sensor data, stores important crash information, and ensures the proper functioning of all components of the Supplemental Restraint System (SRS) in your vehicle.

This essential component processes signals from deceleration sensors to assess the intensity of an impact.

If predefined thresholds are exceeded, the device triggers the appropriate airbags and seat belt pretensioners in milliseconds to protect the occupants.

The control unit has an OBD interface for diagnostics, which allows reading errors and resetting crash data, which is essential for a professional Suzuki Jimny JB23 airbag control unit repair.

Why is the Suzuki Jimny JB23 airbag control unit defective?

A Suzuki Jimny JB23 airbag control unit can be defective because it stores crash data after an accident, causing it to lock. A reset or reprogramming is then necessary to restore full functionality of the safety system. Age-related wear and tear or electrical problems can also lead to failures, causing the airbag warning light to stay permanently illuminated and the system to be deactivated.

A typical reason for a defect is an impact that locks the control unit internally and prevents it from continuing to function.

The stored crash data requires a specialized reset to make the device operational again.

Other causes of malfunction that may require a Suzuki Jimny JB23 airbag control unit repair include internal electronics defects or power supply issues, which can be diagnosed via the OBD interface.

Common error codes for Suzuki Jimny JB23 airbag control unit repair

During Suzuki Jimny JB23 airbag control unit repairs, specific error codes may occur that indicate problems with the control unit itself and can be read via the OBD interface. These codes indicate, for example, communication problems, high resistance in the driver airbag circuit, or faulty ground connections, which require detailed diagnosis and professional repair to ensure safety.

• B1000 → Control unit communication error → Communication failure between airbag ECU and diagnostic device.
• B1021 → High resistance in the driver airbag driver circuit → Open circuit or break in the wiring to the driver airbag.
• B1923 → Memory Clear Circuit Improperly Grounded → Internal problem of the control module or faulty ground connection.

These codes are crucial for accurate diagnosis and successful Suzuki Jimny JB23 airbag control unit repair.

Reading these error codes is the first step in restoring the full functionality of the airbag system.

What part numbers are available for the Suzuki Jimny JB23 airbag control unit repair?

For the Suzuki Jimny JB23 airbag control unit repair, two exact OEM part numbers are primarily relevant, ensuring 100% compatibility with the vehicle series. These original Suzuki numbers, 38910-81A10-93C56 and 38910-81AD0, have been verified as genuine parts and serve as an important reference for replacing or professionally repairing the airbag module, as no equivalent alternative manufacturer parts exist.

Part number 38910-81A10-93C56 is a frequently cited and verified OEM number for the airbag module of the Suzuki Jimny JB23.

Another confirmed OEM part number is 38910-81AD0, which is also directly suitable for the JB23 series of the Jimny and is listed in official parts catalogs.

These specific original part numbers are crucial for a successful Suzuki Jimny JB23 airbag control unit repair as they guarantee compatibility and correct function in the vehicle.
