What is a Suzuki SX4 S-Cross airbag control unit?
The Suzuki SX4 S-Cross airbag control unit is the central safety unit that activates all occupant restraint systems, such as airbags and seatbelt pretensioners, in the event of an accident. It monitors sensors, stores crash data, and ensures the proper functioning of all airbag modules in the vehicle, which is crucial for safety.
This module, also called the SRS control unit, coordinates the deployment of the airbags at lightning speed based on data provided by impact sensors. Proper functioning is essential to provide the best possible protection for occupants in collisions.
It is the control center of the passive safety system and often needs to be repaired or reset after deployment to restore full functionality of the Suzuki SX4 S-Cross airbag control unit.
Why is the Suzuki SX4 S-Cross airbag control unit defective?
A Suzuki SX4 S-Cross airbag control unit is often defective because it stores crash data after an accident that blocks normal function, or due to internal hardware/software errors that disrupt communication or self-diagnosis and cause failure.
The most common reason for a faulty airbag control unit is the storage of crash data after an airbag deployment. This data prevents the system from being restarted until a professional reset is performed.
Other causes of failure can include internal electronic faults, voltage spikes, or age-related material fatigue. Such defects often cause the airbag warning light to stay on, necessitating diagnostics.
In many cases, a repair is a cost-effective alternative to replacing the entire module and corrects the underlying causes of the Suzuki SX4 S-Cross airbag control unit's failure.
Common error codes for Suzuki SX4 S-Cross airbag control unit repair
Common error codes in Suzuki SX4 S-Cross airbag control unit repairs directly indicate problems within the control unit itself, such as internal defects, communication problems, or memory errors that require immediate diagnosis.
- B1000 – Control Unit Communication Error: Indicates a faulty data connection of the airbag ECU.
- B1001 – Internal Memory Error: A problem in the airbag control unit’s internal data memory, often after a crash.
- B1010 – Power supply interrupted: The airbag control module is not receiving sufficient or no power.
- B1020 – Ground Fault: A faulty ground connection in the airbag control module circuit.
- B1030 – Self-test error: The airbag control module could not successfully complete its internal self-test.
- B1040 – EEPROM Error: Problems with the non-volatile memory (EEPROM) in the airbag control module.
- B1050 – Hardware Error: A generic error indicating a physical defect within the airbag control module.
- B1060 – Software Inconsistency: Inconsistencies or corruption in the internal software of the airbag control unit.
- B1070 – Data bus communication error: There is a problem with the control unit communicating via the vehicle data bus.
These specific B-codes indicate that the problem originates directly from the control unit itself and not from connected sensors or airbags. A precise diagnosis is the first step to a successful Suzuki SX4 S-Cross airbag control unit repair.
What part numbers are available for the Suzuki SX4 S-Cross airbag control unit repair?
When repairing the Suzuki SX4 S-Cross airbag control unit, matching part numbers is crucial to ensure correct compatibility, as various OEM and Bosch numbers have been verified for this model year.
- Suzuki OEM: 38910-54L00
- Suzuki OEM: 38910-80J40
- Suzuki OEM: 38910-61M50
- Suzuki OEM: 38910-61M01
- Bosch supplier: 5WK44107-95640
- Bosch supplier: 5WK43636C

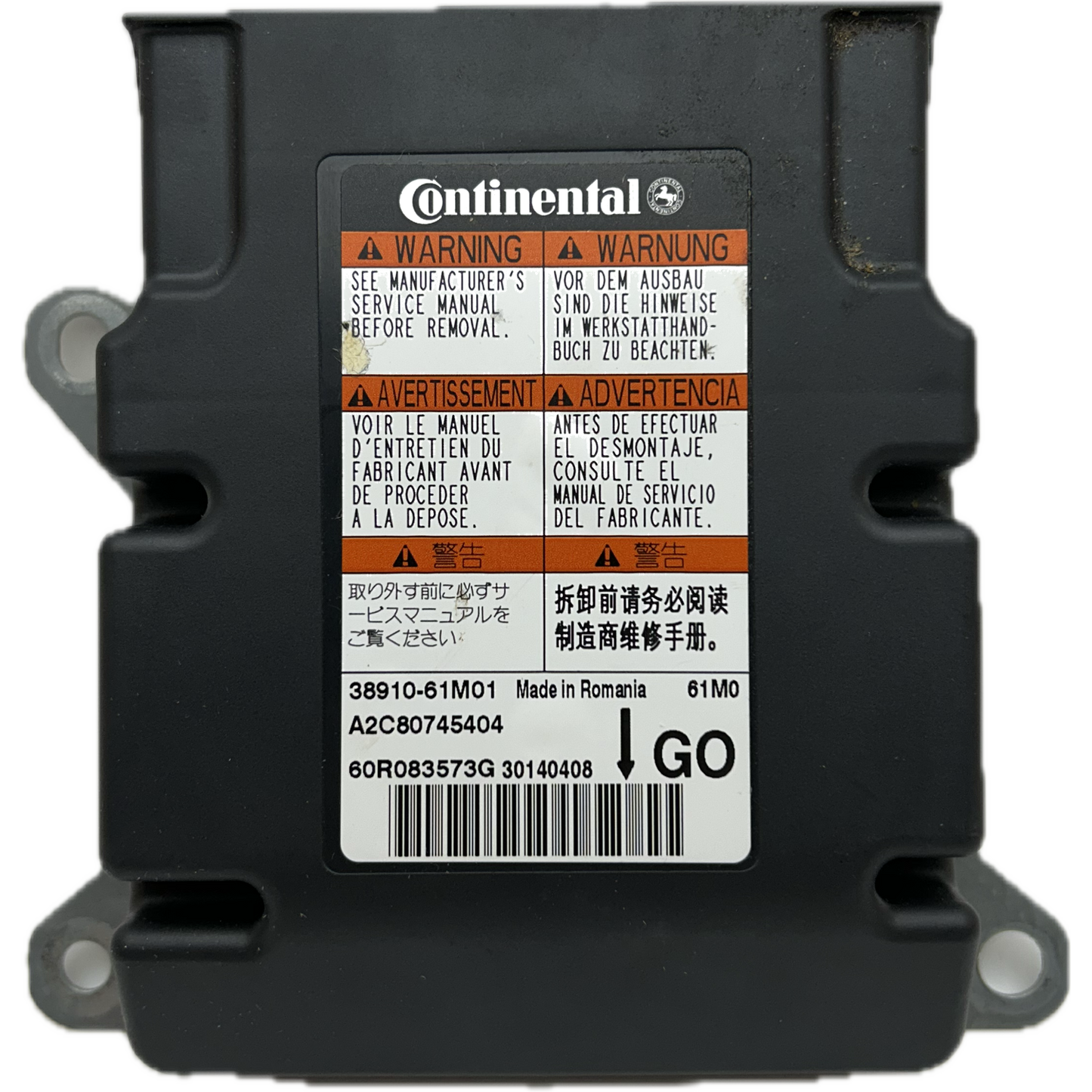

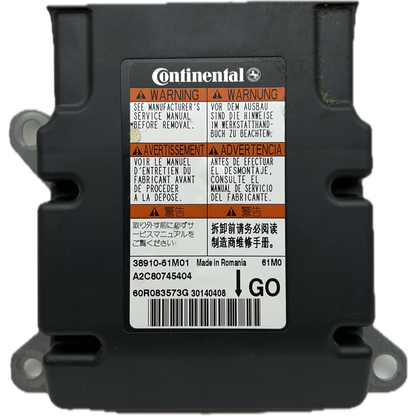

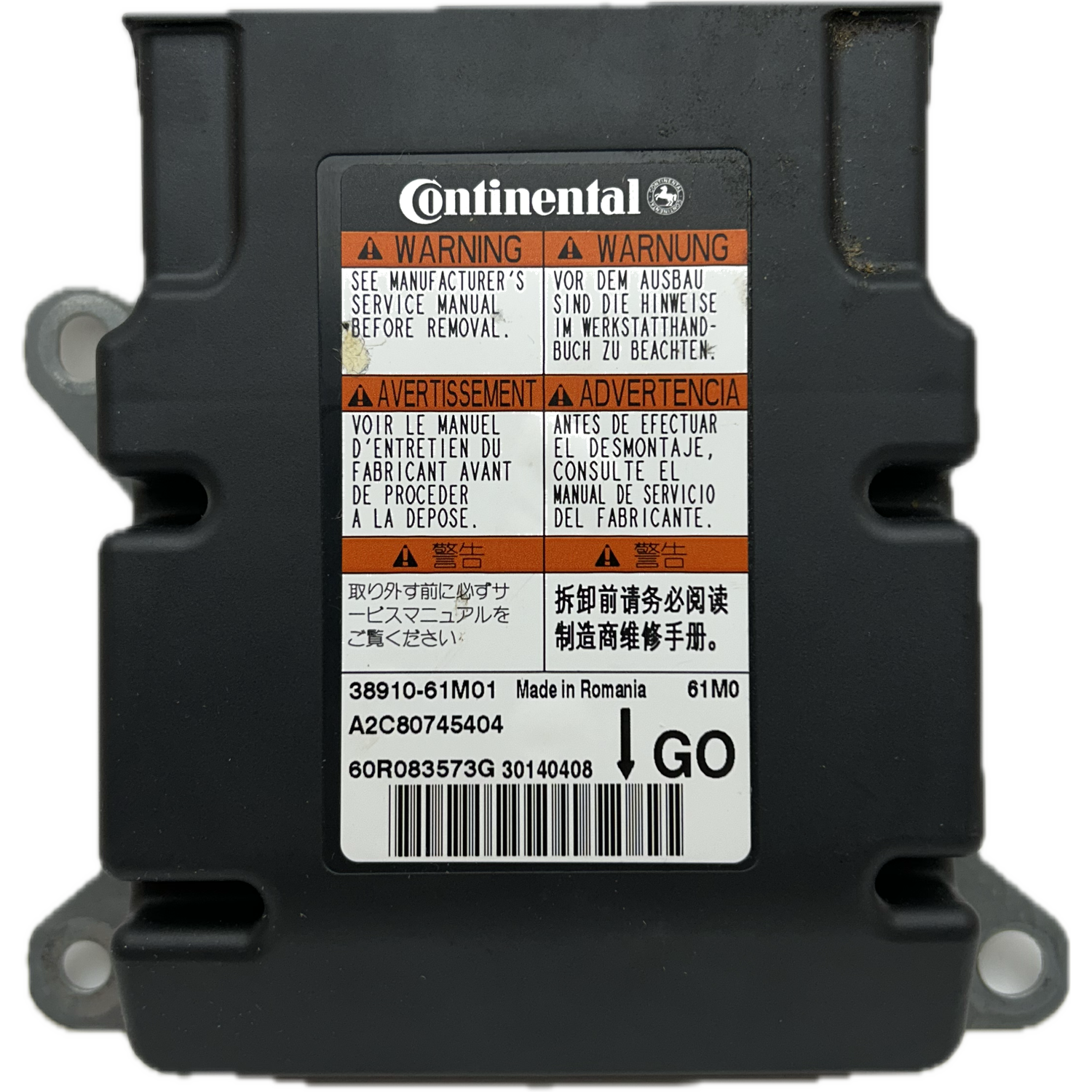

These precisely verified OEM part numbers are relevant for the Suzuki SX4 S-Cross airbag control unit (model JY, approximately 2013-2016). They ensure that any replaced or repaired module is fully compatible.
A precise comparison with the number on your original control unit is essential before any repair or purchase. This minimizes the risk of malfunctions and ensures the safety of the system.
Please note that after resetting or replacing the airbag control unit, specific programming to the vehicle's VIN is often required. Always have this sensitive task performed by professionals.
