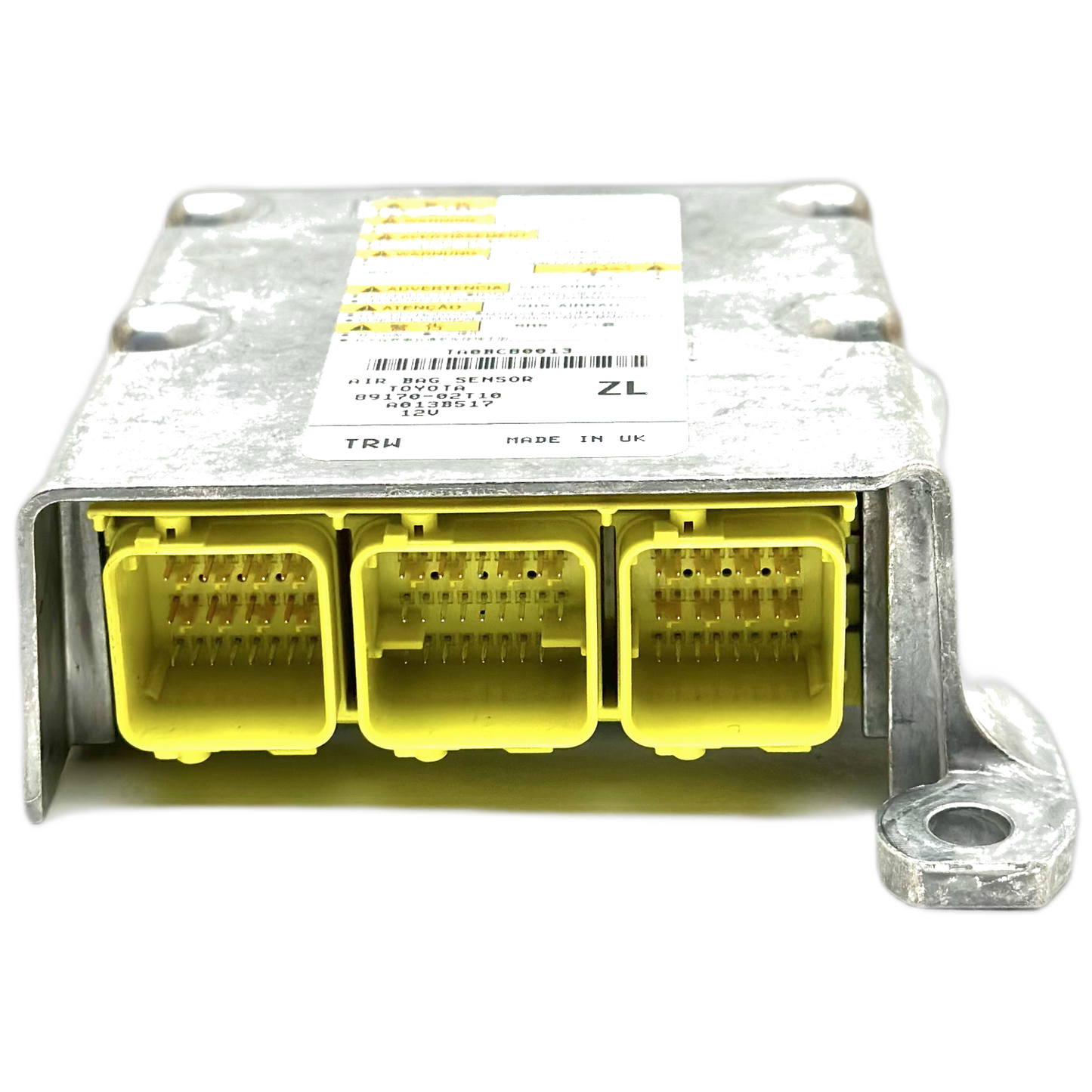

What is a Toyota Corolla E210 airbag control unit?
The Toyota Corolla E210 airbag control unit is the vehicle's central safety unit, activating all occupant restraint systems in the event of an accident. It continuously processes signals from impact and acceleration sensors, stores relevant crash data, and ensures the precise and timely deployment of the airbags and seatbelt pretensioners to maximize occupant safety.
This electronic control unit, often referred to as the SRS-ECU, continuously monitors the status of the entire airbag system. Proper functioning is crucial for the passive safety of the Toyota Corolla E210.
It is primarily responsible for detecting collisions and initiating passive safety systems. The module also communicates with other vehicle systems and stores relevant diagnostic data.
Why is the Toyota Corolla E210 airbag control unit defective?
A Toyota Corolla E210 airbag control unit often fails because it stores crash data after an accident that needs to be erased, or internal electronic components fail due to overvoltage or aging. A defect can also manifest itself as sporadic warning lights or communication errors, requiring professional Toyota Corolla E210 airbag control unit repair.
After an impact, the control unit stores indelible crash data, resulting in the system locking. This is a common reason why a repair or reset of the module is necessary.
Even without an accident, components can wear out over time or be damaged by electrical problems. The airbag warning light will then illuminate continuously on the dashboard, signaling a necessary replacement or diagnosis.
In such cases, a professional workshop with specialized tools is essential for repairs to restore the system's security. Such repairs are often more cost-effective than purchasing a new one.
Common error codes for Toyota Corolla E210 airbag control unit repair
During Toyota Corolla E210 airbag control unit repair, specific error codes occur that directly indicate problems with the ECU and require detailed diagnosis. These codes often signal an internal defect, communication failure, or short circuit within the control unit or its primary circuits.
Identifying these codes is the first step toward successfully repairing and restoring system functionality. Correct interpretation helps pinpoint the failure.
After an accident, error code B1100 often indicates a defective or blocked system. This must be professionally cleared.
- B1100 → Signals defect or communication error → The cause is often internal damage or stored crash data.
- B1000 → Indicates a general communication error → The reason is often a faulty connection to the vehicle's electrical system.
- B0108 → Reports short circuit in the passenger airbag ignition circuit → Caused by a problem in the monitored circuit of the control unit.
What part numbers are available for the Toyota Corolla E210 airbag control unit repair?
For Toyota Corolla E210 airbag control unit repairs, the OEM part numbers 89170-0F150 and 89170-02N50 are primarily relevant, as they have been directly validated for the E210 series. An exact part number match is crucial to ensure the correct compatibility and function of the replacement or repair part.
Part number 89170-0F150 is frequently mentioned in repair quotes for the Corolla E210. Part number 89170-02N50 is suitable for newer models of the Corolla series around 2019.
It's important to note that other numbers, such as 89170-12160, are for older Corolla models and are not suitable for the E210. The number 73960-02310 is also not a control unit part number, but refers to an airbag unit.
Because Toyota Corolla E210 airbag control units are VIN-coded, specific programming to the vehicle is always required after a repair or replacement. This must be performed by a qualified workshop with appropriate diagnostic equipment.
